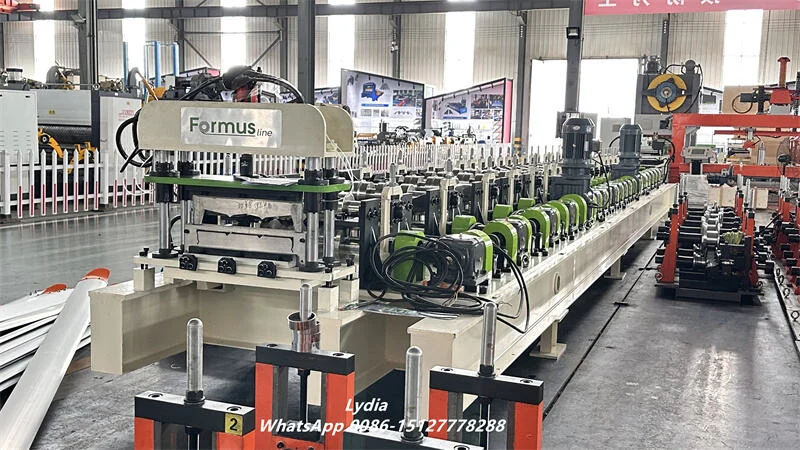

The Sound Barrier Panel Roll Forming Machine provides an efficient solution for manufacturers that produce metal acoustic panels, highway noise barriers, railway sound insulation panels, and industrial soundproofing systems. The production line converts metal coils into accurately formed panels through a coordinated process that can include decoiling, leveling, perforating, roll forming, and automatic cutting.

As infrastructure projects continue to expand around the world, controlling traffic and industrial noise has become increasingly important. Therefore, manufacturers need production equipment that can deliver consistent panel dimensions while maintaining high output. Zhongtuo's noise barrier panel forming machine combines continuous forming technology with automatic control to help manufacturers produce reliable acoustic barrier components with less manual intervention.

The line can process materials such as galvanized steel, aluminum, and carbon steel, while the tooling and production configuration can be adjusted according to the required panel profile, thickness, width, and perforation pattern.

Sound Barrier Panels for Highway, Railway, and Industrial Noise Control

Sound barrier panels play an important role in modern environmental noise management. Engineers commonly install them along highways, expressways, railway lines, bridges, elevated roads, and areas surrounding industrial facilities. In addition, contractors can use acoustic panels around residential communities and other locations where traffic or mechanical noise needs to be controlled.

Manufacturers typically combine a perforated metal outer panel with an internal sound-absorbing layer, such as mineral wool or glass wool. The perforations allow sound energy to enter the absorption material, while the metal structure provides mechanical protection and weather resistance. As a result, the finished system can provide both acoustic functionality and durable outdoor performance.

Depending on the project, the acoustic panel roll forming machine can manufacture different panel configurations. For example, manufacturers may select perforated panels for sound absorption applications or closed profiles for reflective noise barrier systems. This flexibility makes the equipment suitable for a wide range of noise-control projects.

Automatic Production Process for Acoustic Barrier Panels

The sound barrier panel production line starts with a metal coil and completes the main forming operations automatically. First, the decoiler releases the coil at a controlled speed. Next, the leveling and feeding unit straightens the strip and maintains stable material feeding. This step helps the punching and forming systems maintain consistent accuracy throughout production.

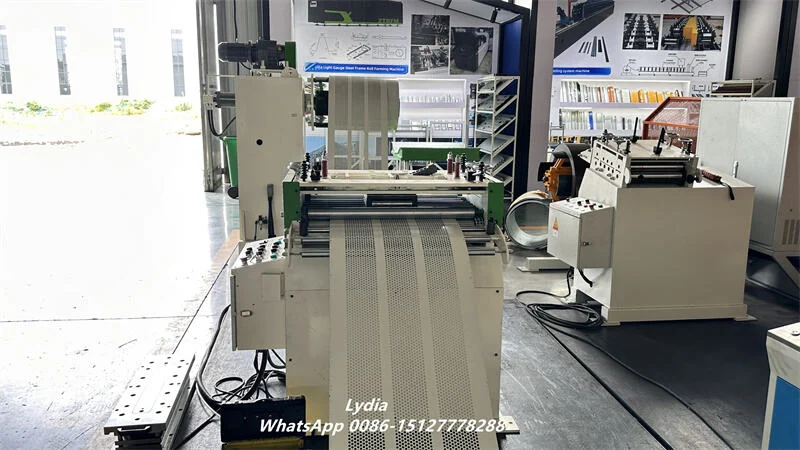

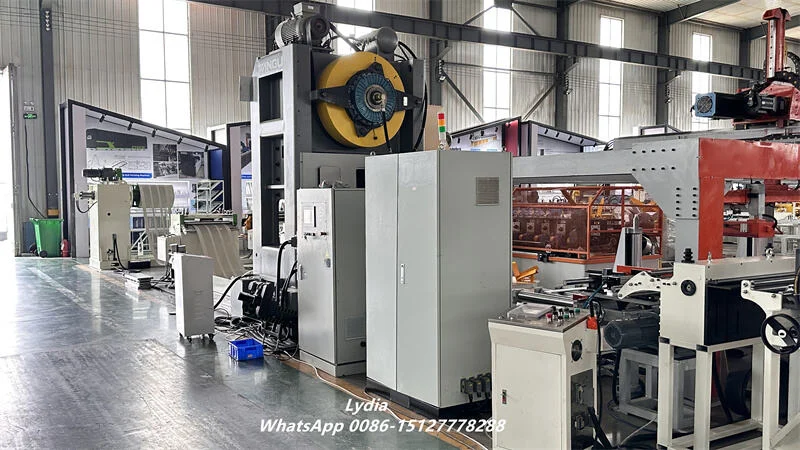

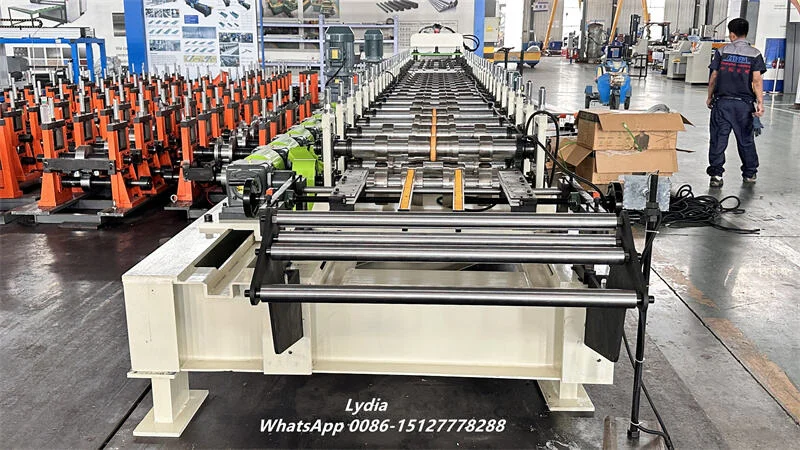

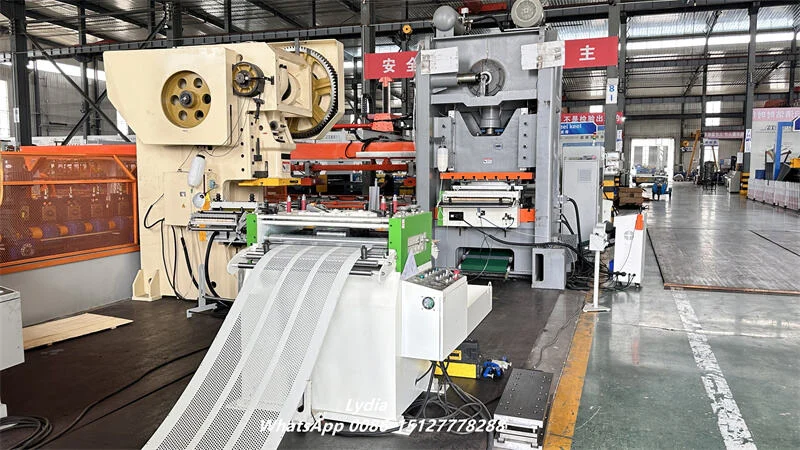

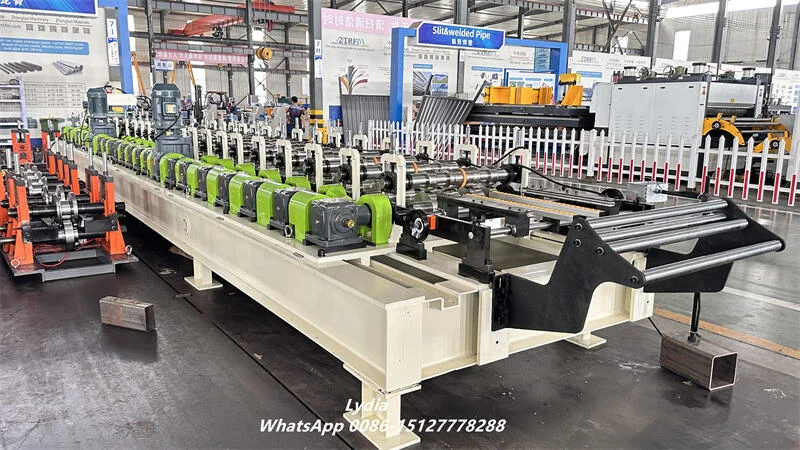

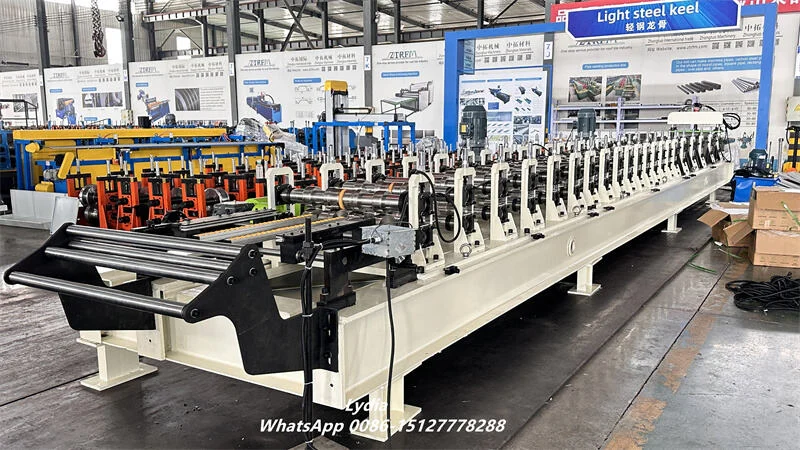

After leveling, the punching system creates the required perforation pattern. Manufacturers can specify hole diameter, spacing, and layout based on the acoustic panel design. Then, the strip enters the roll forming section, where multiple forming stations gradually shape the material into the required profile rather than forcing the entire shape in one operation.

Finally, the cutting system separates the continuously formed profile into predetermined lengths. The finished panels can then move to collection, stacking, or subsequent acoustic assembly processes.

Typical workflow:

Coil Loading → Decoiling → Leveling → Servo Feeding → Perforation → Roll Forming → Hydraulic/Servo Cutting → Panel Collection

This continuous workflow reduces unnecessary handling and allows manufacturers to maintain a more stable production rhythm. Furthermore, PLC control enables operators to monitor the production process and adjust key parameters through the touchscreen interface.

Sound Barrier Panel Roll Forming Machine Technical Specifications

The following parameters represent a typical configuration. Because sound barrier projects often use different profiles and materials, Zhongtuo can modify the machine according to customer drawings and production requirements.

Item	Reference Specification
Machine Type	Sound Barrier Panel Roll Forming Machine
Processing Materials	Galvanized Steel, Aluminum, Carbon Steel
Material Thickness	0.8–1.0 mm, customizable
Material Width	Around 800 mm, customizable
Main Frame	350H Structural Steel
Forming Stations	18 Stations
Drive Method	1.0-Inch Chain Drive
Forming Speed	Approximately 10–15 m/min
Control System	PLC + Touchscreen
Punching System	Customized Automatic Punching Unit
Cutting Method	Hydraulic or Servo Cutting
Production Mode	Automatic Continuous Production

The actual machine configuration depends on the panel drawing, coil specifications, perforation requirements, target production speed, and finished panel dimensions. Therefore, customers can provide their profile drawings before production so that engineers can select appropriate rollers, punching tools, and cutting systems.

Key Benefits of the Acoustic Panel Roll Forming Machine

The noise barrier panel machine helps manufacturers improve production efficiency while maintaining consistent product quality. Because the forming process runs continuously, the operator does not need to manually shape every panel. Instead, the machine automatically performs the major production steps, which reduces labor requirements and improves production consistency.

Another important advantage comes from forming accuracy. The rollers gradually shape the metal strip and maintain the required profile dimensions throughout the production cycle. Consequently, manufacturers can obtain panels with consistent widths, heights, edges, and structural characteristics.

Moreover, the production line offers considerable design flexibility. Engineers can develop different roll tooling configurations for different panel profiles, while the punching section can accommodate customized hole patterns. The line can also integrate hydraulic or servo cutting, automatic stacking, edge forming, and other functions when required.

Material flexibility further expands its applications. The machine can process galvanized steel coils, aluminum coils, and carbon steel coils, allowing manufacturers to select suitable materials according to environmental conditions, structural requirements, and project budgets.

Most importantly, automation helps manufacturers control operating costs. The continuous production method reduces repetitive manual work and minimizes unnecessary material handling. Over time, this can improve overall productivity and make large-volume sound barrier production more economical.

Customized Noise Barrier Panel Production Solution

Every acoustic barrier project has different technical requirements. For this reason, Zhongtuo does not limit the soundproof wall panel roll forming machine to one standard profile. Instead, the production line can be engineered around the customer's finished panel design.

Customization may include panel width and thickness, profile geometry, perforation hole size and arrangement, edge folding, panel length, and cutting method. In addition, manufacturers can integrate automatic stacking or collection systems when they need to increase production efficiency after forming.

For projects using colored or coated materials, the forming system can also be configured to protect the surface finish during production. Engineers select suitable roller materials, forming passes, and machine parameters based on the raw material and profile geometry.

Before manufacturing, customers can provide CAD drawings, finished panel samples, or detailed dimensions. Our engineers then evaluate the design and develop the appropriate forming tooling and production configuration. As a result, the finished line can better match the customer's actual production requirements rather than relying on a generic machine configuration.

Ultimately, the Sound Barrier Panel Roll Forming Machine gives manufacturers a practical way to produce perforated acoustic panels, highway noise barriers, railway sound insulation panels, and industrial noise-control components at scale. With continuous forming, automatic punching, precise cutting, and customizable tooling, the machine supports stable production while reducing manual processing.

For manufacturers planning to expand their acoustic panel production line or establish a dedicated noise barrier panel manufacturing facility, a customized roll forming solution can provide a strong foundation for efficient and consistent production.
