The Solar Mounting System Profile Production Line runs one profile family end to end — roll forming, tracking punching, logo embossing, cutting to length and automatic stacking. It produces the 41.3 mm bottom-width mounting profiles in three side heights: 41.3 × 21.3 mm, 41.3 × 41.3 mm and 41.3 × 62 mm, formed from 1.5–2.5 mm steel strip. The solar mounting machine opens and closes automatically under PLC control to match the profile size, so changing from a 41.3 × 21.3 profile to a 41.3 × 62 profile is a program change on the touch screen instead of a manual width reset by the operator. Tracking punching follows the moving profile, keeping hole positions accurate without stopping the line, and the embossing unit marks your company logo directly on the profile — your brand arrives on every rail your customer installs.Line speed is 20 m/min.
Working Process
- Coil loading and uncoiling
- Roll forming — 27 forming stations roll 1.5–2.5 mm steel strip into the profile. Bottom width 41.3 mm with side height [21.3 / 41.3 / 62] mm per program.

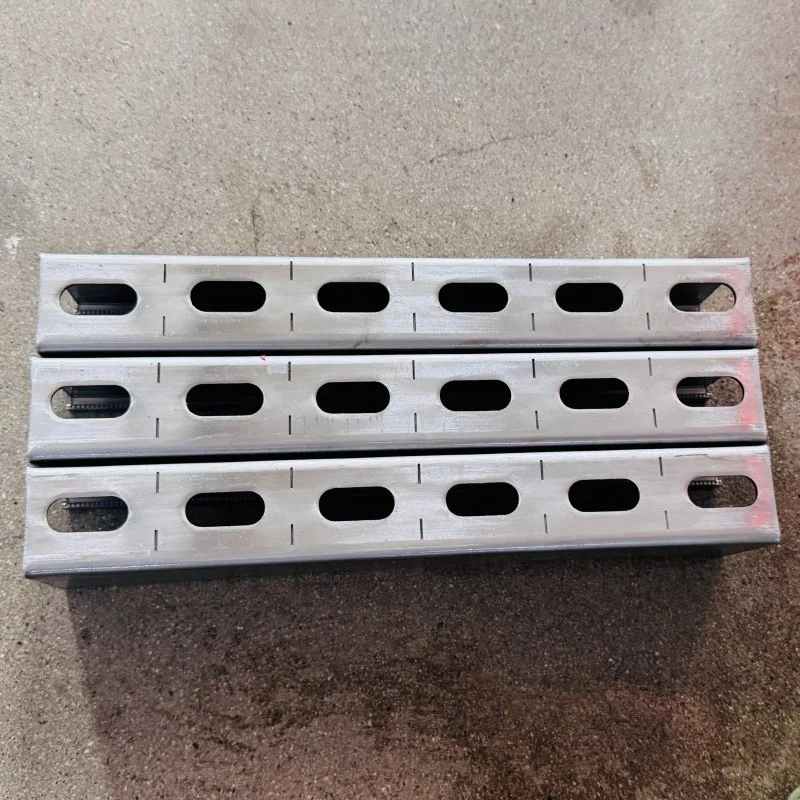

- Tracking punching — the punch unit travels with the moving profile (servo tracking punch) and punches [hole pattern] on the fly, so hole positions and spacing stay accurate without stopping the line.
- Logo embossing — the embossing unit presses your company logo into the profile surface (embossing roller), so the finished rail carries your brand.
- Cut to length — tracking shear cuts the profile to the length set on the PLC.
- Automatic stacking
Why Buyers Choose This Line
Three profile heights and one thickness range, one line. 41.3 × 21.3, 41.3 × 41.3 and 41.3 × 62 profiles all run on the same machine with the same 41.3 mm bottom width, formed from 1.5–2.5 mm steel strip — one line covers the profile range your customers order, instead of one machine per size, and the same line handles the light and heavy gauges in that range.
Size change by program, not by hand. The stacking machine opens and closes automatically under PLC control, so switching profile size is a program selection on the touch screen. Manual channel adjustment, measuring and re-setting are removed from the changeover — changeover time drops to about 15 minutes.
Punching without stopping the line. The tracking punch travels with the profile and punches on the move, so hole positions stay consistent at line speed and the line does not accelerate and stop for every hole.
Your logo on every profile. The embossing unit marks your company logo into the profile, so the rails carry your brand into the customer's installation — a permanent marketing surface that costs nothing per part.

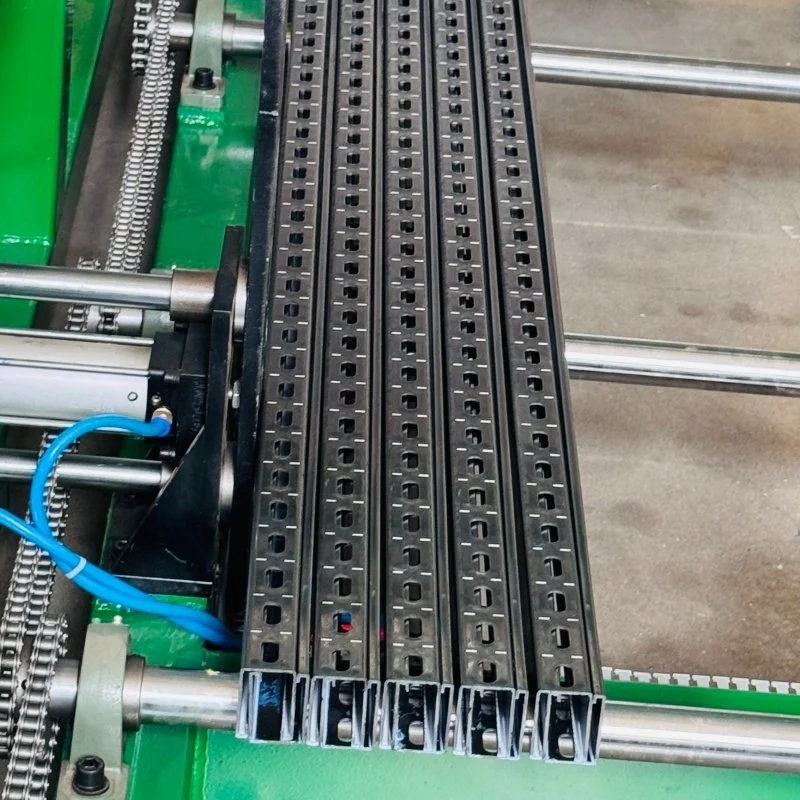

Stacking that keeps up with the line. Motorized stacking with automatic sequencing: profiles are squared and stacked at line speed, so the stacker is not the bottleneck at the end of the line.
Technical Specifications
Profile range (locked from your brief)
| Profile | Bottom width | Side height | Material thickness |
|---|---|---|---|
| Profile A | 41.3 mm | 21.3 mm | 1.5 – 2.5 mm |
| Profile B | 41.3 mm | 41.3 mm | 1.5 – 2.5 mm |
| Profile C | 41.3 mm | 62 mm | 1.5 – 2.5 mm |
Applications
- Solar mounting system and PV racking manufacturers — mounting rails and base profiles
- Solar ground mount and roof mount system profile production
- Strut channel and support profile producers (41 series profile family)
- Metal profile and cold-formed section manufacturers running multiple profile sizes on one line
- Cable tray, support rail and light structural profile production
- Profile producers who want their own logo embossed on the finished profile
Service and Support
Warranty: Includes a 12-month warranty covering design and manufacturing quality, as well as lifetime service support.
Installation and Commissioning: On-site installation and commissioning by an engineer are available upon request. The client is responsible for the engineer's round-trip airfare and a daily wage of $100 USD.

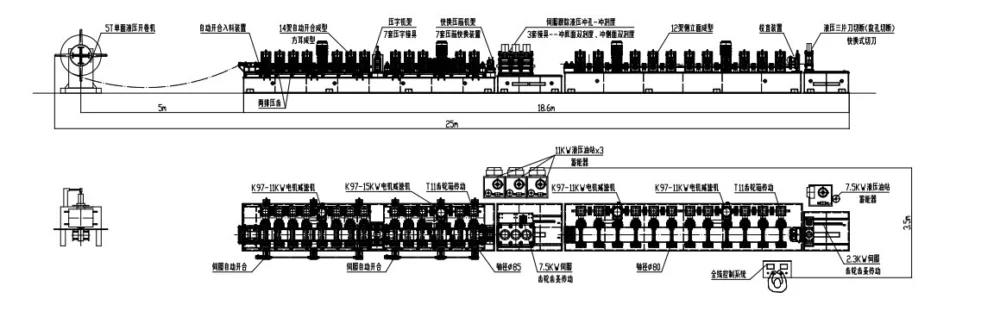

Documentation Provided: Electrical schematics, pneumatic/hydraulic schematics, production line layout, foundation drawings, and a complete set of operation manuals.
FAQ
Q1: What profile specifications can this production line manufacture? It produces profiles with a base width of 41.3 mm and side heights of 21.3 mm, 41.3 mm, or 62 mm, using steel strips with a thickness of 1.5–2.5 mm. Other dimensions within the equipment's capacity can also be customized—please confirm the profile drawings before ordering.
Q2: How do I switch between different profile specifications? Under PLC control, the stacker automatically adjusts its width, and the profile program is selected via the touchscreen; no manual channel adjustment is required. The specification changeover takes approximately 15 minutes.
Q3: Can the production line perform punching without stopping? Yes. The flying punching unit operates synchronously with the moving profile, ensuring precise hole positioning while the line is running, so there is no need to stop for each hole.
Q4: Can our company logo be embossed on the profiles? Yes. An embossing unit can imprint your company logo onto the profiles. Please provide the logo file and required dimensions; we will confirm the design of the embossing roller or die before production begins.
Q5: What is the stacking capacity of the equipment? It features an automatic material alignment function. Please inform us of your packaging and bundling requirements so we can confirm the layout plan.
Q6: What is the delivery time? Is OEM supported? 90 days after receiving the deposit and confirming the drawings. OEM/ODM services are supported—profile dimensions, hole patterns, logo designs, automation levels, and branding can all be customized.
