Slotted Track Line – 2-1/2″ to 10″ Slotted Deflection Track Roll Forming Machine
Deep Leg Head-of-Wall Framing Machine Running Project in Canada
In modern light gauge steel framing, accommodating structural movement at the head-of-wall is a mandatory engineering requirement. Slab deflection, roof live loads, and seismic drift all create vertical and horizontal movement that must be absorbed without transferring stress into wall studs.
The Zhongtuo Slotted Track Line is specifically designed to manufacture high-precision slotted deflection tracks for North American framing systems. The line supports multiple web sizes, deep leg options, and a wide thickness range, ensuring compliance with commercial and high-rise building standards.
Advantages of the Zhongtuo Slotted Track Line
Investing in a dedicated slotted track production line provides manufacturers with:
- High-precision slot forming
- Wide size adjustability (2-1/2″–10″)
- Deep leg production capability
- Broad thickness coverage
- Reduced field installation issues
- Compliance with North American standards
With one adjustable system, producers can serve both commercial interior framing markets and heavy structural wall applications.

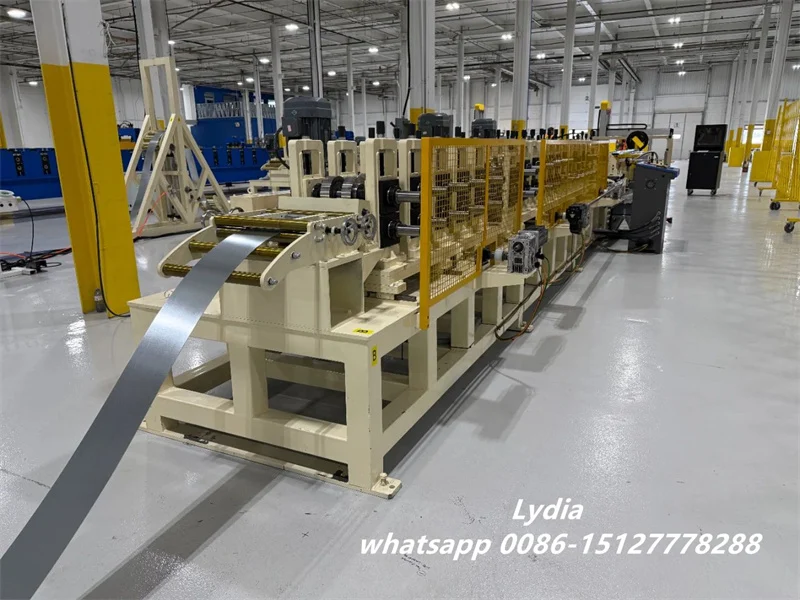

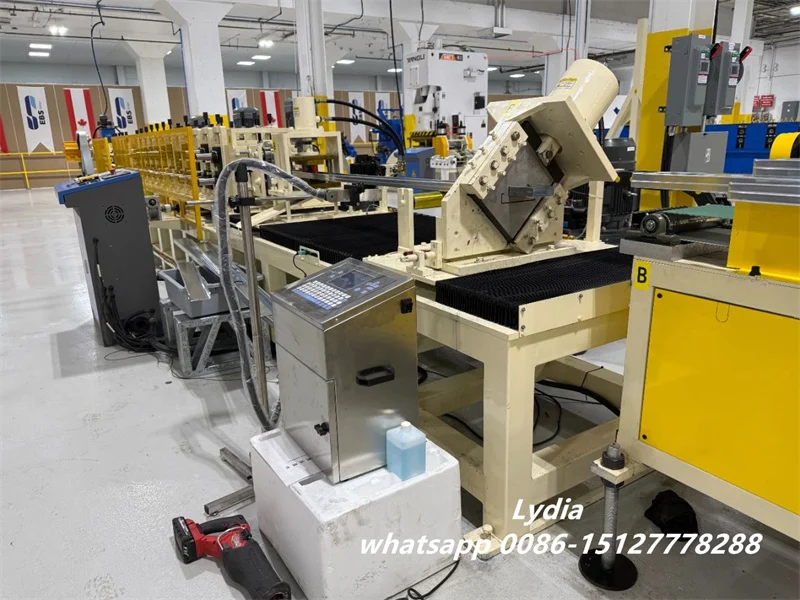

Slotted track line for 2-1/2″ to 10″ slotted deflection track production
Main Line Configuration
The equipment is engineered for stable, continuous production and long service life.
| Equipment | Specification |
|---|---|
| Hydraulic Decoiler | 3T capacity, automatic expansion |
| Feeding & Leveling | Precision servo feeding system |
| Roll Forming Stations | 14–18 stations (depending on profile size) |
| Roller Material | Cr12 steel, heat-treated |
| Main Shaft | 40Cr steel, quenched |
| Slot Punching System | Integrated precision punching module |
| Cutting System | Flying hydraulic cut-off |
| Length Tolerance | ±1.0 mm |
| Control System | Motion tracing controller with servo synchronization |
| Touch Screen | 7″ color HMI |
| Power Supply | 380V / 50Hz / 3 Phase (customizable) |

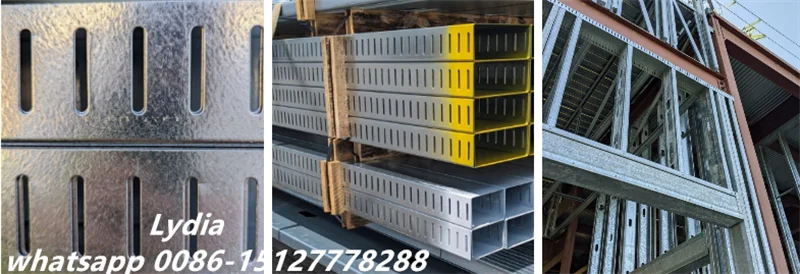

Why Slotted Deflection Tracks Are Critical

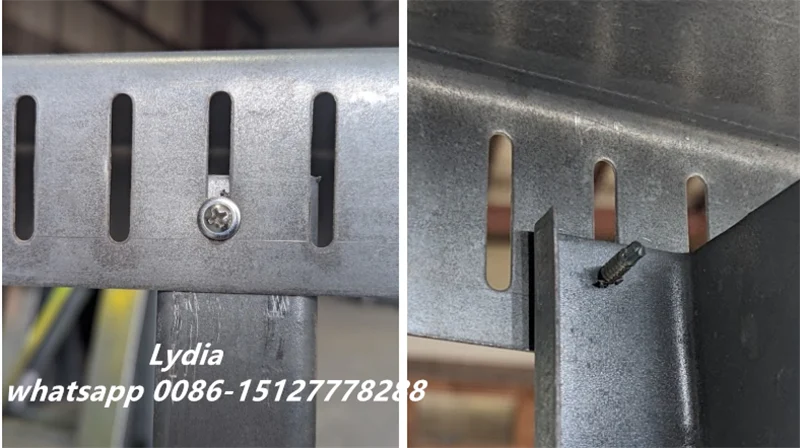

Unlike conventional tracks, slotted deflection tracks allow studs to move vertically within the track legs. This “floating” mechanism isolates building movement at the top of the wall instead of transferring loads into the framing system.
Key benefits include:
- Preventing gypsum board cracking
- Reducing stud distortion
- Improving long-term wall stability
- Meeting structural code requirements
For projects exposed to seismic forces or wind-induced drift, optional slot configurations can also accommodate horizontal movement, making the system suitable for performance-driven construction.

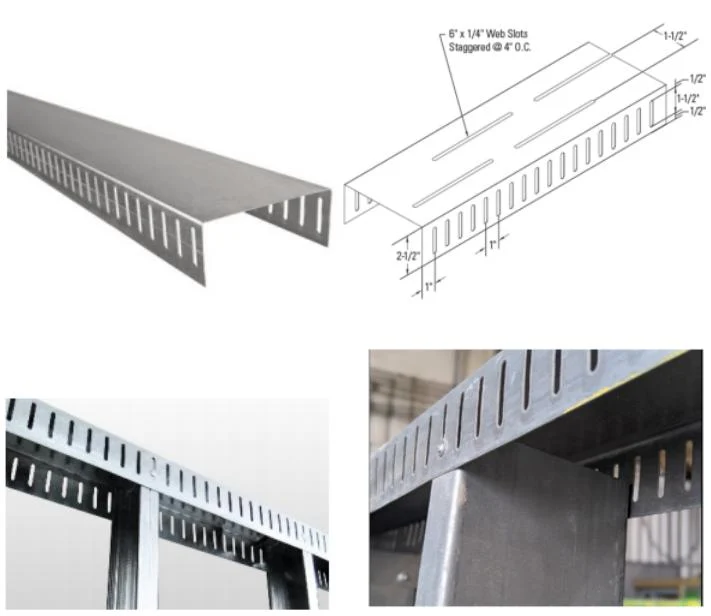

Deep leg slotted deflection track 3 inch leg profile

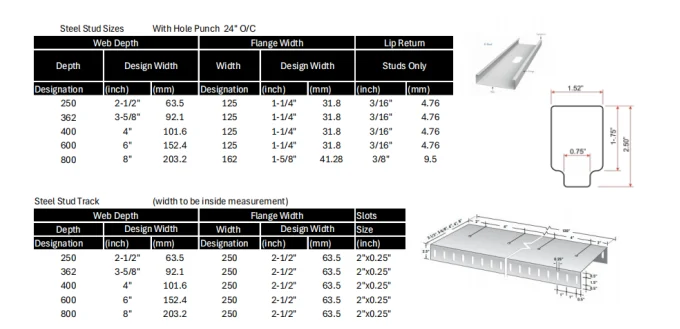

Profile Size Capability
The Zhongtuo Slotted Track Line is adjustable and supports a wide range of web widths and leg heights.
Supported Web Widths
- 2-1/2″
- 3-5/8″
- 6″
- 8″
- 10″
Leg Height Options
- 2-1/2″ leg
- 3″ leg
This configuration allows manufacturers to produce both standard and deep-leg slotted tracks using a single roll forming platform.
Thickness Range
The line supports steel thickness from:
0.018″ to 0.068″
This range covers common commercial non-structural framing as well as heavier structural applications used in high-rise and institutional buildings.
Movement Performance Capability
Depending on leg depth and slot geometry, finished slotted tracks can accommodate:
| Movement Type | Performance Range |
|---|---|
| Vertical Deflection (Standard) | Up to ±3/4″ |
| Vertical Deflection (Deep Leg) | Up to ±1″ |
| Horizontal Drift (Optional 2D Version) | Up to ±2″ |
By adjusting slot length and spacing, manufacturers can offer different movement capacities while using the same production line.
Integrated Slot Forming Technology
Slot precision is essential for structural performance. The Zhongtuo Slotted Track Line integrates a synchronized punching module directly into the roll forming process to ensure:
- Accurate slot spacing
- Smooth slot edges with minimal burrs
- Consistent alignment
- Stable high-speed production
The slot pattern can be customized based on project specifications or regional framing requirements.

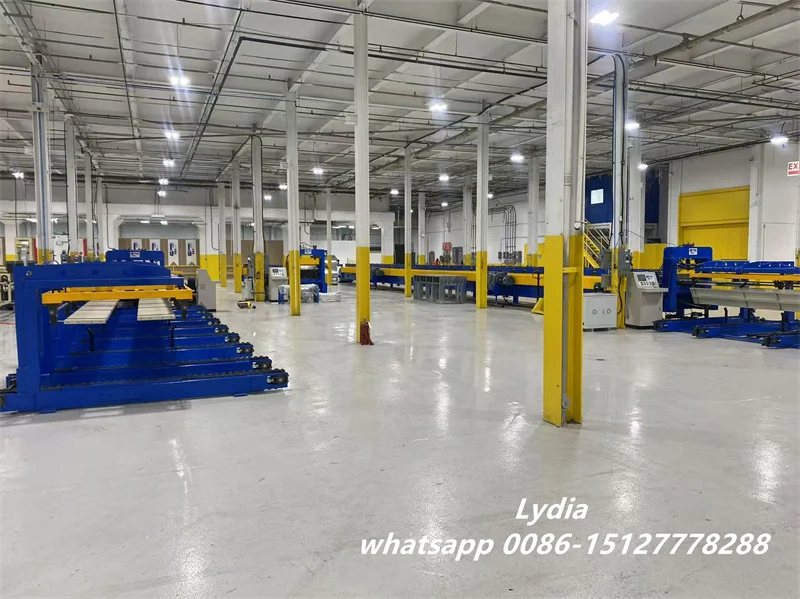

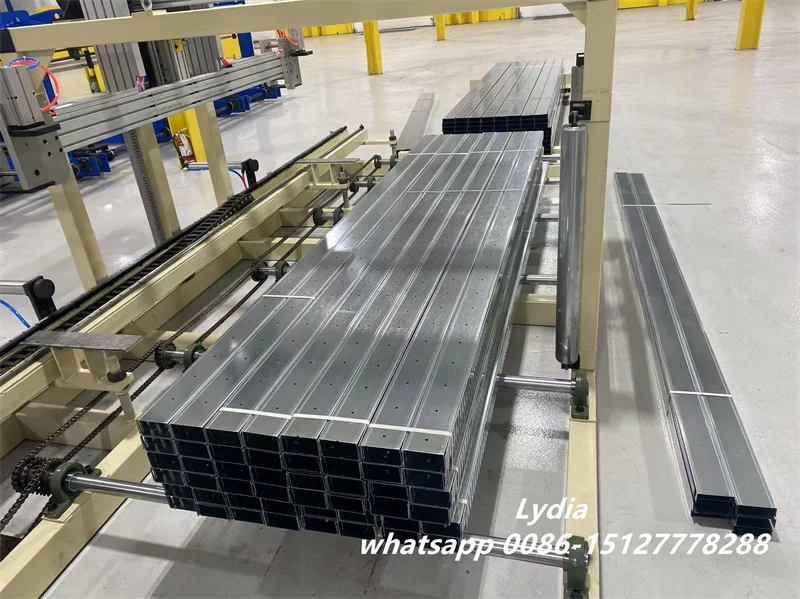

Slotted track roll forming machine running in Canada factory
Project Reference – Running in Canada
The Zhongtuo Slotted Track Line is currently operating successfully in Canada, delivering stable forming performance and precise slot control. The machine demonstrates consistent profile accuracy across multiple sizes and thicknesses, meeting local framing requirements and contractor expectations.
The Slotted Track Line is a future-ready solution for manufacturers targeting North American light gauge steel framing markets. With multi-size capability, deep-leg flexibility, and integrated slot technology, the system provides a reliable and scalable production platform.
