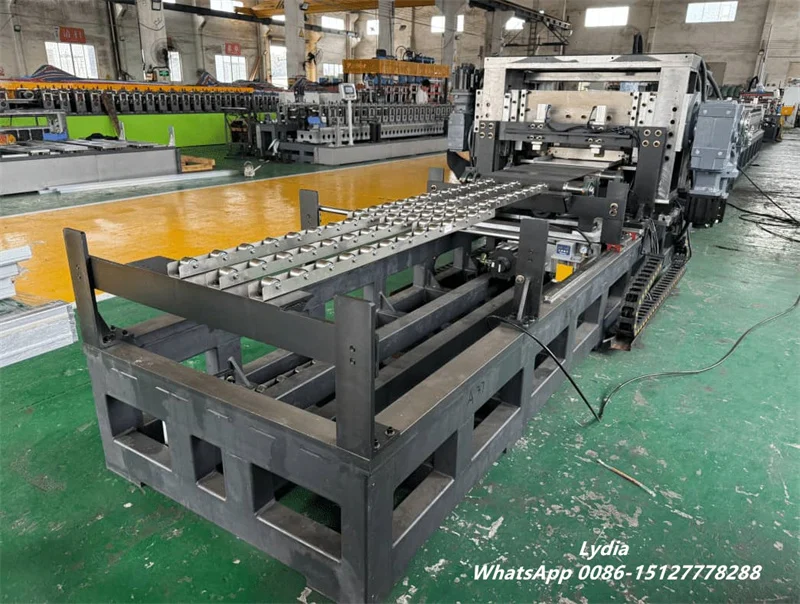

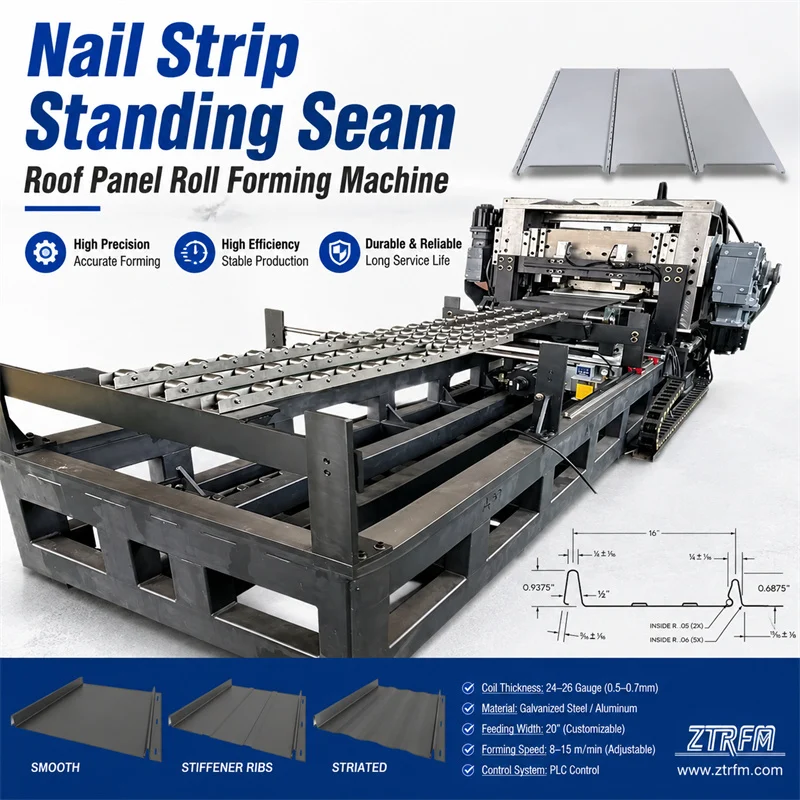

The Nail Strip Standing Seam Roof Panel Roll Forming Machine is an advanced manufacturing system developed for producing high-quality concealed-fastener standing seam roof panels. By continuously forming metal coils through a series of precision rollers, the machine creates roofing profiles with clean lines, consistent dimensions, and reliable seam structures.

Designed for modern residential, commercial, and industrial construction, this standing seam roof panel roll forming machine combines automatic forming, PLC control, hydraulic cutting, and flexible profile customization. It can be configured for different panel widths, seam heights, materials, and production requirements.

What Is a Nail Strip Standing Seam Roof Panel?

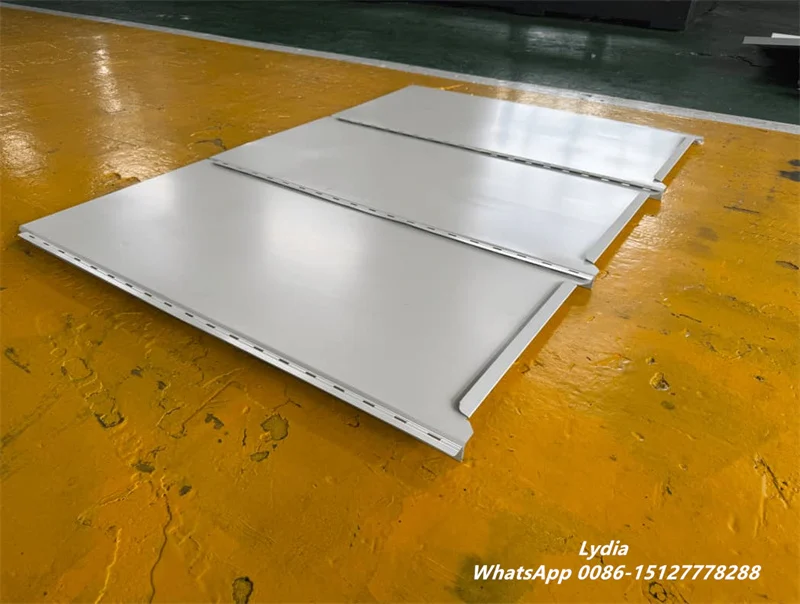

A Nail Strip Standing Seam Roof Panel is a concealed-fastener metal roofing profile designed to provide a clean and continuous roof appearance. Unlike conventional exposed-fastener roofing sheets, the fastening area is integrated into the panel design, helping create a smoother finished surface.

The system is particularly suitable for architectural projects where both appearance and weather resistance are important. Depending on the application, panels can be manufactured from materials such as:

• PPGI and PPGL steel
• Galvanized steel
• Aluminum
• Zinc
• Copper
• Corten steel

The roll forming machine gradually shapes the coil into the required profile while maintaining dimensional consistency and minimizing surface damage.

How Does the Nail Strip Standing Seam Roll Forming Machine Work?

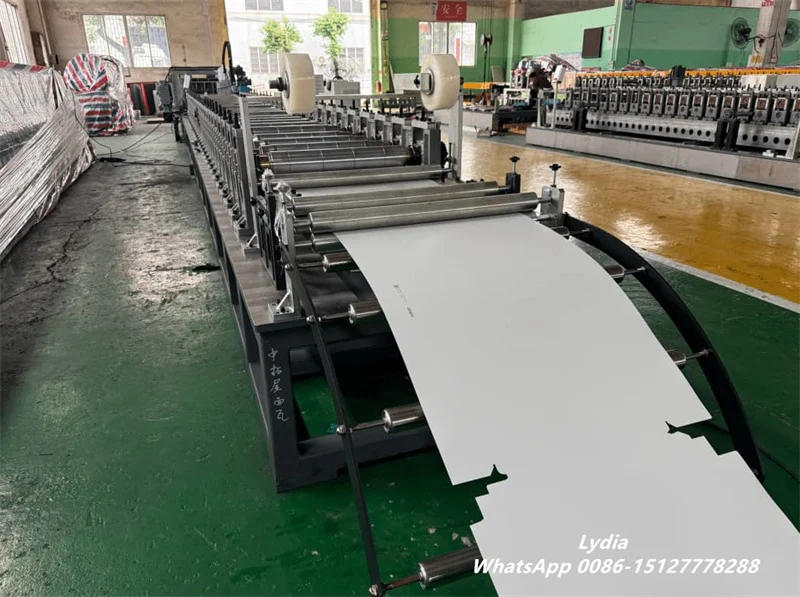

The complete production process is based on continuous cold roll forming technology. After the metal coil is loaded onto the decoiler, the material passes through the feeding and guiding section before entering the forming stations.

The general production process includes:

Coil Loading → Decoiling → Feeding & Guiding → Roll Forming → Length Measurement → Hydraulic Cutting → Finished Panel Output

Each forming station performs a controlled deformation of the sheet. Instead of creating the final shape in one operation, the machine progressively develops the ribs, pans, and fastening structure.

This forming method helps maintain accurate panel geometry and stable production quality, making the equipment suitable for continuous industrial manufacturing.

Main Features of the Standing Seam Roof Panel Machine

1. Precision Multi-Station Forming

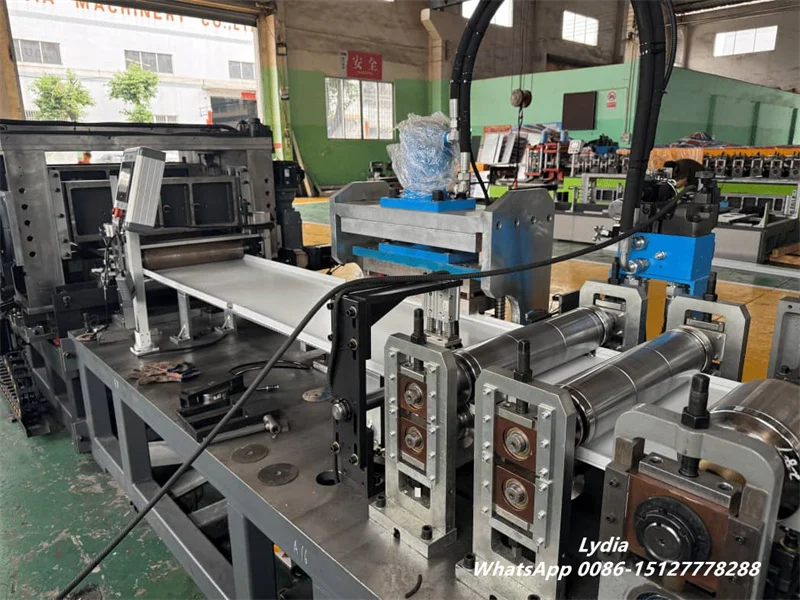

The forming section consists of multiple roller stations designed according to the required Nail Strip standing seam profile. The gradual forming process helps maintain accurate dimensions while reducing unnecessary stress on the metal sheet.

2. Automatic PLC Control

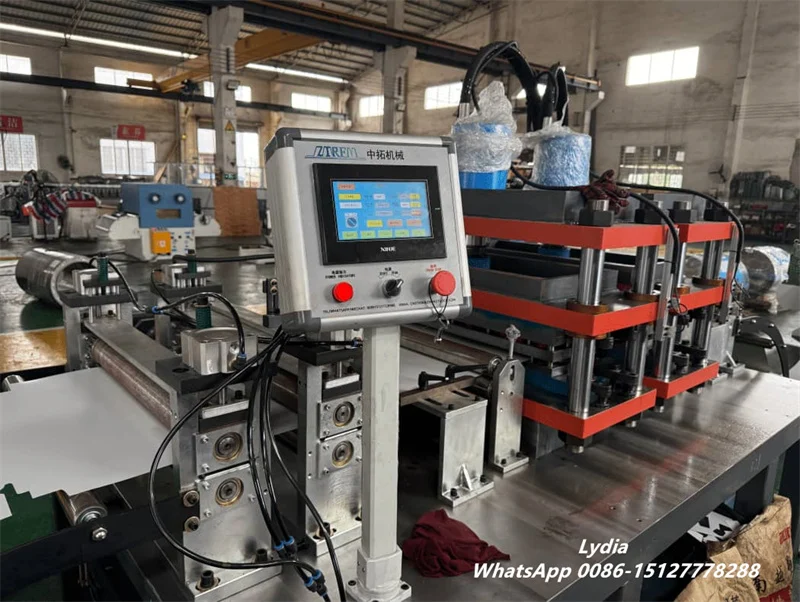

A PLC-based control system allows operators to manage important production parameters from the control cabinet. Depending on the configuration, users can set:

• Panel length
• Production quantity
• Cutting position
• Forming speed
• Operating parameters

The automatic control system also helps improve repeatability during long production runs.

3. Hydraulic Cutting System

The machine can be equipped with an automatic hydraulic cutting unit for producing panels according to preset lengths. Cr12MoV cutting blades provide good hardness and wear resistance for continuous production.

4. Durable Rollers

The forming rollers are manufactured from 45# forged steel and can be chrome plated according to the machine configuration. This provides improved surface hardness and wear resistance for long-term operation.

5. Flexible Material Selection

The equipment can be customized to process different roofing materials and thicknesses. This allows manufacturers to develop several roofing products using the same basic production concept.

Technical Specifications

Item	Specification
Machine Type	Nail Strip Standing Seam Roof Panel Roll Forming Machine
Panel Width	12–20 in.
Standard Width	16 in.
Seam Height	1–1.5 in.
Material Thickness	0.4–0.8 mm
Suitable Materials	PPGI, PPGL, Aluminum, Zinc, Copper, Corten Steel, Galvanized Steel
Forming Speed	15–20 m/min
Decoiler	Hydraulic or Manual
Roller Material	45# Forged Steel
Roller Treatment	Chrome Plating
Cutting Method	Automatic Hydraulic Cutting
Blade Material	Cr12MoV
Control System	PLC Automatic Control
Transmission	Chain Drive or Customized
Voltage	Customized according to customer requirements

Machine specifications can be adjusted according to the customer's panel drawing, material, thickness, and production requirements.

Applications of Nail Strip Standing Seam Metal Panels

The finished standing seam metal roofing panels can be used in a wide variety of construction applications.

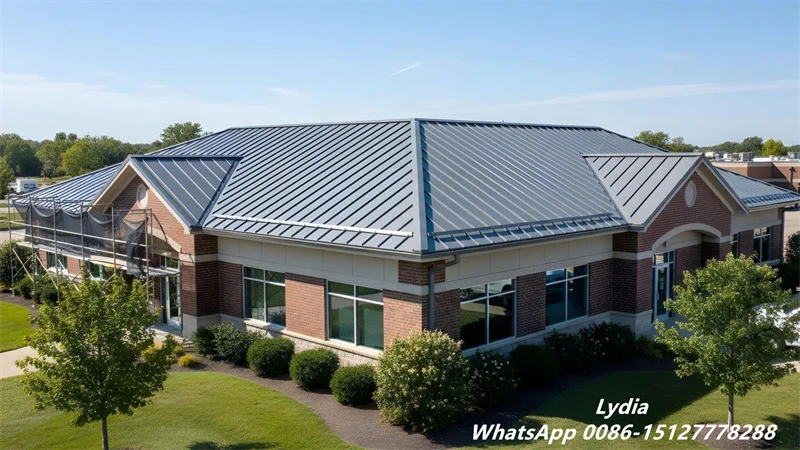

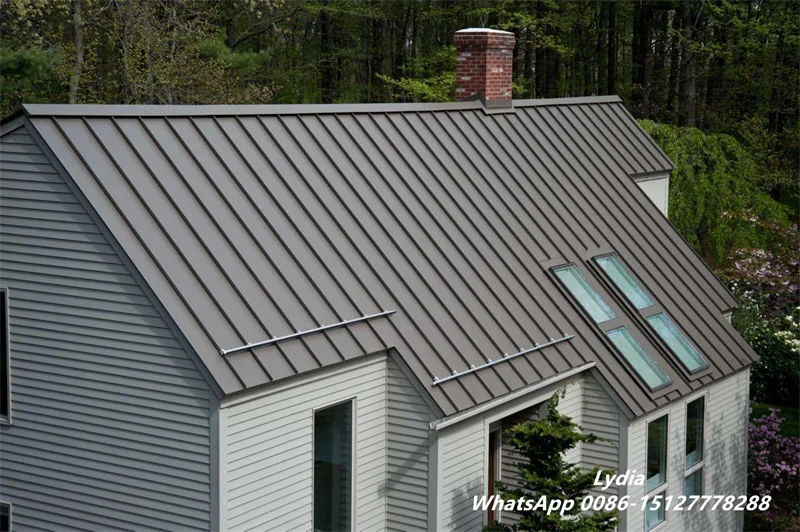

Residential Buildings

Nail strip panels are suitable for houses, villas, garages, and other residential structures where modern roof aesthetics and durable metal roofing are required.

Commercial Buildings

Shopping centers, office buildings, restaurants, retail facilities, and other commercial projects can use standing seam roofing systems to achieve a contemporary architectural appearance.

Industrial Facilities

Factories, warehouses, workshops, and other industrial buildings can benefit from the long continuous panels and efficient installation characteristics of standing seam roofing.

Public and Architectural Projects

The clean appearance of concealed-fastener panels also makes them suitable for schools, public buildings, transportation facilities, and architectural projects with specific aesthetic requirements.

Materials for Standing Seam Roof Panel Production

One of the advantages of this metal roofing roll forming machine is its ability to support different coil materials.

Color-coated steel is widely used because of its attractive appearance and corrosion-resistant coating. Galvanized steel provides a practical option for general roofing applications, while aluminum offers lightweight construction and good corrosion resistance.

For premium architectural applications, manufacturers may also choose zinc, copper, or Corten steel to create distinctive building façades and roofing systems.

The final material selection should be matched with the machine design, material thickness, profile geometry, and intended application.

Build a Reliable Metal Roofing Production Line

The Nail Strip Standing Seam Roof Panel Roll Forming Machine provides an efficient way to manufacture modern concealed-fastener roofing panels from continuous metal coils. With precision roll forming, automatic PLC control, hydraulic cutting, and customizable configurations, the equipment can adapt to a wide range of architectural metal roofing requirements.

Whether the target market focuses on residential metal roofing, commercial buildings, industrial facilities, or architectural cladding, a properly configured standing seam roll forming line can help manufacturers improve production efficiency while maintaining consistent panel quality.

For manufacturers looking to expand their standing seam metal roofing production, the machine can be engineered according to the required panel drawing, raw material, dimensions, and local production standards.

Customized Retro Panel Production Line from Zhongtuo

Zhongtuo designs and manufactures customized Retro Panel Roll Forming Machines according to different panel drawings, material specifications, and production requirements. The machine layout, roller stations, punching system, and automation functions can be adjusted to meet specific customer needs.

By combining precision engineering with automatic production technology, Zhongtuo helps global roofing manufacturers produce high-quality click lock metal panels efficiently and consistently.
