Steel embossing has become an essential manufacturing process for industries that require stronger, more attractive, and more functional metal sheets. Our Heavy Duty Steel Plate Embossing Machine is specifically engineered for embossing 1.2-5 mm carbon steel coils, producing deep, uniform surface patterns that improve both the appearance and mechanical performance of steel sheets.

Designed with 42CrMo forged alloy steel embossing rollers, a reinforced integrated frame, and a stable transmission system, this machine delivers consistent embossing quality even when processing thick steel plates. It is an ideal solution for manufacturers of construction materials, industrial equipment, transportation components, and decorative steel products.

Applications of Steel Embossed Sheets

The finished embossed steel sheets are widely used across many industries.

Construction Industry

Embossed carbon steel sheets are commonly used for:

• Building wall panels
• Metal ceilings
• Decorative facades
• Roofing accessories

Industrial Manufacturing

Manufacturers use embossed steel plates for:

• Equipment covers
• Machine housings

How the Steel Embossing Machine Works

The production line begins with the input coil supporting table, where heavy steel coils are positioned for smooth and accurate feeding.

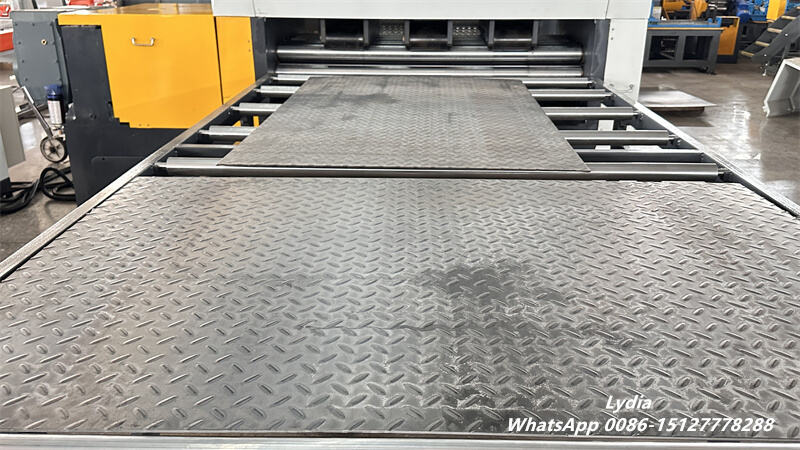

The steel sheet enters the embossing section, where two large forged rollers apply uniform pressure to create permanent surface patterns. Thanks to the precision-machined roller surface and adjustable pressure system, every sheet receives a consistent embossed texture.

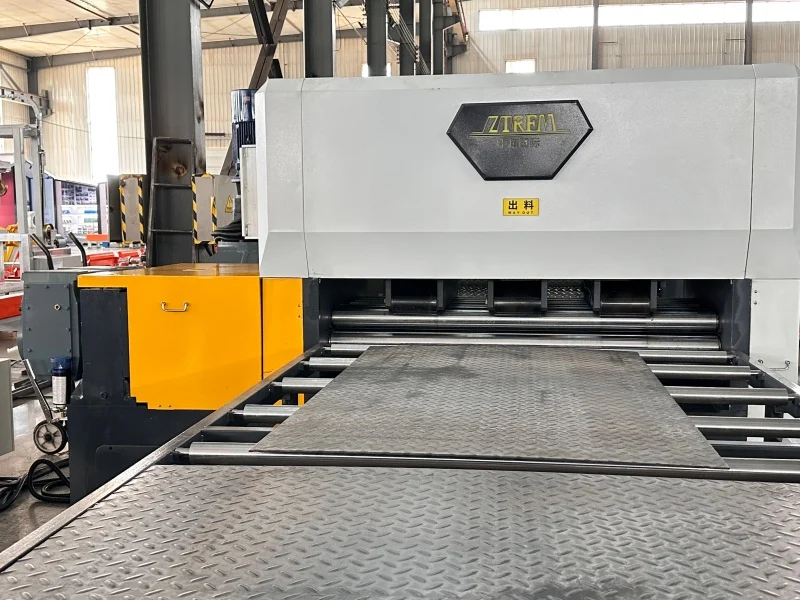

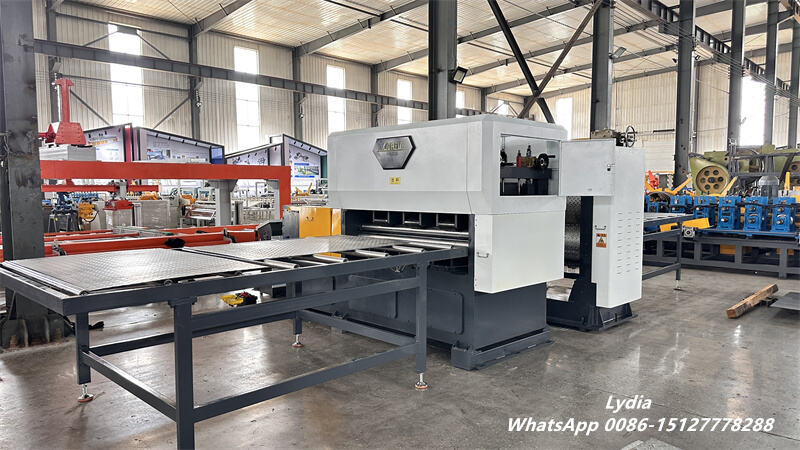

After embossing, the finished steel sheet can be cut into customized lengths for storage, transportation, or secondary processing.

This continuous production method offers higher efficiency than traditional stamping while maintaining excellent product consistency.

Technical Parameters of the Coil Embossing Machine

Item	Specification
Raw Material	Mild Carbon Steel
Material Thickness	1.2–5.0 mm
Maximum Feeding Width	≤1520 mm
Cutting Length	Adjustable
Working Speed	5 m/min

Main Machine Components

Part 1: Input Coil Supporting Table

The input supporting table is designed to simplify material loading and ensure stable feeding before embossing.

Its main function is to support heavy steel coils and guide the sheet accurately into the embossing machine, reducing labor intensity while improving feeding precision and production stability.

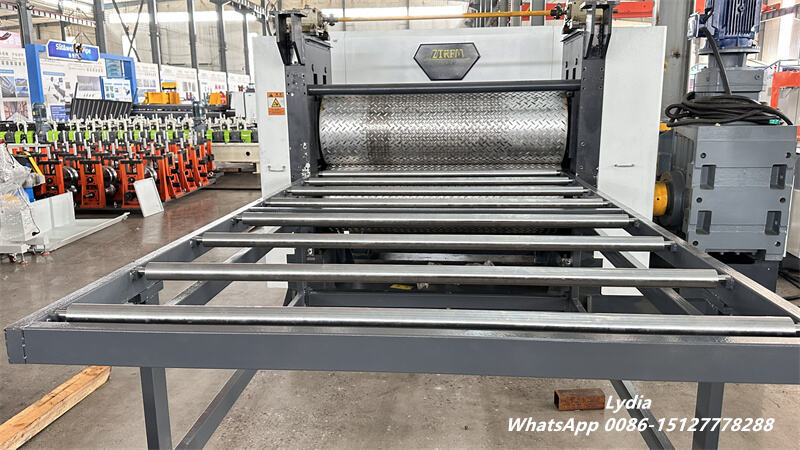

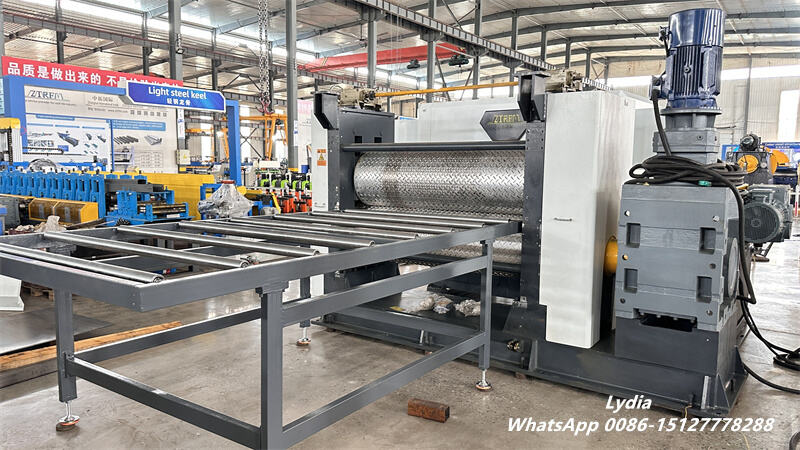

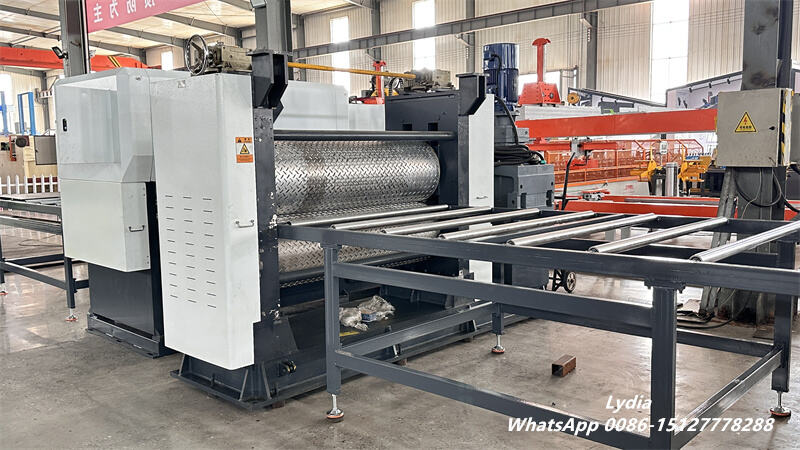

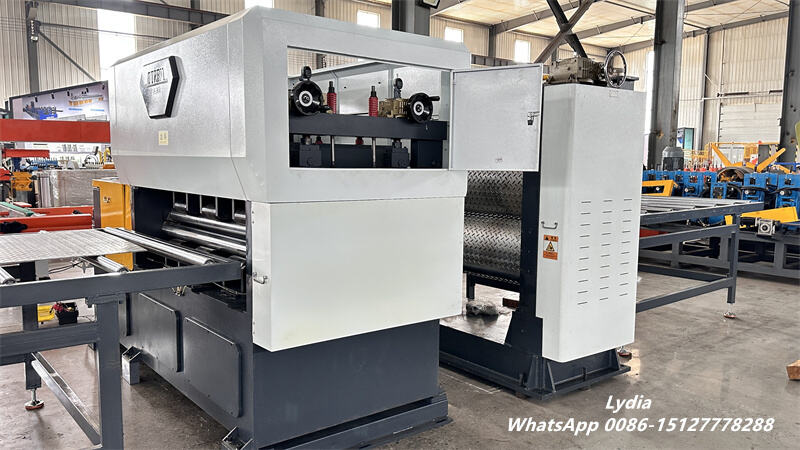

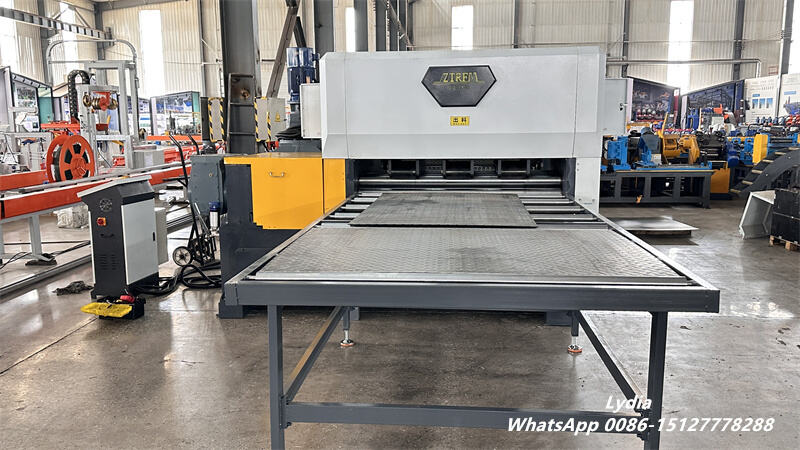

Part 2: Heavy Duty Metal Embossing Machine

The embossing machine is the core of the production line, engineered specifically for processing thick carbon steel sheets.

The embossing rollers are manufactured from integrally forged 42CrMo alloy steel. After professional heat treatment, the roller surface reaches a hardness of HRC 55–60, followed by chrome plating to provide exceptional wear resistance and longer service life.

The embossing roller size is:

• Roller Diameter: Φ450 mm
• Roller Length: 1700 mm
• Applicable Sheet Thickness: 1.2–5.0 mm
• Engraving Depth of Concave Roller: 2.5 mm

The machine is powered by a 15 kW national standard motor combined with a heavy-duty reducer to deliver stable torque and reliable operation during continuous production.

Its integrated welded frame adopts a one-piece structure with heavy solid side walls, ensuring excellent rigidity, vibration resistance, and long-term operating stability.

Pressure adjustment is achieved through a manual screw lifting system, while both sides are synchronized using a gear turbine transmission mechanism. The machine also includes a pressure reference scale, allowing operators to make precise adjustments according to different material thicknesses.

The entire system operates at a stable embossing speed of 5 m/min, making it ideal for heavy steel sheet processing.

Frequently Asked Questions

What materials can this embossing machine process?

The standard machine is designed for 1.2–5 mm mild carbon steel. Other materials can be customized according to customer requirements.

Can the embossing pattern be customized?

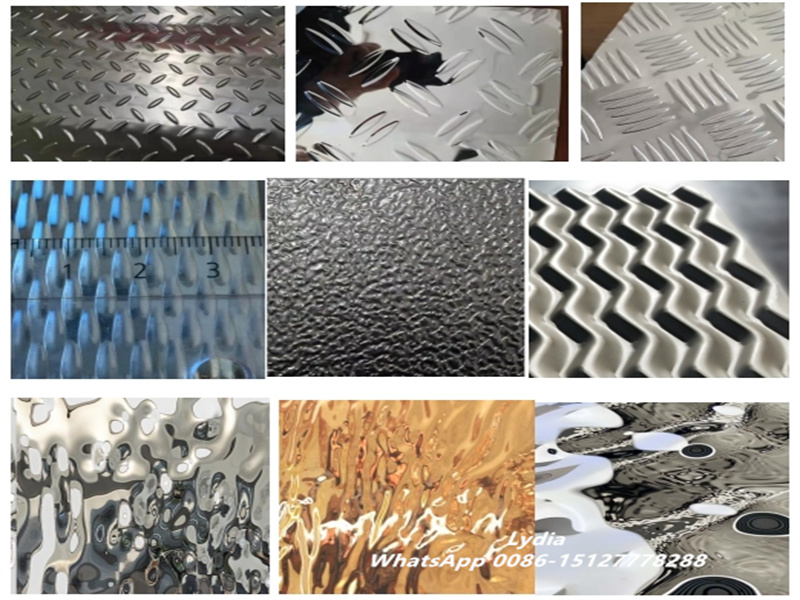

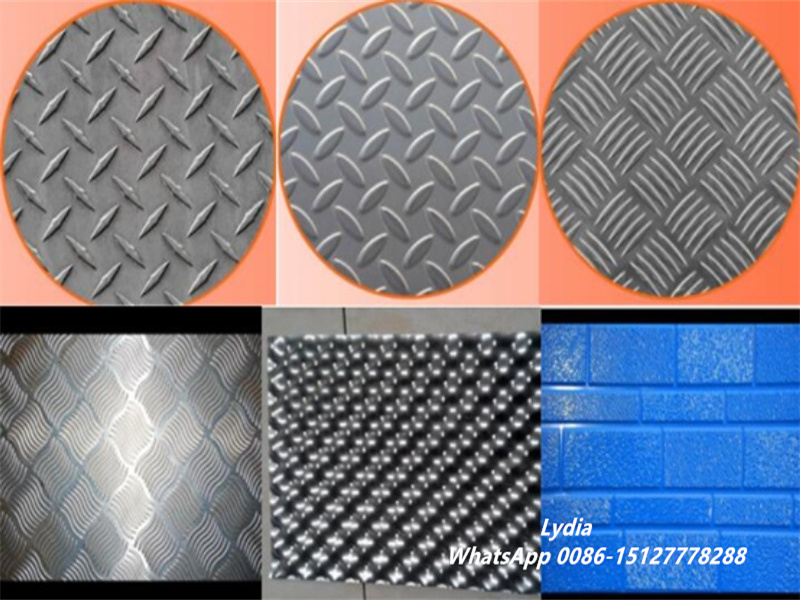

Yes. We can manufacture embossing rollers with customized designs, including geometric, diamond, leather, wood grain, floral, and company-specific patterns.

What is the maximum feeding width?

The standard machine supports steel coils up to 1520 mm wide.

Is the sheet length fixed?

No. The finished sheet length is fully adjustable according to your production requirements.

Is operator training provided?

Yes. We provide installation guidance, machine commissioning, operation training, and comprehensive after-sales technical support.

Why Choose a Heavy Duty Steel Plate Embossing Machine?

Unlike thin sheet embossing equipment, heavy plate embossing requires greater rolling force, stronger machine structures, and wear-resistant rollers. Our machine is specially developed to handle thicker steel materials while maintaining high embossing precision and long service life.

The embossed surface not only enhances product appearance but also improves sheet rigidity, reduces deformation, and increases friction for applications such as anti-slip flooring and industrial platforms.

Whether producing decorative metal panels or functional steel products, this embossing machine provides reliable performance with minimal maintenance.
