The Zhongtuo CNC Hydraulic Folding Machine is designed to provide fast, accurate, and reliable sheet metal processing for manufacturers producing long metal components. Combining CNC control, hydraulic clamping, servo-driven positioning, and an integrated slitting system, the machine performs multiple operations on one production platform, helping factories reduce production time while improving product consistency.
Suitable for steel sheet, aluminum sheet, and stainless steel with a maximum thickness of 1.0 mm, the machine offers a 6500 mm working length and a bending range of 0°–125°. Whether producing roof flashing, wall cladding trims, gutters, façade panels, or custom architectural profiles, the Zhongtuo CNC Folding Machine provides outstanding flexibility for a wide range of sheet metal fabrication applications.
Hydraulic Sheet Bending Machine
Engineered for Precision, Speed, and Productivity
Processing long sheet metal panels requires excellent stability and positioning accuracy. The Zhongtuo CNC Hydraulic Folding Machine features a hydraulic clamping system equipped with seven independent press clamps, which distribute pressure evenly across the full working length. This design prevents material movement during bending and improves finished product quality.
Meanwhile, the servo-driven folding beam delivers smooth motion and precise angle control, minimizing material deformation while ensuring consistent bending results. The generous 1000 mm throat depth also allows manufacturers to process deeper profiles and larger sheet metal components without sacrificing accuracy.

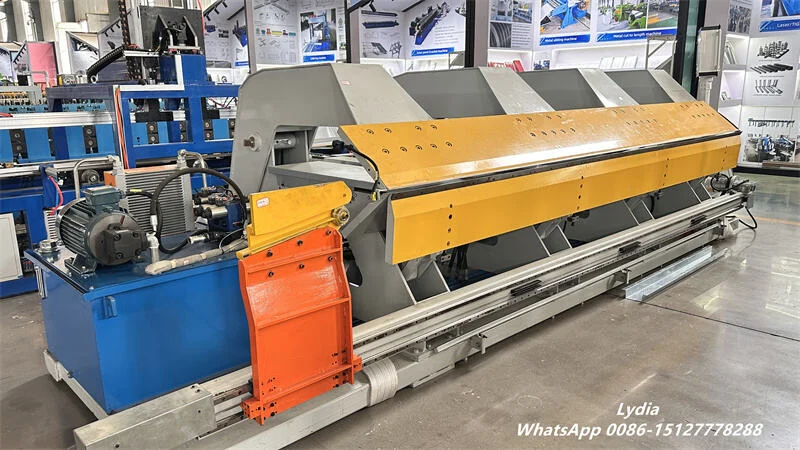

Hydraulic Folding Machine
As a result, the machine is well suited for both standard production and customized metal fabrication.
Technical Specifications
| Specification | Value |
|---|---|
| Suitable Materials | Steel Sheet, Aluminum, Stainless Steel |
| Maximum Material Thickness | 1.0 mm |
| Maximum Bending Length | 6500 mm |
| Bending Angle | 0°–125° |
| Throat Depth | 1000 mm |
| Press Clamps | 7 Units |
| Hinges | 7 Groups |
| Servo Motor | 0.82 KW |
| Hydraulic Pump Motor | 11 KW |
| Slitting Motor | 1.1 KW |
| Total Installed Power | 12.92 KW |
| Maximum Hydraulic Pressure | 16 MPa |
| Hydraulic Oil Tank | 460 L |
| Machine Weight | Approx. 3500 Kg |
| Overall Dimensions | 7600 × 1570 × 1770 mm |

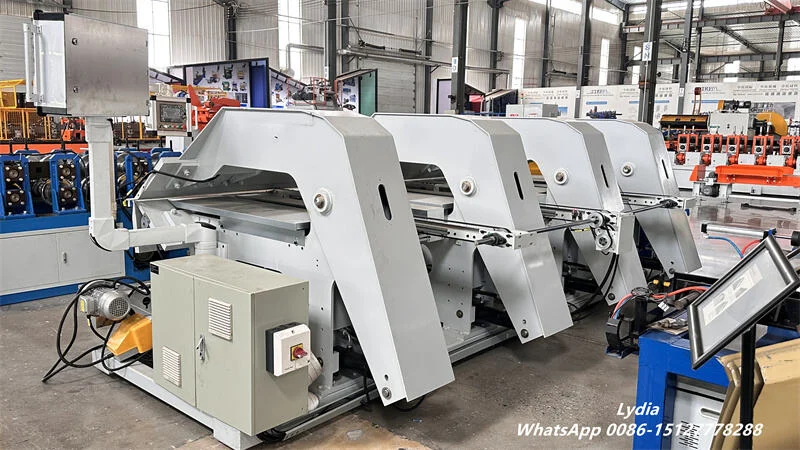

Hydraulic Sheet Bending Machine
Integrated Slitting and Folding for Higher Efficiency
Unlike conventional bending equipment that requires separate cutting operations, the Zhongtuo CNC Hydraulic Folding Machine integrates both slitting and folding into one efficient production line.
The slitting unit uses high-strength Cr12MoV slitting wheels with an 80 mm diameter, delivering clean and accurate cuts. Powered by a 1.1 KW motor, the system reaches a slitting speed of approximately 0.8 m/s, while the steel-rope guiding mechanism ensures stable and smooth movement throughout the cutting process.
By combining slitting and bending in a single machine, manufacturers can reduce material handling, shorten production cycles, save valuable workshop space, and improve overall manufacturing efficiency.

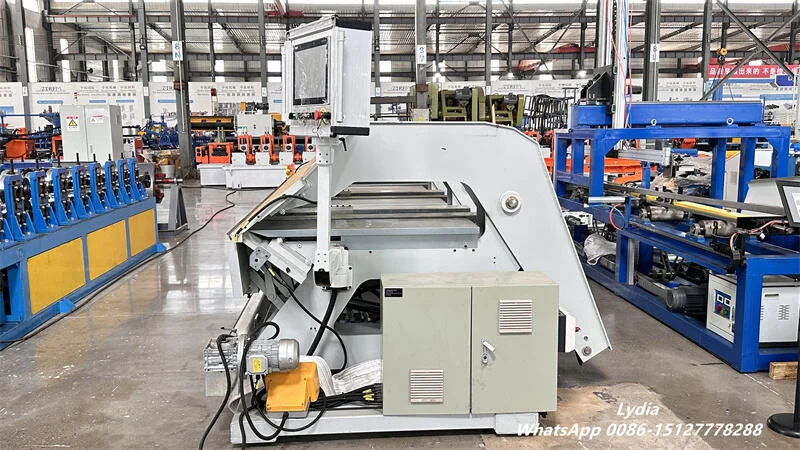

CNC Sheet Metal Folding Machine
Smart CNC Control for Consistent Production
The machine is equipped with an advanced Industrial PC Control System that simplifies programming and enhances production accuracy.
Operators can easily enter bending parameters through the intuitive touch-screen interface, while the encoder-based angle detection system continuously monitors each bending operation to ensure every workpiece matches the programmed specifications.
In addition, the control system includes multiple safety features such as emergency stop buttons, electronic limit protection, and a heavy-duty foot switch, creating a safer and more reliable operating environment.
By reducing manual adjustments and automating key production processes, the machine helps manufacturers improve efficiency while maintaining excellent product consistency.
CNC Hydraulic Folding Machine
Reliable Hydraulic System for Continuous Operation
The hydraulic system is powered by an 11 KW hydraulic station, providing stable forming pressure of up to 16 MPa for demanding production tasks. A 460-liter hydraulic oil tank ensures continuous operation during long production shifts while maintaining stable system performance.
Combined with the servo positioning system, the hydraulic power unit delivers smooth, accurate, and repeatable bending across the full 6500 mm working length. This robust design minimizes maintenance requirements and supports long-term industrial production.

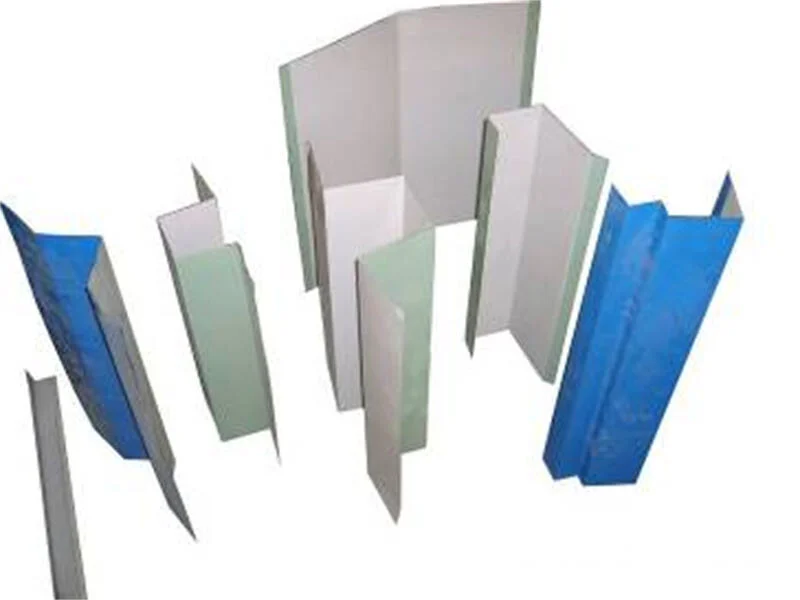

The machine is ideal for manufacturing:
- Roof flashing
- Ridge caps
- Gutters
- Wall cladding trims
- Fascia panels
- Window and door flashing
- HVAC components
- Architectural façade panels
- Custom folded sheet metal products
The Zhongtuo CNC Hydraulic Folding Machine is an excellent solution for roofing manufacturers, steel building suppliers, HVAC fabricators, and sheet metal processing companies seeking higher productivity, superior bending precision, and lower production costs. Its combination of intelligent CNC control, hydraulic stability, servo-driven accuracy, and integrated slitting technology makes it a reliable investment for modern sheet metal fabrication.
