A B-Deck Roll Forming Machine is an automated metal forming system designed to manufacture structural B-Deck panels used in modern steel construction. These panels are widely used for roof decks, floor decks, and structural support systems in commercial and industrial buildings.
Because B-Deck panels combine high strength with lightweight steel, contractors can install them quickly while maintaining structural integrity. As a result, they have become one of the most common metal decking solutions in warehouses, factories, shopping centers, and parking structures.
The machine continuously transforms steel coils into finished decking sheets through a sequence of forming rollers, ensuring precise profile shaping, consistent dimensions, and high production efficiency.
automatic steel deck forming machine factory

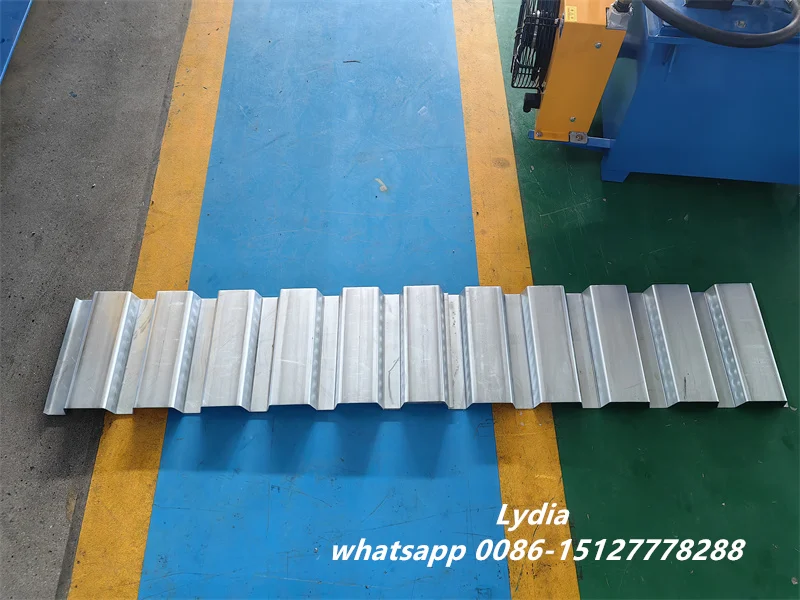

roof deck roll forming machine
Types of B-Deck Panels
B-Deck products can be divided into two primary categories based on their structural function.

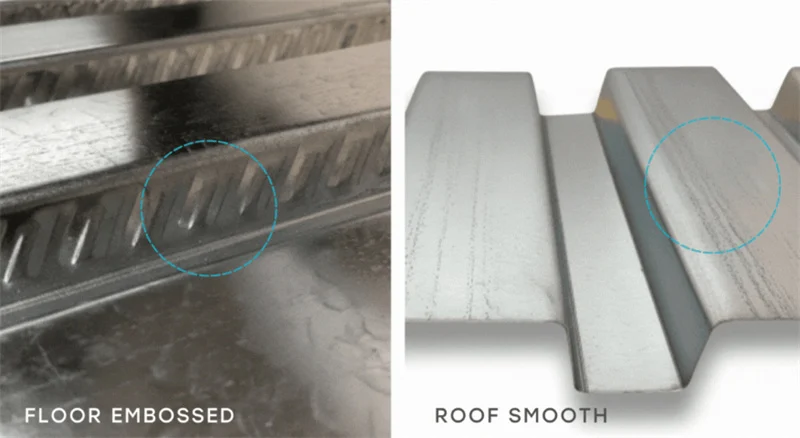

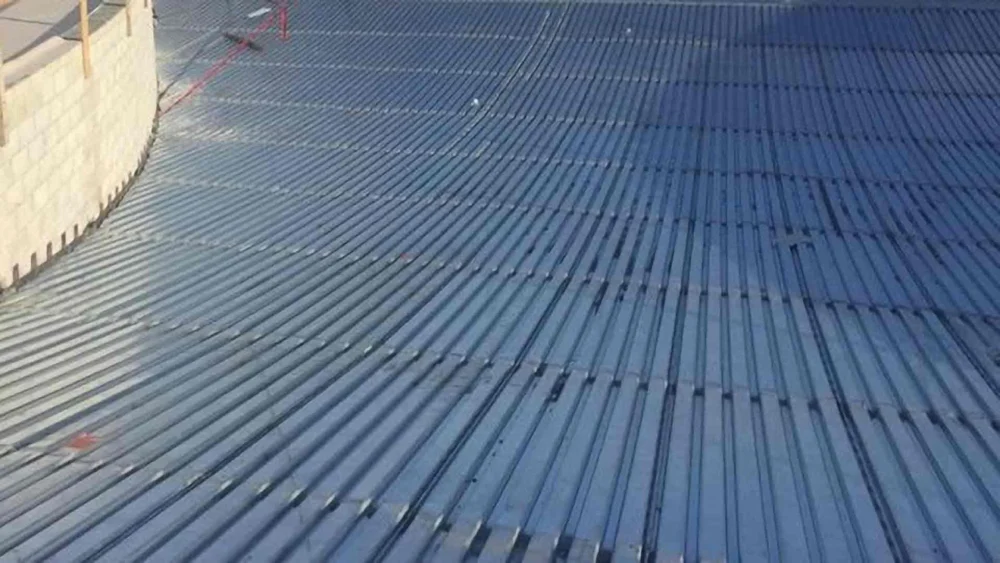

B Roof Deck panels feature a smooth surface and mainly support roofing insulation systems or waterproof layers. Their lightweight design makes them easy to transport and install, which significantly improves construction efficiency.
In contrast, B Floor Deck panels usually include embossed patterns that enhance bonding with concrete. Builders pour concrete over these panels to form composite floor systems, increasing structural strength and stability in multi-story buildings.
Because both types share the same structural profile but serve different purposes, manufacturers can produce them on the same roll forming machine with minor adjustments.
automatic steel deck forming machine factory
automatic steel deck forming machine factory
Main Features of the B-Deck Panel Profile

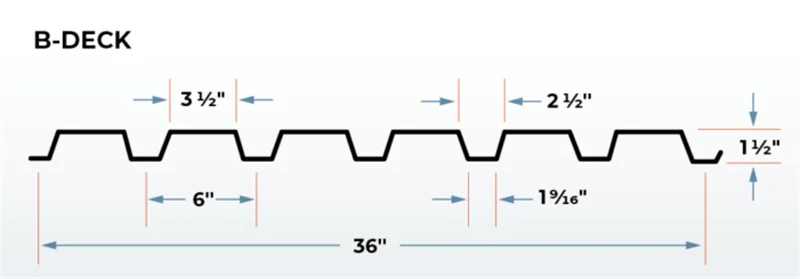

B-Deck panels are designed with a 1.5-inch rib height and a 36-inch coverage width, creating a strong yet economical structural decking solution. Their ribbed design improves load-bearing capacity while minimizing material consumption.
For example, the widely used HSB-36 profile is commonly applied in roofing systems, awnings, canopies, and structural enclosures. It performs particularly well in short- to medium-span applications, typically ranging from 3 to 10 feet depending on the steel thickness.
Manufacturers can produce these panels using galvanized steel, pre-painted steel, or Galvalume material, allowing them to meet different environmental and aesthetic requirements.
Main Components of the B-Deck Roll Forming Machine
A complete B-Deck production line usually includes several coordinated systems that work together to ensure smooth and stable operation.

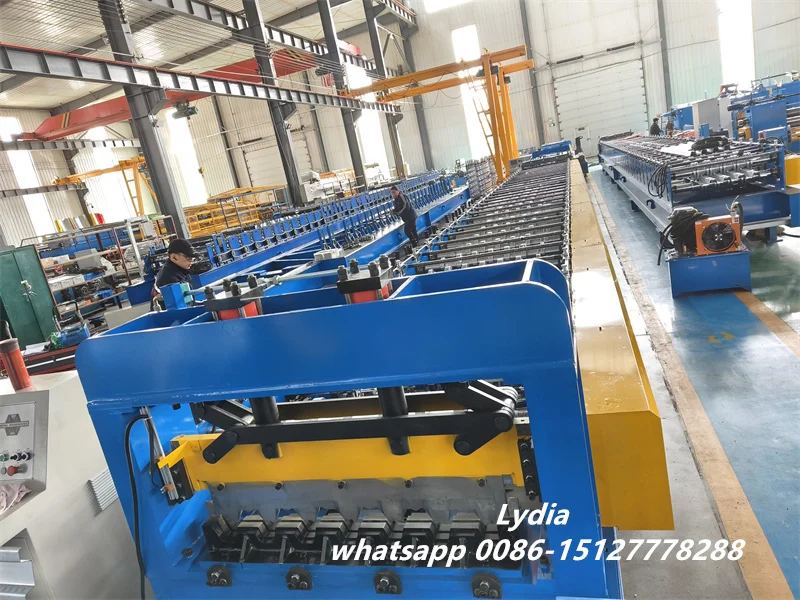

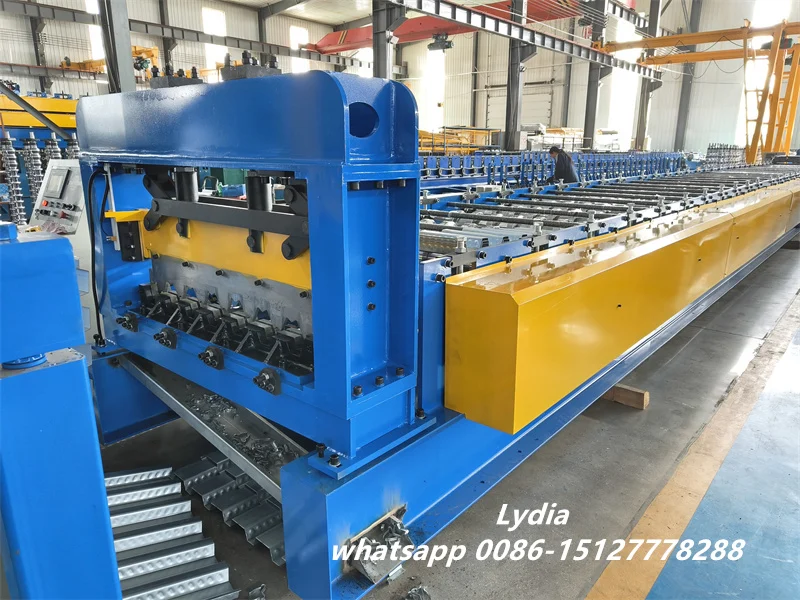

The production process begins with a hydraulic decoiler, which holds and unwinds steel coils automatically. After that, the sheet passes through a feeding and guiding system to ensure precise alignment before entering the roll forming section.

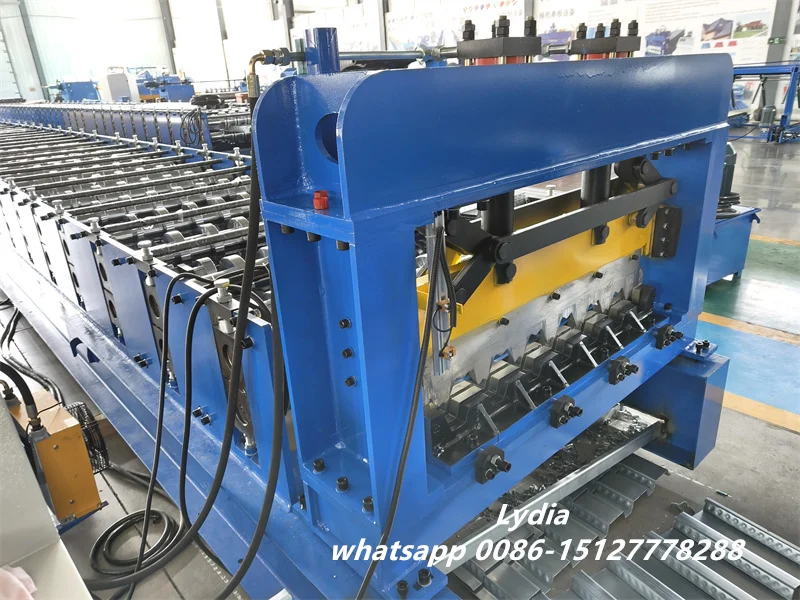

Inside the forming unit, multiple roller stations gradually shape the steel strip into the final B-Deck profile. After forming, a hydraulic cutting device trims the sheet to the preset length, and finally the finished panels move to an output stacking table for collection.
Together, these systems allow the machine to deliver stable performance, accurate dimensions, and continuous production.
b deck roll forming machine working line
oplus_2097152
Technical Specifications
The following table summarizes the typical technical parameters of a B-Deck Roll Forming Machine.
| Item | Specification |
|---|---|
| Deck Type | Roof Deck / Floor Deck |
| Panel Type | B Deck (HSB-36) |
| Material Thickness | 0.8 – 1.5 mm |
| Standard Panel Width | 36 inches |
| Rib Height | 1.5 inches |
| Rib Pitch | 6 inches |
| Roller Stations | 24 – 28 passes |
| Shaft Diameter | 90 mm |
| Roller Material | GCR15 hardened and chrome-plated |
| Cutting Blade | CR12MOV alloy steel |
| Production Speed | 15 – 20 m/min |
| Decoiler Capacity | 10 Tons Hydraulic |
| Control System | PLC automatic control |
| Total Power | About 22 kW |
Manufacturers can also customize parameters such as voltage, machine speed, and control language according to customer requirements.
Applications and Advantages of B-Deck Panels
B-Deck panels are widely used in construction projects due to their strength, versatility, and cost efficiency.
First, their lightweight structure reduces the load on building frameworks, which simplifies transportation and installation. Second, the ribbed design provides excellent load-bearing capacity, allowing the panels to support roofing materials or concrete slabs effectively.

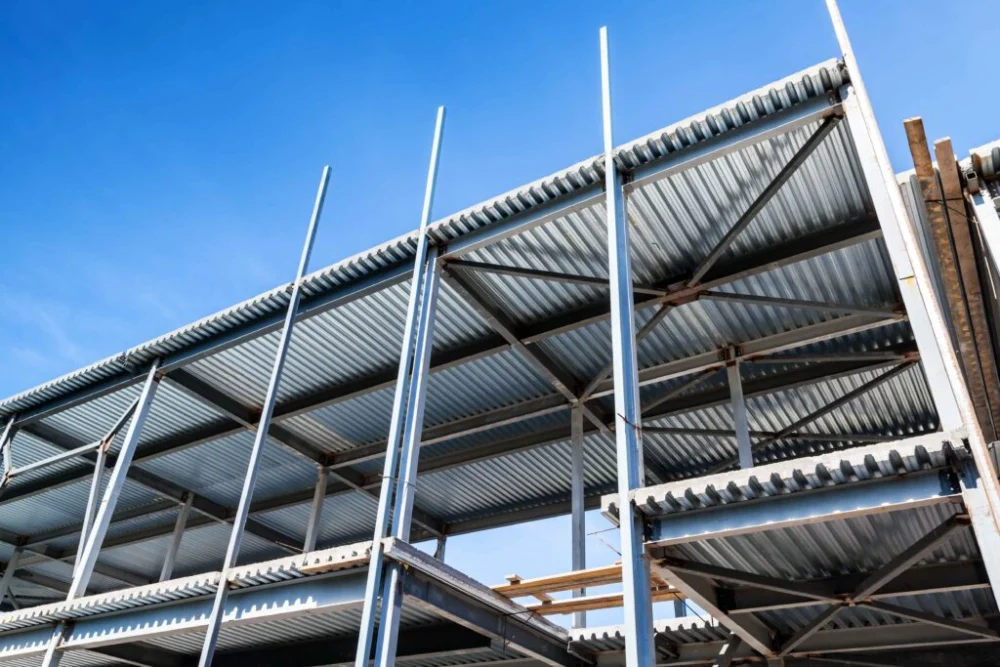

In addition, contractors often choose B-Deck systems because they reduce material waste and shorten construction schedules. This combination of durability and affordability makes B-Deck panels a preferred solution for warehouses, factories, shopping centers, and steel-frame buildings.
With advanced roll forming technology and reliable manufacturing processes, ZTRFM provides high-performance B-Deck roll forming machines that help customers produce consistent, high-quality decking panels for global construction markets.
