Modern buildings require effective rainwater management systems to prevent structural damage, foundation erosion, wall staining, and landscape deterioration. As construction standards continue to rise, seamless metal gutter systems have become a preferred solution for residential, commercial, agricultural, and industrial projects.
Our Automatic Rainwater Gutter Forming Machine is specifically engineered to manufacture high-quality metal rainwater gutters with excellent dimensional accuracy and long-term durability. The production line combines decoiling, feeding, roll forming, hydraulic cutting, and PLC automation into one integrated system, enabling manufacturers to achieve stable, high-volume production while minimizing labor costs.
Whether you are producing gutters for housing developments, warehouses, shopping centers, schools, factories, or agricultural facilities, this machine provides a reliable and profitable manufacturing solution.
K-Style Gutter Roll Forming Machine
Why Rainwater Gutters Are Essential for Modern Buildings
Rain gutters play a critical role in collecting and directing roof runoff away from structures. Without a properly designed gutter system, rainwater can accumulate around foundations, damage exterior walls, erode landscaping, and shorten the lifespan of buildings.
A professionally manufactured gutter system offers several advantages:
- Prevents foundation settlement caused by excessive moisture
- Protects exterior walls from water staining and mold growth
- Reduces soil erosion around buildings
Because of these benefits, metal rainwater gutters have become a standard component in construction projects worldwide.

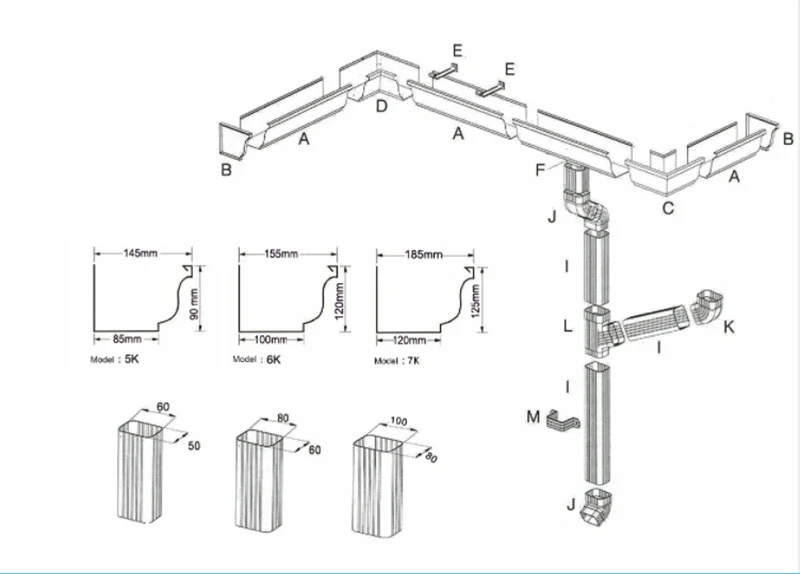

precision gutter roll forming line for rainwater management

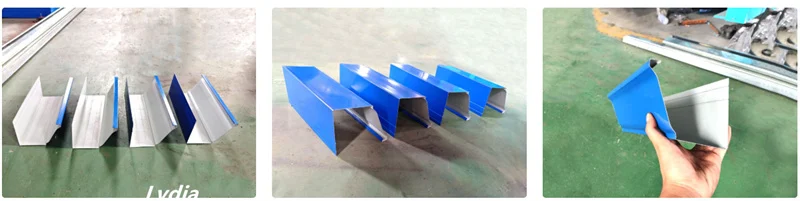

galvanized steel gutter roll forming machine for drainage systems
Wide Range of Gutter Profiles for Different Markets
Different countries and regions prefer different gutter designs depending on local construction practices and rainfall conditions. This roll forming machine can be customized to manufacture various gutter profiles, allowing manufacturers to serve multiple markets.
Common profile options include:
K-Style Gutters
The most popular gutter design in North America. The decorative front profile resembles crown molding while offering excellent water-carrying capacity.
Half-Round Gutters
Widely used on traditional homes, heritage buildings, churches, villas, and high-end residential projects. Their smooth curved design promotes efficient water flow and easy cleaning.
Box Gutters
Frequently installed on commercial buildings, industrial facilities, shopping centers, and warehouses where large drainage capacity is required.
Fascia Gutters
Common in Australia, New Zealand, and modern residential developments. These gutters integrate directly into the fascia line for a clean architectural appearance.
Customized Rainwater Channels
Special profiles can be designed according to customer drawings, local standards, or project-specific requirements.

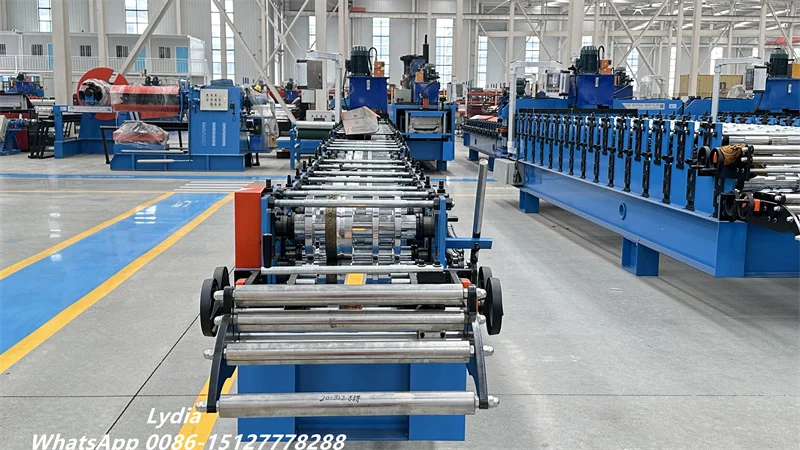

metal rainwater channel forming machine with hydraulic cutting
Advanced Roll Forming Technology for Continuous Production
Compared with traditional fabrication methods, roll forming offers significantly higher productivity and consistency.
The machine continuously forms gutter profiles directly from metal coils, eliminating many of the limitations associated with sectional fabrication. Since gutters can be produced in custom lengths, the number of joints and seams is greatly reduced.
As a result:
- Installation becomes faster
- Leakage risks decrease
- Material utilization improves
- Production efficiency increases
- Finished products maintain consistent dimensions
Furthermore, the PLC control system automatically manages length measurement and cutting operations, ensuring repeatable accuracy throughout the production process.

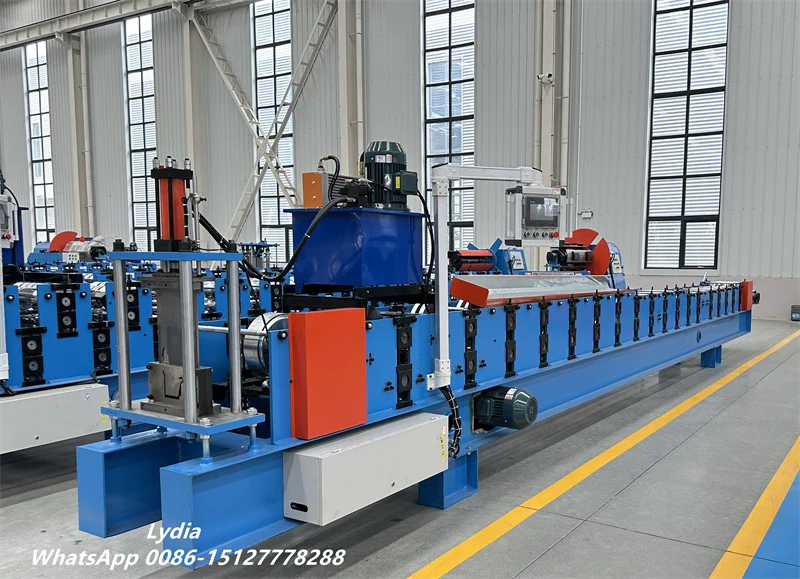

seamless gutter production equipment for construction industry
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Thickness | 0.3–0.8 mm |
| Material Type | GI, PPGI, Galvalume, Aluminum, Stainless Steel |
| Yield Strength | 235 MPa / Q345 MPa / Q550 MPa |
| Production Speed | 15–20 m/min |
| Main Motor Power | 5.5 kW |
| Hydraulic Station Power | 4 kW |
| Control System | Delta or Panasonic PLC |
| Length Measurement | Encoder |
| Drive System | Gear Reducer + Chain Drive |
| Cutting Method | Hydraulic Cutting |
| Roller Surface Treatment | Hard Chrome Coating |
Manufacturers can produce gutters in customized lengths according to project requirements, reducing installation joints.
Applications of Finished Rainwater Gutters
The finished rainwater gutters produced by this machine are widely used in residential, commercial, industrial, agricultural, and public infrastructure projects. They are commonly installed on villas, single-family homes, apartment complexes, townhouses, warehouses, factories, shopping malls, office buildings, schools, hospitals, airports, railway stations, sports facilities, and agricultural structures such as greenhouses, poultry farms, and livestock shelters. By efficiently collecting and directing roof runoff into designated drainage systems, these gutters help protect building foundations, exterior walls, landscaping, and roofing structures from water damage. In addition, many modern construction projects integrate gutter systems with rainwater harvesting solutions, allowing collected water to be reused for irrigation, cleaning, and other sustainable water management applications. As a result, metal rainwater gutters have become an essential component of contemporary building drainage systems worldwide.

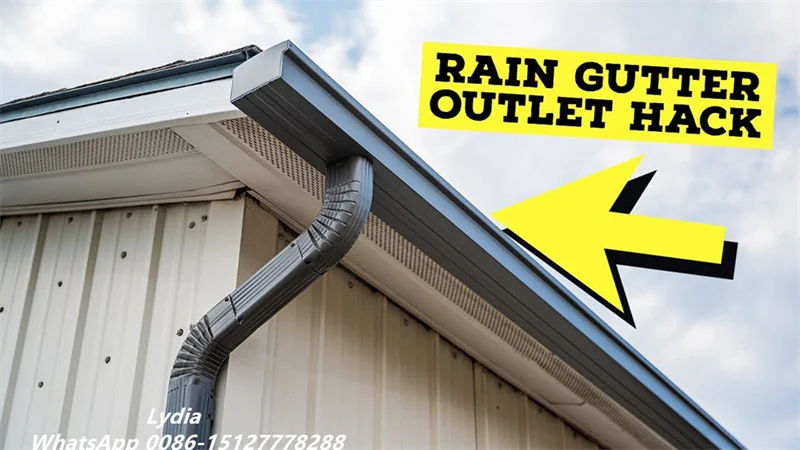

continuous metal gutter production line with PLC control

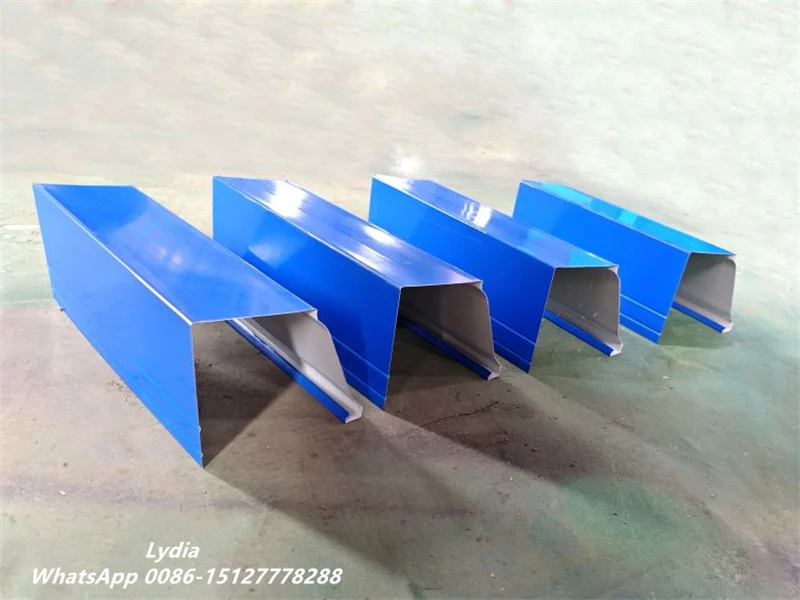

galvanized steel gutter roll forming machine for drainage systems
Complete Rainwater Drainage Production Solution
For manufacturers seeking a complete rainwater management product range, this gutter machine can be combined with a downpipe roll forming machine.
Compatible products include:
- Rectangular Downspouts
- Square Downspouts
- Round Downspouts
- Elbows
- End Caps
- Outlets
- Brackets
- Connecting Accessories
By producing both gutters and downspouts in-house, manufacturers can expand their product offerings and increase overall profitability.

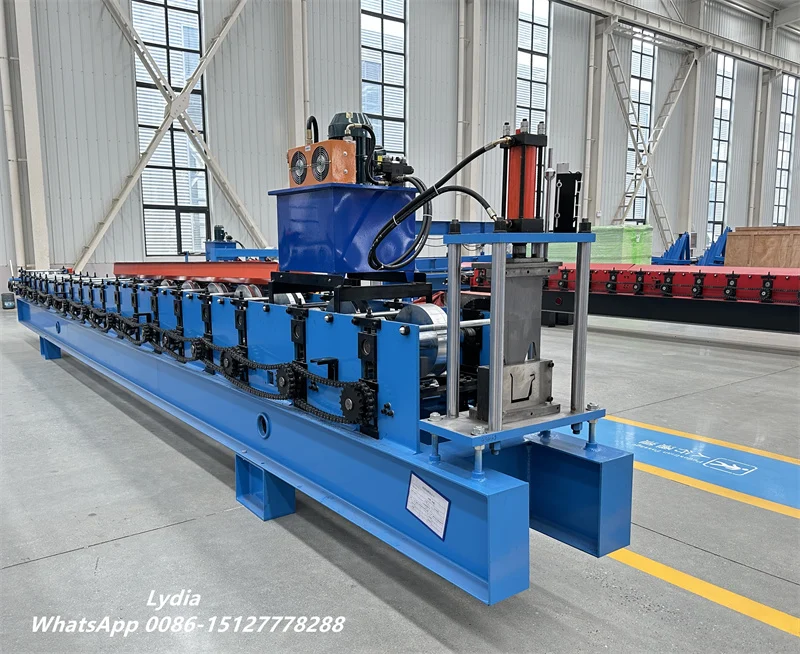

metal rainwater channel forming machine with hydraulic cutting

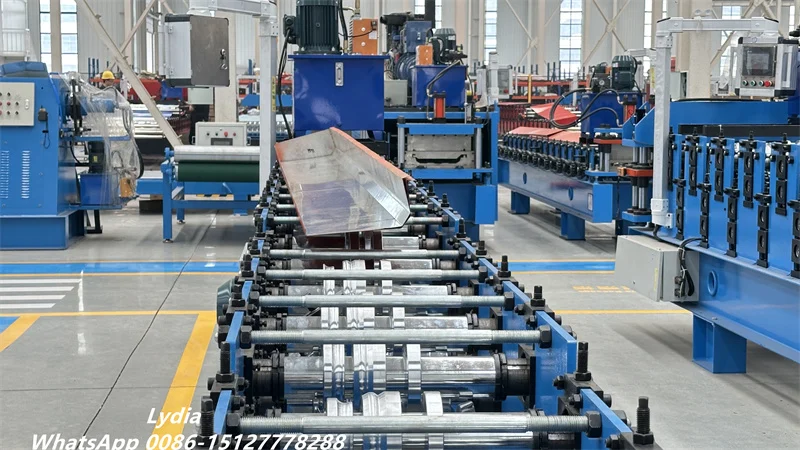

roof drainage gutter roll forming line in manufacturing workshop
Proven Equipment for Global Markets
This rainwater gutter production line has been supplied to customers in regions with diverse climates and demanding construction standards. It performs particularly well in countries with high annual rainfall where durable drainage systems are essential.
Customers from North America, South America, Southeast Asia, Oceania, Africa, and the Middle East continue to choose this equipment for its production stability, product quality, and long-term operating reliability.
Whether you are entering the gutter manufacturing industry for the first time or expanding an existing metal building products business, our Automatic Rainwater Gutter Forming Machine provides an efficient and cost-effective solution for producing premium roof drainage products for today's construction market.
