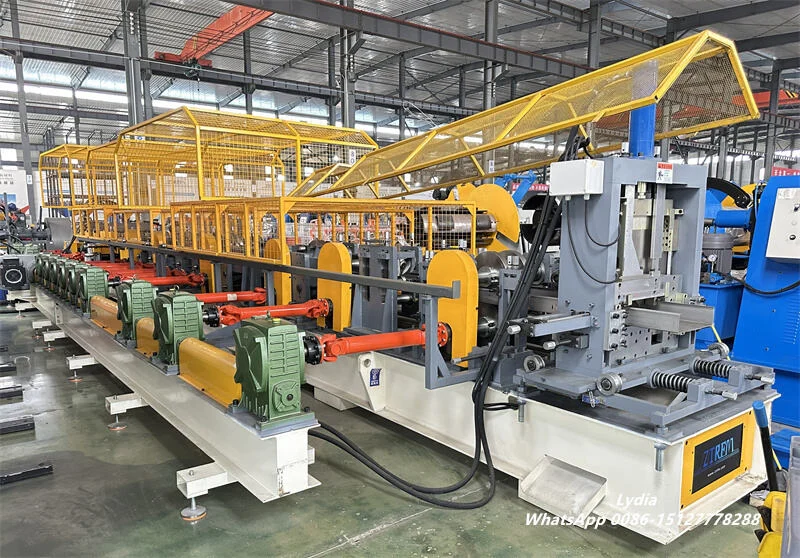

The demand for durable, lightweight, and cost-efficient structural steel continues to grow as industrial buildings, warehouses, logistics centers, and solar projects expand worldwide. Among the most widely used structural components, C purlins and Z purlins play a vital role in supporting roofs and walls while improving the overall stability of steel buildings. To help manufacturers respond to increasingly diverse project requirements, Zhongtuo has developed an advanced Automatic C/Z Purlin Roll Forming Machine that combines intelligent automation, high-speed production, and precision forming into one complete production line.

Designed for processing 1.0–3.5 mm galvanized steel, cold-rolled steel, and high-strength steel, this machine automatically changes between C and Z profiles and adjusts product dimensions through the PLC system. Consequently, manufacturers can produce multiple specifications without replacing rollers or performing lengthy mechanical adjustments, significantly improving productivity and reducing operating costs.

Efficient Production for Multiple C and Z Purlin Sizes

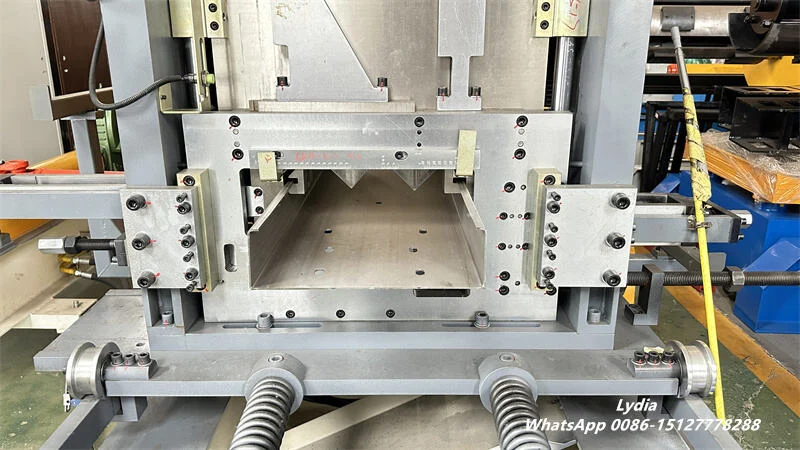

Unlike conventional purlin machines that require manual adjustment whenever product sizes change, this intelligent production line enables operators to complete size modifications by simply selecting the required dimensions on the touch screen. The servo-controlled positioning system automatically adjusts the forming rollers, ensuring excellent repeatability and dimensional accuracy.

The machine is capable of producing C purlins from 80–350 mm and Z purlins from 120–350 mm, making it suitable for most commercial and industrial construction standards. Whether producing standard roof supports or customized structural members, manufacturers can quickly switch between orders without interrupting production for extended setup procedures.

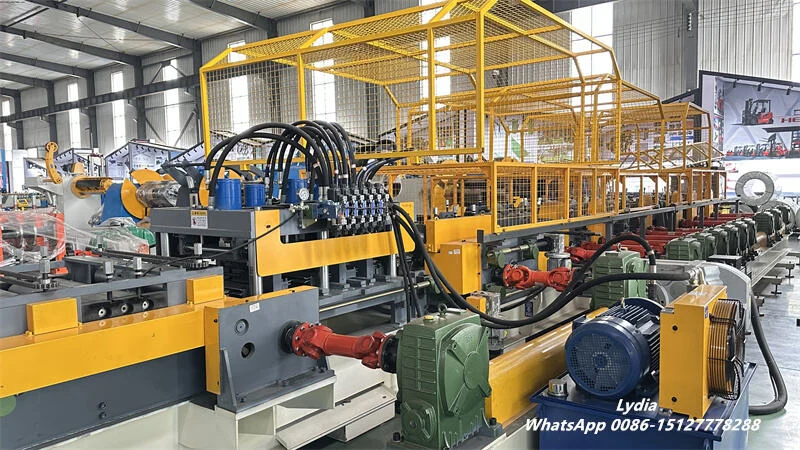

Furthermore, the gearbox transmission system provides greater stability than traditional chain-driven machines. Combined with a powerful servo motor, the production line operates smoothly even when processing thicker materials, delivering consistent profile quality at high production speeds.

Reliable Components Ensure Long-Term Performance

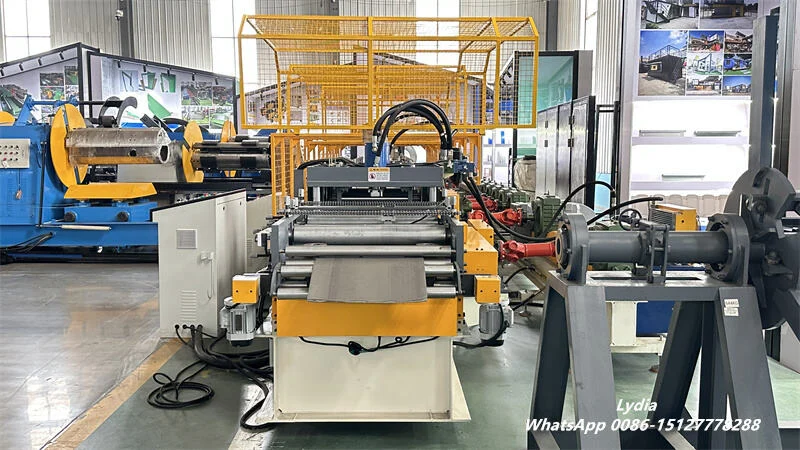

Every section of the machine is designed to withstand continuous industrial production. The feeding system automatically adjusts the material width and passes the steel strip through precision leveling rollers before entering the punching unit. This process eliminates coil deformation and ensures stable material feeding throughout production.

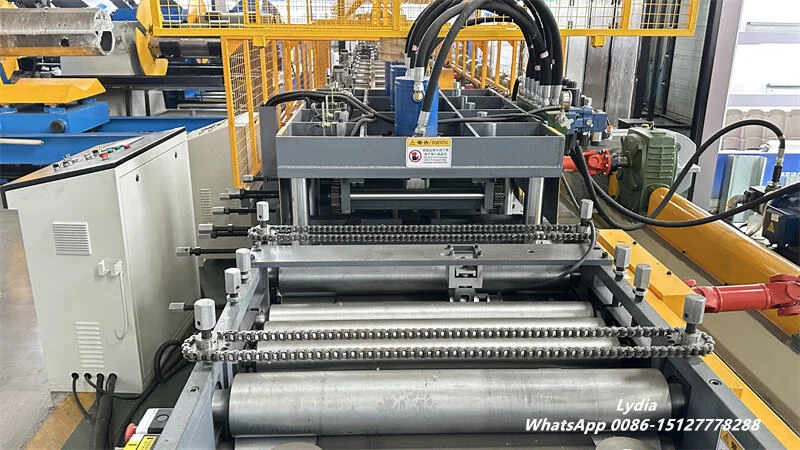

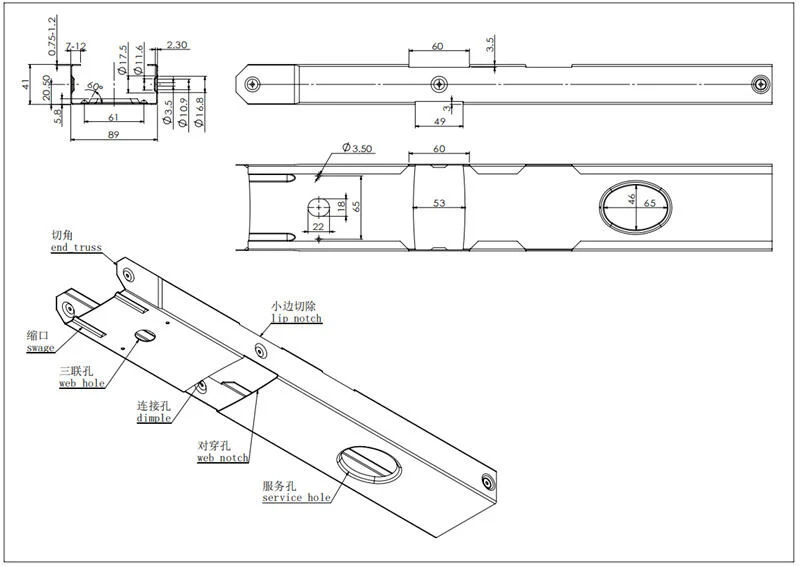

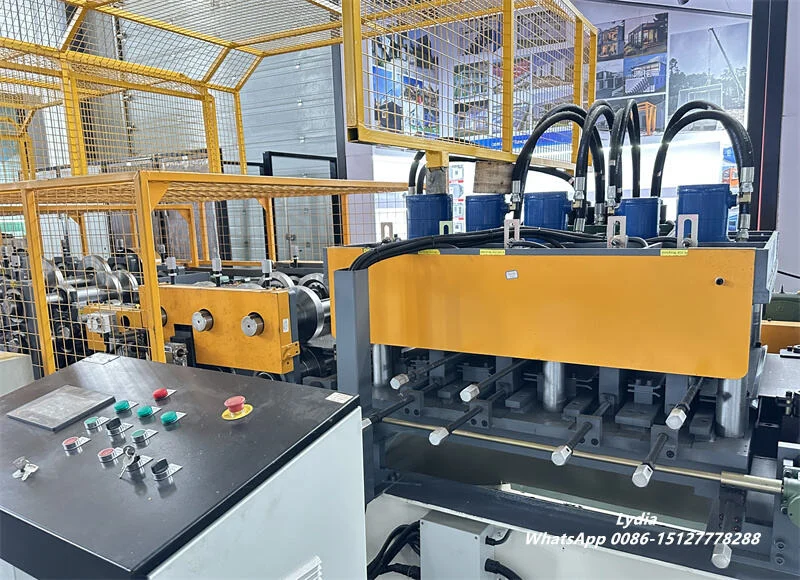

The hydraulic punching system performs multiple hole patterns before the roll forming process begins, reducing stress on the finished profile and improving hole accuracy. High-strength Cr12 punching dies undergo heat treatment to extend service life and maintain clean punching edges during long production cycles.

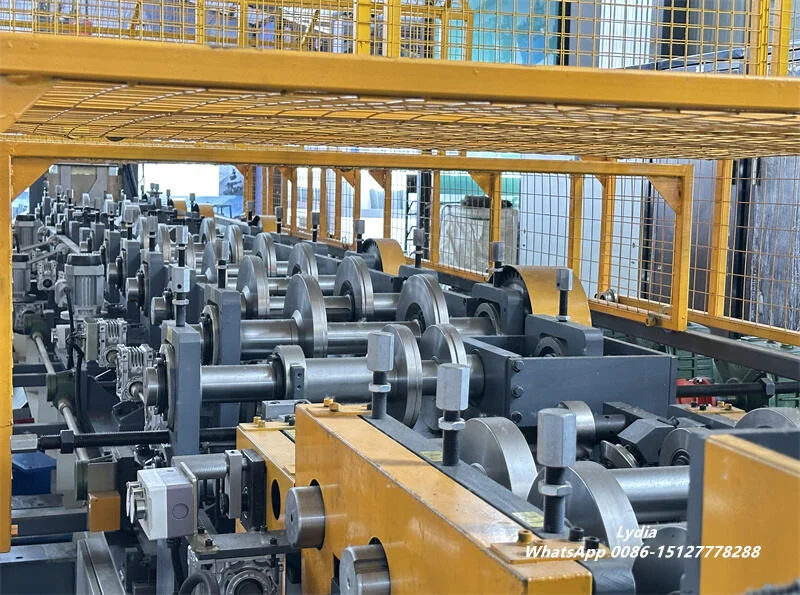

Inside the roll forming section, premium Cr12 forming rollers are CNC machined and heat treated to a hardness of HRC58–60, while solid 40Cr shafts provide outstanding rigidity. As a result, the machine maintains high forming precision even during continuous operation with high-strength steel materials.

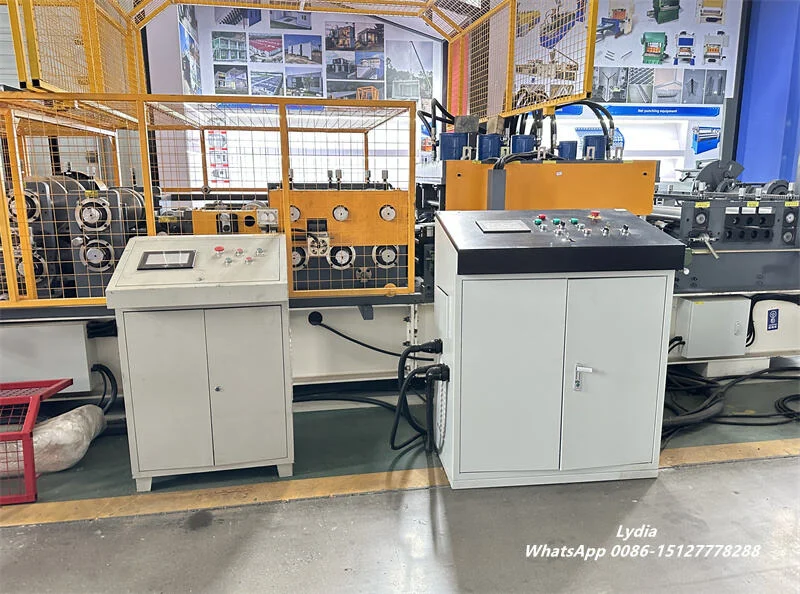

To simplify machine operation, the electrical control system integrates Panasonic PLC, Schneider electrical components, Omron encoders, and a user-friendly touch screen interface. Operators can store production programs, import production data through USB, and quickly change product specifications with minimal training.

Technical Specifications

Item	Specification
Material Thickness	1.0–3.5 mm
Steel Grade	Q235, Q345, Q420
C Purlin Width	80–350 mm
Z Purlin Width	120–350 mm
Forming Stations	23 Stations
Roller Material	Cr12 Heat Treated Steel
Shaft Material	40Cr Solid Shaft
Maximum Forming Speed	Up to 37 m/min
Main Drive	42 KW Servo Motor
Transmission	Gearbox + Universal Coupling
Punching System	Hydraulic Multi-Station Punching
Control System	Panasonic PLC
Voltage	380V / 50Hz / 3 Phase

Widely Used Across Steel Construction Industries

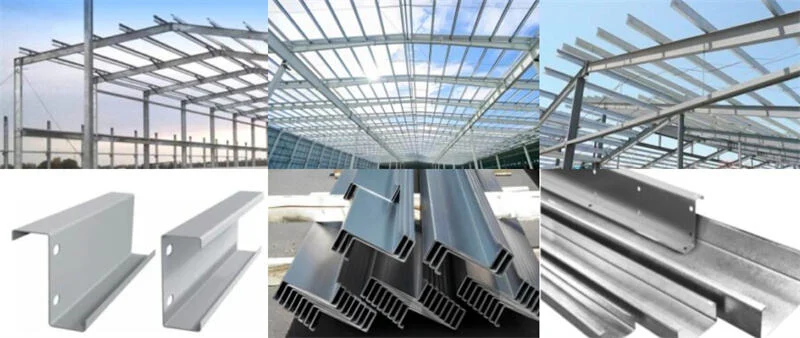

Because of their excellent structural performance, C and Z purlins have become standard components in modern steel buildings. They support roof panels, wall cladding, mezzanine structures, and secondary framing systems while reducing the overall weight of the building.

The finished products manufactured by this Automatic C/Z Purlin Roll Forming Machine are suitable for a broad range of applications, including industrial factories, commercial buildings, agricultural sheds, logistics warehouses, sports facilities, aircraft hangars, modular buildings, solar mounting structures, and prefabricated construction projects.

In addition to conventional roofing systems, purlins are increasingly used in photovoltaic support systems, helping contractors build lightweight yet durable solar installations. Their corrosion-resistant galvanized finish and high structural strength ensure reliable performance even in demanding outdoor environments.

Increase Productivity While Reducing Manufacturing Costs

For steel fabricators, improving production efficiency is just as important as maintaining product quality. This machine achieves both objectives through intelligent automation and robust mechanical design.

Automatic profile conversion eliminates time-consuming roller replacement, allowing manufacturers to complete more orders in less time. Precision servo positioning minimizes adjustment errors, reducing material waste and ensuring every finished profile meets strict dimensional tolerances.

At the same time, the enclosed safety covers protect both the punching section and the roll forming section. Safety interlock switches prevent the machine from operating while protective covers are open, creating a safer working environment for operators.

The combination of intelligent controls, durable components, high-speed production, and flexible product changeover enables manufacturers to improve overall equipment utilization while lowering labor requirements and maintenance costs.

Whether supplying steel building contractors, construction companies, or solar mounting manufacturers, investing in an advanced Automatic C/Z Purlin Roll Forming Machine helps businesses deliver consistent product quality, shorten delivery times, and remain competitive in today's rapidly evolving steel construction market.
