The growing demand for modern kitchen appliances has increased the need for efficient and automated manufacturing solutions. An Appliance Frame Roll Forming Machine is specially designed to produce high-precision metal frames used in gas cookers, induction hobs, built-in stoves, and various household appliances. By transforming metal coils into finished structural frames through continuous roll forming technology, manufacturers can achieve higher productivity, lower labor costs, and superior product consistency.

Unlike traditional stamping methods that require multiple production stages, this automated system integrates feeding, punching, forming, and cutting into one continuous process, making it the ideal solution for large-scale appliance frame production.

What Is an Appliance Frame Roll Forming Machine?

An Appliance Frame Roll Forming Machine is a fully automated production line that converts stainless steel, galvanized steel, or cold-rolled steel coils into customized appliance support frames.

The finished profiles are widely used in:

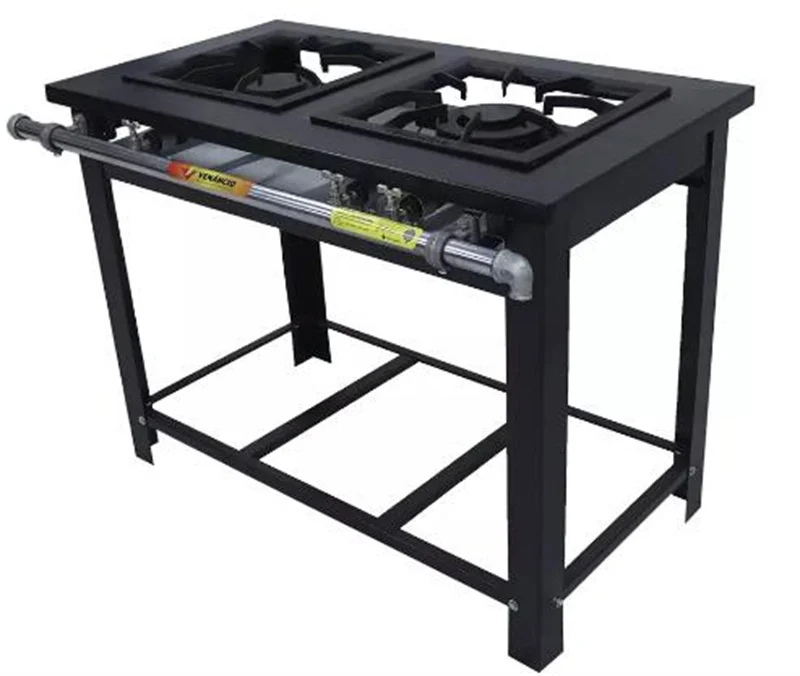

• Gas cooker frames
• Induction hob frames
• Kitchen stove support structures
• Built-in cooktop frames
• Home appliance structural components
• Stainless steel decorative frames
• Commercial cooking equipment frames

The machine ensures uniform dimensions, smooth edges, and excellent structural strength throughout the production process.

How the Production Line Works

The production line begins with automatic coil feeding and gradually forms the material through a series of precision-engineered rollers.

Production Process

Coil Loading → Servo Feeding → Punching → Roll Forming → Hydraulic Cutting → Frame Bending → Finished Product

This continuous manufacturing method significantly reduces production time while improving overall product quality.

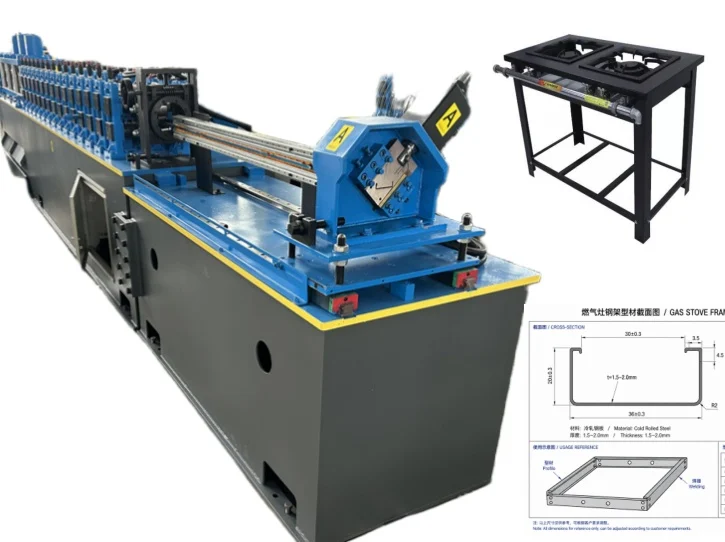

Main Equipment Configuration

A standard appliance frame production line typically includes:

A standard Appliance Frame Roll Forming Machine production line typically includes a Hydraulic Decoiler for automatic coil unwinding and stable material feeding, a Servo Feeding Device that ensures accurate feeding length and synchronization with punching operations, and a Punching System used to create mounting holes, slots, ventilation openings, and assembly features according to product requirements. The material then enters the Roll Forming Section, where multiple forming stations gradually shape the steel strip into the desired profile with excellent dimensional accuracy. A Hydraulic Cutting Unit provides clean, precise cutting without damaging the profile surface. At the same time, the optional Frame Forming System can perform corner bending and frame assembly to produce rectangular or custom appliance frame structures. The entire Automatic Appliance Frame Production Line is managed by an Intelligent PLC Control System, allowing operators to adjust production parameters through a touchscreen interface, store production recipes, monitor machine performance in real time, and ensure stable, efficient operation throughout the manufacturing process.

Advantages of Appliance Frame Roll Forming Technology

Compared with traditional stamping and fabrication methods, the advantages of an Appliance Frame Roll Forming Machine have become increasingly apparent. First of all, exceptionally high production efficiency can be achieved through continuous roll forming technology, allowing significantly more appliance frames to be produced within the same production period. In addition, labor requirements are greatly reduced because the entire manufacturing process is highly automated. As a result, manual handling is minimized, production costs are lowered, and overall operational efficiency is improved.

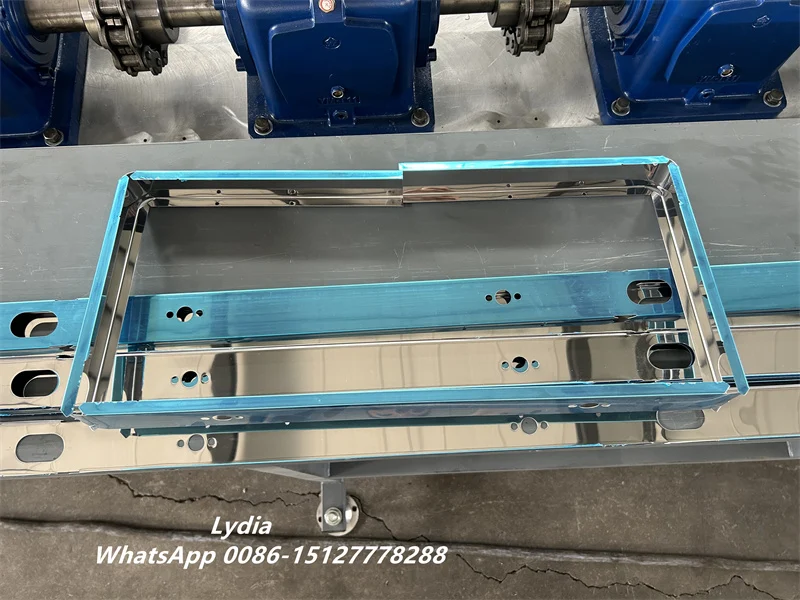

Precision Manufacturing and Material Efficiency

Furthermore, superior product quality can be consistently maintained throughout the production process. Since each profile is formed under identical operating conditions, excellent dimensional accuracy, repeatability, and structural consistency can be ensured. At the same time, material waste is significantly reduced because optimized roll tooling allows raw materials to be utilized more efficiently. Moreover, customized tooling solutions can be developed for different frame dimensions, profile shapes, and edge configurations, making the Roll Forming Technology highly adaptable to a wide range of appliance manufacturing requirements.

Applications and Industry Benefits of Appliance Frame Profiles

Consequently, the finished profiles produced by the Automatic Appliance Frame Production Line are widely used in numerous industries. In the kitchen appliance sector, they are commonly applied to gas stove frames, built-in gas hob frames, induction cooker frames, and cooktop support structures. Meanwhile, in the home appliance industry, they are utilized for refrigerator support frames, washing machine structural components, oven frame assemblies, and air-conditioning support brackets. In addition, applications can also be found in commercial kitchen equipment, catering systems, cabinet support frames, storage systems, and decorative metal structures. Therefore, as production volumes continue to increase, more manufacturers are choosing Appliance Frame Roll Forming Machines because faster production cycles, lower manufacturing costs, higher production capacity, easier profile customization, and reduced maintenance requirements can all be achieved through automated roll forming technology.

Technical Specifications

Item	Specification
Raw Material	SUS201, SUS304, SGCC, SPCC, Aluminum
Material Thickness	0.5 – 1.5 mm
Coil Width	80 – 600 mm
Forming Stations	12 – 18 Stations
Production Speed	10 – 25 m/min
Punching Type	Hydraulic / Servo Punching
Cutting System	Hydraulic Flying Cut
Drive Method	Chain Drive or Gearbox Drive
Control System	PLC + Touch Screen
Power Supply	Customized According to Local Standard

Customized Solutions for Different Markets

Different appliance manufacturers require unique frame designs and dimensions. Therefore, the roll forming line can be customized based on:

• Product drawings
• Frame dimensions
• Material specifications
• Hole patterns
• Production capacity requirements

Whether producing lightweight household appliance frames or heavy-duty commercial equipment components, the machine can be tailored to meet specific production needs.

The Automatic Appliance Frame Roll Forming Machine offers an advanced manufacturing solution for producing high-quality metal frames used in gas cookers, induction hobs, and other household appliances. By combining punching, forming, cutting, and optional frame assembly into a fully automated production line, manufacturers can significantly improve efficiency, reduce operating costs, and maintain consistent product quality.

For companies seeking a reliable and scalable appliance frame manufacturing solution, investing in a modern roll forming production line provides long-term competitive advantages and sustainable growth opportunities.
