The High-Speed CU Solar Strut Roll Forming Machine is designed to manufacture structural CU channels widely used in photovoltaic mounting systems. As global solar installations continue to expand, manufacturers require equipment capable of delivering high production speed, precise hole positioning, and long-term reliability.

This advanced roll forming line integrates automated coil handling, servo feeding, modular punching, precision forming, and flying cutting into a single continuous production system. As a result, manufacturers can produce solar mounting channels efficiently while maintaining consistent profile accuracy.

More importantly, the system supports flexible production of multiple CU sizes, making it an ideal solution for companies supplying solar mounting structures for large photovoltaic projects.

Integrated Production Line for Solar Strut Channels

To ensure stable high-speed production, the machine combines several automated units into a coordinated manufacturing line. Each module works together to maintain smooth material flow and accurate processing.

The production process generally includes:

Decoiling → leveling → servo feeding → modular punching → roll forming → flying cold-saw cutting → automatic receiving.

First, the hydraulic decoiler handles heavy steel coils and feeds material smoothly into the leveling system. Then the servo feeding unit accurately positions the strip for punching operations. Afterward, multiple roll forming stations gradually shape the steel strip into the required CU channel profile.

Finally, the flying cold saw performs precise cutting at high speed, ensuring clean edges and consistent product length.

Flexible Punching System for Multiple Solar Projects

One key advantage of this solar strut roll forming machine is its independent punching structure. The punching section uses eight modular punch units installed on isolated frames, allowing flexible configuration for different hole patterns.

Because solar mounting systems vary between projects, manufacturers often need to adjust hole spacing and positions. With this modular design, operators can quickly modify punching arrangements without rebuilding the entire tooling system.

In addition, the punching units support easy Y-axis adjustment, which allows manufacturers to produce various products such as:

• Solar mounting channels
• Slotted strut profiles
• PV support brackets
• Structural support beams

Consequently, the machine provides strong adaptability for diverse photovoltaic applications.

Precision Roll Forming for CU Structural Profiles

After punching, the material enters the roll forming section where multiple roller stations progressively shape the profile. The machine uses high-precision forming rollers mounted on pillar-type support structures, ensuring stable operation even at high speeds.

Furthermore, the servo-driven adjustment system allows quick changes in profile width and height. Instead of manual mechanical adjustments, operators can modify dimensions directly through the control system, significantly reducing setup time.

This intelligent adjustment capability improves manufacturing efficiency while maintaining consistent dimensional accuracy across long production runs.

Item	Specification
Material Thickness	2.0 – 4.0 mm
Profile Web Width	60 – 180 mm
Material Type	ST37 / ST52
Production Speed (with punching)	Up to 30 m/min
Decoiler Capacity	8 Tons
Punching System	Modular stand-alone stations
Punch Quantity	8 Units
Roll Forming Stations	19 Groups
Shaft Diameter	Φ100 mm
Main Motor Power	75 kW
Punch Power	55 kW + 37 kW
Cutting Type	Flying Cold Saw
Structure	Pillar-type roller support
Total Power Consumption	Approx. 230 kW

The production line uses a flying cold saw cutting system, which operates synchronously with the roll forming line. This design allows the machine to cut profiles without stopping production, maintaining high throughput and improving overall efficiency.

Additionally, the entire machine frame is reinforced with heavy-duty steel structures to reduce vibration during high-speed operation. Combined with centralized PLC control and advanced electrical components, the system ensures reliable performance during continuous manufacturing cycles.

As a result, manufacturers can achieve consistent quality while maintaining high production output.

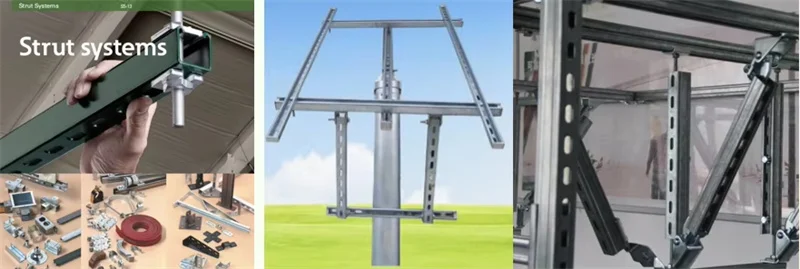

Applications in Solar Mounting Structure Manufacturing

Due to its speed, precision, and flexibility, this CU solar strut roll forming machine is widely used in the production of photovoltaic structural components.

Typical applications include:

• Solar panel mounting rails
• Ground-mounted PV support systems
• Rooftop solar installation structures
• Industrial strut channels
• Large solar farm support frames

With the rapid growth of renewable energy projects worldwide, demand for solar mounting profiles continues to rise. Therefore, investing in a high-performance roll forming solution allows manufacturers to expand production capacity and meet global market requirements.

This high-efficiency workflow makes the machine ideal for manufacturers supplying large-scale solar farms, EPC contractors, and PV support system distributors.

Ideal Machine for Solar Structure and Strut Channel Manufacturing

Whether producing CU strut channels, solar brackets, mounting rails, or customized structural profiles, this solar mounting channel machine provides unmatched flexibility. Its modular design allows for upgrades such as servo punching groups, automatic stacking systems, and precision laser measurement.

The combination of high-speed forming, accurate punching, and automated cutting makes it a complete production solution for solar support roll forming lines worldwide.
