The demand for durable and weather-resistant standing seam roofing systems continues to grow across the United States. To meet this market demand, the United States SS150 1.5" Mechanical Seam Roll Forming Machine is engineered to produce high-quality mechanically seamed roof panels for residential, commercial, and architectural projects.

Unlike snap-lock systems, the SS150 profile creates a mechanically folded seam that delivers superior structural strength and exceptional weather protection. As a result, contractors can confidently install these panels on low-slope roofs, coastal buildings, and areas exposed to severe weather conditions.

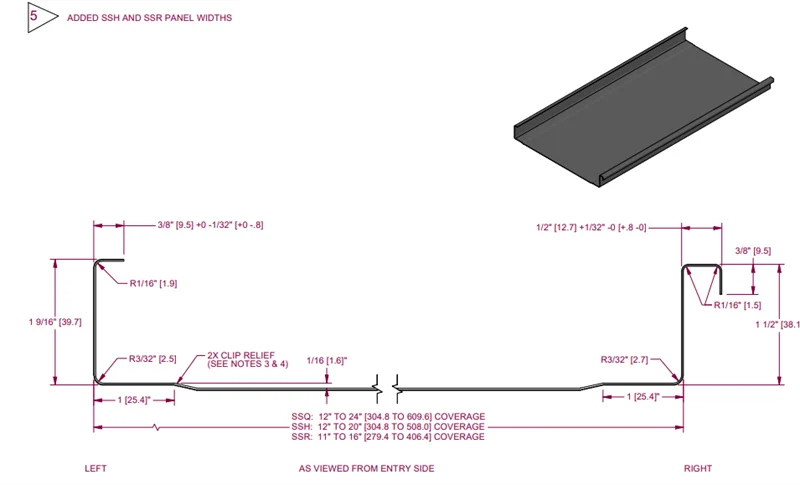

Designed for High-Performance 1.5" Mechanical Seam Panels

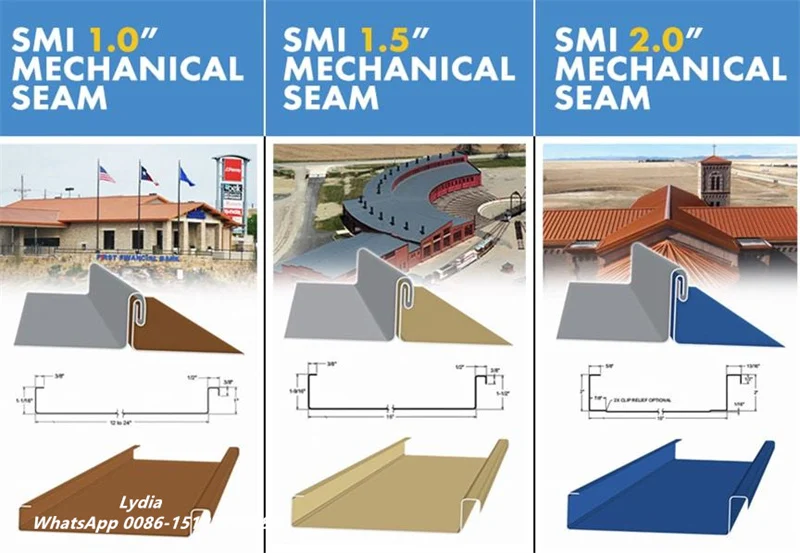

The SS150 profile features a 1.5-inch (38.1 mm) standing seam height, offering an ideal balance between roof aesthetics, water drainage performance, and walkability.

After installation, the male and female panel legs are mechanically folded together using a hand seamer or electric seaming machine. This process creates a secure interlock that improves wind uplift resistance and long-term waterproofing performance.

Compared with lower-profile systems, the SS150 panel handles water more effectively on low-slope roofs. At the same time, it remains easier to walk on than taller 2-inch seam profiles.

Item	Specification
Rib Height	1" (25.4 mm)
Net Coverage	16" Standard
Optional Coverage	12" – 18"
Panel Length	3 ft – 48 ft
Material Thickness	24 Ga Standard / 26 Ga Optional
Material Type	Galvalume, Galvanized Steel, Pre-painted Steel
Installation Method	Snap-Lock Standing Seam
Minimum Roof Pitch	3:12

Typical SS150 Panel Specifications

Item	Specification
Model	United States SS150 Roll Forming Machine
Profile Type	Standing Seam Mechanical Seam Panel
Rib Height	1.5" (38.1 mm)
Lock Type	Single-Lock or Double-Lock Mechanical Seam
Coverage Width	12", 14", 16", 18", 20" (Customizable)
Material Type	Steel, Galvalume, Aluminum (3004/3105)
Material Thickness	24–26 Gauge
Roof Slope	1:12 to 4:12
Fastening Method	Concealed Clip System
Entry Orientation	Left-Hand or Right-Hand Feed Available
Machine Frame	Heavy-Duty Welded Steel Structure
Roller Stations	18–22 Stations
Main Motor Power	7.5–11 kW (10–15 HP)
Production Speed	30–45 ft/min (9–14 m/min)
Cutting System	Hydraulic Post-Cut Shear
Control System	PLC Automatic Control (Optional)

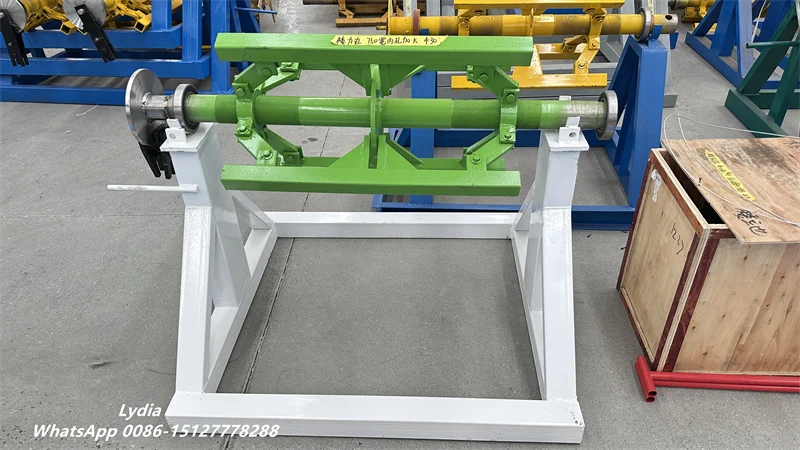

Decoiler	Manual or Hydraulic (Optional)
Stacker	Optional
Embossing Unit	Optional
Clip Slot Punch	Optional
Application	Residential, Commercial, Architectural Roofing
Suitable Products	Standing Seam Roof Panels, Wall Cladding Panels, Canopies, Awnings
Feed Direction	Customized According to Customer Layout

Advantages of the Mechanical Seam Roofing System

Mechanical seam roofing remains one of the most trusted standing seam systems in North America. The field-seamed connection creates a stronger bond than traditional snap-lock panels and significantly improves resistance to extreme weather conditions.

Furthermore, the fully enclosed seam protects fasteners from direct exposure, reducing maintenance requirements over the lifespan of the roof.

Key benefits include:

• Superior wind uplift resistance
• Excellent waterproof performance
• Suitable for low-slope roofing applications
• Concealed fastening system
• Long service life with minimal maintenance
• Compatible with common U.S. clip systems

Because of these advantages, many architects and roofing contractors specify mechanical seam systems for demanding building environments.

ZTRFM provides more than just a RapidSeam Roll Forming Machine—we deliver a complete standing seam roof panel production line designed to help customers begin manufacturing efficiently after installation. A standard production line includes a coil decoiler, feeding and guiding system, roll forming machine, hydraulic cutting unit, PLC control cabinet, product run-out table, safety protection devices, and a detailed English operation manual. To ensure long-term reliability, spare cutting blades and essential maintenance parts are also included. Furthermore, optional equipment such as hydraulic decoilers, pre-notching systems, embossing units, and customized punching stations can be integrated according to specific production requirements, helping manufacturers increase flexibility and productivity.

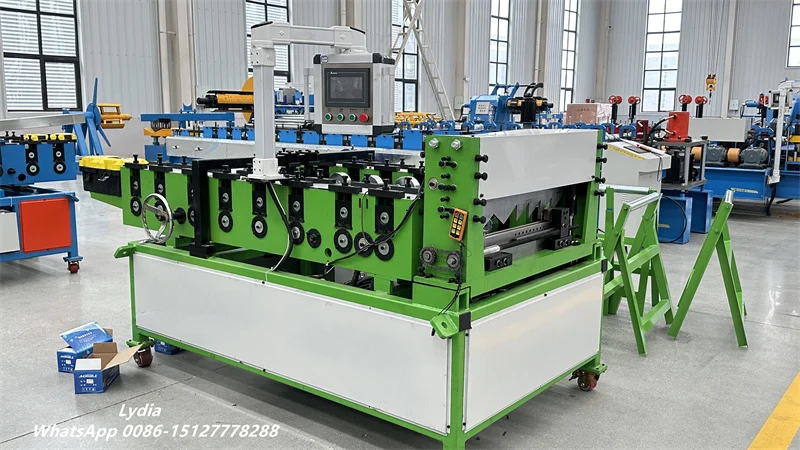

Machine Configuration Built for Precision Manufacturing

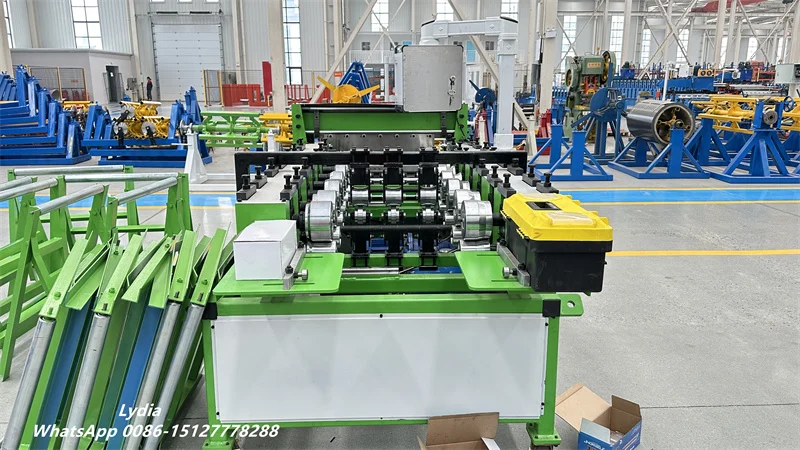

To ensure consistent panel quality, the SS150 roll forming machine features a heavy-duty steel structure and precision-machined forming rollers.

The forming process gradually shapes the coil into the finished profile while maintaining accurate dimensions and seam geometry. Additionally, the hydraulic cutting system provides clean panel ends without deforming the profile.

Standard machine configuration includes:

• Heavy-duty welded steel frame
• Precision roll forming stations
• PLC automatic control system
• Hydraulic post-cut shear
• Variable frequency drive system
• Digital length measuring system
• Emergency stop and safety protection devices

For customers seeking higher automation levels, optional equipment such as hydraulic decoilers, automatic stackers, embossing units, and clip slot punching systems can be integrated into the production line.

Applications Across the U.S. Roofing Market

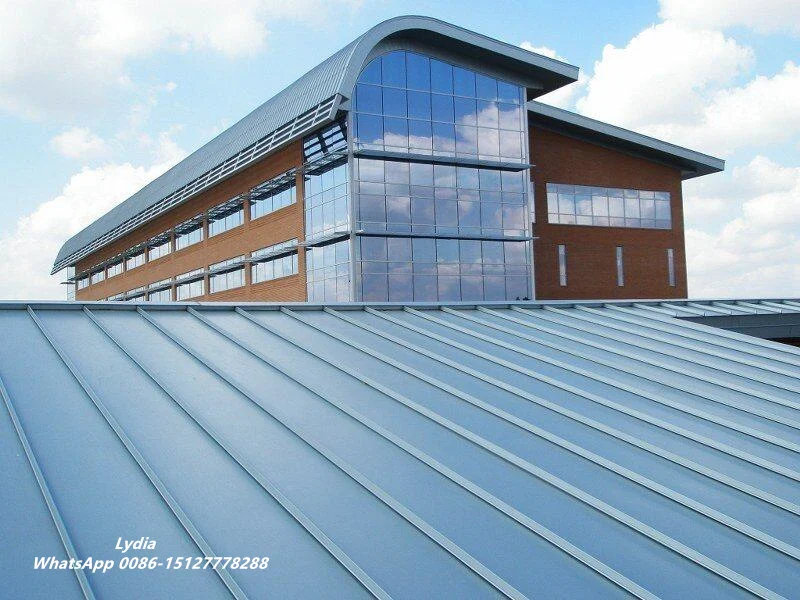

The SS150 standing seam profile has become a popular choice throughout the United States because it combines architectural appearance with proven weather protection.

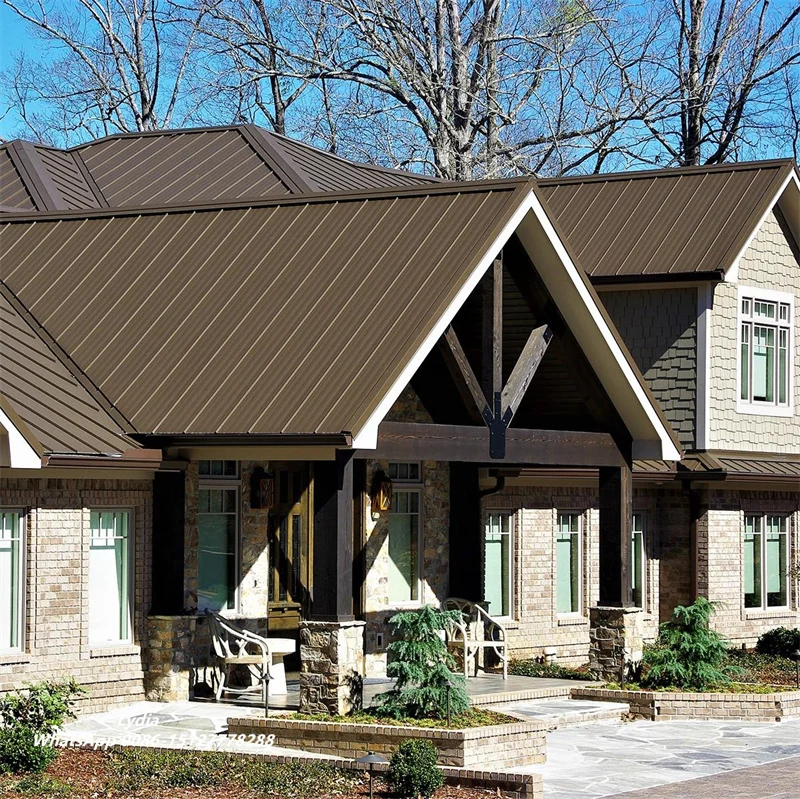

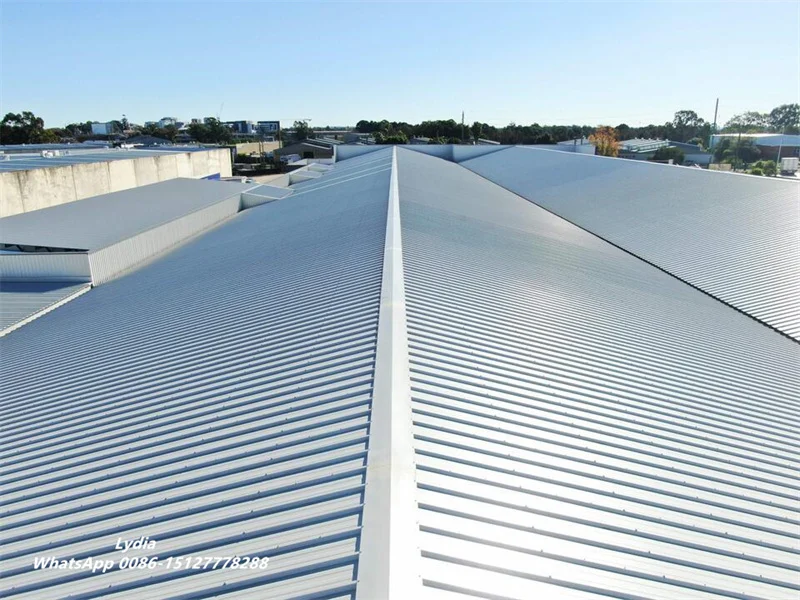

Residential contractors frequently install this profile on modern homes, ranch properties, vacation houses, and barndominiums. Meanwhile, commercial builders use it for offices, churches, retail centers, educational facilities, and municipal buildings.

In addition, the profile performs exceptionally well in:

• Coastal regions
• Hurricane-prone areas
• Snow-load environments
• Low-slope roof systems
• Architectural wall cladding
• Canopies and awnings

Its versatility allows contractors to serve multiple market segments using a single roofing solution.

Why Choose Our SS150 Roll Forming Machine

As a professional roll forming machine manufacturer, we build every SS150 production line according to the customer's panel drawing and project requirements.

Our engineering team carefully develops the tooling geometry to match the required mechanical seam profile, ensuring accurate panel dimensions and reliable seam performance. Every roller is CNC-machined and heat-treated to improve durability and maintain forming accuracy during long-term production.

Before shipment, we can provide sample panels and machine testing videos for customer approval. Additionally, complete technical documentation, remote support, and installation guidance help ensure a smooth startup process.

Whether you need a machine for local roofing production or large-scale commercial projects, our SS150 Mechanical Seam Roll Forming Machine delivers the precision, reliability, and flexibility required by today's metal roofing industry.

Every standing seam roof panel profile has unique dimensions, clip systems, and material specifications. As a result, ZTRFM provides fully customized solutions based on your actual production requirements. Simply send us your panel drawing, profile dimensions, or a sample panel photo, and our engineers will evaluate the design and recommend the most suitable roof panel roll forming machine configuration. We can then provide a detailed machine proposal, profile compatibility analysis, production line layout, sample panel testing video, and competitive FOB, CIF, or EXW pricing options, along with an estimated delivery schedule. Backed by extensive industry experience and professional technical support, ZTRFM helps manufacturers produce high-quality standing seam metal roofing panels efficiently, accurately, and profitably.

Whether you require a standard roofing profile or a completely customized design, ZTRFM can develop a tailored roll forming solution to match your local market needs, production capacity, and material specifications. Simply share your profile drawing, sample panel, or project requirements, and our engineers will recommend the most suitable machine configuration for your business.
