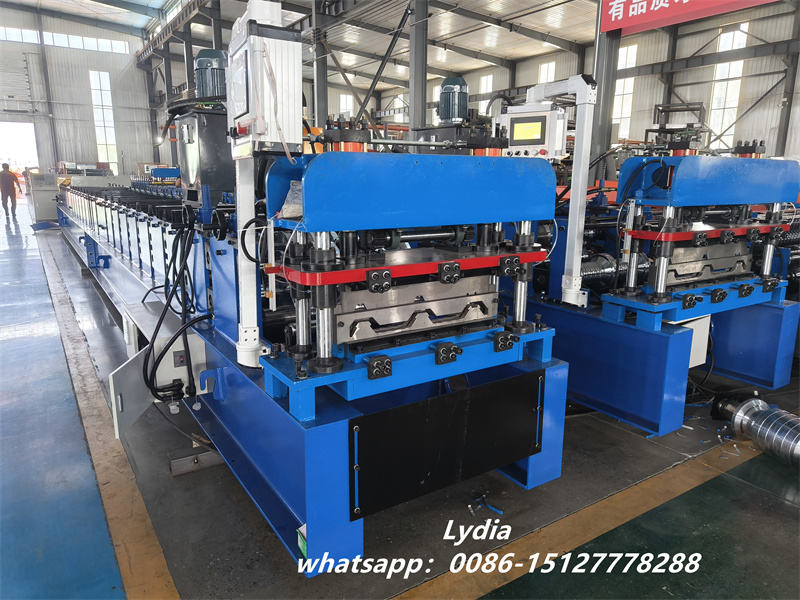

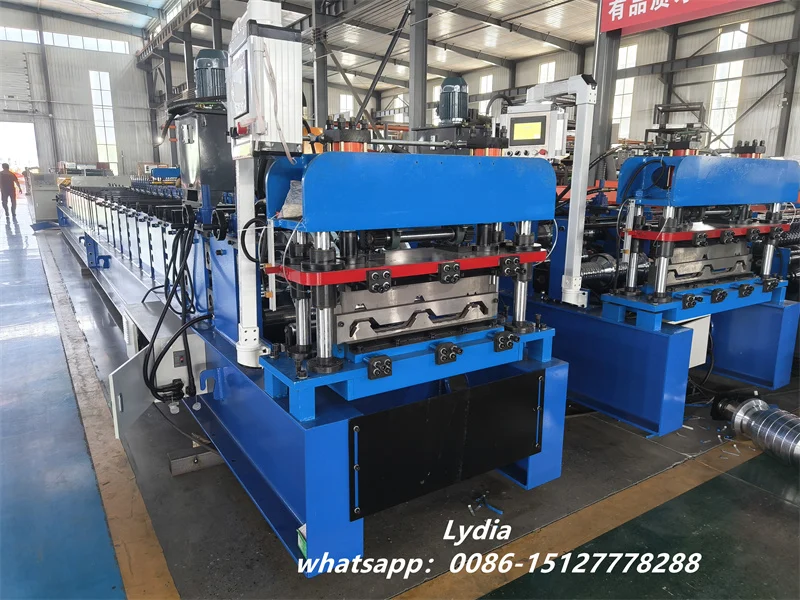

Kliplock Roll Forming Machine by ZTRFM
The Kliplock Roll Forming Machine, also known as the Klip-lok or Cliplock roll former, is expertly engineered to manufacture strong, corrugated Kliplock profiles for roofing and wall cladding. This high-efficiency system automates the entire metal sheet forming process and features a user-friendly HMI panel, making operation simple and intuitive.

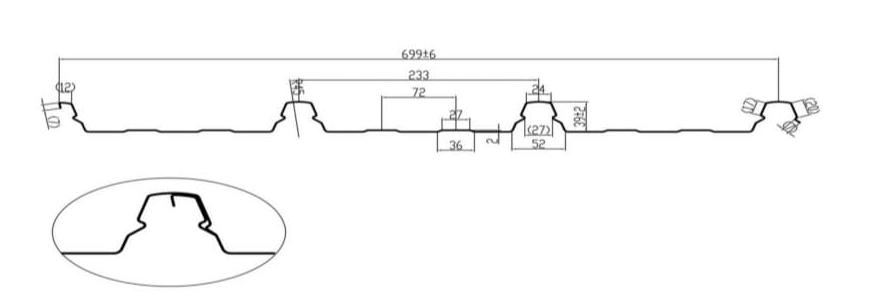

FEATURES
Cover width – 681 mm
Coil width – 914 mm
Section interior – 227 mm
Max height – 39 mm
Thickness – 0.36 mm, 0.42 mm & 0.5 mm
(OR)
Cover width – 705 mm
Coil width – 914 mm
Section interior – 235 mm
Max height – 37 mm
Technical Specifications of Kliplock Roll Forming Machine
Total Power: 11 kW (3-phase, 50 Hz, 380 V)
Production Speed: 18–22 meters per minute
Machine Size (L×W×H): Approximately 14.0 m × 1.6 m × 1.5 m
Machine Weight: Approximately 13 tons
Number of Roller Stations: 30–33 pairs
Material Thickness Range: 0.2–0.7 mm BMT, suitable for G400–G550 grades (galvanized, zincalume, and color-coated steel)
Material Widths: 610 mm or 914 mm
Drive System: Hydraulic
Cutting System: Hydraulic (pre-cut and profile cutting)
Control System: Fully automated with inverter, PLC, HMI, and hydraulic components
Key Features of Kliplock Roll Forming Machine
Fully automated roll forming and cutting with inverter, PLC, and HMI controls
Easy programmable length settings via touch panel
Rollers and blades made from high-grade alloy and SKD11 steel, hardened to 60–62 HRC for durability
Uses electrical and hydraulic components from trusted Japanese and German brands
Saves order history for up to 30 days
Customizable designs to meet customer specifications
Reliable performance ensured by a sturdy frame and strong power system

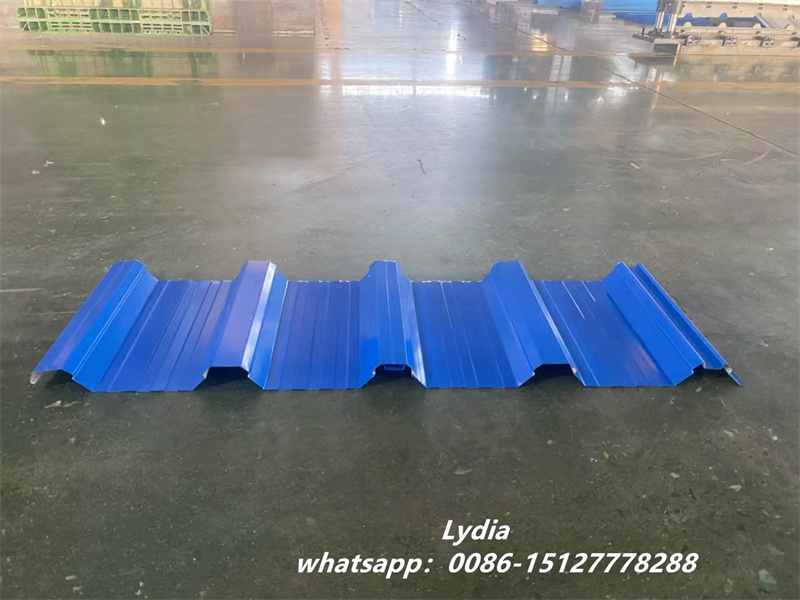

The Kliplock roll forming machine is perfect for producing popular profiles like Klip-lok 700 and Klip-lok 406, widely used in:
Low-slope and flat roofing
Ribbed wall cladding (vertical and horizontal)
Industrial, commercial, and residential buildings
