As global demand for modular buildings, portable container houses, and cargo transportation continues to grow, the need for efficient Shipping Container Making Machine solutions has increased rapidly. Manufacturers now require faster production, higher precision, and stronger finished panels to meet international container standards.
A modern shipping container roll-forming machine is specially designed to produce durable corrugated container panels with excellent structural strength. These panels are widely used in standard shipping containers, storage containers, prefab container homes, industrial buildings, and mobile offices.
Unlike traditional fabrication methods, automated container panel production lines improve forming accuracy, reduce labor costs, and significantly increase production efficiency. At the same time, advanced roll forming technology ensures consistent panel dimensions and stable product quality throughout continuous production.
high efficiency container side panel roll forming machine
high efficiency container side panel roll forming machine
What Is a Shipping Container Making Machine?
A Shipping Container Making Machine is an industrial roll forming system used to manufacture container wall panels, roof panels, and side panels from steel coils. The machine gradually shapes flat steel sheets into corrugated profiles through multiple roller stations.
The corrugated structure plays a critical role because it increases the rigidity and load-bearing capacity of the container body. As a result, the finished panels can withstand harsh transportation conditions, heavy stacking pressure, and changing weather environments.

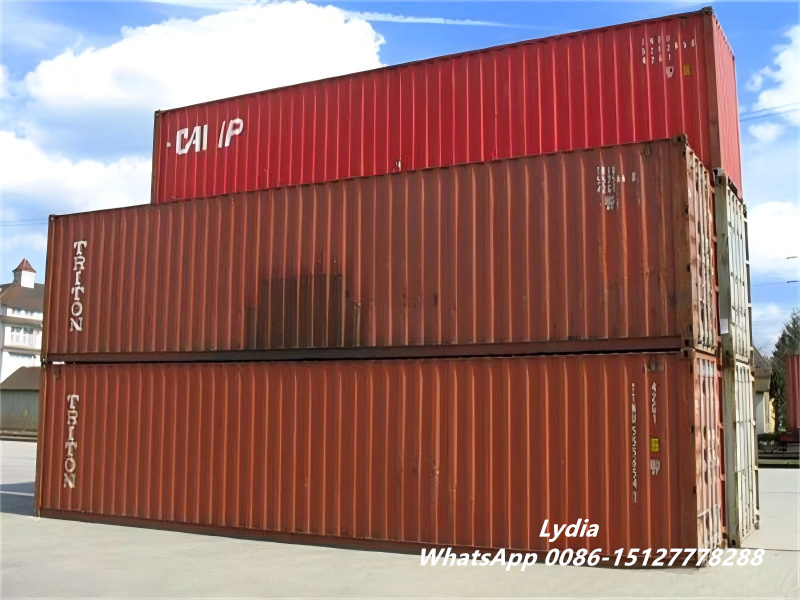

Shipping containers are used for cargo transportation and storage
Most production lines integrate several automated components, including:
- Hydraulic uncoiler
- Feeding and guiding device
- Roll forming unit
- Hydraulic cutting system
- PLC control system
- Output table
These components work together to achieve continuous and high-speed production while maintaining stable forming performance.
How Does the Shipping Container Roll Forming Machine Work?
The working process of the shipping container roll forming machine begins with steel coil loading. First, the hydraulic uncoiler smoothly releases the steel coil and feeds it into the forming section. Then, the guiding device aligns the material to ensure accurate feeding throughout the production process.
Next, the steel sheet passes through multiple roller stations. During this stage, the machine gradually bends and forms the sheet into the required corrugated container profile. Compared with manual bending methods, roll forming delivers higher precision and better surface consistency.
After forming, the hydraulic cutting system automatically cuts the finished panel according to preset lengths. Finally, the completed panels move to the receiving table for stacking, welding, or further assembly.
Additionally, square tubes can later be welded onto the upper and lower edges of the panels, allowing them to connect securely with the container floor and roof structures.

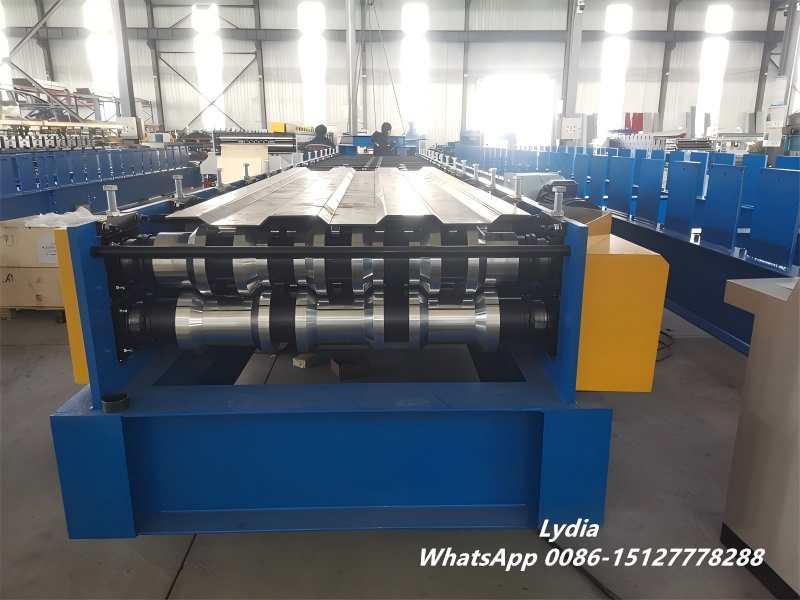

shipping container making machine for corrugated container panels production
Applications of Shipping Container Panel Roll Forming Machines
The versatility of the container panel roll forming machine makes it suitable for a wide range of industries and construction projects.
Shipping and Storage Containers
Manufacturers use the machine to produce wall and roof panels for standard cargo containers, storage units, and logistics containers. The corrugated steel structure provides excellent impact resistance and durability during long-distance transportation.
Container Houses and Portable Buildings
Container homes and modular buildings have become increasingly popular because they offer fast installation and flexible design options. Panels produced by the machine provide strong structural support while maintaining lightweight construction advantages.
Industrial Buildings
Many factories and warehouses use container-style insulated wall systems and roofing panels. These structures require high-strength steel panels capable of resisting wind loads and harsh environmental conditions.
Agricultural and Public Facilities
The machine also supports the production of steel panels for agricultural storage buildings, stadiums, workshops, and temporary construction facilities. Its flexible forming capability allows manufacturers to customize panel sizes for different projects.

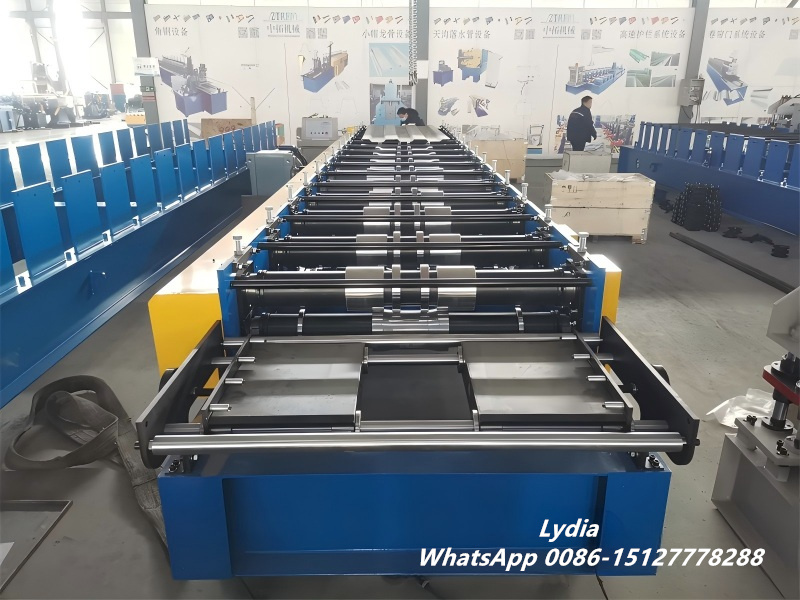

container panel roll forming machine for steel shipping containers
Technical Specifications of Shipping Container Making Machine
The following table shows common technical parameters for a standard shipping container panel roll forming machine:
| Item | Specification |
|---|---|
| Material | Corten-A Steel (SPA-H) |
| Material Thickness | 2.0 mm |
| Forming Speed | 20-25 m/min |
| Roller Stations | 30 Stations |
| Roller Material | 45# Steel, Heat Treated |
| Roller Hardness | HRC58-62° |
| Shaft Diameter | Φ115 mm |
| Motor Power | 2 × 15 KW |
| Transmission Type | Chain Transmission |
| Cutting Method | Hydraulic Stop Cutting |
| Cutting Blade Material | CR12 Quenched Steel |
| Frame Structure | 500H Beam |
| Control System | PLC Automatic Control |
Because container panels require high structural strength, the machine frame and rollers are specially reinforced to ensure stable operation when processing thicker steel materials.

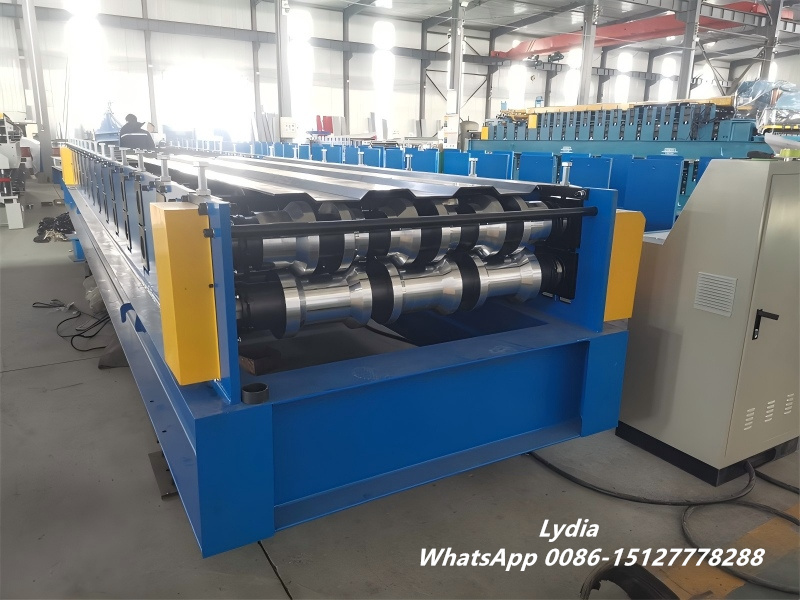

container panel roll forming machine for steel shipping containers
Advantages of Using Shipping Container Roll Forming Machines
Modern shipping container-making machines offer several major advantages for manufacturers seeking efficient and large-scale production solutions.
High Structural Strength
The corrugated profiles produced by the machine provide excellent bending resistance and compression strength. Therefore, finished panels can easily handle transportation pressure, stacking loads, and harsh weather conditions.
High Production Efficiency
Automated roll forming technology enables continuous production with minimal manual intervention. Consequently, manufacturers can reduce labor costs while improving output capacity.
Stable Product Quality
Precision roller design and PLC control systems ensure consistent panel dimensions and accurate forming results. This consistency helps manufacturers meet strict container production standards.
Flexible Customization
Manufacturers can customize panel lengths, profile dimensions, and material thicknesses according to customer requirements. This flexibility supports a wide variety of container and modular building applications.
Lower Long-Term Production Costs
Although the initial investment in a roll forming line may be significant, automated production greatly reduces material waste and maintenance costs over time.
The Shipping Container Making Machine has become an essential piece of equipment in modern container manufacturing and modular construction industries. By combining automated roll forming technology, hydraulic cutting systems, and precision control, the machine delivers fast production speeds, reliable forming accuracy, and outstanding structural performance.
Whether producing shipping containers, portable houses, industrial wall panels, or storage units, manufacturers can rely on advanced shipping container roll forming machines to achieve efficient production and consistent product quality.
