The Steel Foot Plate Footpedal Roll Forming Machine is a specialized production line designed to manufacture durable and precise metal scaffold walk boards used in modern construction systems. Because scaffold platforms must support workers and equipment at height, manufacturers require boards that combine strength, stability, and safety.To meet these requirements, the roll forming machine converts steel coils into finished scaffold planks through a continuous automated process. The line integrates several production stages, including decoiling, leveling, servo feeding, punching, roll forming, riveting, and precision cutting. As a result, manufacturers can produce scaffold walk boards efficiently while maintaining consistent product quality.

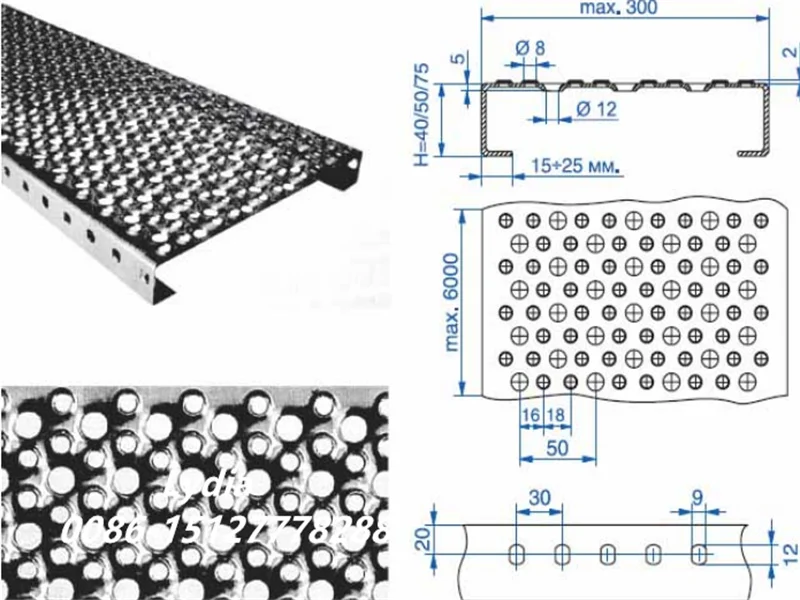

The drawing profile：

Growing Demand for Steel Scaffold Walk Boards

As construction standards continue to improve worldwide, the demand for reliable scaffold components is increasing. Contractors need scaffold walk boards that are strong enough to handle heavy loads and durable enough to withstand harsh jobsite environments.

Compared with wooden boards, steel scaffold planks offer several advantages. First, they provide higher load-bearing capacity and better structural stability. Second, the perforated surface design improves anti-slip performance and drainage. Finally, steel boards have a longer service life and require less maintenance.

Because of these benefits, many manufacturers now use automated roll forming technology to produce scaffold walk boards in large quantities.

What Products Can Be Produced

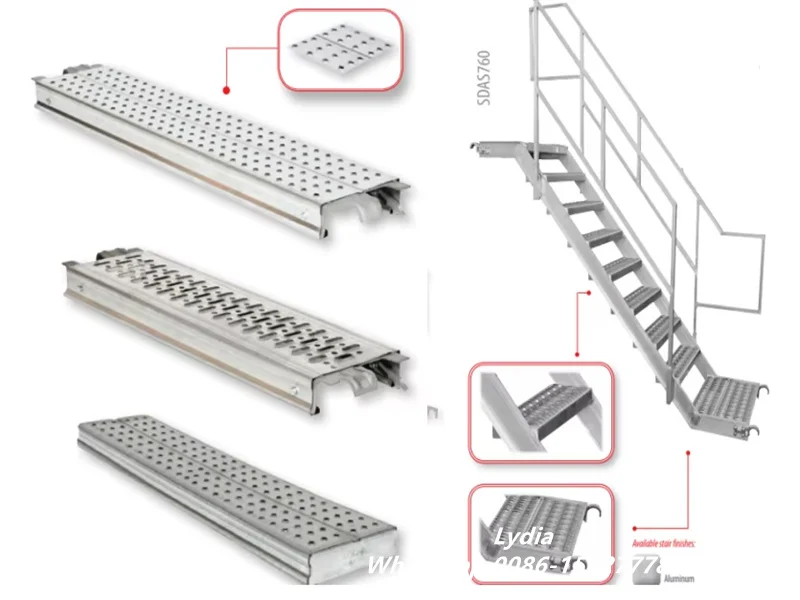

The Metal Scaffold Walk Board Roll Forming Machine can manufacture different types of scaffold platform components depending on the confirmed design drawing. Typical products include:

• Steel scaffold walk boards
• Metal scaffold planks
• Foot pedal scaffold boards
• Perforated scaffold decks
• Structural scaffold platform panels

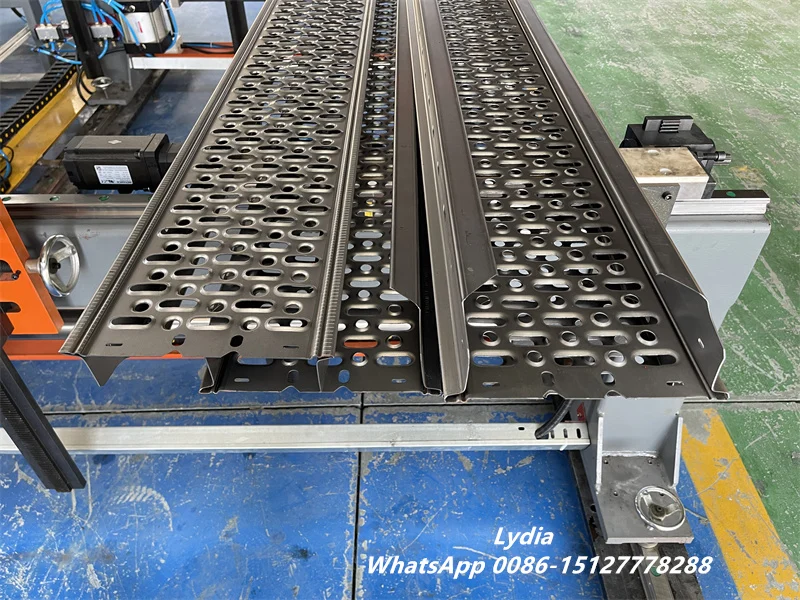

Through customized tooling and punching patterns, the machine can create different board widths, hole layouts, and edge structures required by various scaffold systems.

Production Workflow

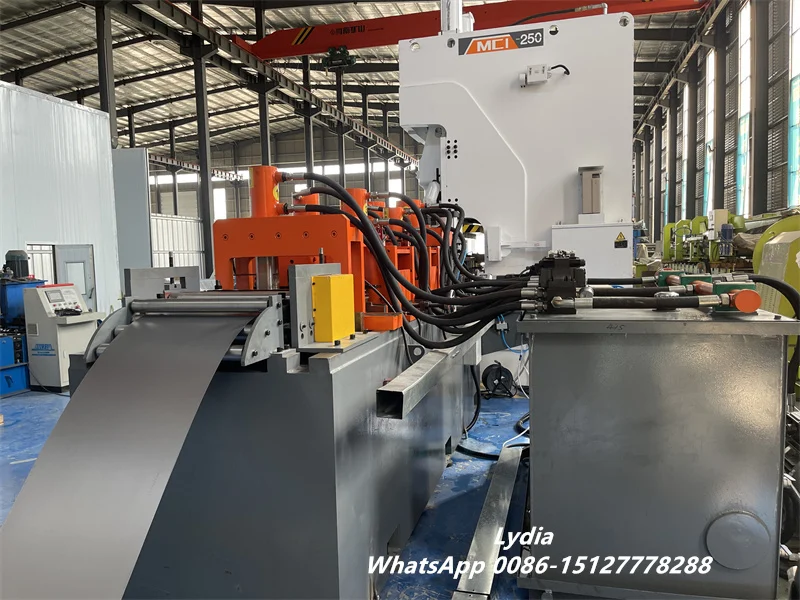

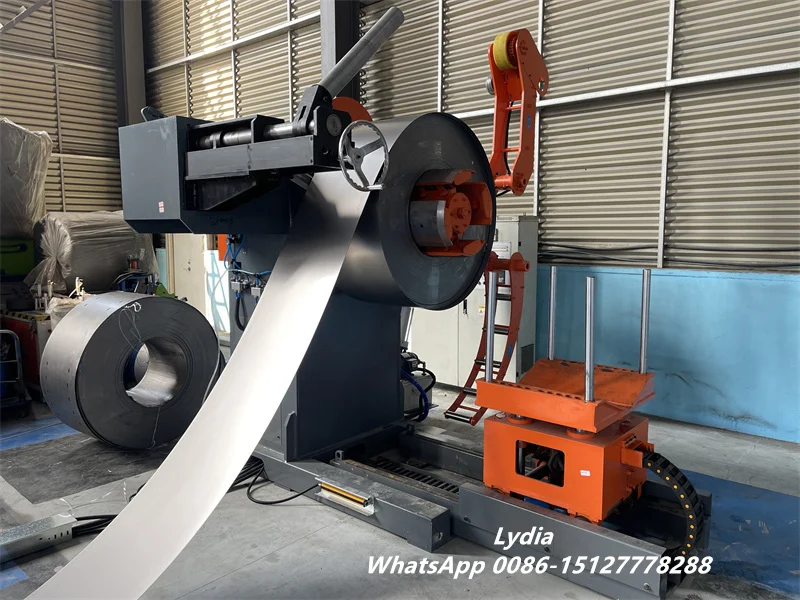

To ensure efficient and stable manufacturing, the machine follows a continuous production sequence. Initially, the steel coil is placed on the decoiler and gradually unwound. The material then passes through the leveling unit to improve flatness and eliminate coil stress.

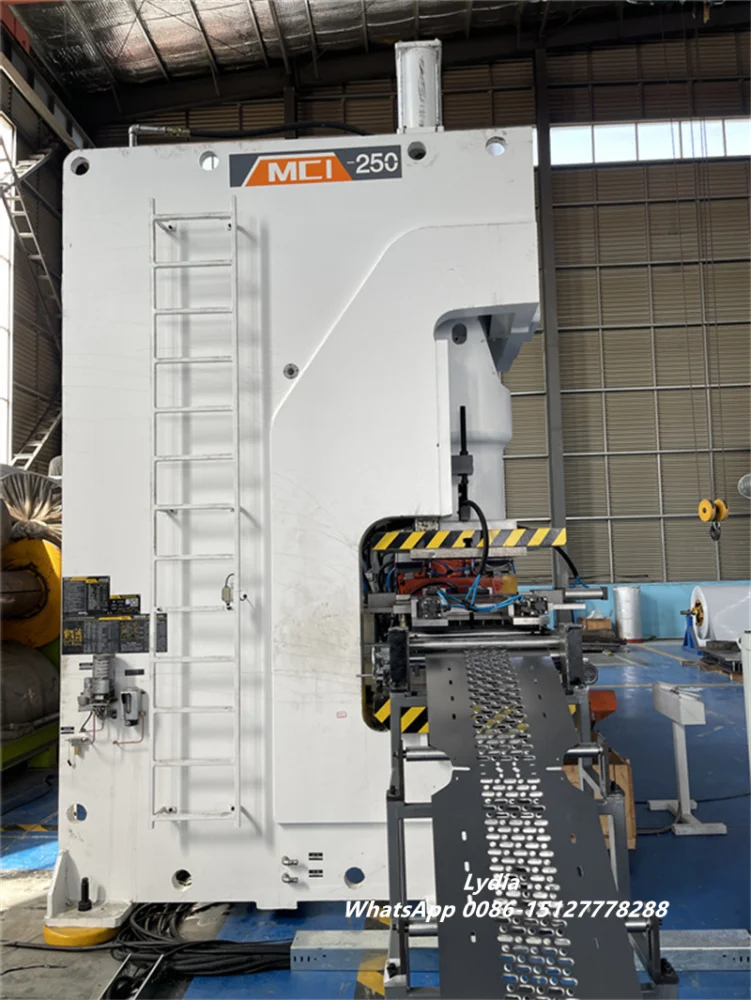

Next, the servo feeding system accurately controls the feeding length while the punching unit creates the required holes or stretching features. After punching, the strip enters the roll forming section, where multiple forming rollers gradually shape the profile.

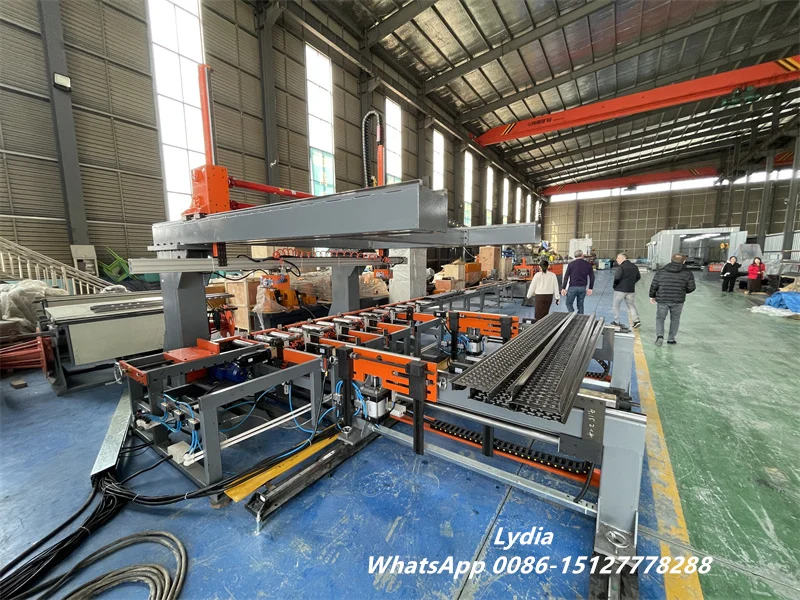

Once the profile is formed, the machine completes the necessary riveting and edge forming operations. Finally, the servo tracking cutting system cuts the finished scaffold boards to the preset length without stopping the production line.

Typical Production Flow

Decoiling → Leveling → Servo Feeding → Punching → Guiding → Roll Forming → Riveting → Edge Forming → Servo Tracking Cutting

Key Advantages of the Roll Forming Machine

This scaffold plank roll forming machine offers several advantages that help manufacturers improve productivity and maintain product consistency.

First, the automated design allows continuous production with minimal manual intervention. Operators can control the entire line through a PLC system and touchscreen interface. This simplifies machine operation and improves overall efficiency.

Second, the servo feeding mechanism ensures accurate positioning before punching. Precise hole placement is essential for scaffold walk boards because it affects both structural performance and assembly compatibility.

Furthermore, the roll forming unit uses high-strength frames and precision rollers to maintain stable forming conditions. Even during long production runs, the machine delivers consistent profile dimensions and smooth surface quality.

Finally, the servo tracking cutting system provides accurate length control while allowing uninterrupted production. Consequently, manufacturers can increase output while maintaining tight tolerances.

Main Technical Specifications of Scaffolding Plank Roll Forming Machine for Anti-Slip Steel Boards

The machine configuration may vary depending on the scaffold board profile and production requirements. However, a standard production line generally includes the following specifications:

Item	Specification
Raw Material	Galvanized steel or cold rolled steel
Material Thickness	Up to 2.0 mm
Coil Width	≤ 900 mm
Decoiler Capacity	5 Tons
Leveling System	7 leveling rollers
Servo Feeder	NC Servo Feeding System
Punching System	Hydraulic Punching Unit
Forming Stations	Approximately 40 forming passes
Shaft Diameter	80 mm
Roller Material	GCr15, hardened and precision machined
Main Motor Power	2 × 11 kW
Cutting Type	Servo tracking circular saw
Length Tolerance	±1 mm
Control System	PLC control with touchscreen

Structural Design of the Roll Forming Section

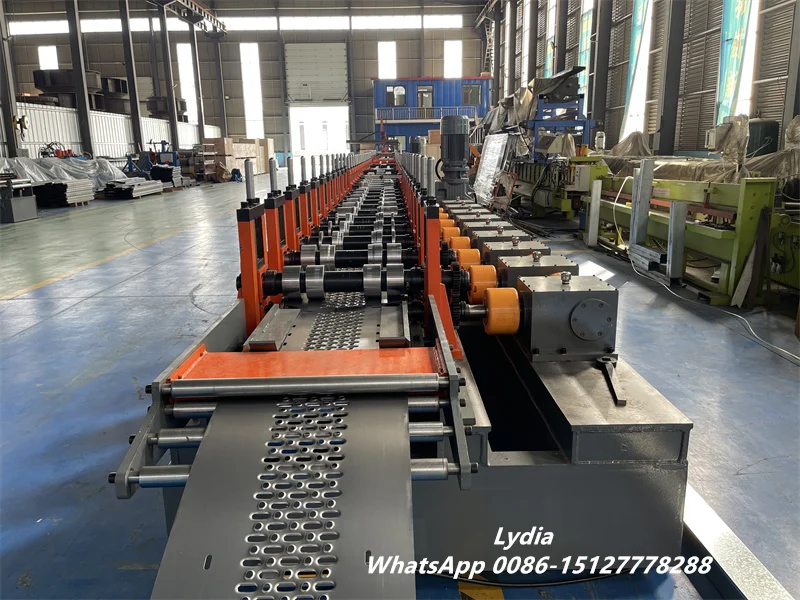

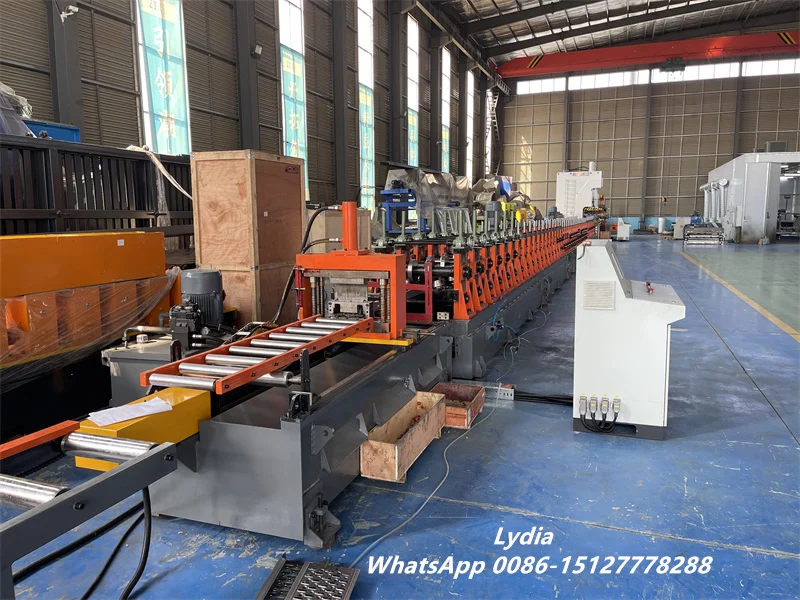

The roll forming section plays a central role in the entire production line. Each forming station gradually shapes the steel strip until the final scaffold plank profile is achieved. The rollers are manufactured from high-grade bearing steel and undergo heat treatment to enhance wear resistance and durability.

Meanwhile, the forming shafts are precision ground to maintain alignment and ensure stable rotation. This design reduces vibration during operation and helps maintain consistent product dimensions.

In addition, the gearbox transmission system provides strong driving force and reliable performance, which is especially important for long-term industrial production.

Quality Control and Reliability

Producing scaffold components requires strict quality control because these products are directly related to jobsite safety. Therefore, every machine is assembled using carefully selected components and tested thoroughly before delivery.

During testing, engineers verify the forming accuracy, punching stability, and cutting precision of the entire production line. Only after the machine meets the required standards will it be prepared for shipment.

Furthermore, the equipment is manufactured according to relevant industrial standards and is supplied with technical support and warranty service. This ensures reliable operation and long-term performance for customers.

Applications in the Construction Industry

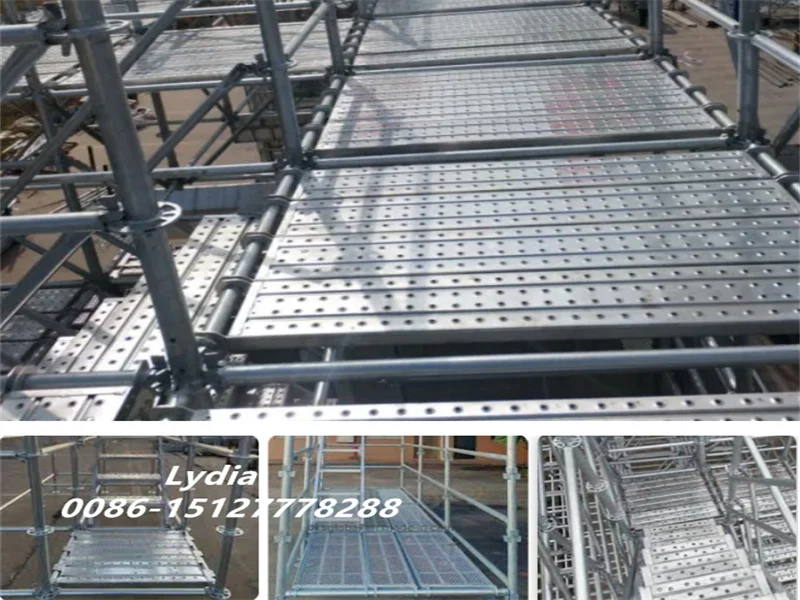

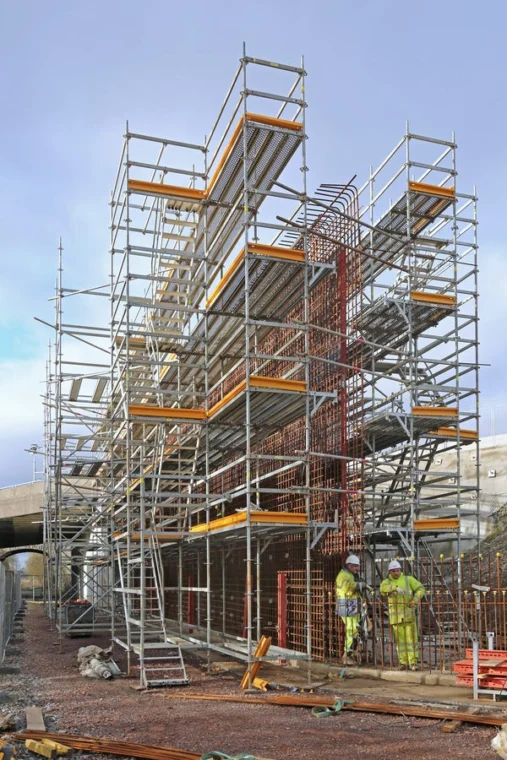

The scaffold walk boards produced by this machine are widely used in many construction-related fields. These include residential and commercial building construction, bridge and infrastructure projects, industrial maintenance platforms, and temporary access systems.

Because steel scaffold boards are strong, reusable, and resistant to environmental damage, they are increasingly preferred in large-scale construction projects.

The Steel Foot Plate Footpedal Roll Forming Machine provides an efficient and reliable solution for manufacturing high-quality metal scaffold walk boards. Through automated feeding, punching, roll forming, and servo cutting, the machine enables manufacturers to produce durable scaffold planks with consistent dimensions and excellent structural performance.

As global construction activities continue to expand, the demand for safe and durable scaffold systems will also grow. Therefore, investing in a high-performance scaffold walk board roll forming machine is a smart step for manufacturers seeking to improve productivity and market competitiveness.
