Description of Non Load-Bearing Steel Framing (Light Gauge) profile
Metal Studs offers a full line of non-loadbearing steel stud and track products. Steel stud framing is quick to install, cost-effective, and easy to work with. These studs are non-combustible, UL fire-rated, and provide superior STC ratings for soundproofing.
Each stud is equipped with knockouts for easy installation of bridging channels for added rigidity, as well as access for electrical and other services. Manufactured from galvanized steel, all products are designed to meet or exceed industry codes and standards.
Description
- Widths:1-5/8”,2-1/2”,3-5/8”,6”
- Standard Lengths ( *Custom Lengths also Available):8’,9’,10’,12’,
- Flange Size:1-1/4”
- Gauge:25
The advantages of the Partition walls drywall keel profile steel sections cold roll forming machine:
1.Automatic changing size type which is control by PLC
2.Flying shear with servo motor drived, speed can reach at 45m/min or faster as request
3.Equipped with automatic bundle machine
Profile drawing:
The technical specifications of the Non Load-Bearing Steel Framing (Light Gauge) profile Rolling Forming Machine ：
| ZTRFM light gauge steel gauge metal stud and track roll forming machine | ||
| 1.Formed Material | PPGI,GI | Thickness:0.4-1.2mm |
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
| 3.Main body | Roller station | 14 rows(As your requirement) |
| Diameter of shaft | 60 mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | Metal steel welded | |
| Drive | Gear transmission | |
| Dimension(L*W*H) | 7800*800*1200(customize) | |
| Weight | About 4.5T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 7.5KW*2 sets |
| Hydraulic system power | 5.5KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 0-40m/min(customized) | Different speed designs for options. |

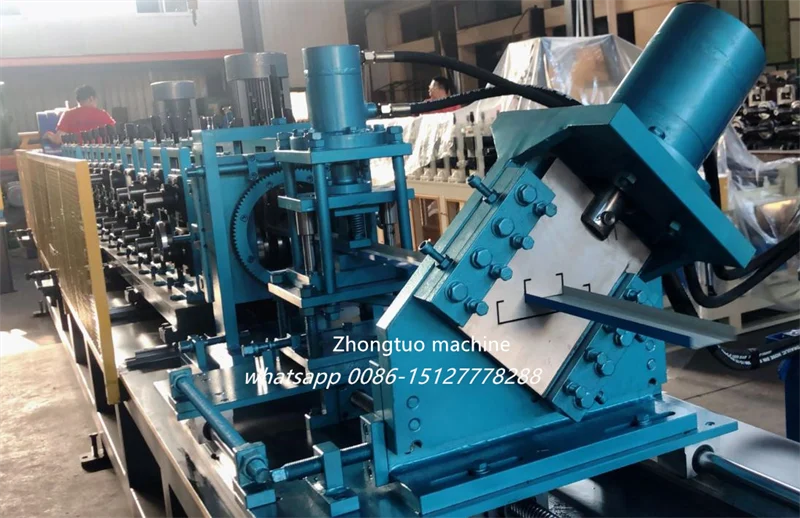

More pictures of the machine：
