A reliable laser welded tube roll forming machine is essential for manufacturers that require high-speed, continuous production of accurately shaped steel tubes. Zhongtuo offers an integrated tube roll forming line designed to process steel coils into finished welded tubes through a streamlined and highly automated manufacturing process.

The complete system combines coil decoiling, strip joining, optional inline punching, roll forming, laser welding, tube straightening, flying saw cutting and finished tube collection. By integrating these processes into one continuous production line, manufacturers can improve productivity while maintaining consistent tube dimensions, weld quality and cutting accuracy.

This automatic tube making machine is suitable for producing rectangular, square and other customized welded tube profiles used in fencing, construction, furniture, industrial structures and general metal fabrication.

Advanced Laser Welded Tube Production Technology

Compared with conventional welded tube manufacturing equipment, a modern laser welding tube machine provides more precise and controlled welding performance.

During production, the steel strip is gradually formed into the required tube profile before entering the online laser welding section. The laser welding system creates a concentrated and stable welding zone, helping achieve a clean longitudinal seam with reduced heat-affected areas.

For galvanized steel applications, controlled laser welding is particularly beneficial because excessive heat can damage the zinc coating around the weld area. With appropriate welding parameters and mechanical extrusion/scarfing processes, the production line can achieve a cleaner appearance while maintaining reliable tube strength.

The result is a continuous manufacturing process capable of producing tubes with:

• Consistent cross-sectional dimensions
• Smooth longitudinal weld seams

Complete Tube Manufacturing Process

The production line is designed as an integrated system rather than a collection of independent machines. Each section is synchronized with the next to maintain continuous material movement and stable production.

Standard production sequence:

Hydraulic Decoiling → Strip End Shearing & Butt Welding → Inline Punching → Roll Forming → Laser Welding → Straightening → Flying Saw Cutting → Run-Out Table

1. Hydraulic Decoiling

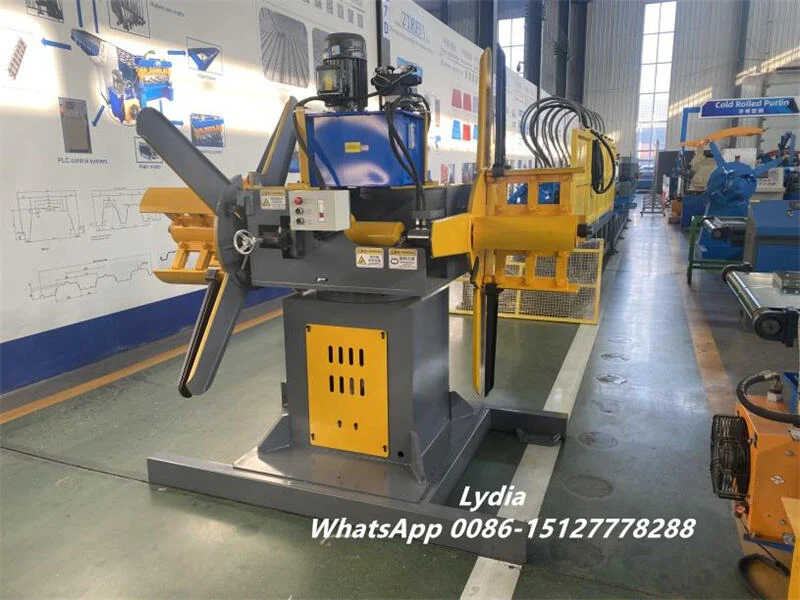

The production line begins with a hydraulic decoiler that feeds the steel strip into the forming section.

A 3T + 3T dual-station hydraulic decoiler can be used to improve coil loading efficiency. Hydraulic expansion provides secure coil holding, while remote operation makes material preparation more convenient.

The dual-coil configuration also helps reduce downtime during coil replacement.

2. Strip End Shearing and Butt Welding

For continuous production, the end of one steel coil must be connected to the beginning of the next coil.

The strip end shearing and MIG/MAG butt welding system automatically prepares and joins the material. This allows the forming line to continue operating without requiring frequent manual reconnection.

This section is especially useful for high-volume tube manufacturing where production continuity is important.

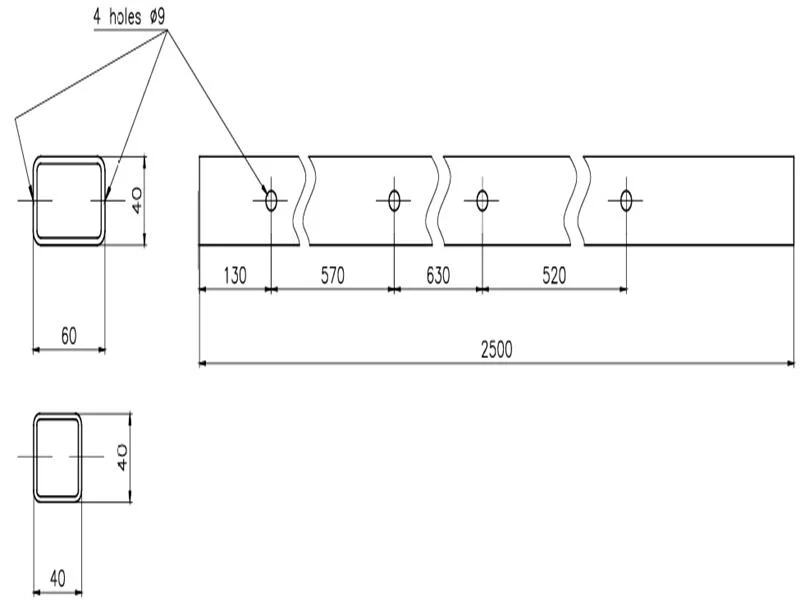

3. Inline Punching System

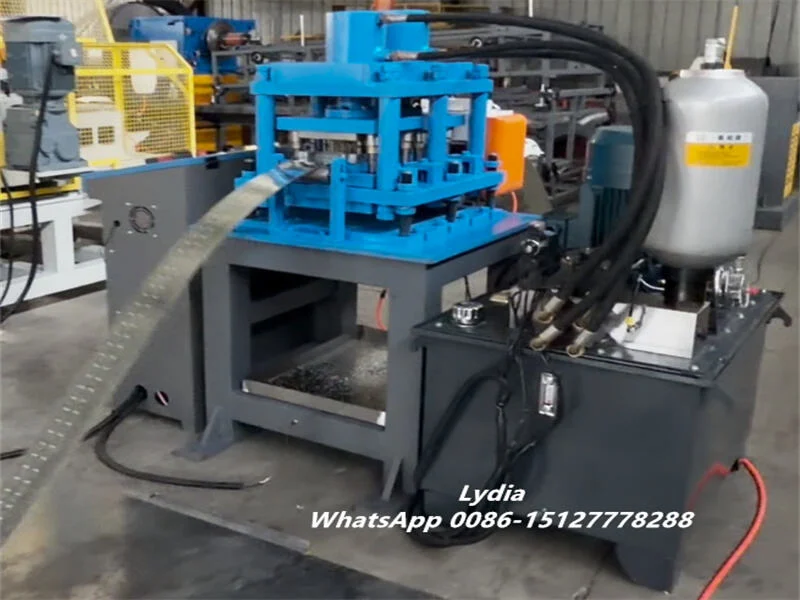

When holes or mounting features are required, an inline punching unit can be positioned before the roll forming section.

High-strength Cr12MoV tooling can be configured according to the customer's required hole pattern and tube application.

This approach eliminates the need for a separate post-processing punching operation and helps improve overall production efficiency.

4. Precision Roll Forming

The steel strip then enters the roll forming machine.

The forming section gradually bends the flat strip through multiple roller stations until the required tube geometry is achieved. A 16-station cassette-type roll forming system can be configured for this production line.

The gearbox transmission provides stable power transfer, while the roller system is designed to maintain accurate forming throughout continuous operation.

For applications requiring multiple tube dimensions, servo-assisted adjustment can help simplify profile changes and reduce setup time.

5. Online Laser Welding

After the strip edges are brought together, the formed tube enters the laser welding section.

The 6KW online laser welding system provides concentrated welding energy and supports continuous longitudinal seam welding.

A multi-roller extrusion mechanism keeps the tube edges properly aligned during welding. External scarfing equipment can then remove excess weld material to create a cleaner surface.

This combination helps produce:

• Uniform weld seams
• Reduced welding deformation
• Smooth tube surfaces
• High production consistency
• Reliable mechanical strength

6. Tube Straightening

After welding, the tube passes through a straightening system to correct minor deviations generated during forming and welding.

A four-roll straightening configuration can help improve tube linearity and ensure the finished products meet dimensional requirements.

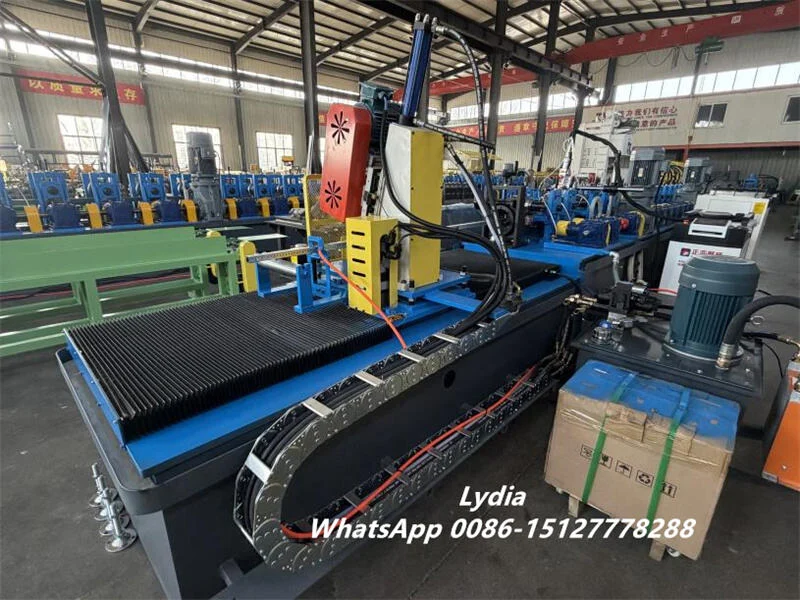

7. Servo Flying Saw Cutting

The finished tube is cut into predetermined lengths using a servo flying saw cutting system.

Instead of stopping the entire production line for every cut, the saw follows the moving tube during the cutting operation. This allows continuous production while maintaining accurate cutting dimensions.

For the described configuration, the cutting length can range from 2,000 mm to 6,000 mm, with a length tolerance of approximately ±1.0 mm.

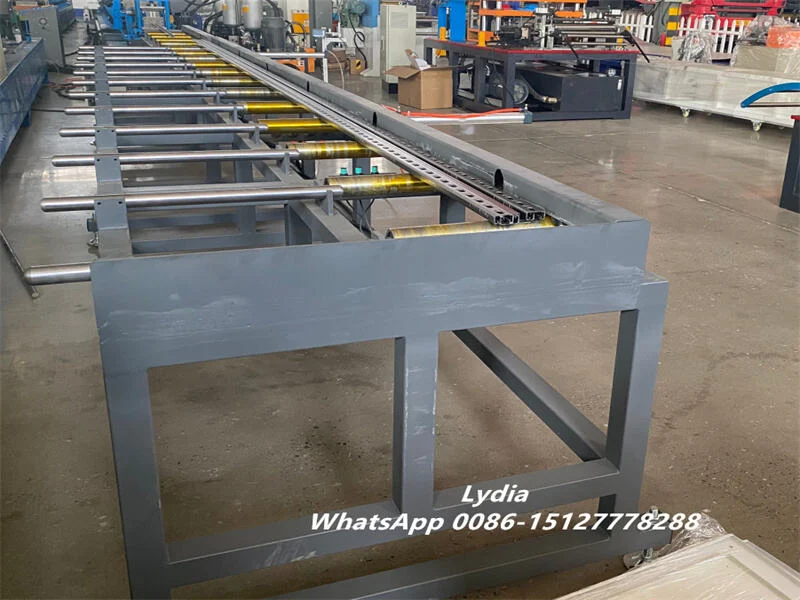

8. Run-Out Table

Finally, the cut tubes are transferred to the run-out table for collection and subsequent bundling or packaging.

The automated material handling process minimizes manual handling and creates a more organized finished-product workflow.

Technical Specifications

Item	Specification
Decoiler Configuration	3T + 3T Dual Station
Maximum Uncoiling Width	500 mm
Roll Forming Stations	16 Stations
Roller Material	GCr12MoV
Shaft Diameter	Φ70 mm
Forming Speed	Approx. 5 m/min
Laser Welding Power	6 kW
Cutting Length	2,000–6,000 mm
Cutting Accuracy	±1.0 mm
Control System	Siemens PLC + Touch Screen

Machine specifications can be customized according to tube profile, material thickness, production capacity and customer requirements.

Siemens PLC Control for Smarter Tube Production

The automatic tube making machine uses a Siemens PLC-based control system to coordinate the major production sections.

Through the touchscreen interface, operators can set and monitor important production parameters such as:

• Tube length
• Production quantity
• Forming speed
• Welding parameters

The control system can also support automatic length calculation and batch production management.

Schneider low-voltage electrical components can be integrated into the control cabinet to provide reliable electrical performance and stable operation.

For international customers, an English/Chinese HMI interface can be supplied for easier machine operation and maintenance.

Applications of the Steel Tube Roll Forming Line

The versatility of this metal tube roll forming line makes it suitable for a wide range of tube manufacturing applications.

Fencing and Security

The machine can produce galvanized rectangular tubes for security fences, garden fences, perimeter barriers and other fencing structures.

Construction

Finished steel tubes can be used for structural frames, supports, partitions and other construction-related applications.

Furniture Manufacturing

Depending on the tube dimensions and material specifications, the equipment can manufacture steel profiles for furniture frames, shelving and other fabricated products.

Industrial Fabrication

The line can also be configured for general-purpose rectangular and square tube production used in machinery frames, equipment supports and metal structures.

Why Choose an Integrated Laser Welded Tube Production Line?

For high-volume tube manufacturers, production efficiency depends not only on forming speed but also on how smoothly each manufacturing process is connected.

An integrated laser welded tube production line provides a complete workflow from raw coil to finished tube. Automated coil joining reduces interruptions, precision roll forming maintains profile consistency, online laser welding improves seam quality, and servo flying saw cutting provides accurate finished lengths.

This integrated approach can help manufacturers:

• Reduce manual labor
• Minimize production interruptions
• Improve dimensional consistency
• Increase welding quality
• Reduce material handling
• Improve finished-product quality
• Simplify production management

Customized Tube Roll Forming Solutions

Different tube manufacturers may have different requirements for profile dimensions, steel grades, thicknesses, welding methods, punching patterns, production speeds and finished lengths.

Therefore, Zhongtuo can customize the tube roll forming machine according to the actual production requirements.

Get a Customized Laser Welded Tube Roll Forming Machine
