A dependable gutter drainage system needs to handle rainwater efficiently while keeping leaves and other debris away from the gutter channel. The Gutter Guard Roll Forming Machine provides manufacturers with an efficient way to produce durable metal gutter protection profiles for residential, commercial, and industrial roofing applications.

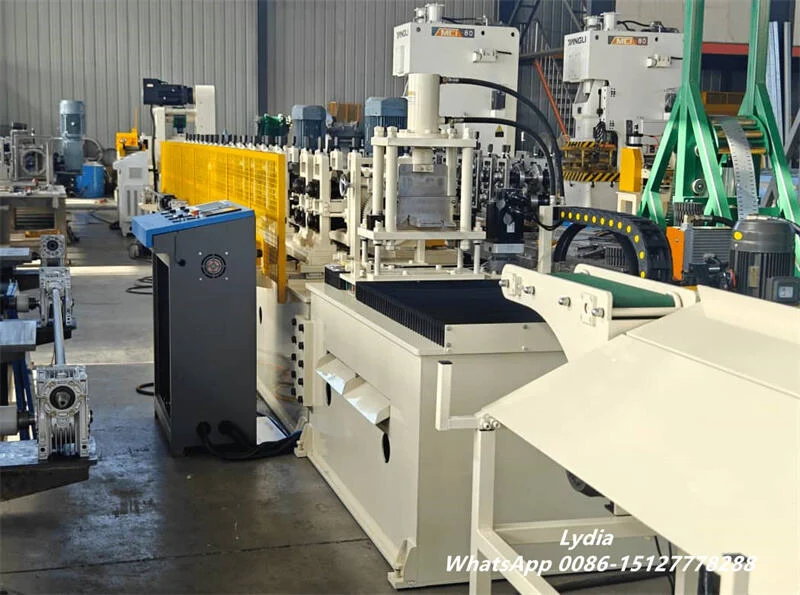

The machine converts metal coils into continuously formed gutter guard profiles through a combination of punching, roll forming, and cutting. Instead of relying on several separate machines, manufacturers can integrate these processes into one production line, improving workflow and reducing unnecessary material handling.

Automatic Production for Metal Gutter Guards

The Gutter Guard Machine is designed for continuous production of metal gutter protection products. It can process aluminum, galvanized steel, and pre-painted steel coils, allowing manufacturers to select materials according to product requirements, weather conditions, and market preferences.

During operation, the feeding system guides the coil into the production line. The punching section then creates the required drainage openings, while the forming rollers gradually shape the flat strip into the finished gutter guard profile. Finally, the cutting system separates the formed product into preset lengths.

This streamlined process allows operators to maintain a stable production rhythm while reducing manual intervention. In addition, manufacturers can customize the machine according to their required profile dimensions and punching patterns.

Item	Machine Specification
Machine Type	Gutter Guard Roll Forming Machine
Main Applications	Gutter Protection & Roof Drainage
Processing Materials	Aluminum, Galvanized Steel, Color-Coated Steel
Material Thickness	0.4–0.5 mm
Forming Stations	16
Roller Material	GCr12
Main Motor	5.5 kW
Machine Frame	Arch Type
Cutting System	Hydraulic Cutting
Control System	PLC

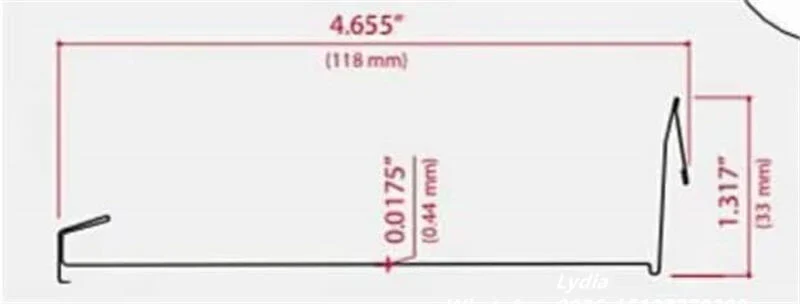

Profile Options	5-inch / 6-inch K-Style Gutter Guard
Machine Color	Customized

The specifications above represent a typical configuration. Zhongtuo can adjust the equipment according to the customer's profile drawing, material specifications, production requirements, and desired automation level.

Precision Punching and Continuous Roll Forming

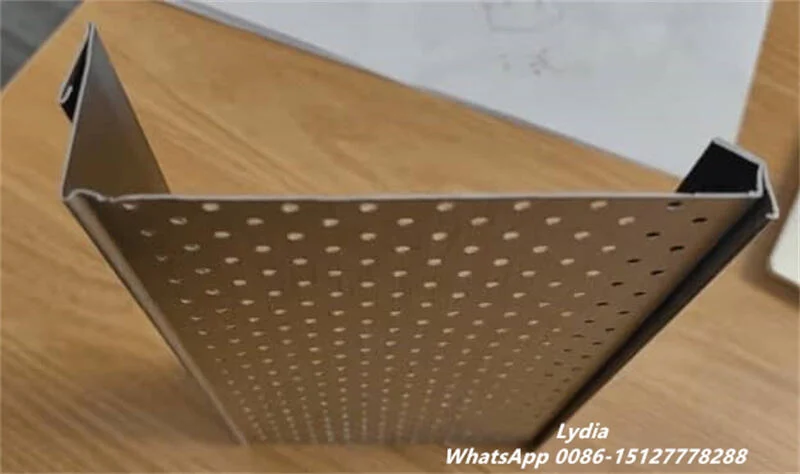

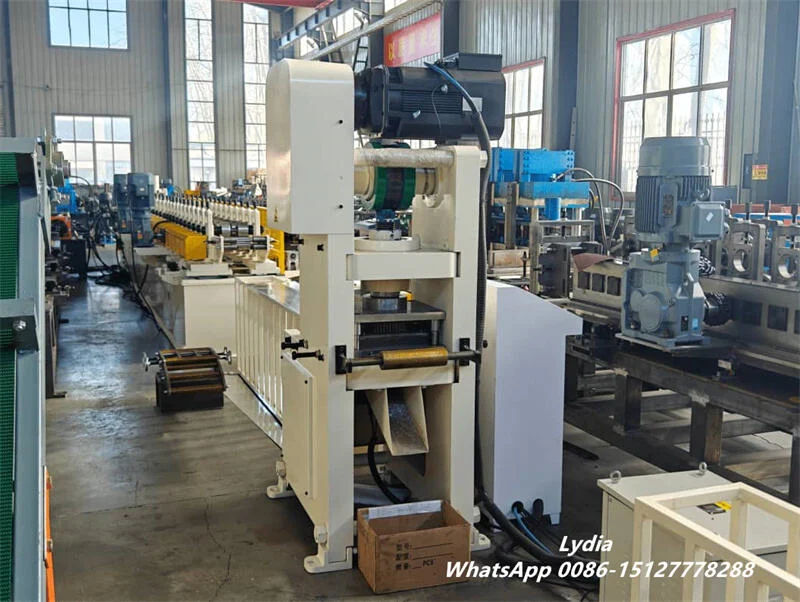

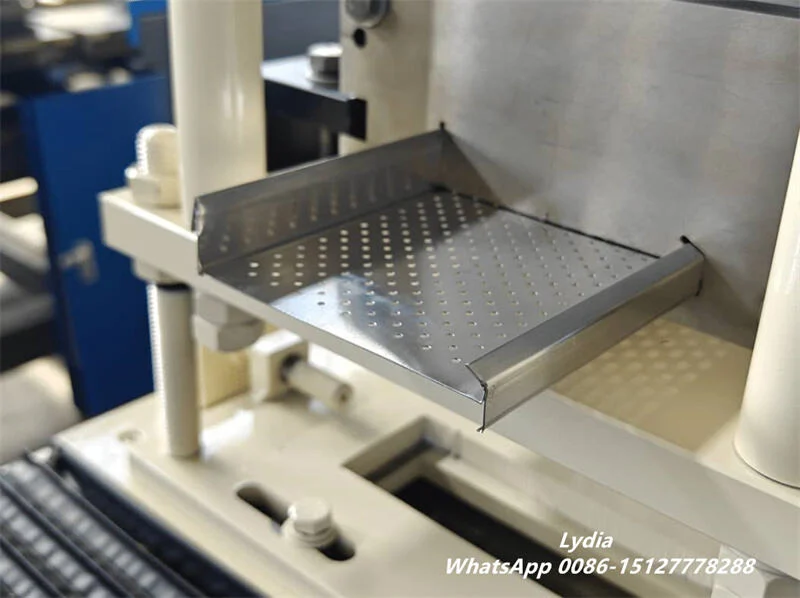

One of the key advantages of this Gutter Guard Roll Forming Machine is its integrated punching and forming process. The punching unit creates evenly distributed openings that allow rainwater to enter the gutter while helping prevent leaves, twigs, pine needles, and other debris from reaching the drainage channel.

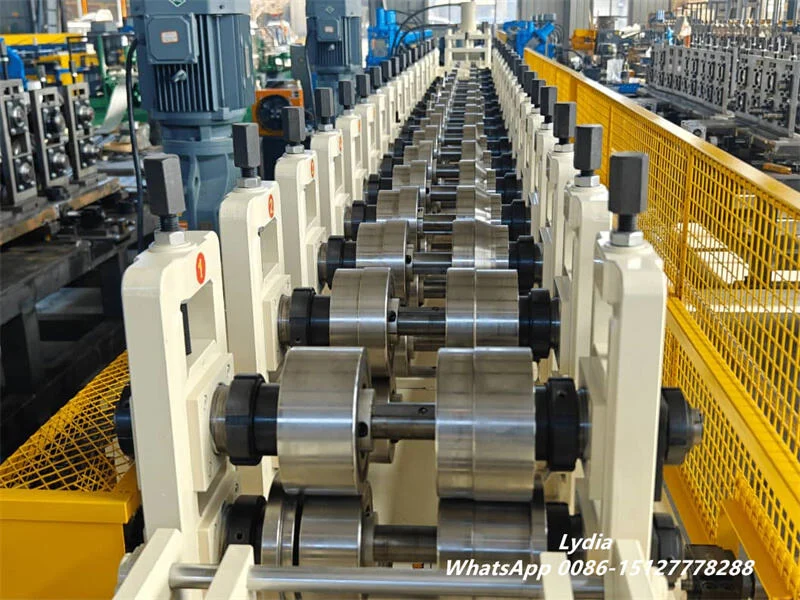

After punching, the metal strip moves through a series of forming rollers. Each station performs a specific bending operation, gradually transforming the flat coil into the required gutter protection shape. This gradual forming method helps maintain profile consistency and reduces deformation during production.

The machine uses GCr12 forming rollers, which offer good hardness and wear resistance for continuous manufacturing. As a result, the forming section can maintain reliable performance over extended production cycles.

The hydraulic cutting system completes the process by cutting the formed gutter guard into the required lengths. Therefore, manufacturers can produce finished sections that are ready for packaging, transportation, or installation.

Stable Machine Structure and Easy Operation

A strong machine structure plays an important role in maintaining forming accuracy. This equipment adopts an arch-type frame that provides stable support for the forming section and transmission components.

The 5.5 kW forming motor supplies power to the roller stations, while the transmission system keeps the forming process running smoothly. Meanwhile, the feeding section guides the incoming coil into the machine to help maintain consistent material alignment.

The PLC control system simplifies daily operation. Operators can manage production parameters through the control interface instead of manually adjusting every stage of the process. Consequently, the machine can help reduce operator workload and improve production repeatability.

Manufacturers can also customize the machine color and selected components according to their production environment or branding requirements.

Applications in Residential and Commercial Roofing

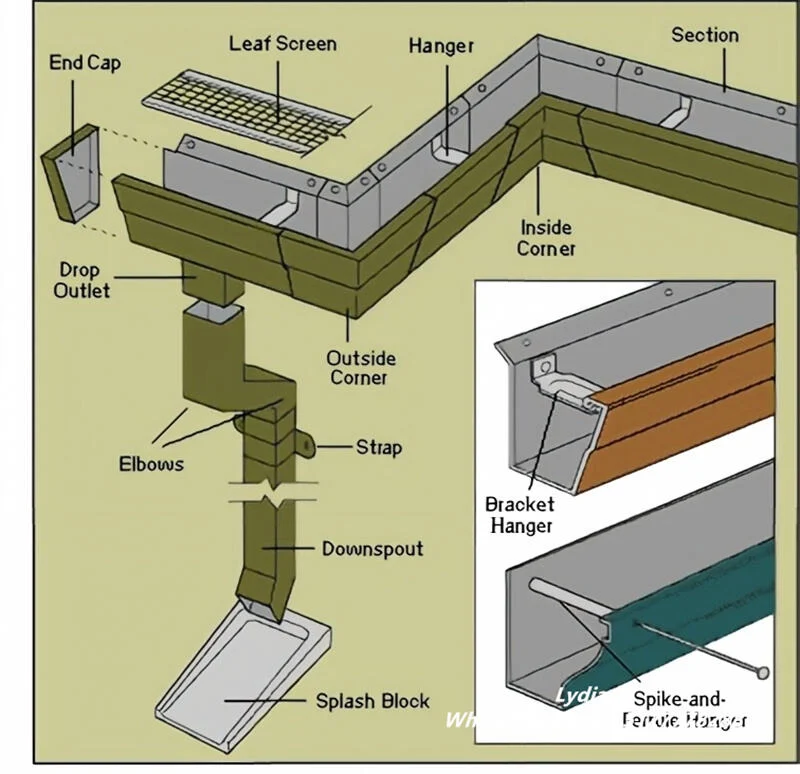

The finished metal gutter guards are primarily used to improve the performance of roof drainage systems. By covering the open gutter channel, they help reduce the accumulation of leaves and other debris while allowing rainwater to flow into the gutter.

For residential roofing projects, gutter guards can be used with common K-style gutter systems. Commercial buildings, warehouses, factories, and other large structures can also use customized gutter protection profiles according to their drainage requirements.

Furthermore, the machine gives manufacturers an opportunity to expand their product range. By changing the profile configuration and punching design, one production line can be adapted to different gutter guard products and market specifications.

Customized Gutter Guard Manufacturing Factory

Different markets often require different gutter guard dimensions, materials, hole patterns, and profile shapes. For this reason, Zhongtuo designs each Gutter Guard Roll Forming Machine according to the customer's actual production requirements rather than relying on a single standard configuration.

Whether you plan to manufacture aluminum gutter guards, galvanized steel gutter covers, K-style gutter protection profiles, or customized drainage covers, the production line can be configured around your product specifications.

Send us your gutter guard profile drawing, material thickness, required width, and target production capacity. Our engineers can evaluate the design and recommend a suitable roll forming solution for your manufacturing project.
