Advantages of the Hydraulic Decoiler
1. The load-bearing spindle is made of high-strength, fatigue-resistant seamless steel with a back wall, which is turned and processed, with high strength and heavy load-bearing capacity.
2. The expansion coil is hydraulically controlled, which is convenient, fast, and stable.
3. Electrical control, high precision, good automation, inverter control, and adjustable speed.

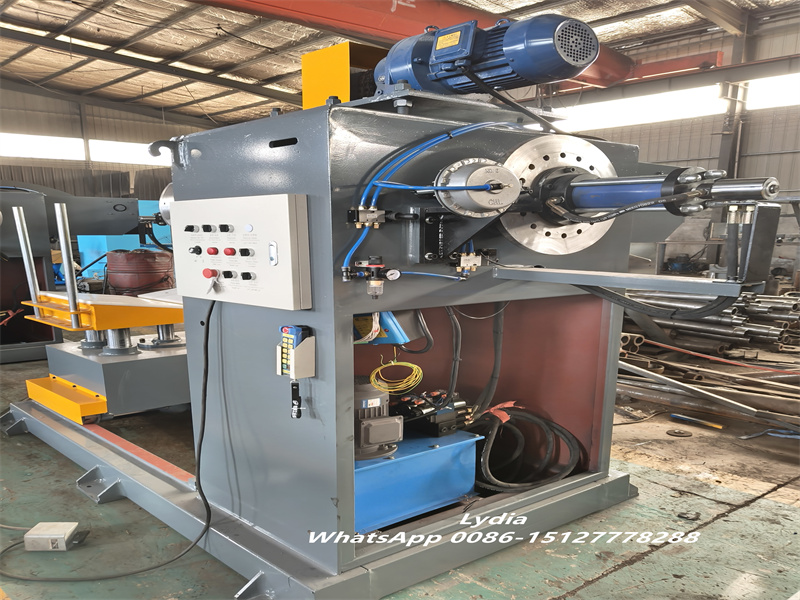

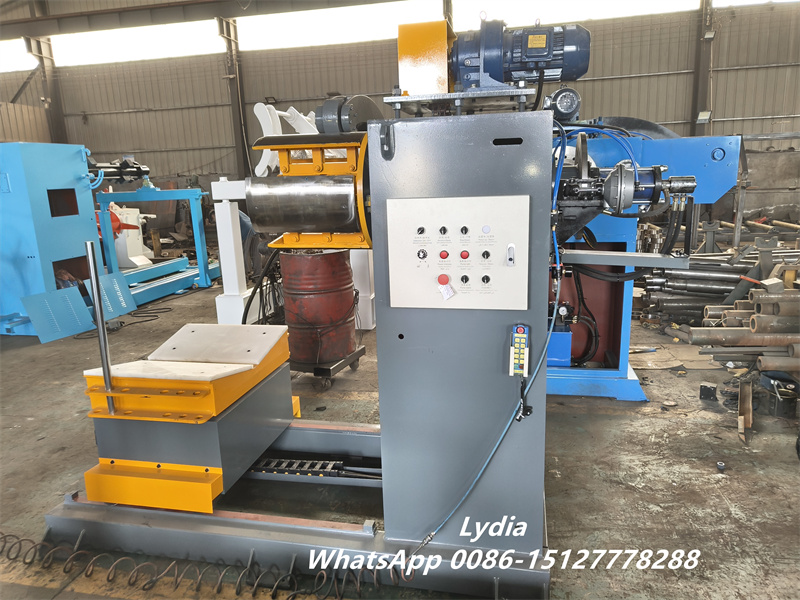

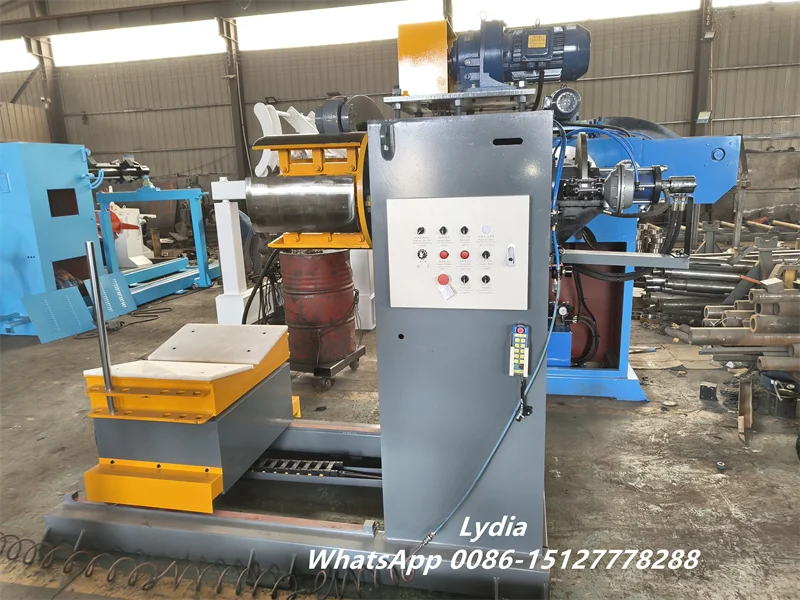

3 Ton Decoiler Machine Sheet Metal
| No. | Item | Specification |
|---|---|---|
| 1 | Main machine dimensions | Length 1.5 m, Width 1.35 m, Height 1.75 m |
| 2 | Machine weight | Approx. 1.7 tons |

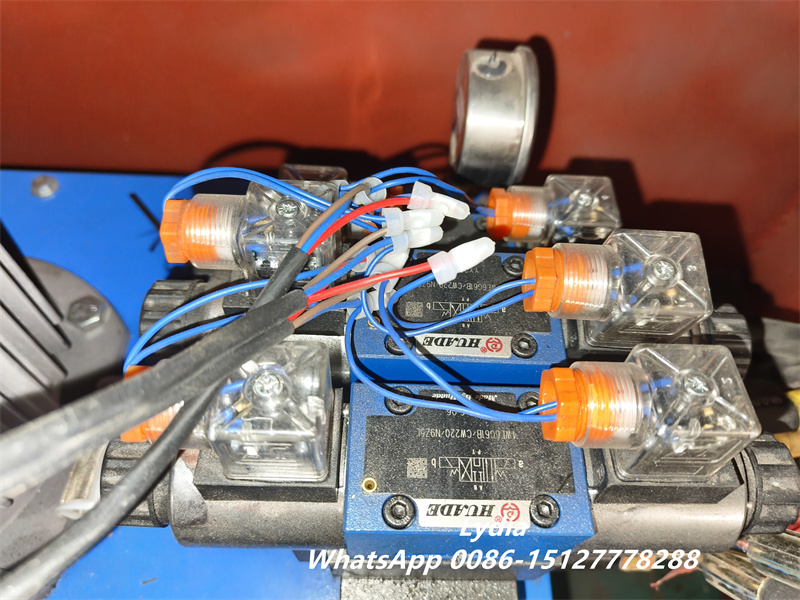

| 3 | Hydraulic system | 5 hydraulic cylinders (Brand: CRRC Beijing), total power approx. 9 kW |
| 4 | Power supply | 240V, 3-phase, 60Hz (Note: marked 4 kW stirring on image) |
| 5 | Main motor power | Approx. 3 kW (Guoqiang brand), with ABB motor and cycloidal reducer |
| 6 | Frame structure | Equipped with a red rubber base, the main frame is made of 12mm thick welded steel |
| 7 | Transmission structure | One-piece seamless steel pipe cross shaft, shaft size 130×35 mm, outer Ø150mm |
| 8 | Coil inner diameter | Ø 405 mm |
| 9 | Coil width | 470–530 mm, tolerance ±20 mm |
| 10 | Rated capacity | ≤ 3 tons |
| 11 | Oil spraying cylinder | Cylinder diameter 125 mm, 1 piece with rotation |

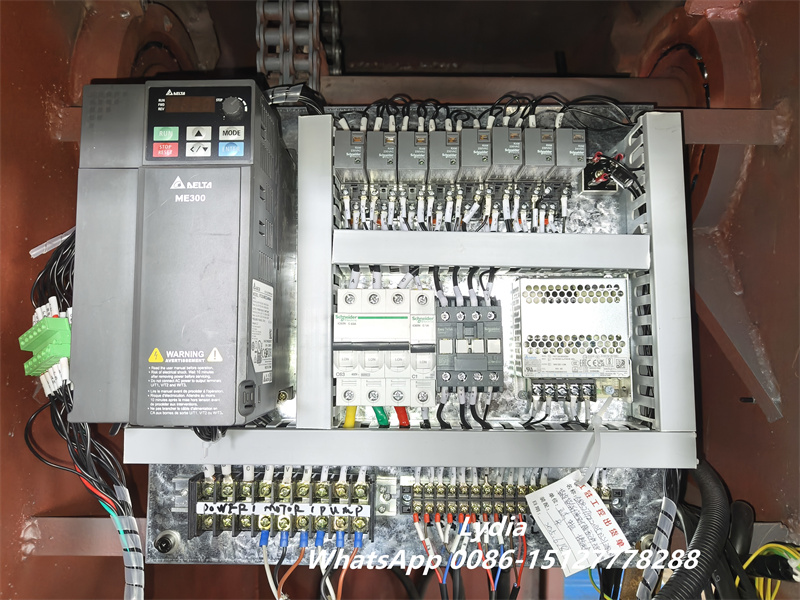

| 12 | Control system | Delta inverter (5.5 kW) + Schneider Electric components |
3 Ton Decoiler Machine Sheet Metal

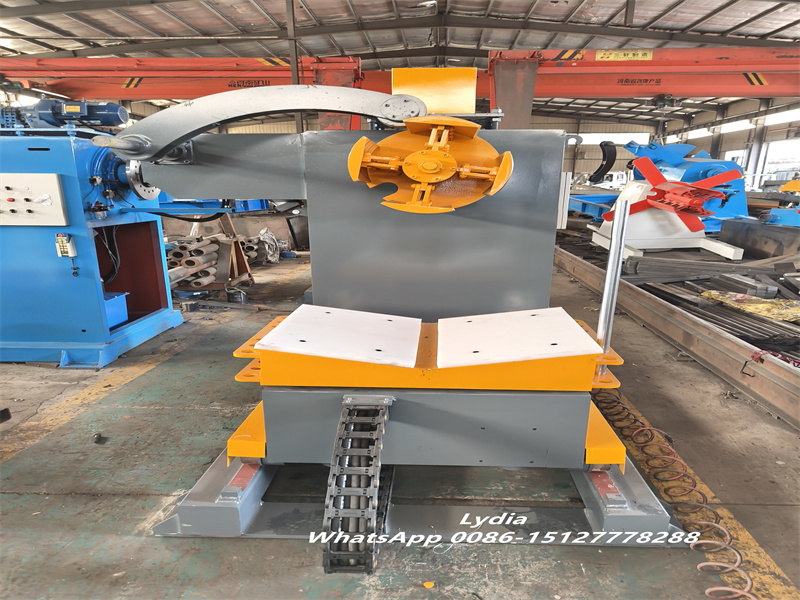

The uncoiling trolley is specifically designed to assist in the efficient and safe loading and positioning of steel coils. It features a dual hydraulic cylinder lifting system with a 90 mm diameter cylinder and a 240 mm stroke, allowing for stable vertical movement. Powered by a hydraulic motor, the trolley is equipped with a Model 450 hydraulic unit for smooth operation. The uncoiling platform accommodates panels up to 1.25 meters in width, with a release width of 1.1 meters, and includes a rotation function to facilitate easy coil placement. The coil holding rack measures 1050 mm in width and 2.5 meters in length, while the trolley provides a lifting stroke of 705 mm and a movement range of 2.5 meters in length. With a total weight of 0.9 tons, the trolley is also fitted with rubber pads on the coil support and expansion area to prevent scratching and ensure material protection during handling.
3 Ton Decoiler Machine Sheet Metal
3 Ton Decoiler Machine Sheet Metal
3 Ton Decoiler Machine Sheet Metal
3 Ton Decoiler Machine Sheet Metal
