Full-Automatic T18/T35 IBR Roofing Sheet Roll Forming System with Dual-Layer Capability
This advanced roll forming line enables fully automated production of European-standard profiled sheets, including C8, C25, T18, T35, C44, and T44 configurations tailored for Russian and Hungarian markets. Engineered for structural versatility, the system manufactures both single-layer and double-layer roofing/wall cladding panels with precision tolerances.

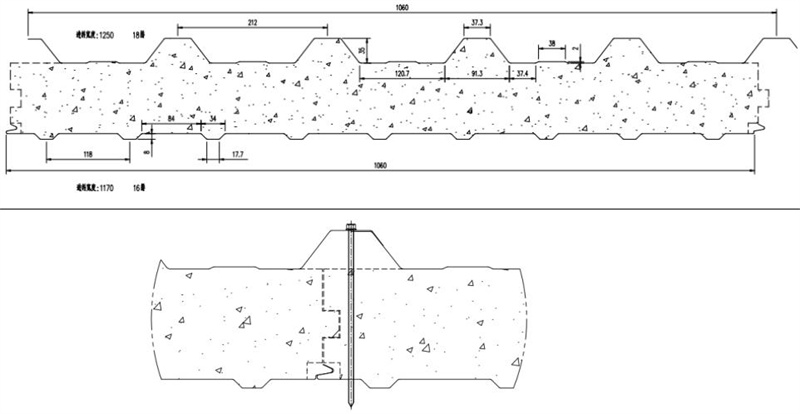

T18 T35 Ibr Roofing Sheet Roll Forming Machine
| Coil technical parameters | ||
| Series | Details | Parameter |
|
Product sheet |
Raw material | GI&PPGI |
| Material thickness | 0.25-0.8 mm | |
| Feeding width | As request | |
| Sheet cutting length | Adjustable | |
| Packing list-roof profile machine | ||||
| No. | Name | Unit | Quantity | Remark |
| Part 1 | 5T manual decoiler | set | 2 | manual |
| Part 2 | Guide feeding device | set | 2 | With hand cutter |
| Part 3 | Main roll former | set | 2 | Chains drive |
| Part 4 | PLC control station | set | 2 | Delta brand |
| Part 5 | Cutting system | set | 2 | Hydraulic |
| Part 6 | Hydraulic oil pump station | set | 2 | With cooling fan |
| Part 7 | Product collect table | set | 2 | Regular type/3m length |
| Part 8 | Spare parts | set | 2 | |

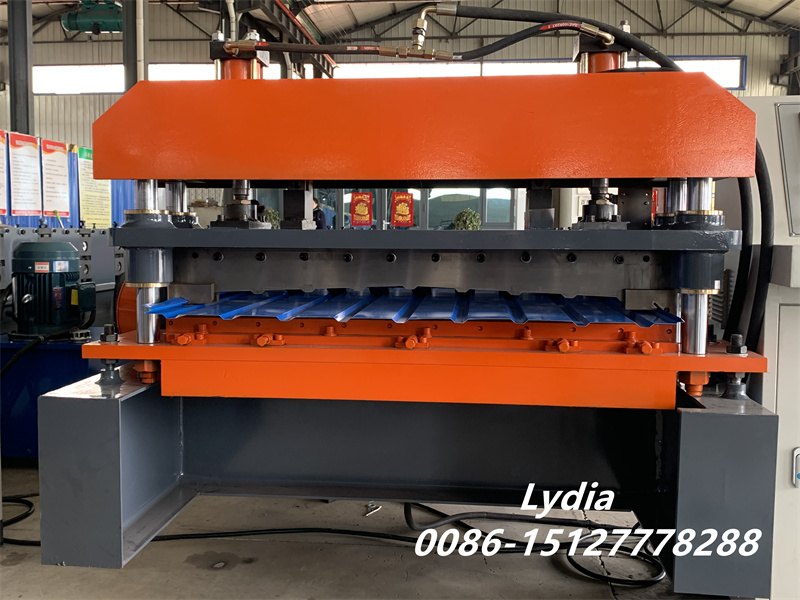

Option A: Single layer roofing sheet machine
T18 T35 Ibr Roofing Sheet Roll Forming Machine
T18 T35 Ibr Roofing Sheet Roll Forming Machine

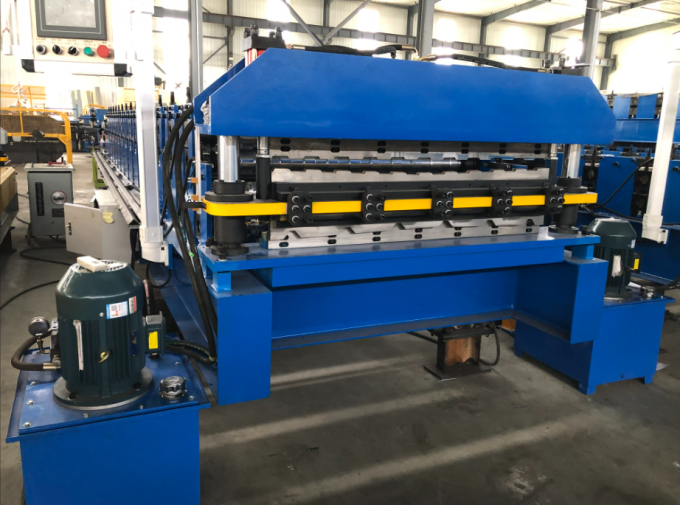

Option B: Double-layer roofing sheet machine
Compare: When shall we choose a single layer, or when better by a double layer?
1. A single layer can do the production fast, but a double layer works only one layer each time.
2. Double layer takes up a small space and saves some cost compared with two sets of single-layer machines.
3. A single layer is easy to do the installation and maintain.
