The Friction Rock Bolt Roll Forming Machine is a fully automated industrial production line designed for manufacturing split set friction rock bolts, which are widely used in underground support systems. This equipment continuously transforms steel coils into high-strength slotted tube anchors with precise geometry, stable mechanical properties, and reliable performance in harsh geological conditions.

With the rapid expansion of mining operations, tunneling projects, and underground infrastructure development worldwide, the demand for efficient and stable rock bolt production equipment continues to grow. This machine provides manufacturers with a highly productive, cost-effective, and consistent solution for large-scale manufacturing.

Automated Continuous Production for High-Precision Rock Bolts

The production process begins with steel coil loading into the uncoiler system, where the material is smoothly fed into the production line. First, the leveling unit removes internal stress from the steel strip and ensures uniform flatness, which is essential for stable forming performance.

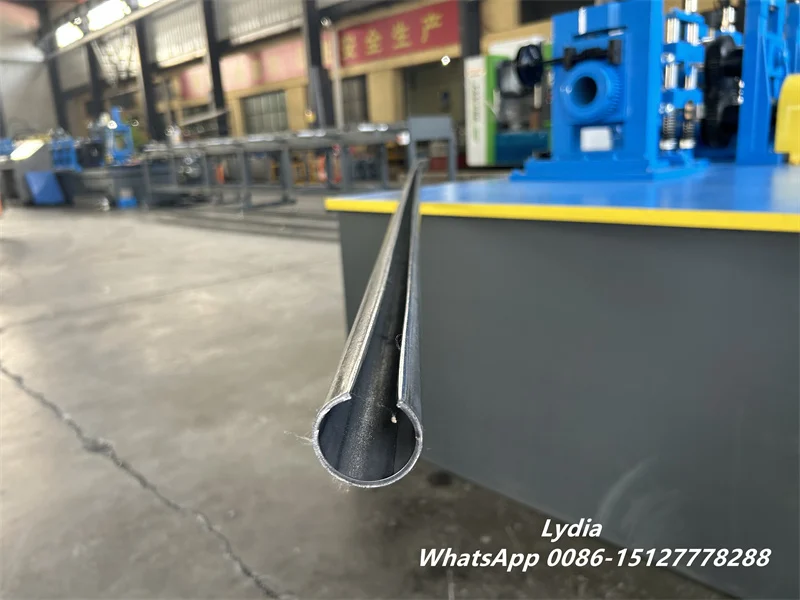

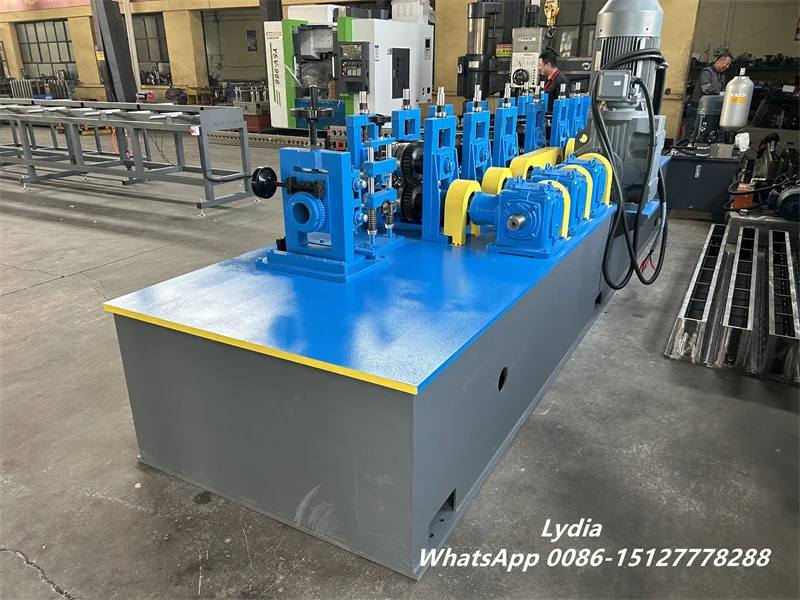

Next, the strip enters the roll forming section. Through multiple sets of precision rollers, the flat steel is gradually shaped into a cylindrical tube with a longitudinal slit. This structure is critical for the friction-based anchoring mechanism used in underground engineering.

Furthermore, the machine operates in a fully continuous mode, which significantly improves production efficiency and reduces downtime. As a result, manufacturers can achieve stable output for long-term industrial production while maintaining consistent product quality.

Meanwhile, the PLC control system coordinates speed, forming accuracy, and cutting synchronization, ensuring smooth and intelligent operation throughout the entire production line.

Working Principle of Split Set Friction Rock Bolts

Split set friction rock bolts are designed based on a simple but highly effective mechanical principle: frictional resistance along the full length of the bolt.

During installation in underground structures, the slotted steel tube is driven into a slightly smaller drilled hole. As the tube compresses, the longitudinal slot closes gradually, creating strong radial pressure against the surrounding rock surface. This generates immediate anchoring force without requiring resin, cement, or chemical grouting.

In production, the machine ensures this performance by controlling key parameters such as diameter accuracy, slot width, roundness, and wall thickness. In addition, the hydraulic cutting system ensures precise length control without interrupting continuous forming operations.

This combination of engineering design and manufacturing precision guarantees reliable performance in real underground environments.

Technical Parameters of Friction Rock Bolt Production Line

Item	Specification
Pipe Diameter Range	Φ32–50 mm
Material Thickness	2.0–4.5 mm
Production Speed	7–9 m/min
Main Motor Power	15 kW
Hydraulic System Power	4.0 kW
Control System	PLC Automatic Control
Cutting Method	Hydraulic Flying Shear
Voltage Options	380V / 415V / 600V
Bolt Length Range	800–6000 mm (customizable)
Forming Type	Continuous roll forming

This configuration ensures stable operation even under long-term heavy-duty industrial production conditions. Additionally, the system can be adjusted to produce different specifications of friction rock bolts according to project requirements.

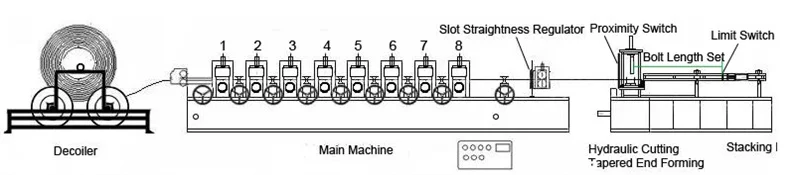

Core Components of the Production Line

The complete friction rock bolt production line integrates several key systems that work together to ensure efficiency and accuracy.

The uncoiling system ensures stable and controlled feeding of steel coils. After that, the leveling unit removes internal stress and improves surface flatness, which is essential for accurate forming.

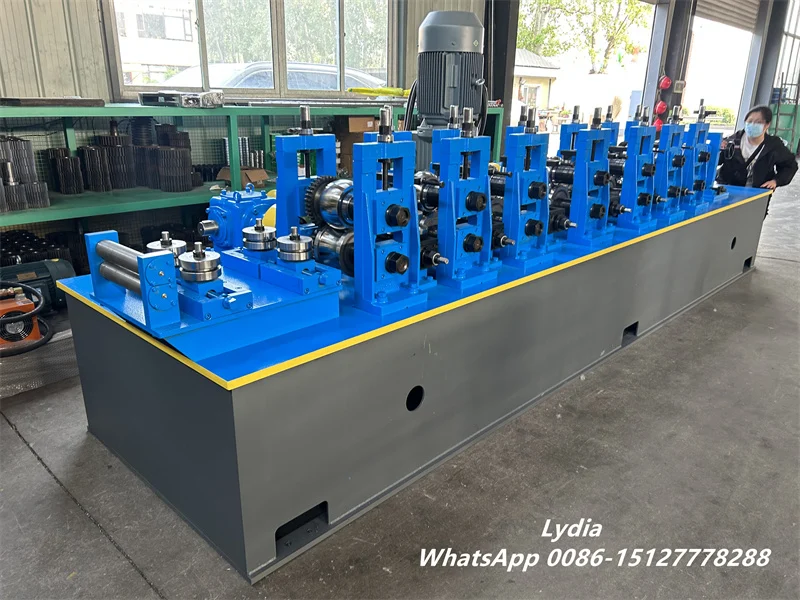

The roll forming system is the core of the machine. It gradually shapes the steel strip into a slotted tubular profile through multiple roller stations, ensuring consistent geometry and structural strength.

Then, the sizing and straightening system refines the final shape, ensuring accurate diameter, roundness, and alignment.

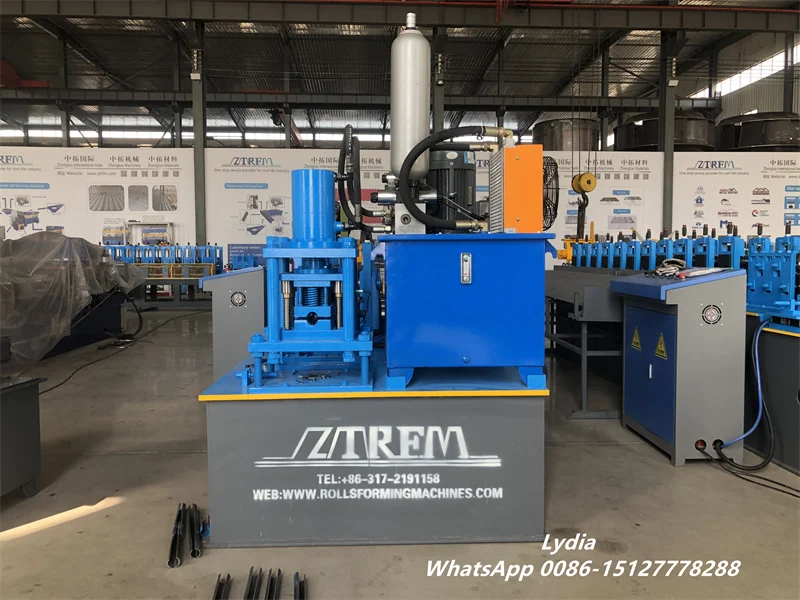

Finally, the hydraulic cutting system automatically cuts the finished bolts according to preset lengths. The entire process is managed by a centralized PLC control system, which improves automation, stability, and operational safety.

Wide Applications in Mining, Construction and Geotechnical Engineering

The friction rock bolts produced by this machine are widely used in a variety of demanding engineering environments.

Mining Industry Applications

In underground mining operations, these bolts are used to support mine roadways, prevent rock collapse, and improve overall operational safety. They are especially effective in coal mining and metal mining tunnels where ground pressure changes frequently.

Tunnel Engineering Applications

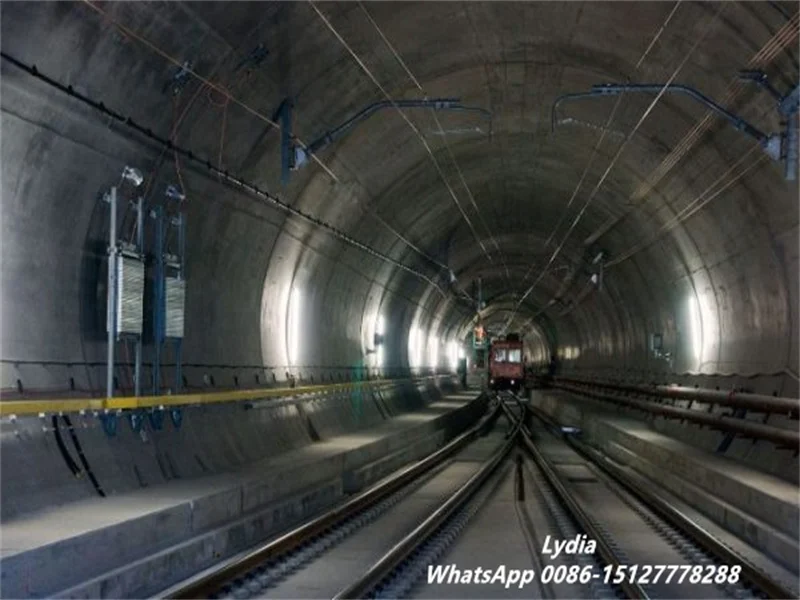

In highway tunnels, railway tunnels, and subway systems, friction rock bolts provide immediate stabilization after excavation. They help maintain tunnel shape and prevent deformation during construction.

Slope Stabilization Projects

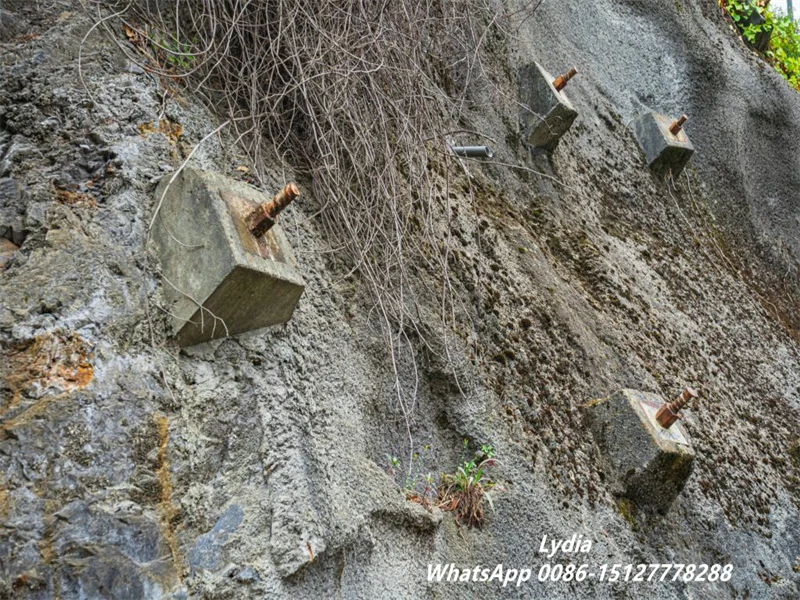

In mountainous areas and open-pit mines, this system is used for slope reinforcement and landslide prevention. The friction mechanism ensures long-term stability even in unstable geological formations.

Hydropower and Underground Infrastructure

Hydropower stations, underground caverns, and water diversion tunnels require high-strength support systems. Friction rock bolts provide reliable anchoring in deep underground environments.

Civil Engineering and Foundation Support

They are also used in foundation pit reinforcement, retaining structures, and underground construction projects in urban areas where soil stability is critical.

Key Advantages of Friction Rock Bolt Roll Forming Machine

This machine offers several significant advantages for manufacturers and engineering suppliers.

First, it provides continuous automatic production, which greatly improves efficiency compared to traditional fabrication methods.

Second, it ensures high dimensional accuracy, which is essential for the performance of friction rock bolts in underground applications.

In addition, the system is designed for low labor consumption, reducing operational costs while maintaining stable output quality.

Furthermore, the machine supports flexible product customization, allowing manufacturers to produce different bolt sizes and specifications based on customer requirements.

Finally, its strong adaptability to industrial environments makes it suitable for long-term heavy-duty production in global manufacturing facilities.

Market Demand and Industrial Significance

As global infrastructure development continues to expand, especially in mining, energy, and transportation sectors, the demand for underground support systems is increasing rapidly.

Friction rock bolts have become one of the most widely used anchoring solutions due to their simplicity, fast installation, and reliable performance.

Therefore, investing in a high-quality Friction Rock Bolt Roll Forming Machine not only improves production efficiency but also enhances competitiveness in international markets, particularly in regions such as North America, Europe, Australia, the Middle East, and South America.

The Friction Rock Bolt Roll Forming Machine is an essential piece of equipment for modern underground engineering manufacturing. By combining automation, precision forming technology, and intelligent control systems, it enables efficient production of high-quality split set rock bolts used in mining, tunneling, slope stabilization, and geotechnical applications.

With its stable performance and wide application range, this production line has become a key solution for manufacturers seeking to expand capacity and improve product quality in the global market.
