The slotted angle roll forming machine—available in both light-duty and heavy-duty models—is engineered for high-efficiency, fully automatic production of slotted steel angles. These angles serve as an adaptable framing for a wide range of structural applications, including shelving units, tool racks, storage systems, workbenches, safety guards, and support rails. Known for its exceptional versatility, cost-efficiency, and ease of assembly, slotted angle is widely regarded as one of the most practical materials for constructing custom frameworks. Manufactured from roll-formed steel in 12 or 14 gauge options, this equipment ensures consistent output quality with precise rotary punching and streamlined production, ideal for batch manufacturing of modular components.
angel bead roll forming machine
Technical Parameters of Corner Bead Profile Production Line
| Item | Specification |
|---|---|
| Material Width | 70 mm |
| Material Thickness | 1.0 – 1.2 mm |
| Working Speed | 0 – 60 m/min |
| Punching Material | DC53 with quenching treatment, HRC61–63° |
| Shaft Material | 45Cr steel, heat treated |
| Shaft Diameter | 150 mm |
| Motor Power | 15 kW |
| Control System | PLC |
angel bead roll forming machine

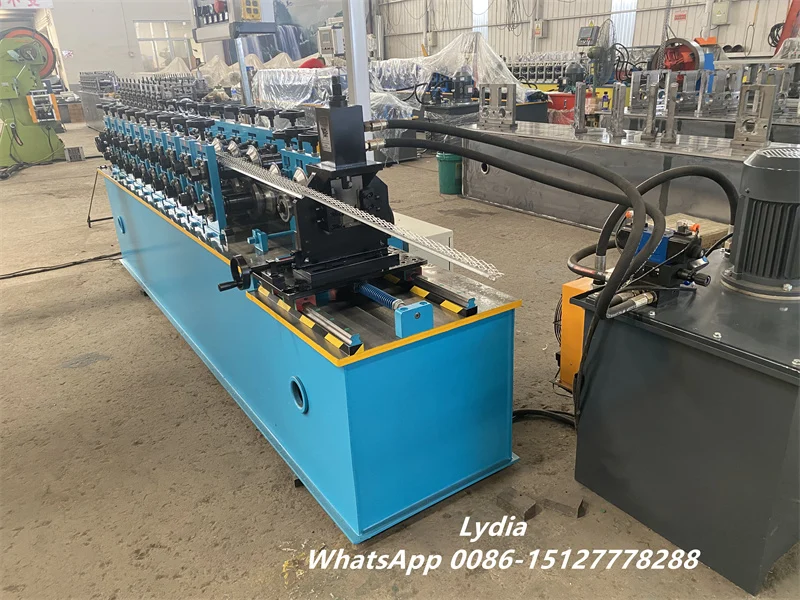

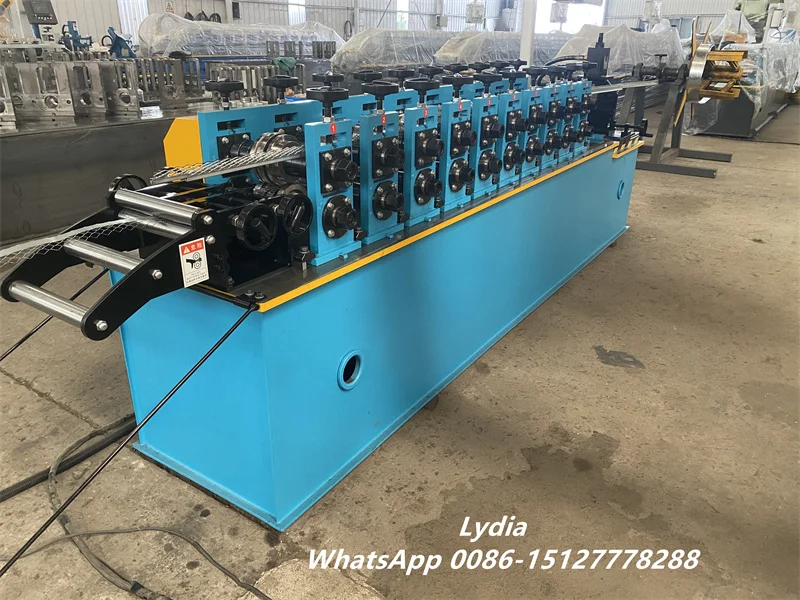

Angel Bead Roll Forming Machine
| Item | Specification |
|---|---|
| Feeding Device | Bearing brand: Harbin |
| Shaft Material | 45# steel |
| Shaft Diameter | 60 mm solid shaft |
| Roller Material | GB-Cr12 mold steel with quenching treatment |
| Roller Stations | 12 stations |
| Bearing | Harbin (reputable Chinese brand) |
| Working Speed | 0 – 60 m/min (including cutting process) |
| Main Power | 11 kW |
| Transmission Mode | Gear transmission (more precise and faster) |
| Voltage | AC 415V, 50Hz, 3 Phases (or as requested) |
angel bead roll forming machine
📏 Slotted Angle Steel Specifications
| Gauge | Features |
|---|---|
| 14 Gauge | – For general applications – Cold-rolled high-strength steel – Nominal sizes: 1-1/2” × 1-1/2” and 1-1/2” × 2-1/2” – Lengths: 8’, 10’, 12’ – Packed: 10 pieces per bundle (must be ordered in full bundles) |
| 12 Gauge | – For heavy-duty applications – Heavier cold-rolled high-strength steel – Nominal size: 3” × 1-1/2” – Lengths: 8’, 10’, 12’ – Packed: 10 pieces per bundle (must
be ordered in full bundles) |
angel bead roll forming machine
angel bead roll forming machine
