Modern architectural projects increasingly favor metal cassette facade systems because they combine contemporary aesthetics with excellent weather resistance and easy maintenance. To meet the growing demand for high-quality cassette panels, our Dri-Design Metal Cassette Roll Forming Machine provides a complete automatic solution for manufacturing architectural rainscreen facade panels with outstanding dimensional accuracy and production efficiency.
Designed for processing pre-painted galvanized steel, the production line manufactures Flat, Tapered, and Shadow cassette profiles used in commercial buildings, office towers, shopping centers, airports, schools, and other modern architectural projects. With advanced hydraulic corner cutting and intelligent PLC control, this cassette roll forming machine helps manufacturers produce premium metal facade panels while reducing labor costs and increasing productivity.

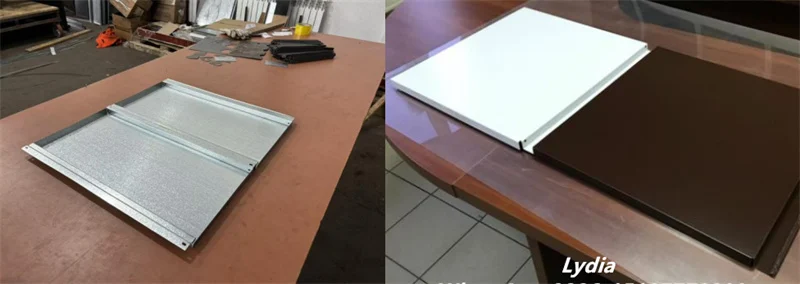

Finished Dri-Design metal cassette panels for ventilated rainscreen facade systems

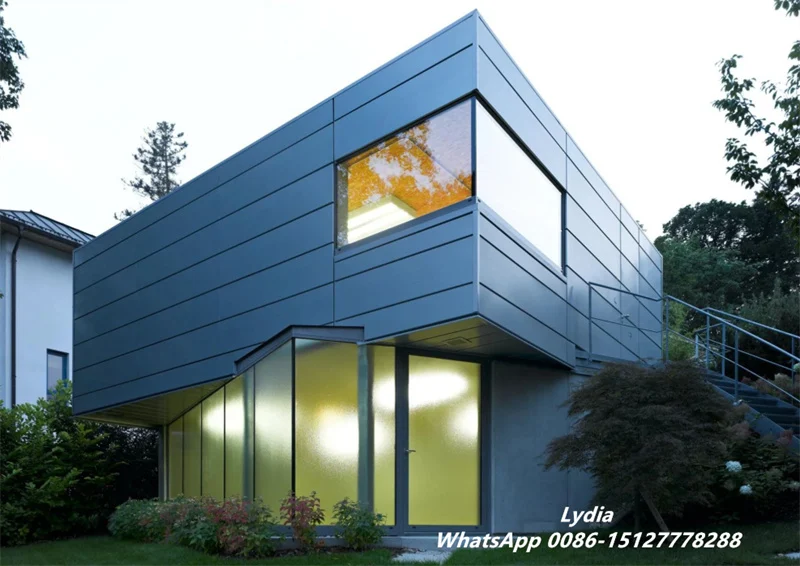

Architectural metal cassette rainscreen facade installed on commercial building exterior
Build High-Quality Metal Cassette Panels with One Production Line
Unlike conventional sheet metal fabrication methods that require multiple manual operations, this metal cassette roll forming machine integrates feeding, leveling, corner cutting, roll forming, bending, cutting, and discharging into one continuous production process.
As a result, manufacturers benefit from faster production cycles, improved consistency, and lower material waste. Whether producing standard Dri-Design cassette panels or customized metal cladding panels, the machine delivers stable performance throughout long production runs.
The finished products are widely used in ventilated rainscreen facade systems, creating durable building envelopes with a modern architectural appearance.

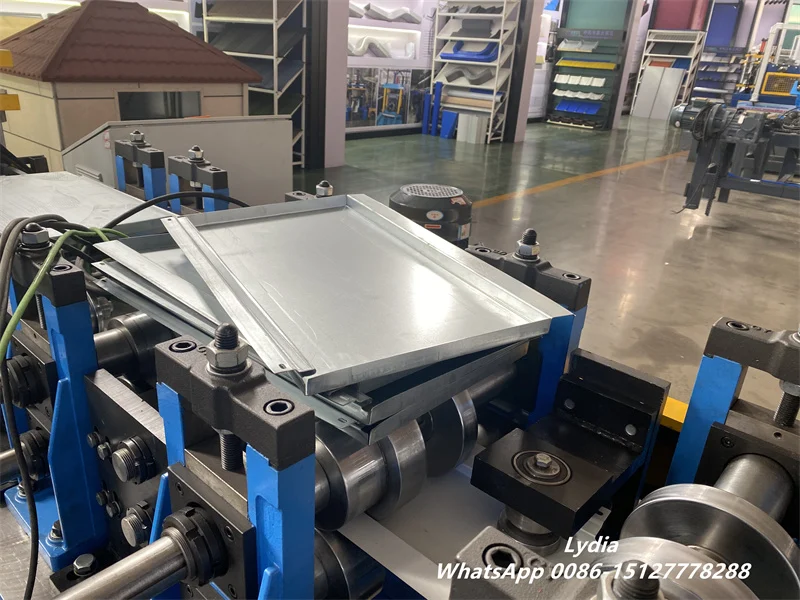

Hydraulic corner cutting unit for Dri-Design metal cassette panel manufacturing machine
Precision Forming Technology for Architectural Metal Cladding
The production line adopts a heavy-duty roll forming structure to ensure stable operation under continuous manufacturing conditions.
A 5-ton manual decoiler feeds coils smoothly into the leveling section, where multiple leveling rollers remove internal stress before forming. The material then enters the roll forming machine equipped with sixteen forming stations, precision-machined GCr15 rollers, and high-strength 45# steel shafts.
Powered by a 7.5 kW servo motor, the chain transmission system allows this metal facade panel roll forming machine to achieve forming speeds of 10–20 m/min while maintaining excellent dimensional accuracy and surface quality.

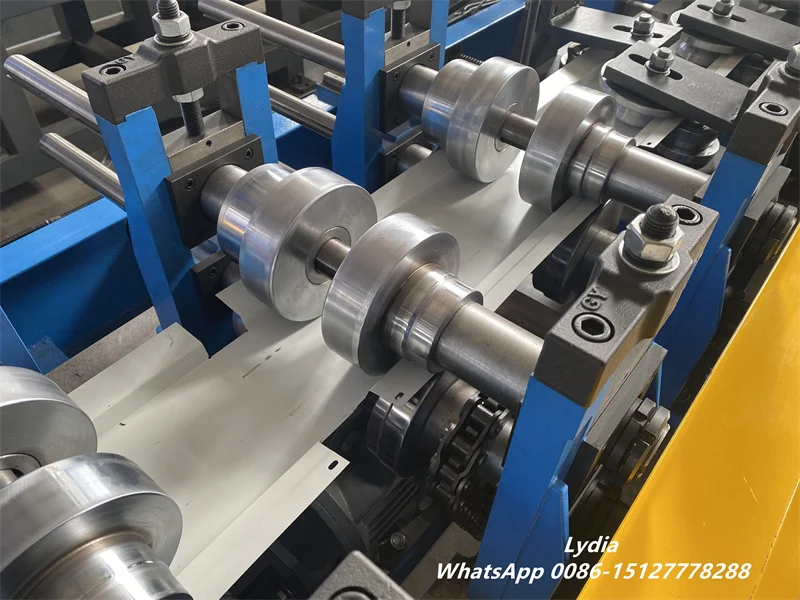

Chrome plated GCr15 forming rollers for metal facade cassette roll forming machine

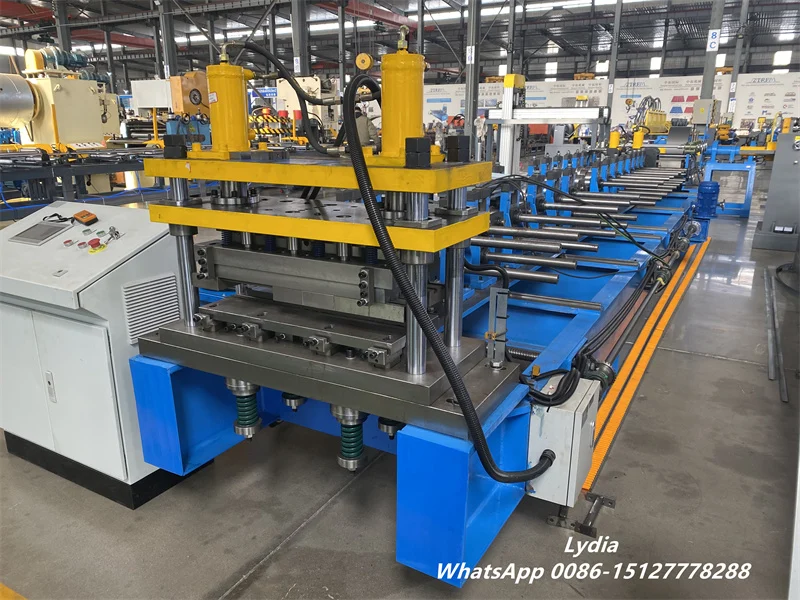

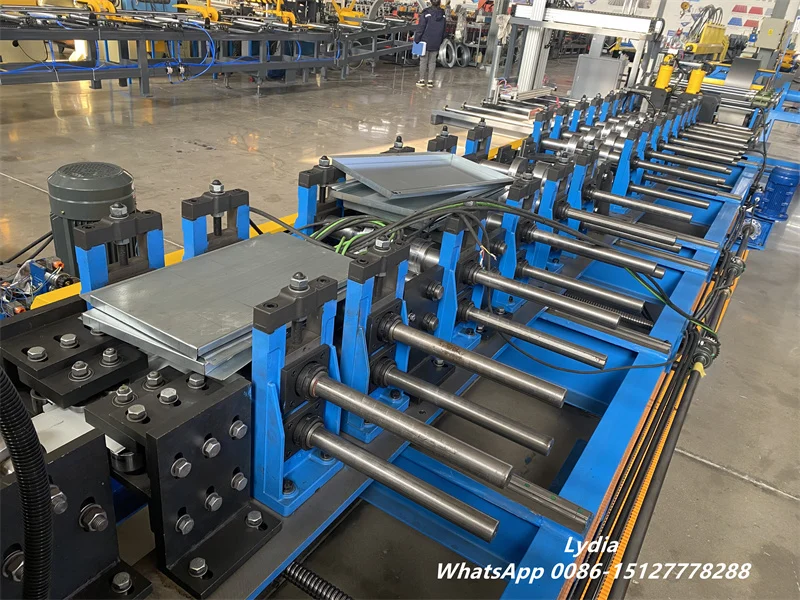

Automatic metal cassette facade roll forming production line for Dri-Design wall cladding panels
Intelligent Control Maximizes Roll Forming Production Efficiency
The entire production process is controlled through a Panasonic PLC system with an intuitive touchscreen interface. Operators can easily adjust production parameters, control cutting length, regulate forming speed, and monitor machine status in real time.
Furthermore, the Omron encoder ensures precise length measurement, while Schneider electrical components improve long-term operational reliability. The machine supports both Chinese and Russian operating languages, making this automatic roll forming machine suitable for manufacturers worldwide.
Hydraulic corner cutting units produce clean cassette corners before final cutting, ensuring every metal cassette panel meets architectural installation requirements.

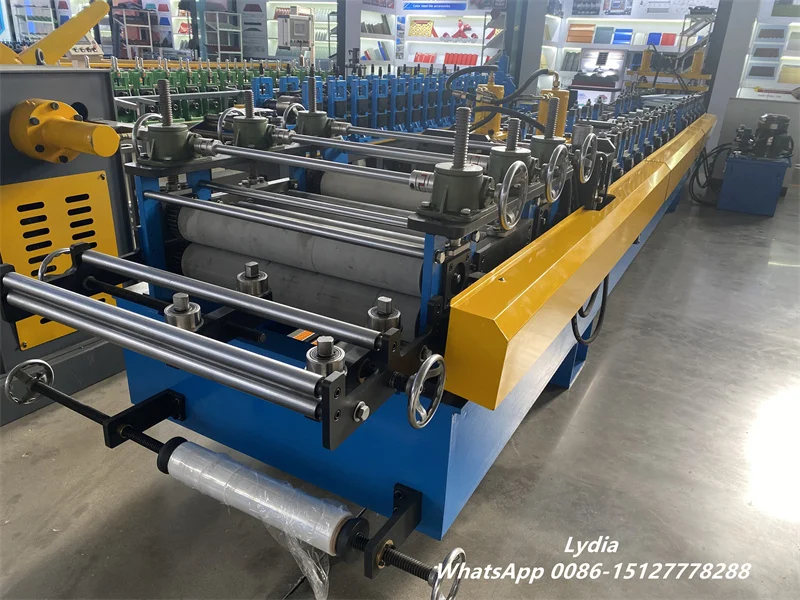

Automatic metal cassette facade roll forming production line for Dri-Design wall cladding panels

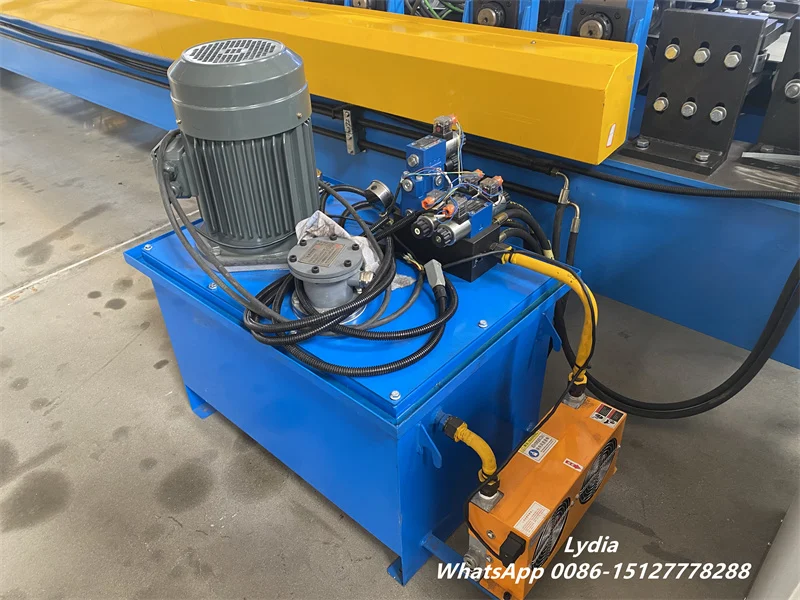

Hydraulic power station with cooling and heating system for cassette panel forming machine
Reliable Performance for Continuous Facade Panel Manufacturing
Industrial manufacturers require equipment capable of operating continuously in different climates. Therefore, the hydraulic station includes both air cooling and electric heating systems.
This design allows the Dri-Design cassette roll forming machine to operate reliably in temperatures from -30°C to +45°C, ensuring stable hydraulic performance throughout the year.
Finished architectural metal facade panels are automatically transferred onto a 3-meter run-out table for efficient collection and handling, reducing manual labor while improving production efficiency.

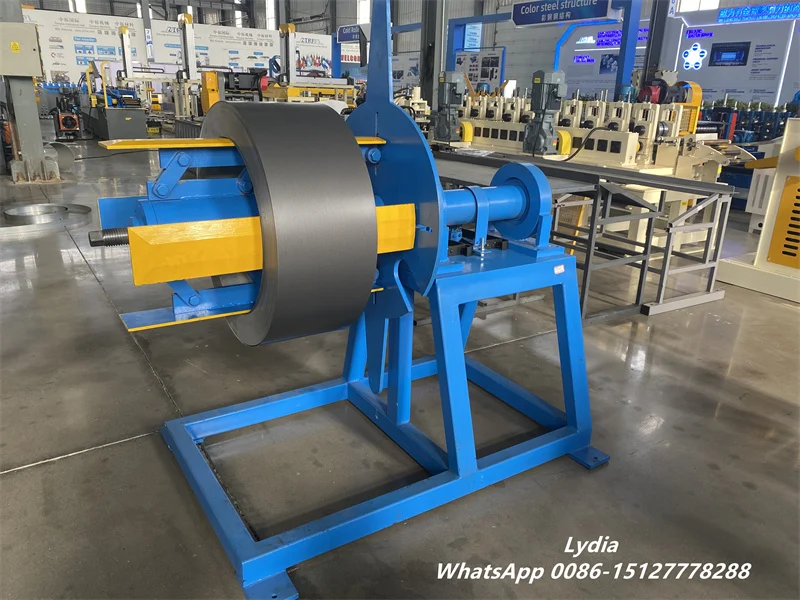

5 ton manual decoiler for pre-painted galvanized steel cassette panel roll forming machine

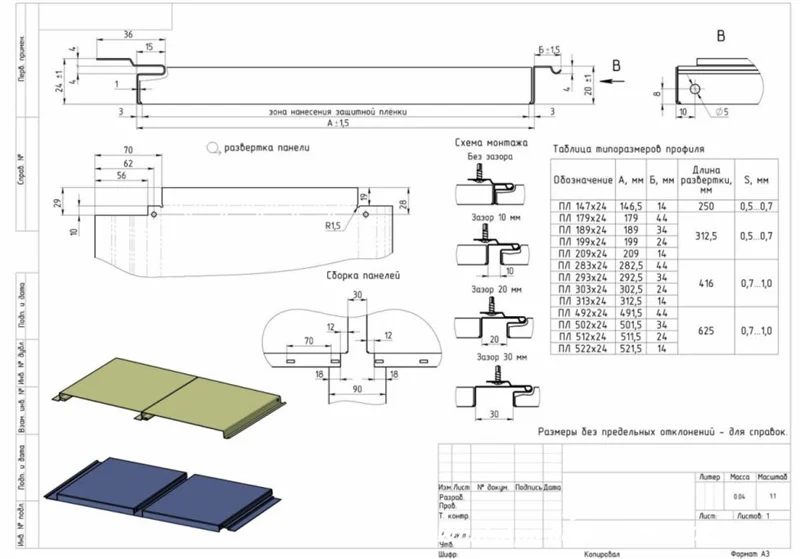

Technical Specifications of the Dri-Design Cassette Roll Forming Machine
| Item | Specification |
|---|---|
| Product | Dri-Design Metal Cassette Panel |
| Material | Pre-painted Galvanized Steel |
| Material Thickness | 0.4–1.0 mm |
| Coil Width | 198–728 mm |
| Decoiler Capacity | 5 Tons Manual Decoiler |
| Forming Stations | 16 Stations |
| Shaft Diameter | 65 mm |
| Shaft Material | 45# Steel |
| Roller Material | GCr15 Chrome-Plated Steel |
| Forming Speed | 10–20 m/min |
| Main Motor | 7.5 kW Servo Motor |
| Hydraulic Power | 5.5 kW |
| Control System | Panasonic PLC |
| Encoder | Omron |
| Electrical Components | Schneider |
| Voltage | 380V / 50Hz / 3 Phase |
Why Choose Our Dri-Design Cassette Roll Forming Machine?
Our Dri-Design Metal Cassette Roll Forming Machine combines precision engineering, intelligent automation, and durable construction to help manufacturers produce high-quality metal facade panels efficiently.
Whether you manufacture architectural metal cladding, rainscreen facade panels, metal cassette panels, or customized building facade systems, this production line provides a reliable and cost-effective solution.
From coil feeding to finished products, every stage of the roll forming process is optimized to improve productivity, reduce operating costs, and deliver consistent quality for the global architectural facade industry.
