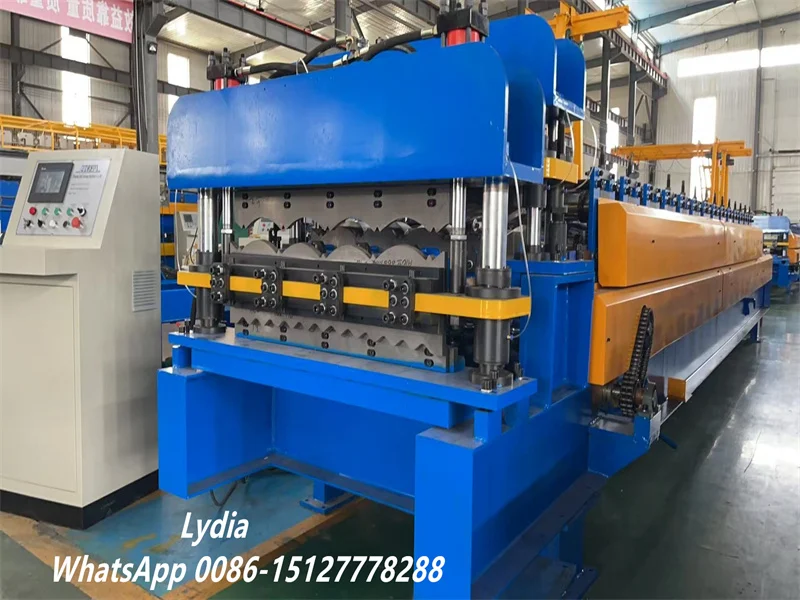

We are pleased to announce the successful delivery of our high-performance double-layer trapezoidal RIB metal roof wall panel tile roll forming machine to our clients in the United States. Designed specifically for the North American construction and roofing market, this machine combines precision, efficiency, and versatility in a compact system.

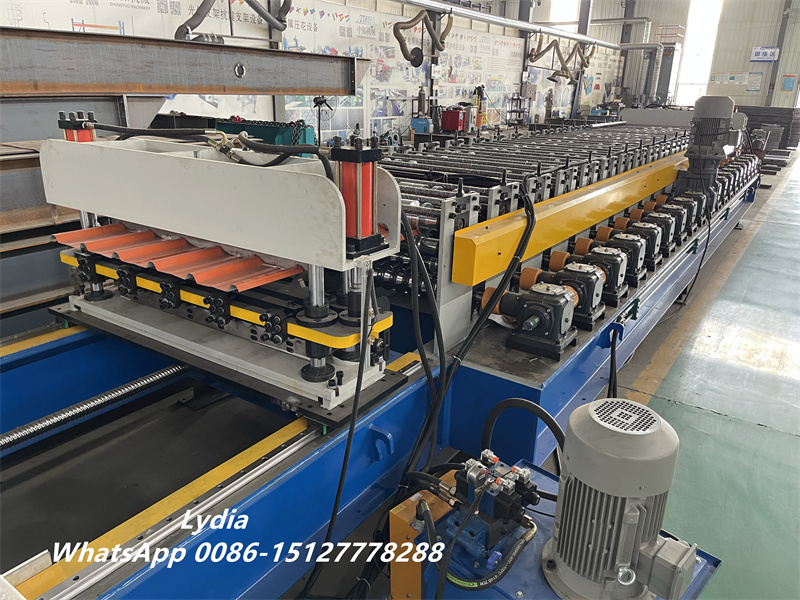

High-speed double-layer roofing sheet forming machine

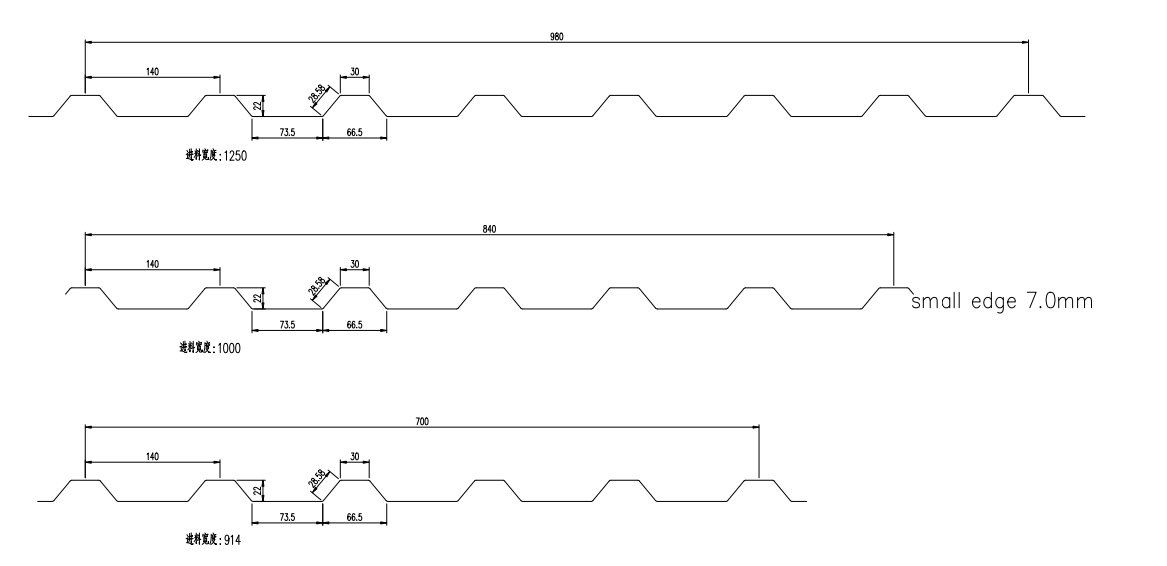

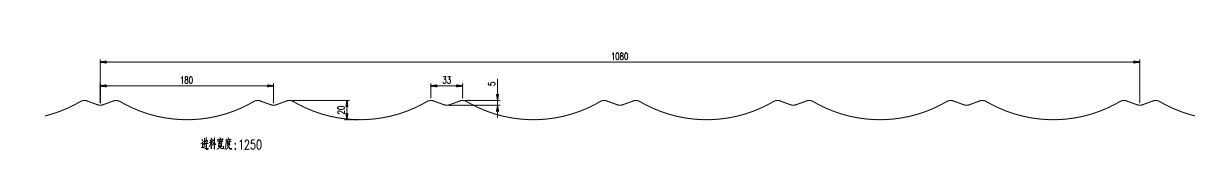

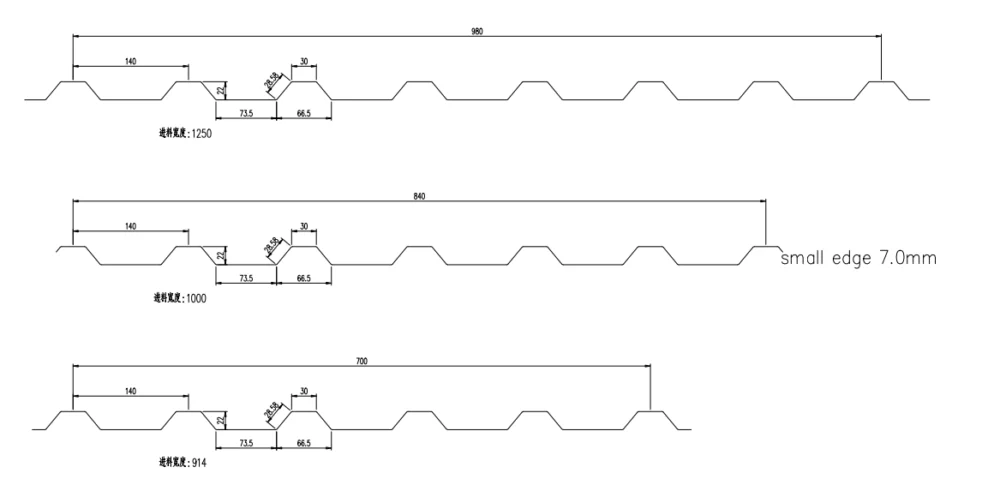

Custom Profile Drawing: (Available upon request)

Double-layer Machine

Double Layer Roll Forming Machine
Double Layer Roll Forming Machine Configuration & Packing List:
- 5T Manual Decoiler – 1 Set (Optional upgrade: Hydraulic decoiler)

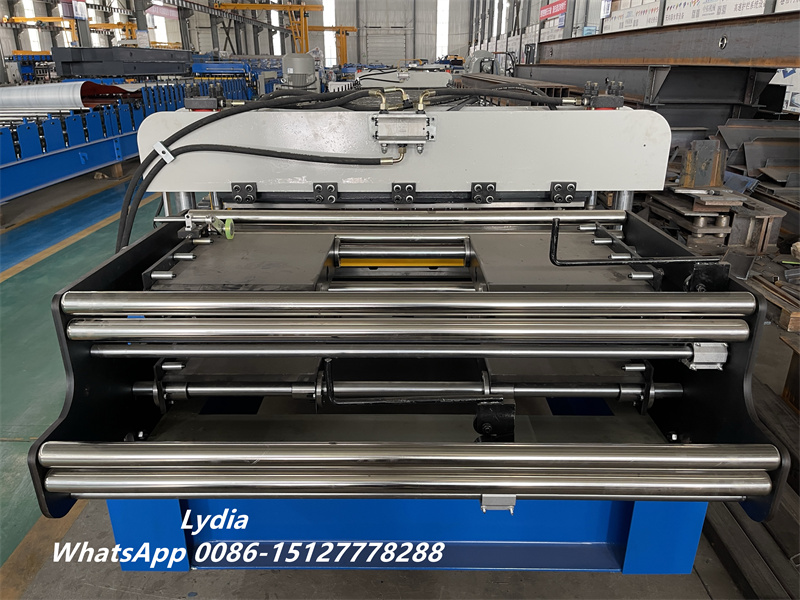

- Guide Feeding Device – 1 Set (With leveling, hand cutter, support rollers, and adjustable feeding size)

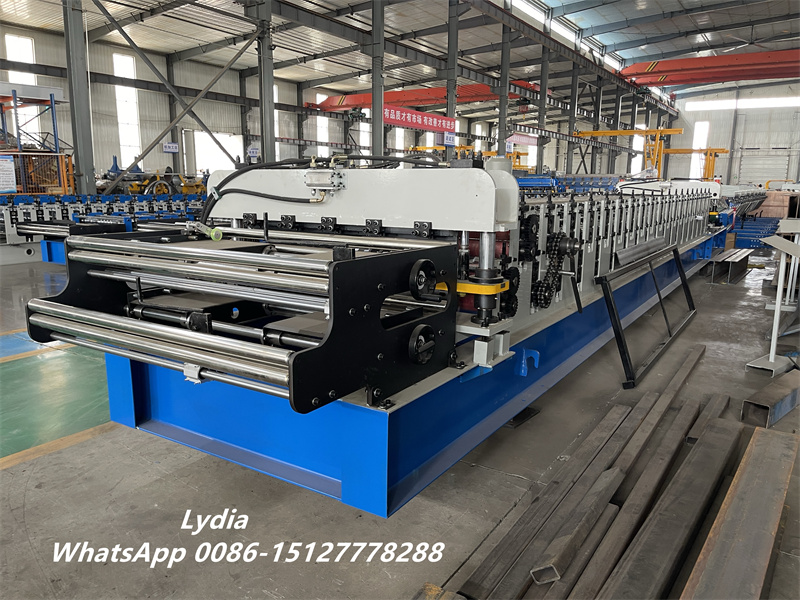

- Main Roll Former – 1 Set (Chain-driven with steel welded base and up/down layers [13/16 stations])
- PLC Control Station – 1 Set (Delta PLC & Touchscreen, Schneider electrical parts, Omron encoder)
- Cutting System – 1 Set (Hydraulic cutting with Cr12 blades, ±1mm tolerance)
- Hydraulic Oil Pump Station – 1 Set (With air cooling, 5.5kW motor, and coded hydraulic connections)
- Simple Collect Table – 1 Set (Optional: Automatic stacking system)
- Spare Parts Kit – 1 Set

High-speed double-layer roofing sheet forming machine
Double Layer Roll Forming Machine Technical Specifications:
- Raw Material: GI & PPGI
- Material Thickness: 0.4–0.6 mm
- Feeding Width: Max 1250 mm
- Work Speed: 0–15 m/min
- Shaft Diameter: 80 mm (solid, 45# steel with tempering treatment)
- Rollers: Chrome-coated (0.03mm) 45# steel with internal ball bearings
- Machine Frame: 350# H steel welded with diagonal bracing
- Transmission: Chain drive (with lubrication required)
System Highlights:
Ball bearing-integrated rollers for synchronized rotation
Grooved shafts with fixed nut/cushion design to avoid loosening
Multi-order input on the control panel to avoid production interruptions
Numbered rollers and spacers for easy maintenance
Oil tubes and electrical wires clearly labeled for easy installation

High-speed double-layer roofing sheet forming machine
Hydraulic System:
Hydraulic Motor: 5.5 kW
Oil Type: 46# hydraulic oil (approx. 100L)
Cutting tolerance: ±1mm/3m
Cooling system: Air-cooled hydraulic station

High-speed double-layer roofing sheet forming machine

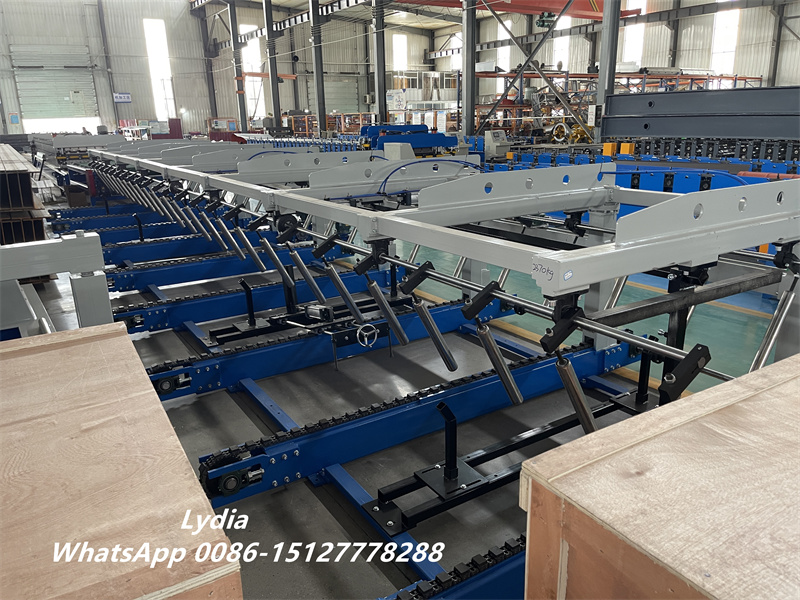

Simple Stacker:
Dimensions: 3m x 1m
Movement: Roller shaft assisted
Construction: Steel bar welded

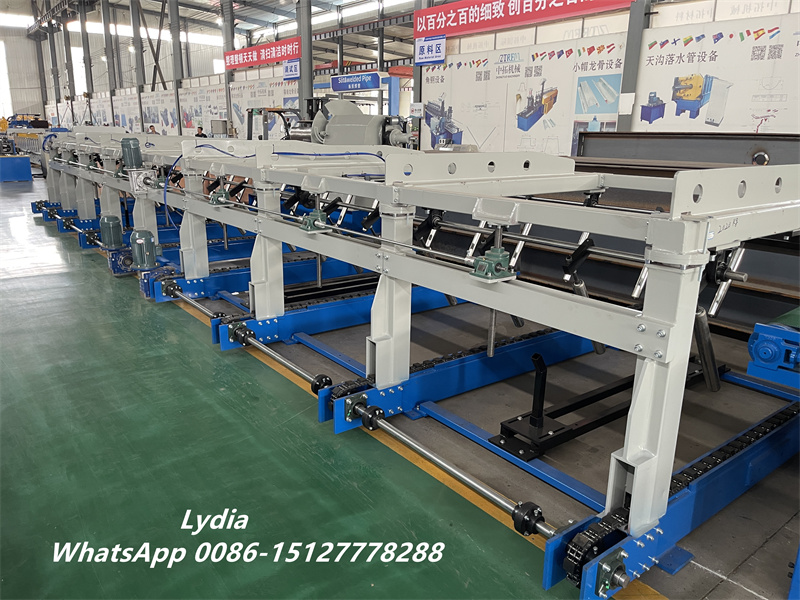

High-speed double-layer roofing sheet forming machine

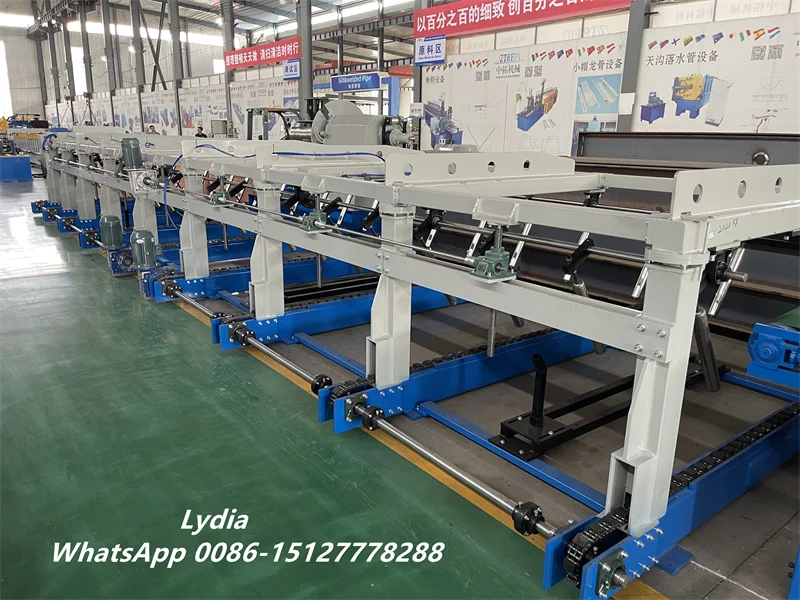

High-speed double-layer roofing sheet forming machine
This machine provides a compact yet powerful solution for contractors and roofing panel manufacturers looking to serve the growing U.S. steel structure and wall panel market. Our machines are custom-built to meet each client’s profile and production needs.
For more information or a custom quote, feel free to contact us!
