What Is a Board and Batten Roll Forming Machine
The Board and Batten Roll Forming Machine is specially developed for producing concealed fastener metal wall panels widely used in modern residential, commercial, and industrial buildings. This type of panel combines a clean architectural appearance with durable metal construction, making it one of the most popular wall cladding solutions in today’s construction market.
Compared with traditional exposed-fastener panels, the Board and Batten panel features a hidden fastening structure that creates a smoother and more elegant exterior surface. Because of its modern visual effect and strong weather resistance, this profile is increasingly used for luxury homes, commercial facades, modular buildings, warehouses, and decorative exterior wall systems.
The machine can be designed as a complete automatic production line or configured as an independent trim forming solution according to different manufacturing requirements.
The IBB machine includes hydraulic drive, front hydraulic cutting system, digital control panel for automatic operation, and adjustable panel width from 6” to 24”. It also features nail strip slotting (3/16” × 3/4”, 2” O.C.), with a material utilization design of 3 5/8”.
Board and Batten profile is available either as a complete panel production line or as a single trim forming machine with concealed fastening system. This profile delivers a distinctive architectural appearance that is widely used in modern wall cladding applications.

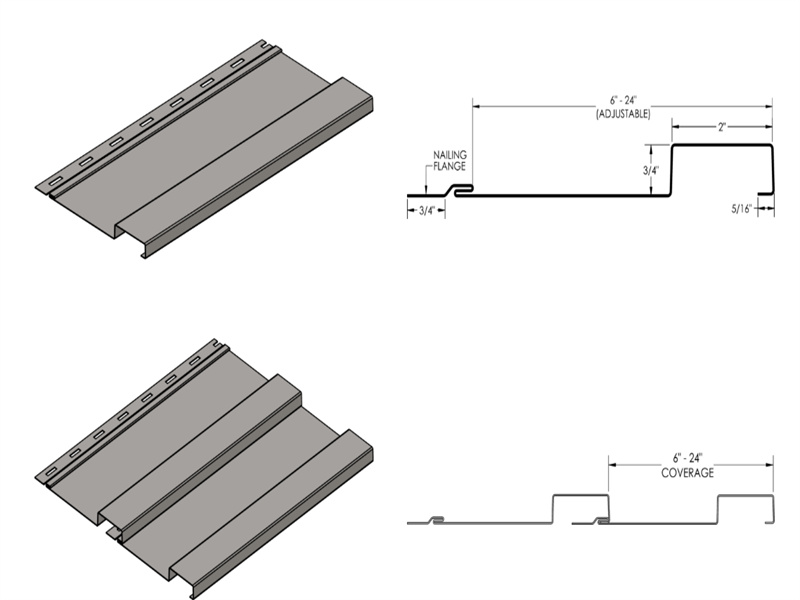

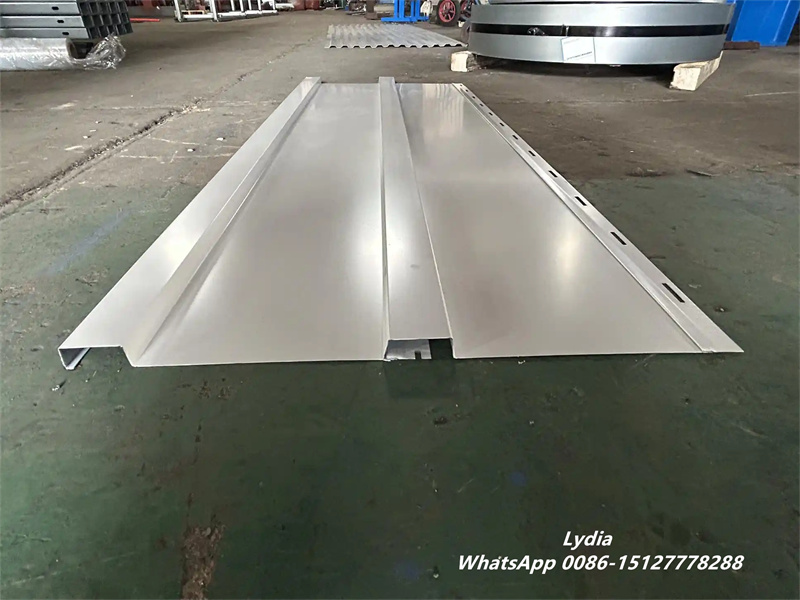

Board and Batten Panels
Application of Board and Batten Panels
Panels produced by the Board and Batten Roll Forming Machine are widely used in residential siding systems, commercial building facades, warehouse wall systems, agricultural buildings, modular houses, and decorative architectural projects.
The vertical line appearance created by the Board and Batten profile provides a modern and stylish design effect while maintaining excellent structural strength and weather resistance. As demand for high-end metal wall systems continues to increase, this type of panel has become an important product in the global construction materials market.
Industrial building exterior with 90° horizontal wall cladding panels installed
Main Features of the Board and Batten Roll Forming Machine
The Board and Batten Roll Forming Machine adopts advanced roll forming technology to ensure stable operation and precise panel production. The production speed can be adjusted through a variable frequency control system, allowing manufacturers to flexibly manage different production tasks and material specifications.

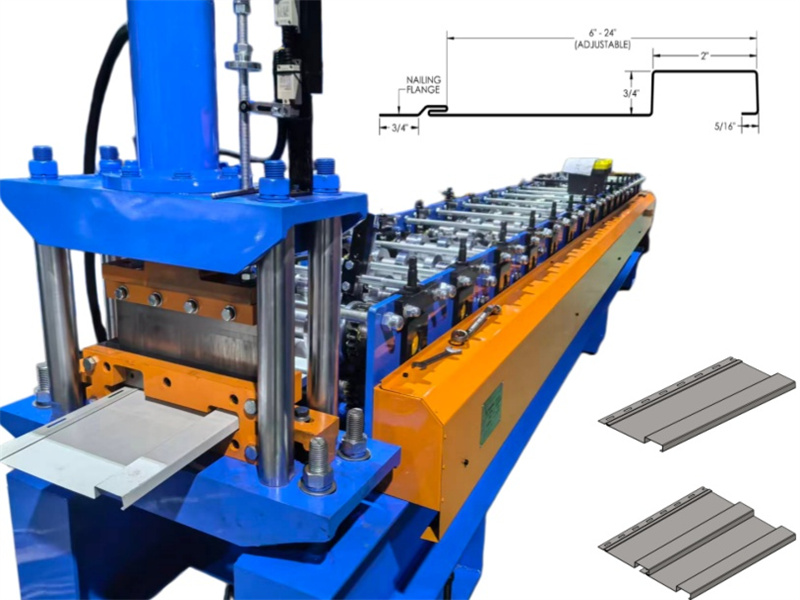

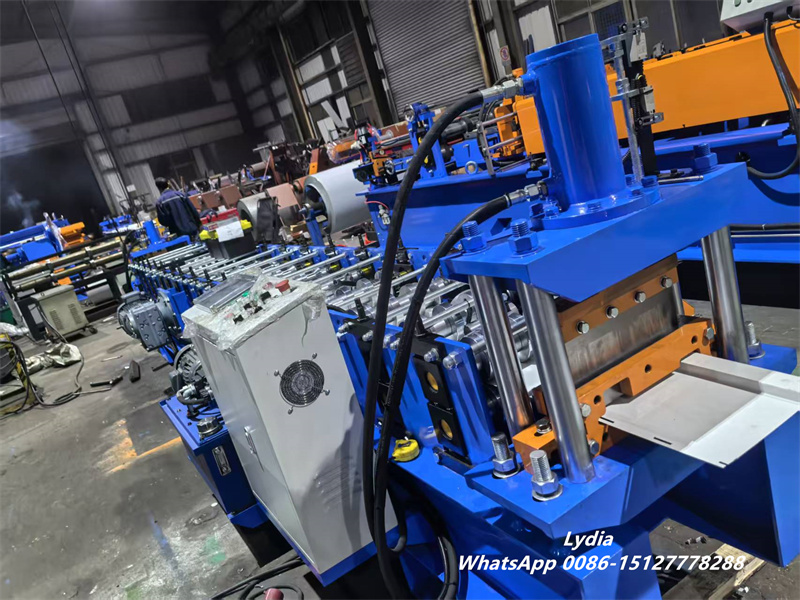

board and batten machine

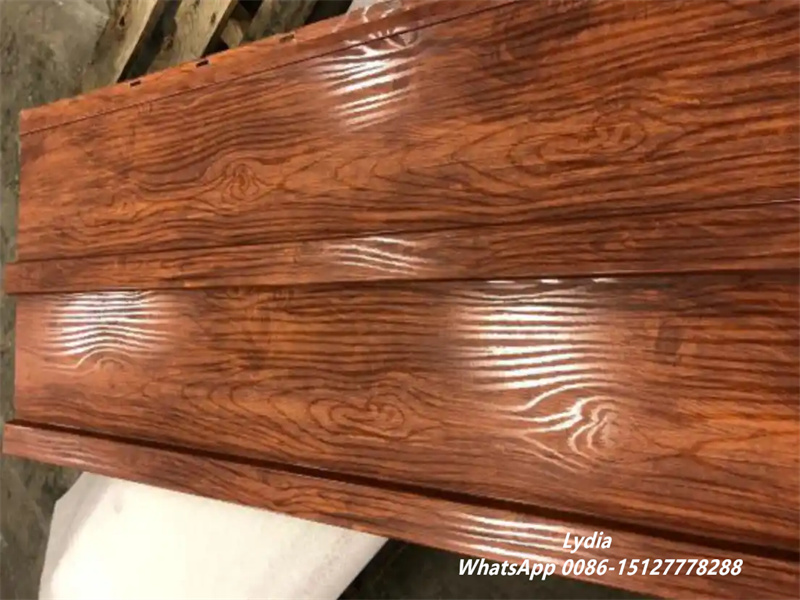

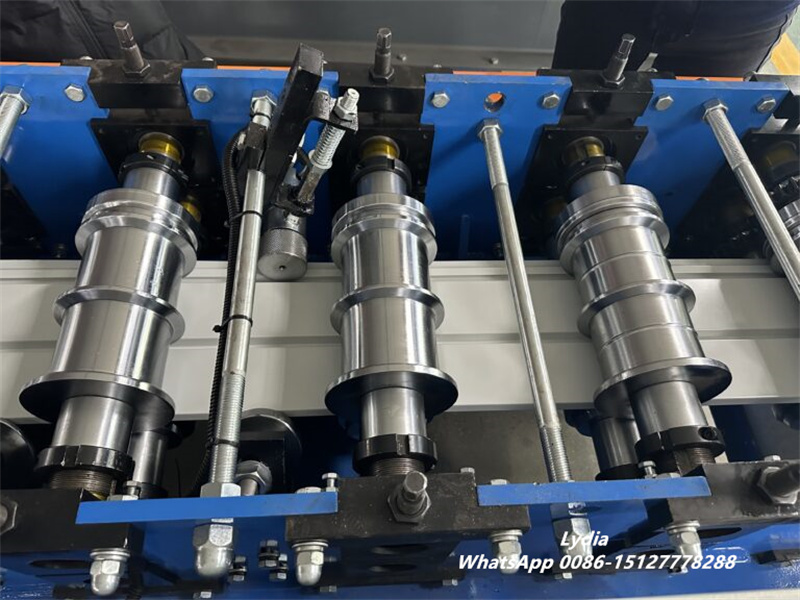

Different surface styles can also be produced, including smooth flat panels and textured finishes, helping manufacturers meet diverse architectural preferences in different markets. The forming rollers are precisely machined to maintain stable panel dimensions, clean edges, and excellent straightness during continuous production.
Another important advantage is the machine’s customization capability. Manufacturers can produce different panel widths, profile heights, and structural configurations based on customer drawings or local market requirements. This flexibility greatly improves production adaptability and market competitiveness.
Working Process of the Production Line
The complete Board and Batten panel production line usually includes hydraulic decoiling, feeding and guiding, roll forming, hydraulic cutting, PLC automatic control, and finished product output sections.
During production, steel or aluminum coils are continuously fed into the machine. The material then passes through multiple forming stations where rollers gradually shape the metal into the final concealed fastener panel profile. After forming is completed, the hydraulic cutting system automatically cuts the panel according to the preset length.
Because the process is fully automated, the production line can maintain stable operation while reducing labor costs and minimizing material waste. Continuous forming technology also improves production efficiency and finished product consistency.

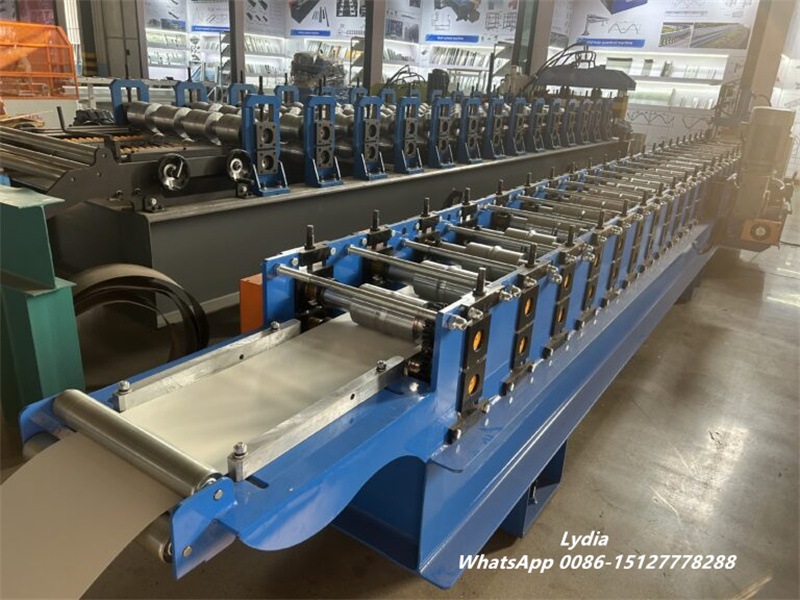

Concealed Fastener Wall Panel Production Line
Advantages of Concealed Fastener Wall Panels
One of the biggest advantages of concealed fastener wall panels is their clean architectural appearance. Since screws are hidden inside the locking structure, the exterior surface remains smooth and visually attractive.
The hidden fastening structure also improves waterproof performance by reducing direct exposure of fasteners to rain and outdoor environments. In addition, concealed fastener panels typically require less maintenance and provide longer service life compared with traditional exposed screw systems.
Because of these advantages, Board and Batten panels are widely used in modern wall cladding systems where both appearance and durability are important.
The Board and Batten Roll Forming Machine is equipped with a PLC automatic control system that allows operators to easily manage production parameters through a touchscreen interface. The automatic control system improves cutting accuracy and production stability while simplifying machine operation.
Board and Batten Roll Forming Machine

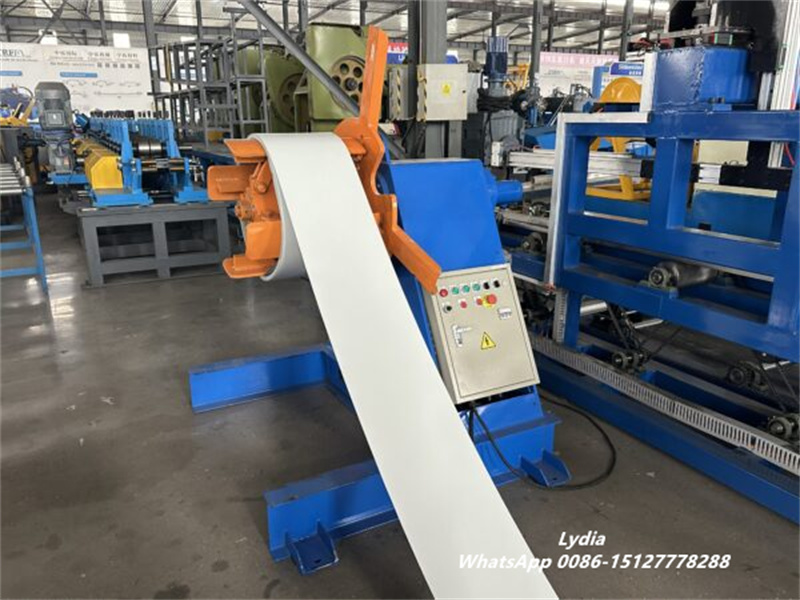

The hydraulic decoiler system helps feed material smoothly into the forming section, reducing manual handling and improving overall safety. A sensor monitoring system can also automatically stop the machine if abnormal feeding occurs, helping protect the material and equipment during production.
The electrical control cabinet, hydraulic station, and drive system are integrated into a compact machine structure, which helps save factory space and creates a cleaner workshop layout.
Technical Parameters of the Board and Batten Roll Forming Machine
| Item | Specification |
|---|---|
| Machine Type | Board and Batten Roll Forming Machine |
| Drive System | Hydraulic Drive |
| Cutting Type | Hydraulic Cutting |
| Control System | PLC Automatic Control |
| Production Speed | Up to 40 FPM |
| Material Type | Steel / Aluminum |
| Surface Style | Smooth or Textured |
| Panel Width | Adjustable |
| Application | Wall Cladding & Facade Panels |
Reliable Production Solution for Metal Wall Panel Manufacturers
The Board and Batten Roll Forming Machine combines intelligent automation, flexible customization, and stable production quality into one efficient manufacturing solution. With its ability to continuously produce high-quality concealed fastener wall panels, the machine helps manufacturers improve productivity, reduce operational costs, and expand product offerings in the competitive metal forming industry.
For companies seeking a reliable wall cladding production solution, investing in a high-performance Board and Batten Roll Forming Machine can provide long-term production advantages and stronger market competitiveness.
