The global demand for prefabricated buildings, modular homes, and light steel structures continues to rise as developers seek faster, more efficient construction methods. To meet these requirements, manufacturers need advanced production equipment capable of delivering precise framing components with minimal waste and maximum productivity.

The Automatic Light Gauge Steel Framing Machine is specifically designed to manufacture high-strength steel studs, tracks, trusses, wall panels, floor joists, and roof framing members used in light gauge steel construction systems. Equipped with intelligent software, servo-driven forming technology, and high-precision post-punching systems, this machine enables manufacturers to produce complete steel house framing components directly from digital designs.

Ideal Applications for Light Gauge Steel Structures

The finished products manufactured by this machine are widely used in modern construction projects where lightweight, durable, and environmentally friendly building systems are required.

Typical applications include:

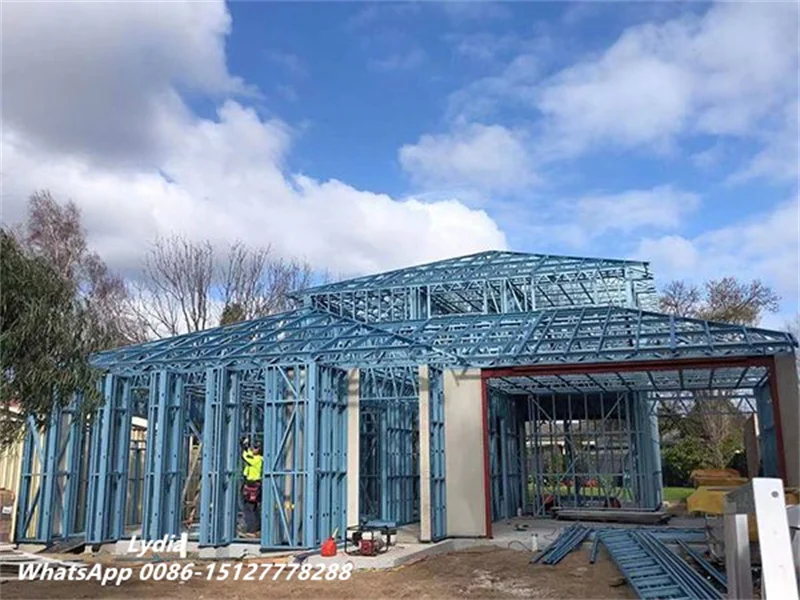

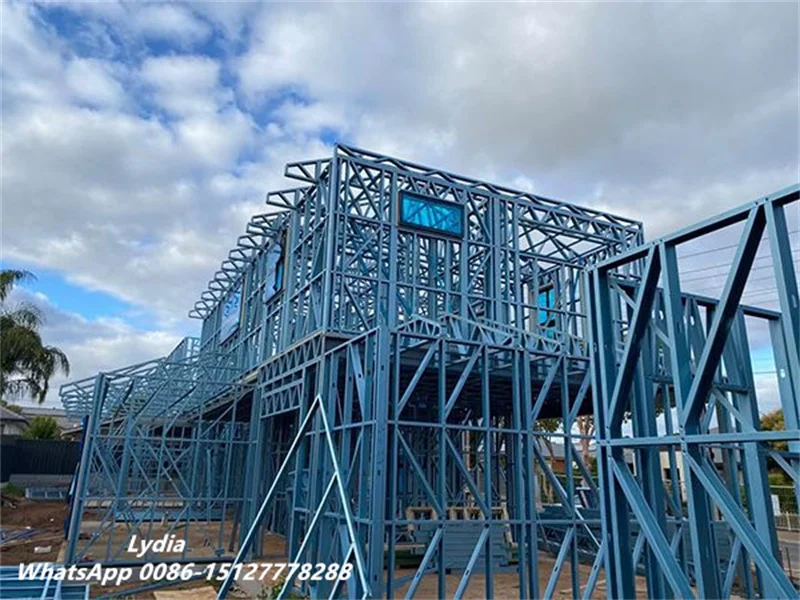

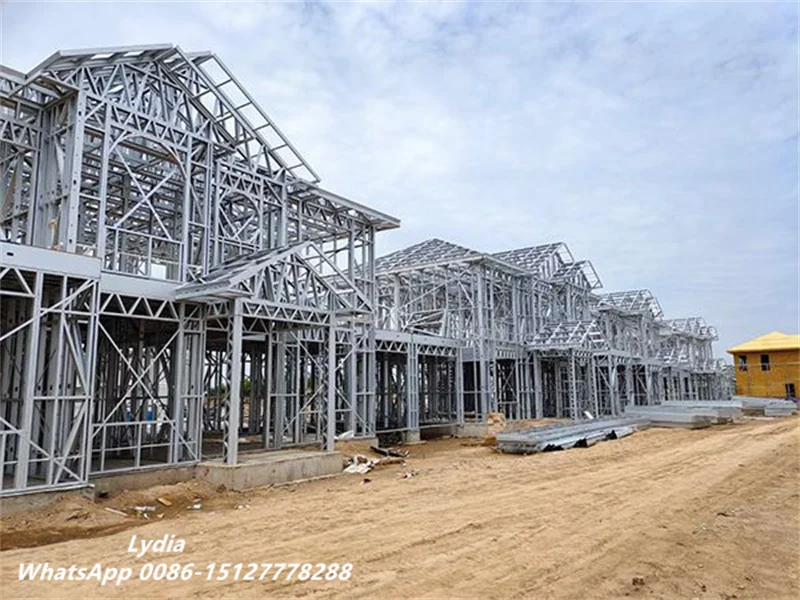

• Prefabricated Steel Houses
• Modular Building Systems
• Residential Villas
• Commercial Buildings
• Apartment Complexes
• Schools and Hospitals

Intelligent Steel Framing Production for Modern Construction

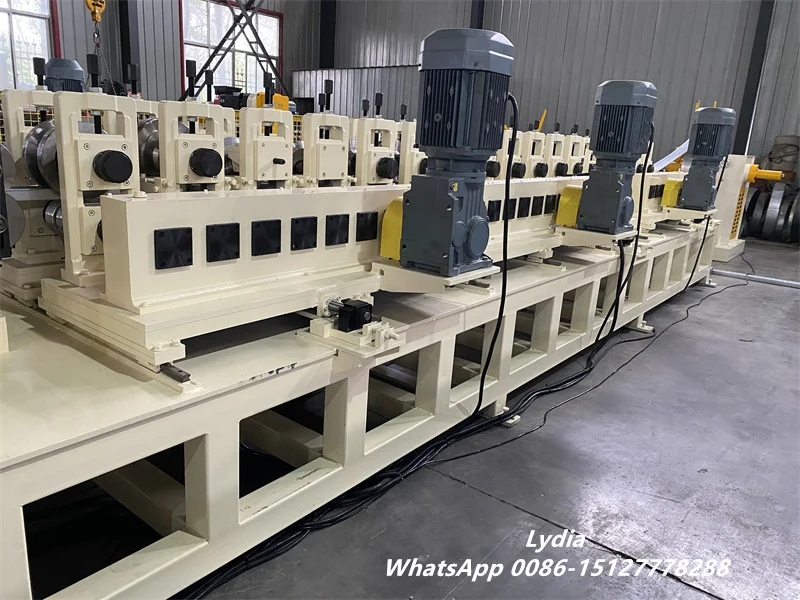

Unlike traditional roll forming equipment, this light gauge steel framing machine integrates design software, automated production control, and precision roll forming into a single manufacturing solution.

After importing a building design from Vertex software, the machine automatically generates production data and begins forming the required framing components. As a result, manufacturers can quickly transform engineering drawings into finished structural members without manual calculations or repeated adjustments.

Furthermore, the integrated IPC computer control system allows operators to monitor production in real time, improving manufacturing accuracy and reducing operator workload.

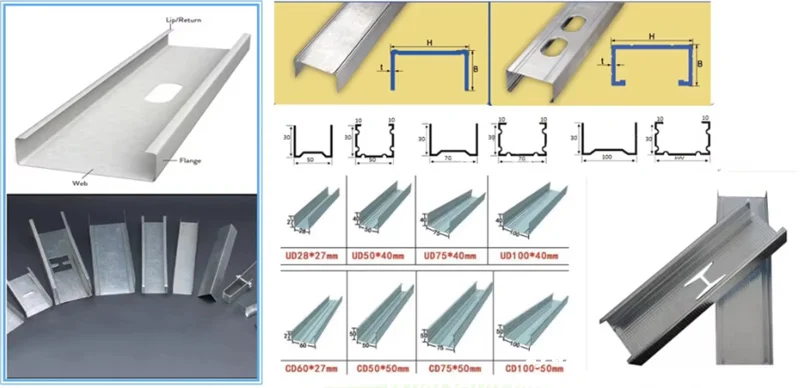

Typical Steel Framing Profiles Produced by the Machine

The Light Gauge Steel Framing Machine is capable of manufacturing a wide variety of structural profiles used in modern prefabricated construction. Through intelligent software control and precision roll forming technology, the machine can produce wall studs, floor joists, roof trusses, and load-bearing structural members with excellent dimensional accuracy.

Among all framing profiles, the following two sections are the most commonly used in residential and commercial light steel construction projects.

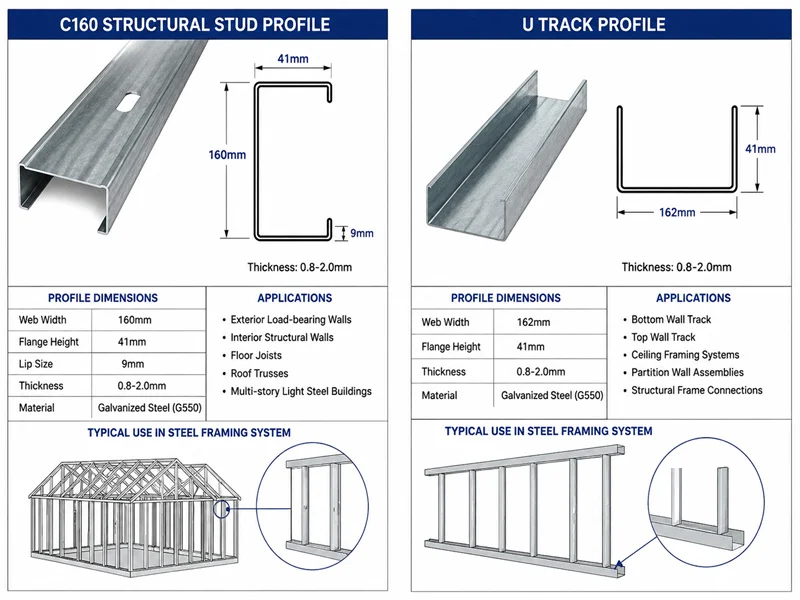

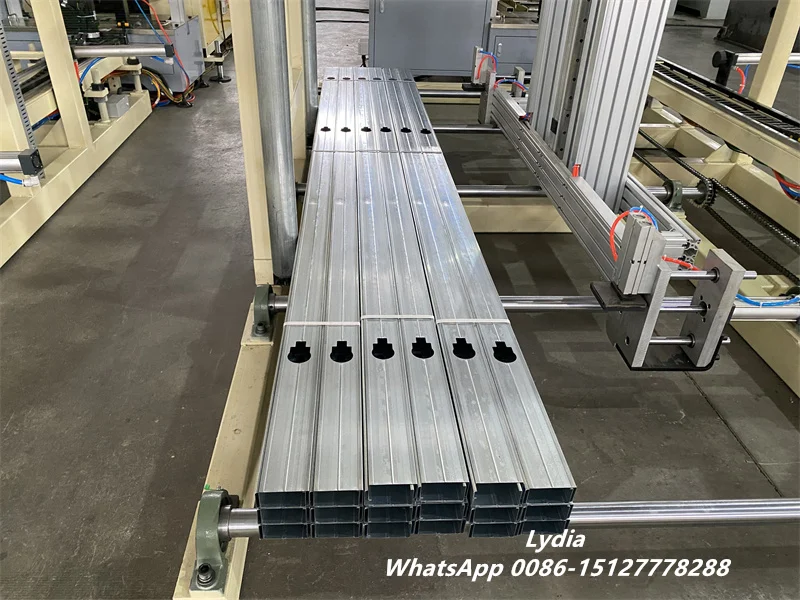

C160 Structural Stud Profile

The C160 profile is one of the primary load-bearing members used in light gauge steel buildings. It is widely applied in wall framing systems, floor joists, roof trusses, and structural reinforcement applications.

Typical Profile Dimensions

Because of its high strength-to-weight ratio, the C160 profile provides excellent structural performance while maintaining lightweight construction characteristics. Furthermore, pre-engineered service holes and notches simplify electrical and plumbing installations during building assembly.

U Track Profile

The U track serves as the horizontal connection member in steel framing systems. It acts as the foundation and top track for wall assemblies while providing alignment and support for vertical studs.

Typical Profile Dimensions

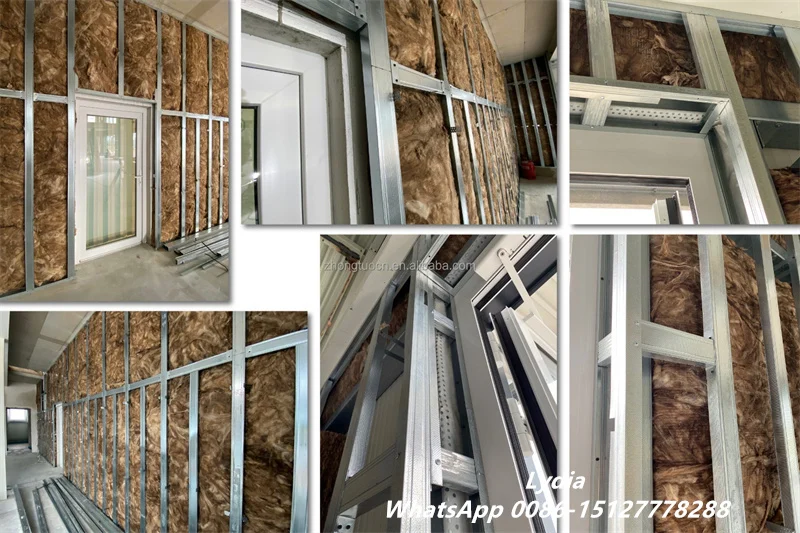

When combined with C-shaped studs, U tracks create a complete framing structure capable of supporting walls, ceilings, and roof systems. As a result, these profiles form the backbone of most prefabricated steel buildings.

Advanced Post-Punching Technology Improves Accuracy

One of the most important advantages of this machine is its post-punching and post-cutting design. Unlike conventional systems that punch material before roll forming, this technology performs punching operations after the profile has been formed.

Consequently, the machine achieves superior dimensional accuracy while maintaining profile integrity throughout the production process.

The hydraulic punching unit can automatically create:

• Service holes
• Web notches
• Lip notches
• Bolt holes
• Swages
• Chamfers
• Dimples

Because punching occurs after forming, the material experiences less deformation, ensuring consistent quality even when processing thinner gauges.

Patent Structural Design Enhances Building Strength

The machine features an innovative seamless end-cut connection system that allows vertical frame members to connect directly with top and bottom horizontal tracks.

This unique structural design enables building loads to transfer more efficiently through the framing system. Therefore, completed structures achieve higher stability and improved load-bearing performance compared with traditional framing methods.

Additionally, continuous web notch punching can be performed without extruding material. This feature minimizes the risk of machine blockage and allows smooth production even when processing thinner steel materials.

Lower Material Waste and Reduced Manufacturing Costs

Material utilization has become a critical factor in steel frame production profitability. To address this challenge, the machine utilizes a compact punching and cutting arrangement that significantly reduces startup waste.

Compared with traditional pre-punching systems, the post-punching design dramatically lowers material loss during coil changes and machine startups.

For manufacturers operating multiple shifts, these savings can translate into several tons of steel conserved annually, helping improve production efficiency and overall profitability.

Technical Specifications

Item	Specification
Model	C160
Machine Dimensions	5400 × 1300 × 1600 mm
Main Servo Motor Power	15 kW
Hydraulic Motor Power	11 kW
Forming Stations	12 Stations
Production Capacity	4–7 Tons / 8 Hours
Line Speed	Up to 700 m/h
Voltage	380V / 50Hz / 3 Phase
Effective Profile Width	160 mm
Material Width	255 mm
Flange Height	41 mm
Lip Size	9 mm
Material Thickness	0.8 – 2.0 mm
Punching & Cutting Tolerance	±1 mm
Forming Tolerance	±1 mm
Control System	IPC Computer Control System
Design Software	Vertex Software
Roller Material	SKD-11 with Heat Treatment & Hard Chrome Coating
Shaft Material	SKD-11
Punching Tool Material	SKD-11
Cutting Blade Material	SKD-11

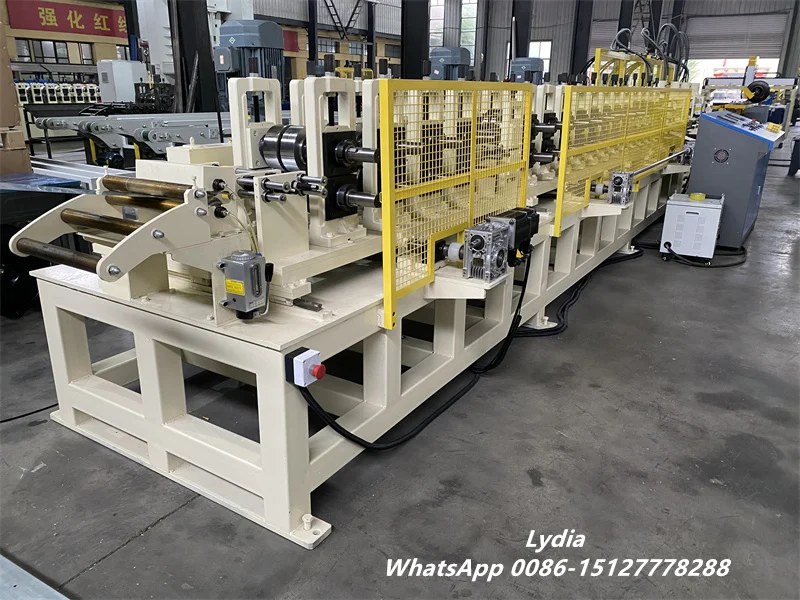

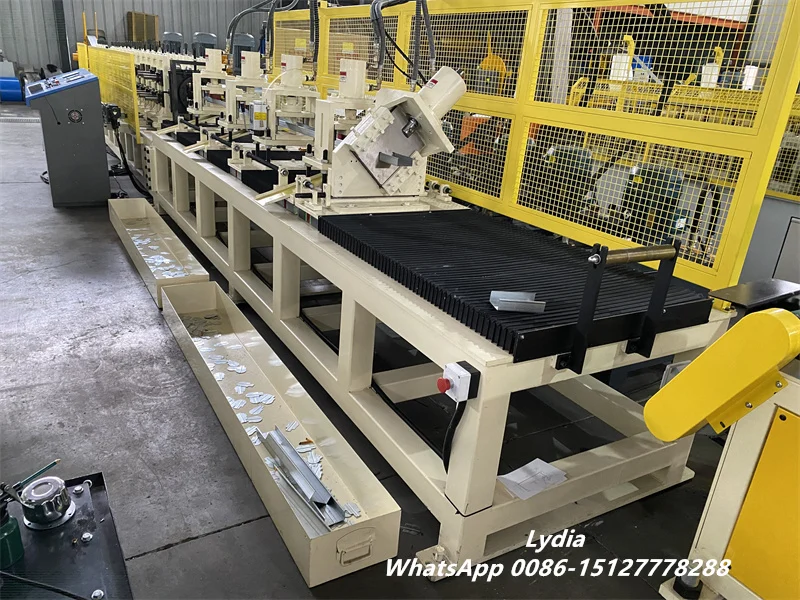

Complete Production Line Configuration

The light gauge steel framing production line includes all essential equipment required for efficient steel structure manufacturing.

The standard configuration consists of:

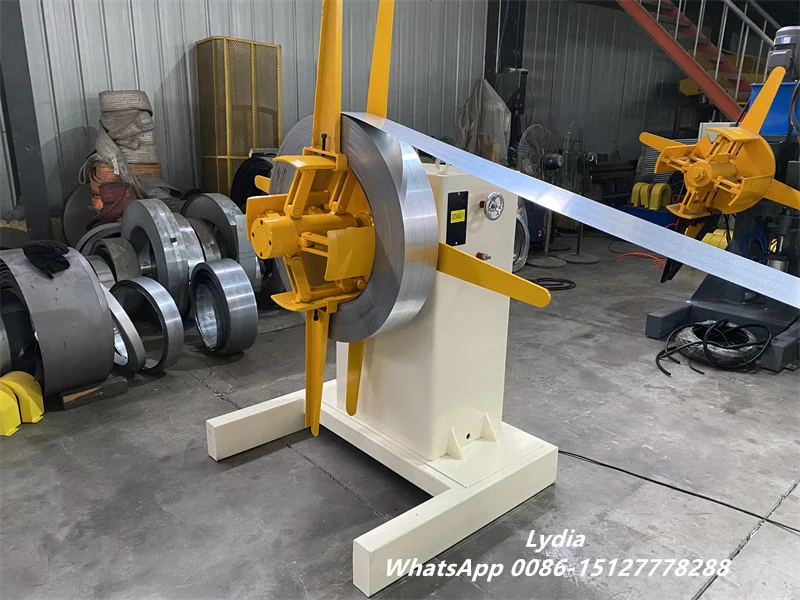

• 3 Ton Electric Decoiler
• Main Roll Forming Machine
• High-Performance Servo Motor System
• IPC Computer Control System
• Vertex Design Software License
• Hydraulic Post-Punching Unit
• Hydraulic Post-Cutting Device
• Automatic Printing System
• 4-Meter Run-Out Table

Together, these components create a fully automated manufacturing solution capable of producing complex framing profiles with exceptional accuracy and repeatability.

As governments and developers increasingly adopt prefabricated construction methods, demand for light gauge steel framing continues to grow worldwide.

The Automatic Light Gauge Steel Framing Machine provides manufacturers with a powerful solution for entering this rapidly expanding market. By combining intelligent software integration, precision roll forming, advanced post-punching technology, and low material waste, the machine delivers outstanding productivity and long-term manufacturing value for steel framing producers.
