Container Side Wall Panel Roll Forming Machine ZTRFM USA & Europe Supplier
The 2026 Fully Automatic Container Side Wall Panel Roll Forming Machine is a heavy-duty production system designed to manufacture high-strength shipping container side wall panels for 20ft, 40ft, and 45ft containers. This container side wall panel roll forming machine produces corrugated steel wall panels widely used in dry freight containers, reefer containers, tank containers, and modular container buildings across the USA and Europe.
Container side wall panels are typically made from Corten-A (SPA-H) weathering steel, which offers superior corrosion resistance and long service life. To meet the increasing demand in the American and European container manufacturing industries, ZTRFM has developed this fully automatic container side wall panel roll forming machine with high precision, high output, and intelligent PLC automation.
Shipping Container Roll Forming Machine

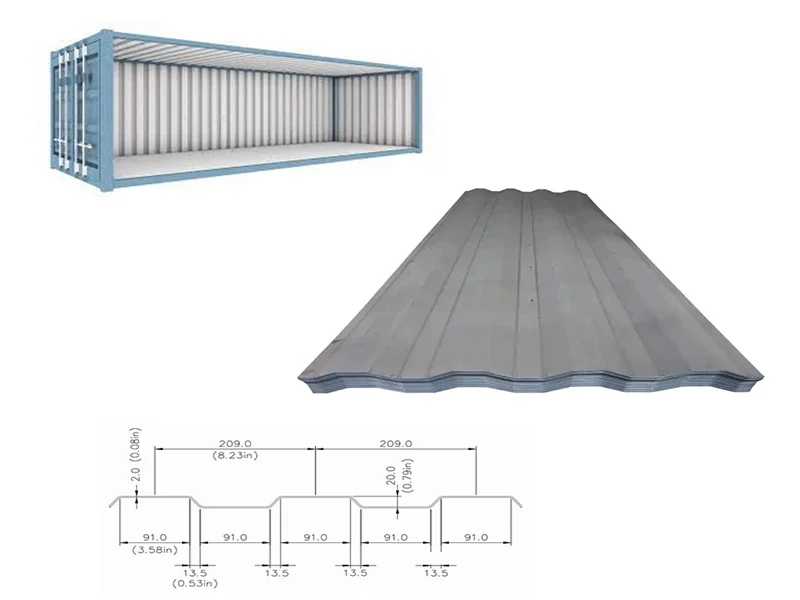

What Is a Container Side Wall Panel?

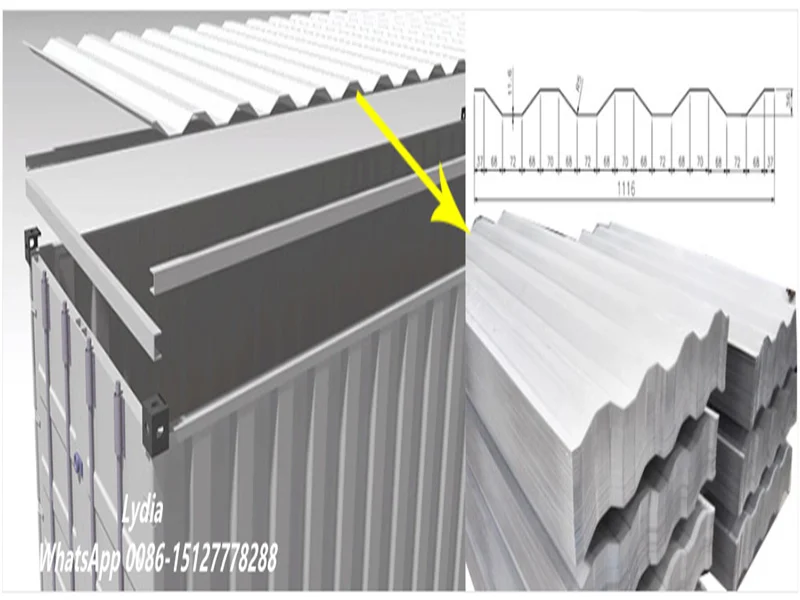

A container side wall panel is the main structural wall component of a shipping container. It provides:
- Structural rigidity
- Weather resistance
- Impact resistance
- Long-term outdoor durability
Shipping Container Roll Forming Machine
Common container types include:

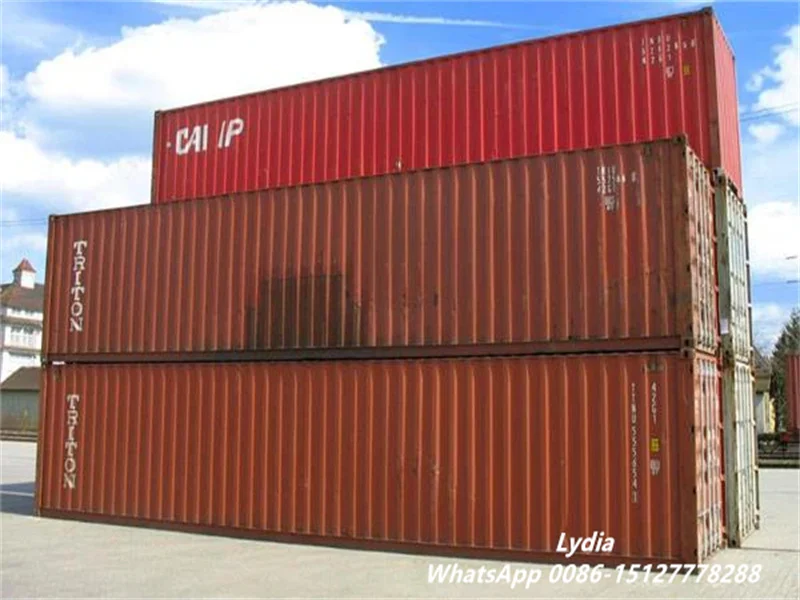

- 20ft standard containers
- 40ft high cube containers
- 45ft logistics containers
- Refrigerated (reefer) containers
- Modular container houses
Shipping Container Roll Forming Machine
Because of global logistics growth and modular construction demand, container side wall panel production lines are increasingly required in the USA, Germany, the Netherlands, Poland, and other European countries.

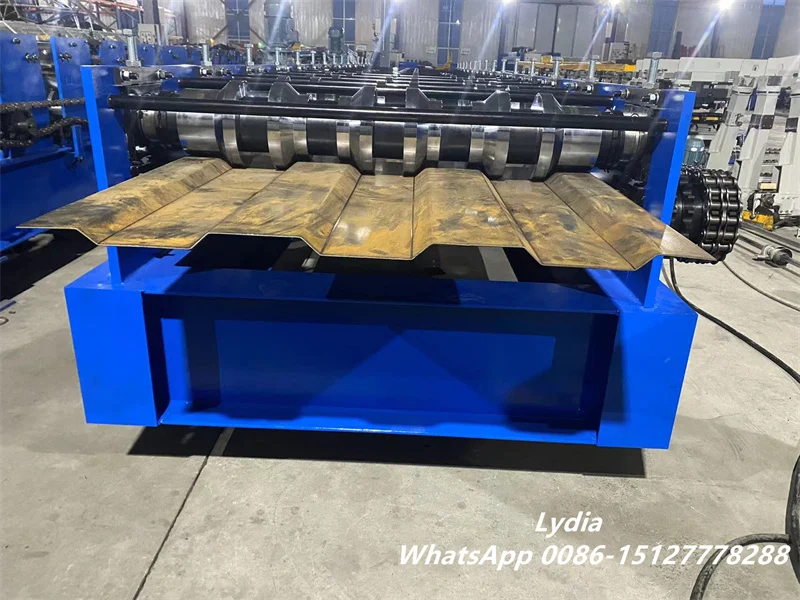

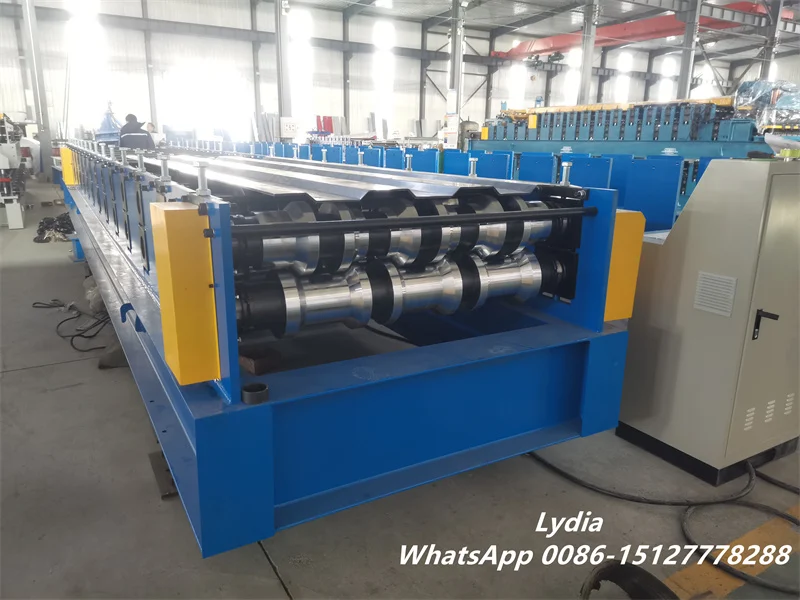

ZTRFM Container Side Wall Panel Roll Forming Machine Technical Overview
The ZTRFM 2026 fully automatic container side wall panel roll forming machine is engineered for:
- Material: Corten-A (SPA-H), galvanized steel, cold rolled steel
- Thickness: 1.5–2.0mm
- Forming tolerance: ±0.1mm

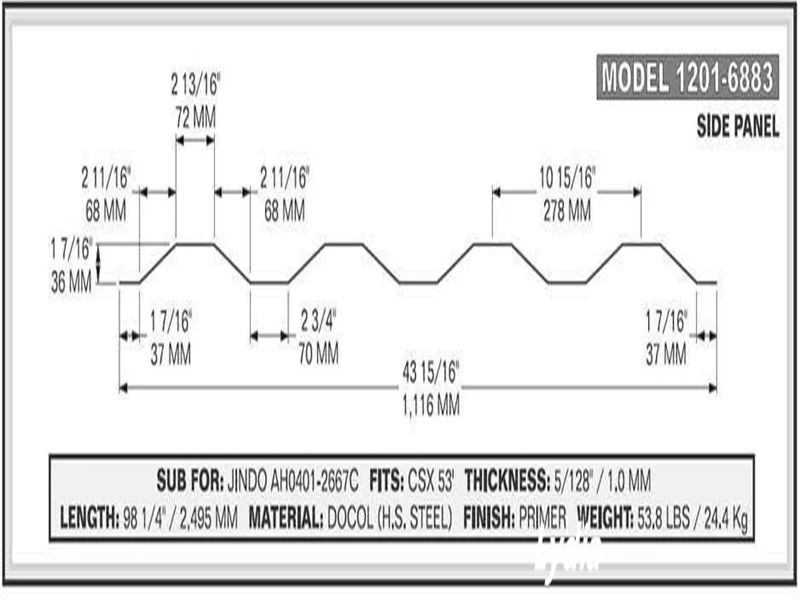

- Panel width: 1024mm
- Panel length: 2400mm / 2700mm
- Production speed: 10–15 m/min
Shipping Container Roll Forming Machine
Technical Specifications
| Item | Specification |
|---|---|
| Material Thickness | 1.5–2.0mm |
| Yield Strength | Q235–355Mpa |
| Roller Stations | 20 forming steps |
| Shaft Diameter | Ø110mm |
| Roller Material | 45# steel, hard chrome plated |
| Main Motor | 30kW frequency control |
| Servo Motor | Dual 15kW servo drive |
| Frame | H450 welded steel structure |
| Cutting | Hydraulic flying shear |
| PLC | Schneider / DELTA |
| Encoder | OMRON |
| Power Supply | 380V / 50Hz / 3 Phase |
High Output Container Side Wall Panel Production Line
The ZTRFM container side wall panel roll forming machine operates at 10–15 meters per minute.
If running at 12 m/min:
12 m × 60 min × 8 hours = 5,760 meters per shift
12 m × 60 min × 10 hours = 7,200 meters per day
This high-speed container side wall panel roll forming machine allows manufacturers to:
- Increase daily output
- Reduce manual forming work
- Lower labor costs
- Improve delivery time
Shipping Container Roll Forming Machine
Compared with traditional stamping or press forming, this fully automatic container side wall panel roll forming production line reduces production cost per panel significantly.
Designed for USA & European Container Manufacturers
The ZTRFM container side wall panel roll forming machine is designed for industrial factories in:
- United States
- Germany
- Italy
- Netherlands
- Spain
- Poland
It supports 380V 3-phase electricity and uses internationally recognized electrical components such as Schneider, DELTA, and OMRON.
Furthermore, the machine meets CE industrial safety standards, ensuring smooth approval for European factories.
Applications of Container Side Wall Panel Roll Forming Machine
This container side wall panel roll forming machine is widely used in:
- Shipping container manufacturing plants
- Container refurbishment factories
- Modular container building companies
- Offshore container production
- Storage container fabrication
Optional configurations are available for roof panel forming, customized corrugation design, and hybrid aluminum-steel processing.
Core Advantages of ZTRFM Container Side Wall Panel Roll Forming Machine
1. Heavy-Duty Industrial Structure
The H450 welded base frame ensures high rigidity. Therefore, the container side wall panel roll forming machine maintains precision during continuous heavy-duty production.

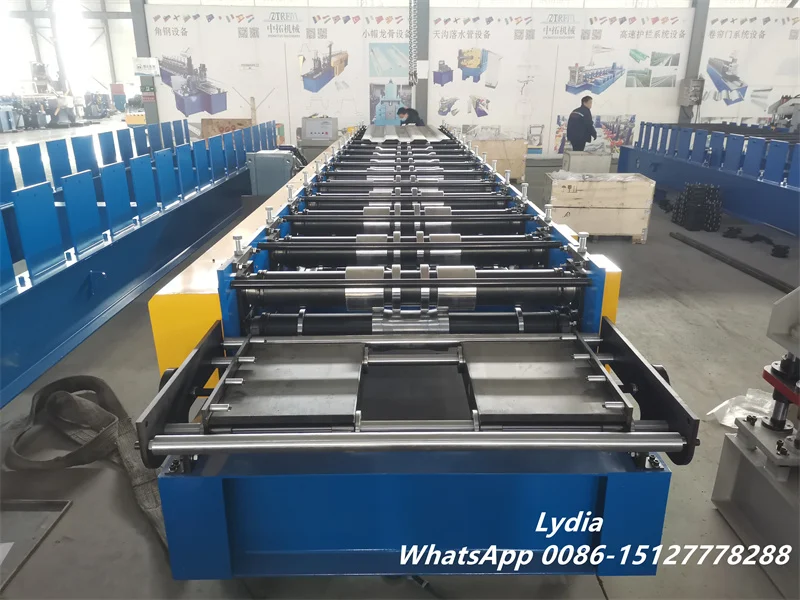

2. 20-Stage Progressive Corrugation Forming
The multi-stage forming system ensures smooth corrugated profile shaping, increasing structural strength of the container wall panel.
3. Dual Servo Drive System
Dual 15kW servo motors provide stable torque transmission, ensuring synchronized forming and reducing mechanical wear.
4. Intelligent PLC-HMI Automation
The PLC-controlled container side wall panel roll forming machine allows:
- Automatic length setting
- Real-time speed control
- Error monitoring
- Automatic hydraulic cutting
This improves efficiency while minimizing operator skill requirements.
Invest in a High-Performance Container Side Wall Panel Roll Forming Machine
The 2026 Fully Automatic Container Side Wall Panel Roll Forming Machine by ZTRFM delivers high precision, high output, and intelligent automation for modern container manufacturing in the USA and Europe.
If you are looking for a reliable container side wall panel roll forming machine manufacturer, ZTRFM offers a complete industrial solution with strong technical support and competitive pricing.
