We are pleased to introduce our advanced slitting line solution, fully prepared for multi-material applications including carbon steel, galvanized steel, stainless steel, aluminum, and more. This production line is specifically engineered to meet European CE standards and is scheduled for installation in France.

Designed for versatility and precision, the slitting line handles materials with a width up to 1,000 mm and a thickness range from 0.30 mm to 4 mm. It is suitable for low carbon, HLE, galvanized, tin-coated, and annealed/hardened steels, as well as aluminum. With a high working speed of up to 100 meters per minute, and recoiling capacity up to 5 tons (Ø 1200–1400 mm), this line ensures efficient, high-output processing for demanding industrial applications.

We welcome inquiries from global partners and look forward to providing tailored slitting line solutions that combine precision engineering, CE compliance, and long-term reliability.

Overflow

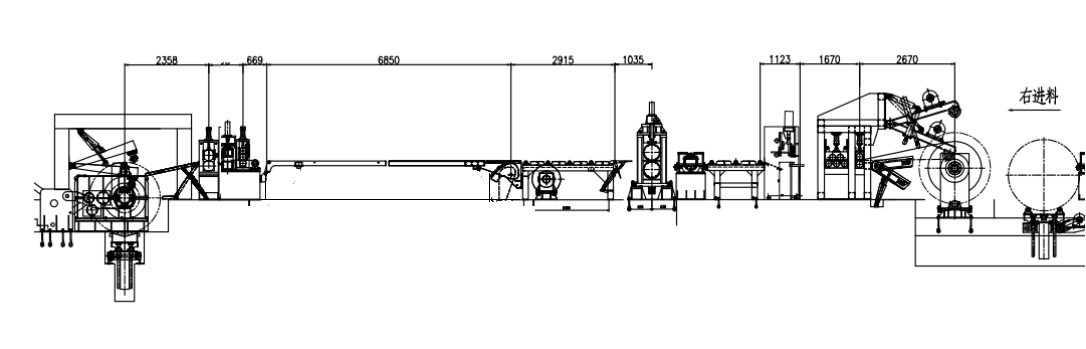

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car

III.  Composed device

No	Name	Quantity
1	Entry coil car	1 unit
2	Hydraulic Decoiler	1 unit
3	Hydraulic Press and pinch device	1 unit
4	Hydraulic cutter	1 unit
5	Looper 1	1 unit
6	Side guide device	1 unit
7	Slitter	1 unit
8	Scrap winder	1 unit
9	Looper 2	1 unit
10	Tension stand	1 unit
11	Recoielr	1 unit
12	Exit coil car	1 unit
13	Hydraulic system	1 set
14	Electrical system	1 set



item	Description

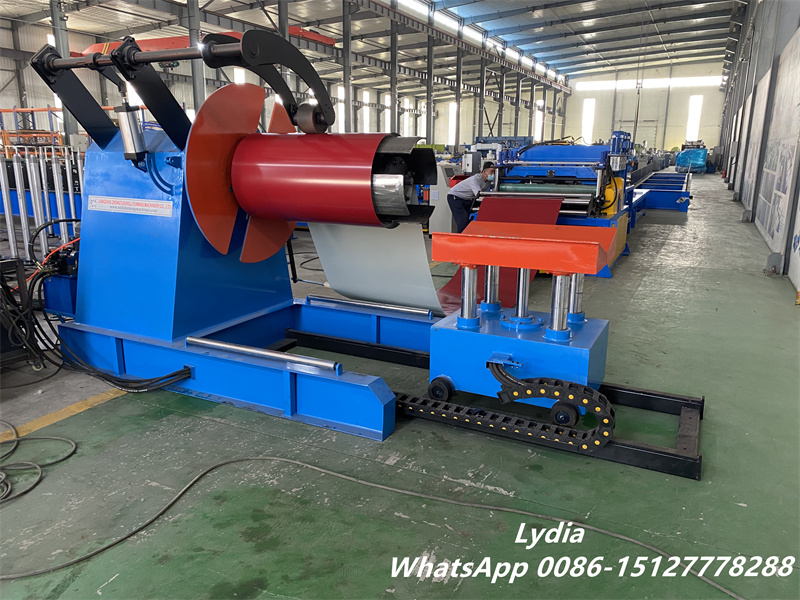

Function	Supports coil and performs uncoiling
Core Expansion Method	Hydraulic cylinder expands to fit inner diameter 508–610 mm
Structure	Steel plate and profiled bar welded
Driving Type	Motor-driven, supports forward/reverse & tension control
Loading Capacity	≤ 5 Tons
Max Coil Width	1250 mm
Feeding Speed	0–20 m/min (adjustable)
Driving Motor Power	7.5 kW
Hydraulic Motor Power	4.0 kW
Brake System	Equipped with pneumatic brake
