ZTRFM TRD-91.5 Roofing Deck Rolling Machine Resistant substrate in composite decking.
GAUGE: 18, 20, 22, 24
TRD-91.5 Roofing Deck Roll Forming Machine Product information
Product manufactured from ZTRFM (galvanized steel), ZTRFM Alum (Zn-Al galvanized steel) or ZTRFM steel (galvanized and painted steel). The geometry of ZTRFM TRD 91.5 complies with the dimensions established by the Steel Deck Institute (SDI) for the profile called “Wide Rib” or Type B, and the ANSI / SDIRD1.0 Standard. It can be used as a composite cover or facade

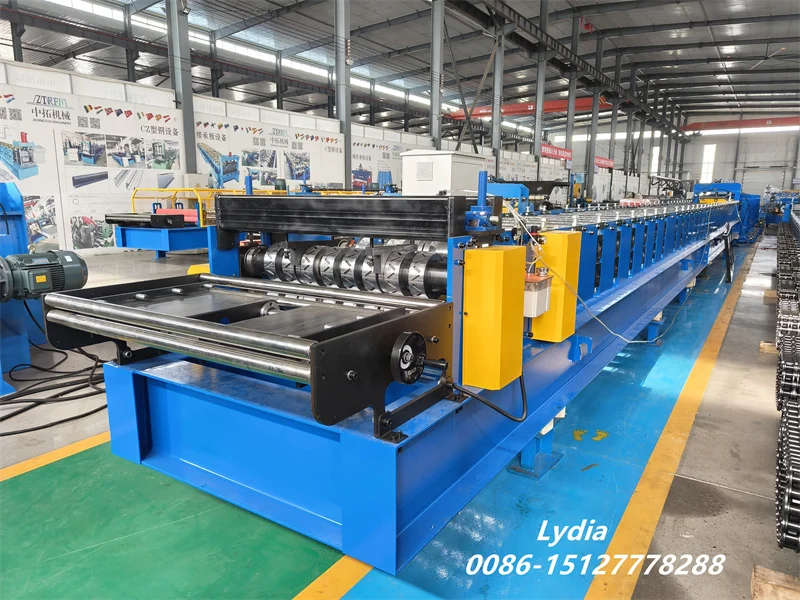

Photos of the TRD 91.5 Sheet Machine
1. Upgraded manual blade at inlet—strong, durable, and easy to operate.
2. Servo tracking cutting with automatic oiling—smooth, efficient, low-maintenance.
3. Extendable servo bracket—solves short panel issues during discharge.
4. Hydraulic decoiler with trolley—handles small or partial coils with ease.
5. Auto oil or emulsion spray—prevents zinc peeling and roller sticking.

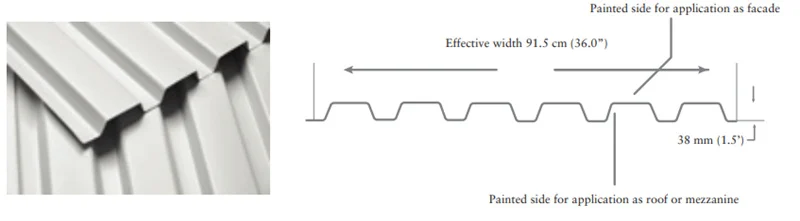

Profile of floor deck:
Deck 2”
Deck 3”
Deck 1.5”
Deck 840
Trd-91.5
