High-Precision Coil Embossing Machine for Decorative and Structural Metal Applications

As a trusted coil embossing machine manufacturer, we specialize in designing and producing high-quality metal embossing machines tailored for the sheet metal, construction, and manufacturing industries. With our advanced equipment, customers gain both decorative appeal and improved material performance.

Coil Embossing Machine Specifications

• Coil Width: Variable
• Forming Speed: 60–70 ft/min
• Material Thickness: 0.19–0.40 in (0.26–0.6 mm standard, up to 4 mm custom)
• Machine Weight: Depends on coil size
• Machine Footprint: 30 ft × 15 ft
• Main Power: 480 V, Three Phase, 60 Hz
• Motor: 25 HP
• Cutting Type: 1000 ft
• Control System: Delta
• Safety Features: Safety cover + Emergency stop
• FOB: Tianjin, China

Advantages of Our Metal Embossing System

• High Precision: CNC-engraved embossing rollers ensure exact pattern depth (≤0.1 mm tolerance).
• Material Efficiency: Lighter gauges achieve the same strength as heavier unembossed sheets.
• Flexibility: Compatible with aluminum, stainless steel, galvanized steel, and copper coils.
• Durability: Forged solid rolls and robust frame construction ensure long service life.
• Customization: Embossing patterns and line configuration are designed to meet customer-specific requirements.

Detailed Machine Components

1. Decoiler (Uncoiler)

• Rack structure: Heavy-duty steel plate design
• Uncoiling type: Cantilever brake uncoiling
• Braking system: Pneumatic brake
• Max load capacity: ≤5T
• Inner coil diameter: φ490–520 mm (paper tube core)
• Max coil size: ≤1000 × 1300 mm
• Feeding system: Hydraulic trolley
• Quantity: 1 set

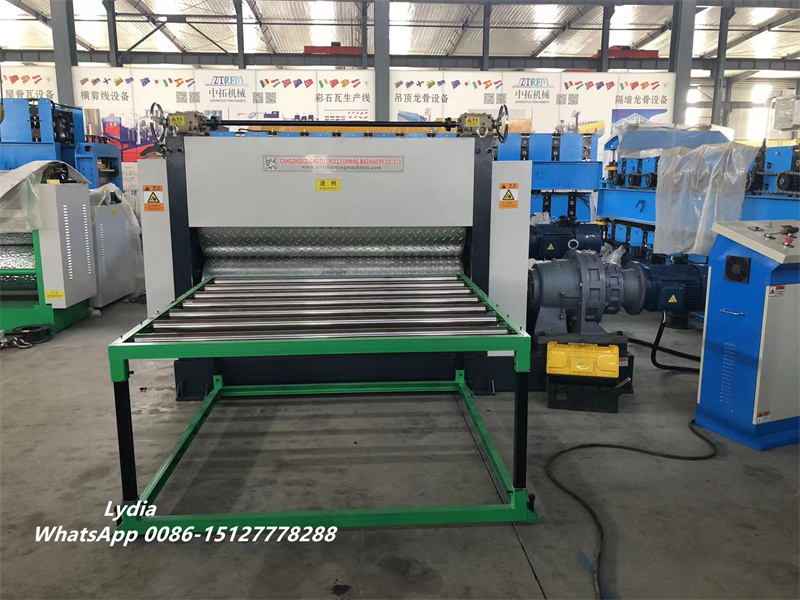

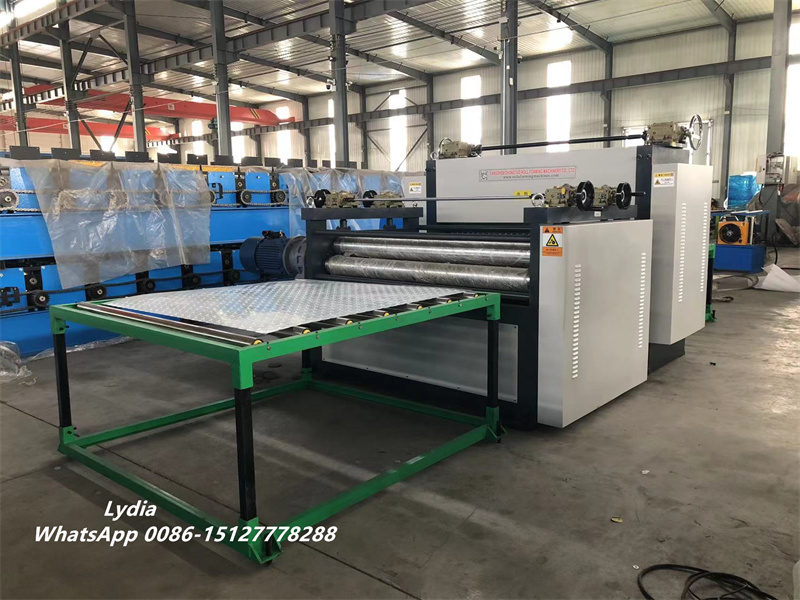

2. Embossing Machine

• Machine type: Vertical two-roll double-sided metal embossing machine
• Material: Aluminum coil, thickness 0.26–0.6 mm (standard)
• Embossing depth: Adjustable 0.1–0.3 mm
• Line speed: 5–40 m/min (variable)
• Embossing roll size: Ø410 × 1300 mm (finished width ≤1250 mm)
• Roll material: Forged steel, integral solid structure
• Heat treatment: Entire forging + intermediate frequency quenching
• Hardness: ≤HRC52
• Pattern: CNC engraved according to drawing (customizable, e.g. laurel leaf)
• Frame structure: Steel plate combination
• Transmission: Frequency conversion speed control

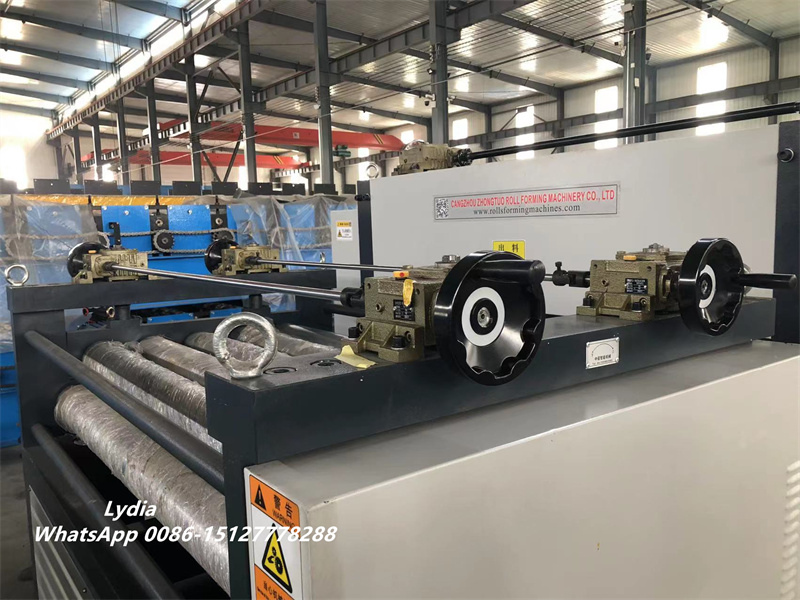

• Pressure adjustment: Reducer + electric regulation
• Center height: 850 mm (floor to roll center)

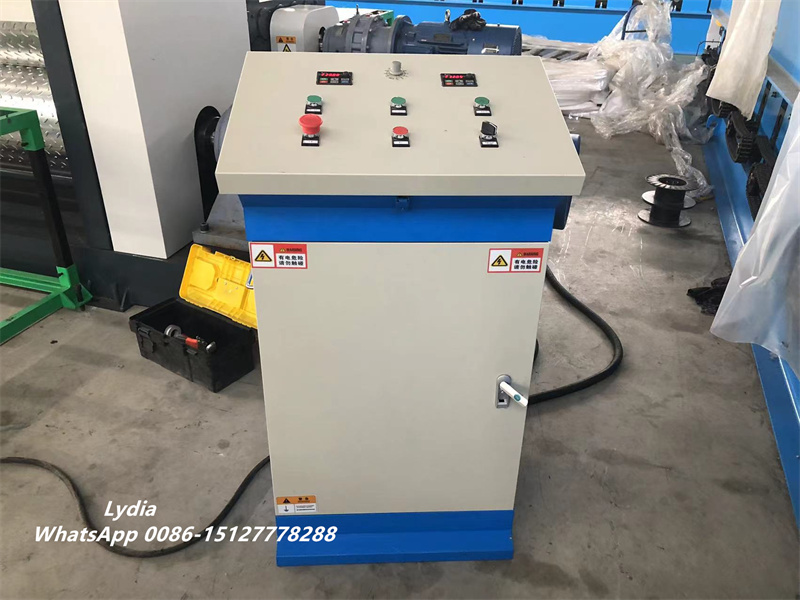

• Electrical control: Independent cabinet with Delta inverter
• Roll gap: Adjustable
• Embossing rolls: Detachable and replaceable

3. Recoiler

• Rack structure: Steel plate design
• Recoiling type: Cantilever brake recoiling
• Braking system: Pneumatic brake
• Max load capacity: ≤5T
• Inner coil diameter: φ490–520 mm (paper tube core)
• Max coil size: ≤1000 × 1300 mm
• Recoiling power: 22 kW
• Feeding system: Hydraulic trolley
• Quantity: 1 set

How Does the Coil Embossing Process Work?

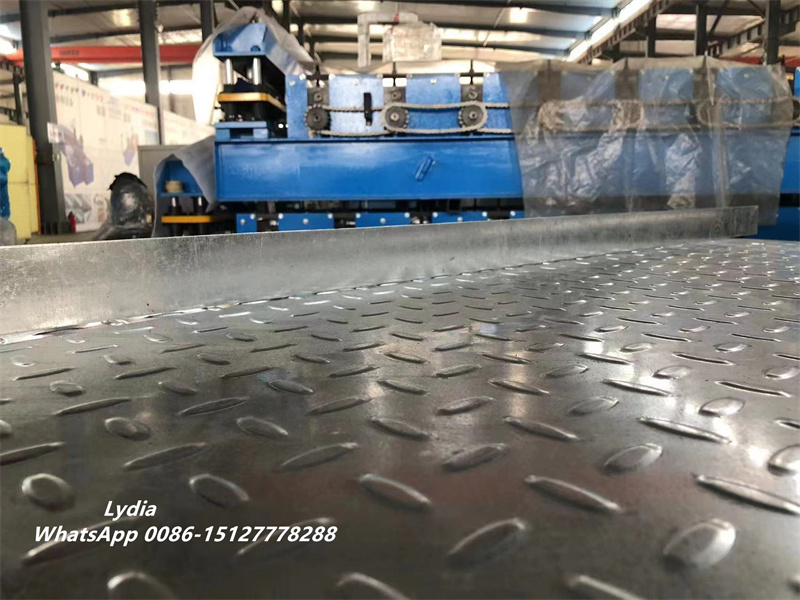

First, the raw metal coil is placed on the decoiler, which ensures stable material feeding. Then, as the material passes through the embossing rollers, patterns are imprinted with high precision. The rolls, made of forged steel, guarantee durability and consistent quality. After embossing, the strip is rewound by the recoiler, neatly forming the finished coil for transport or further processing.

Unlike coating-based methods, our coil embossing machine uses deep deformation technology, which not only creates decorative textures but also enhances mechanical properties. Consequently, the material gains higher stiffness, fatigue resistance, and improved strength-to-weight ratio.

Our Coil Embossing Machine?

Above all, we deliver turnkey embossing systems that combine structural reinforcement with decorative metal patterns. Moreover, our solutions are designed for easy operation, high production speeds, and low maintenance. Each machine is fully assembled, tested, and shipped with a 1-year warranty for parts and labor.

In conclusion, our coil embossing machines provide both aesthetic appeal and functional improvement for metal sheets and coils. With customizable patterns, robust construction, and precision engineering, they are the ideal solution for industries that demand durability, efficiency, and design flexibility.

👉 Contact us today to request a customized quotation for your metal embossing machine line.
