Full Automatic Steel Supermarket Shelves Storage Rack Upright Pillar Roll Forming Machine
Improve Warehouse Efficiency from the Core Structure
As global logistics and labor costs continue to rise, warehouse systems are under increasing pressure to deliver higher storage density, stronger load capacity, and lower long-term operating costs.

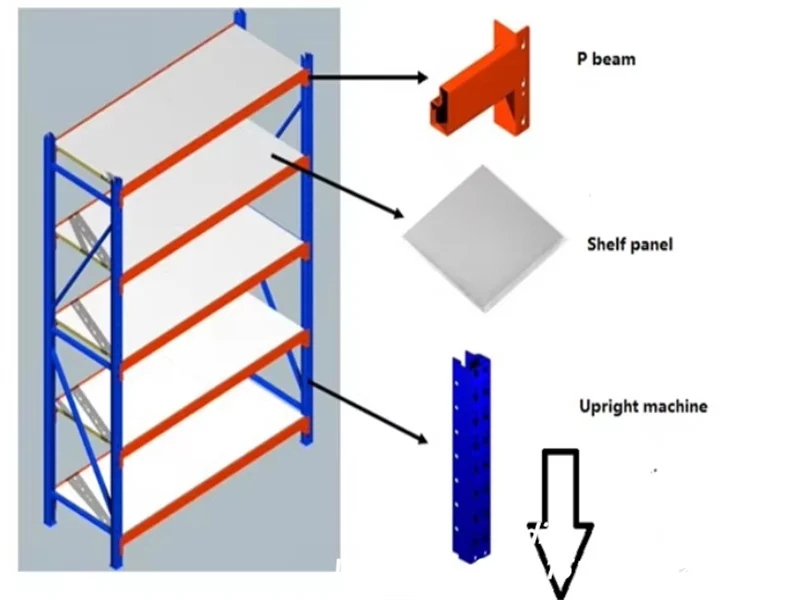

In any racking system, the upright pillar plays a decisive role—it is the backbone that determines stability, safety, and service life.
upright pillar roll forming machine production line
Our Full Automatic Steel Supermarket Shelves Storage Rack Upright Pillar Roll Forming Machine is engineered to produce high-precision, heavy-duty rack uprights for supermarkets, logistics centers, and industrial warehouses. By integrating automatic punching, roll forming, and cutting into one production line, this machine helps manufacturers achieve consistent quality, high output, and reduced production costs.
Why Choose ZHONGTUO Upright Pillar Roll Forming Machine?
- Fully automatic production with PLC control, reducing labor dependency
- High punching and cutting accuracy, ensuring perfect alignment during rack installation
- Gearbox transmission system for stable operation and long service life
- Famous-brand punching unit (Yangli) for reliable and clean hole forming
- Flexible customization for material thickness, profile design, and production speed
This machine is an ideal solution for manufacturers supplying supermarket shelving systems, pallet racking, and industrial storage racks.

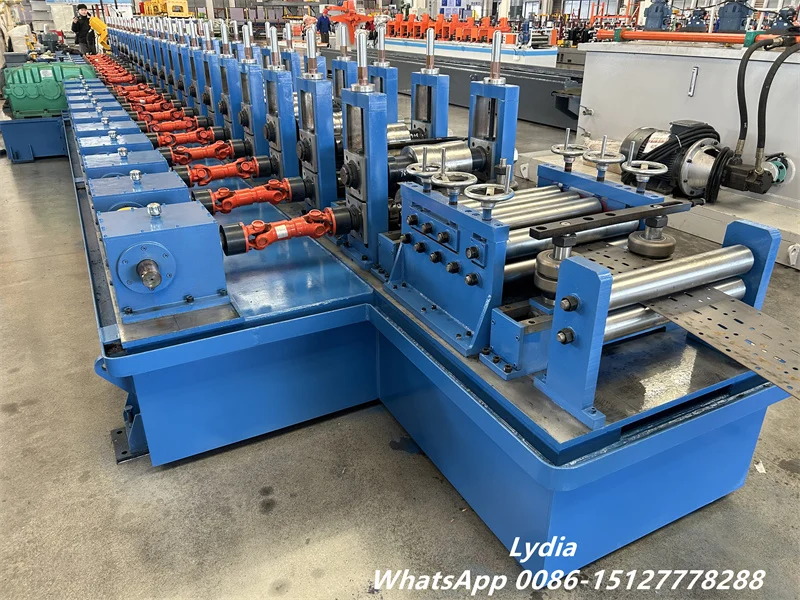

automatic upright pillar roll former with gearbox drive
Technical Specifications Overview
| Item | Specification |
|---|---|
| Machine Type | Roll Forming Machine |
| Application | Storage Rack Upright Pillar |
| Raw Material | Carbon Steel / GI / PPGI |
| Material Thickness | 1.5 – 2.7 mm (customizable) |
| Feeding Width | As per profile design |
| Roller Stations | 16 stations (customizable) |
| Shaft Diameter | 70 mm solid shaft |
| Roller Material | Cr12, quenched heat treatment |
| Drive System | Gearbox transmission |
| Punching System | Inline punching, Yangli brand |
| Cutting Type | Automatic cutting, Cr12MoV blade |
| Forming Speed | Up to 15 m/min (depends on profile) |
| Control System | PLC, multi-language support |
| Motor Power | 2 × 11 kW |
| Hydraulic Power | 5.5 kW |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
| Machine Weight | Approx. 8 tons |
| Warranty | 1 year |
| Test Report & Inspection Video | Provided |
Machine Configuration Details
1. Decoiling System
- Hydraulic automatic decoiler for stable feeding
- Manual decoiler supplied free of charge for backup use
2. Roll Forming Section
- Heavy welded steel frame for vibration-free operation
- Precision-machined rollers ensure consistent profile shape
- Suitable for long-term continuous production

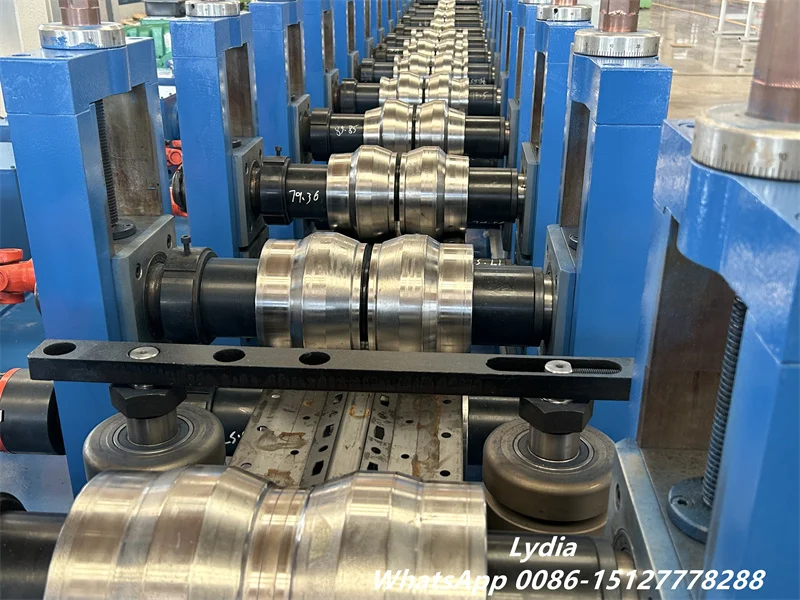

storage rack upright punching and roll forming machine

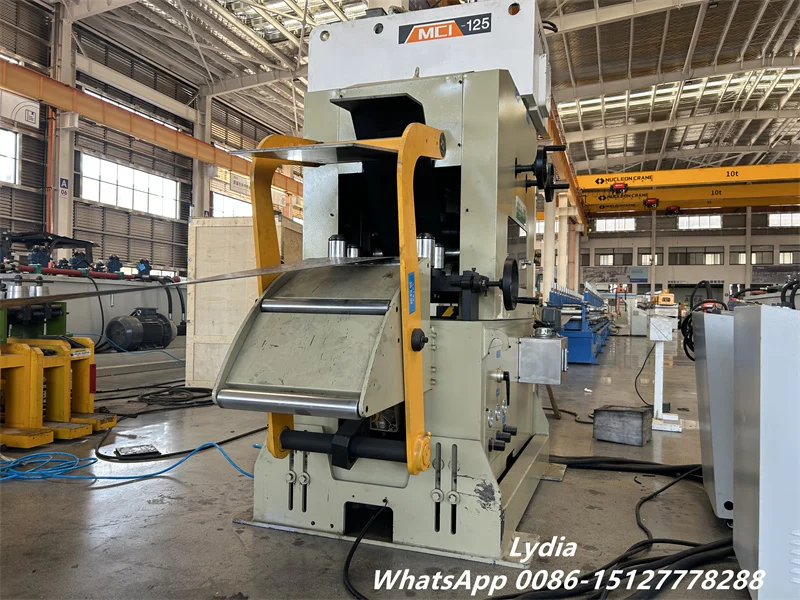

3. Punching & Cutting System
- Inline punching ensures hole accuracy without secondary processing
- Automatic cutting system with smooth edges and no deformation
supermarket shelves upright manufacturing machine

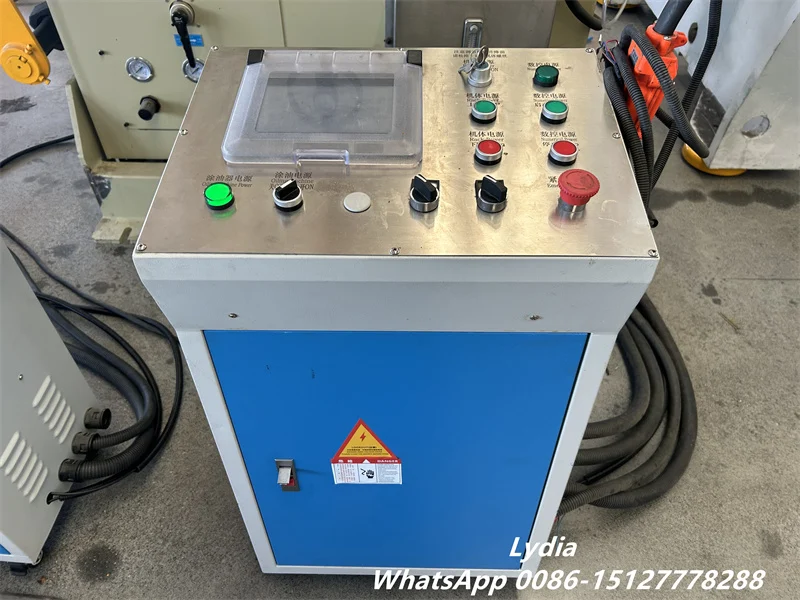

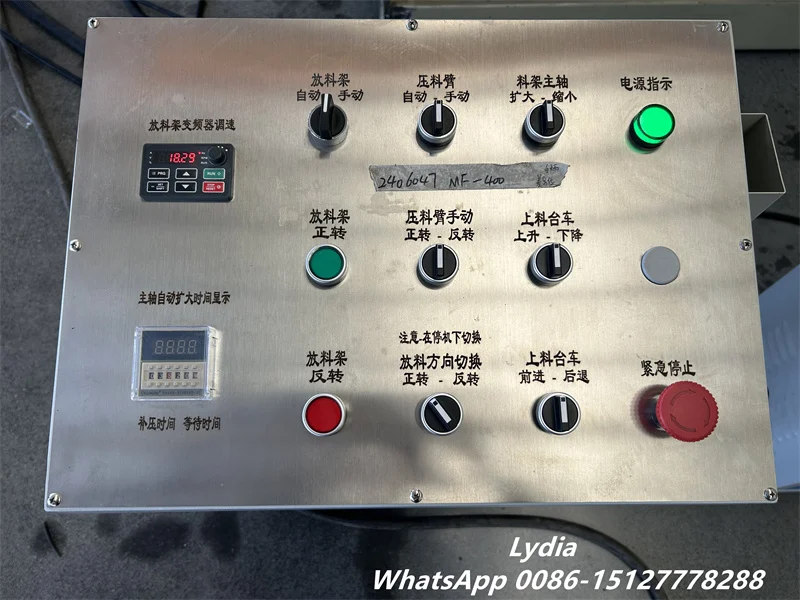

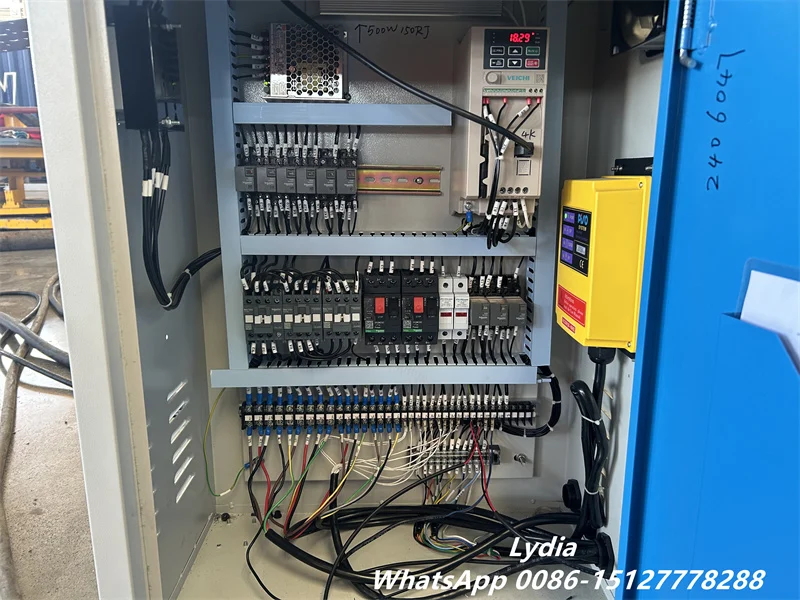

4. Intelligent Control System
- PLC-controlled fully automatic operation
- Easy parameter setting for length, quantity, and batch production
- Supports multiple languages for overseas operators

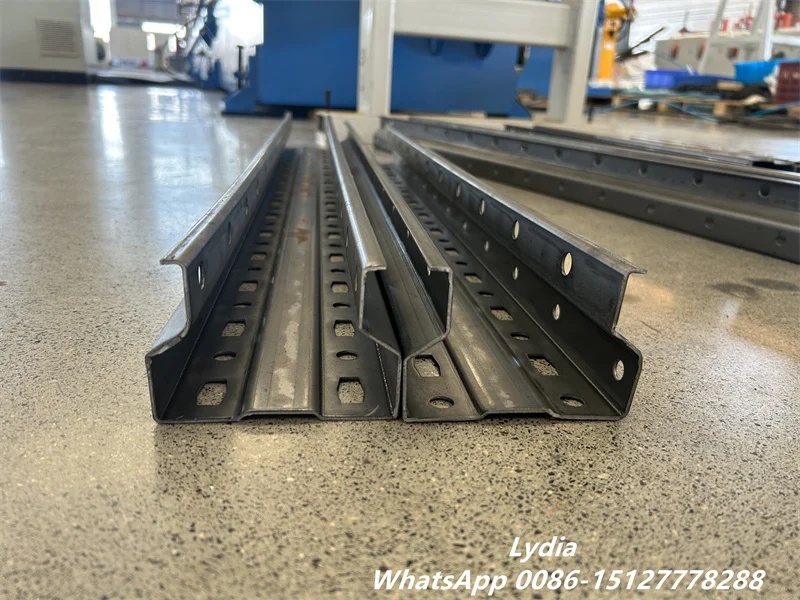

rack upright profile roll forming machine finished product
Application Scenarios
Warehousing & Logistics Centers
Upright pillars produced by this machine are widely used in pallet racking systems for e-commerce fulfillment centers, third-party logistics warehouses, and retail distribution hubs.
They support forklift operations such as counterbalance forklifts and reach trucks, enabling high-density vertical storage and improved space utilization.
upright pillar roll forming machine production line
Manufacturing & Industrial Storage
In factories and production workshops, rack uprights are used to store raw materials, semi-finished products, and finished goods. Adjustable hole spacing (50 mm or 75 mm pitch) allows flexible shelf height configuration, accommodating different pallet sizes and load requirements while maintaining structural safety.
Key Advantages for Rack Manufacturers
- High load-bearing capacity & excellent structural stability
- Flexible design for different rack standards and markets
- Fast installation and reduced installation errors
- Durable performance under frequent forklift impact
- Suitable for supermarket, logistics, industrial, and retail shelving systems
storage rack upright punching and roll forming machine
A Reliable Partner for Storage Rack Production
As a professional roll forming machine manufacturer based in Hebei, China, ZTRFM provides complete solutions from profile design to machine customization. Each machine is tested before delivery, with inspection videos and test reports supplied for customer verification.
If you are planning to expand or upgrade your storage rack production line, this Full Automatic Steel Supermarket Shelves Storage Rack Upright Pillar Roll Forming Machine is a proven and cost-effective choice.
📩 Contact us today to get a customized solution, layout drawing, or quotation.
