Cable Ladder & Cable Tray Roll Forming Machine
High-Efficiency Steel Side Rail Forming Machine for Modern Cable Management Systems
As global demand for structured cable management systems continues to grow, steel cable trays and cable ladders have become essential components in industrial, commercial, and infrastructure projects. To meet the requirements of precision, consistency, and mass production, a Cable Ladder Side Rail Roll Forming Machine offers a reliable and efficient manufacturing solution.

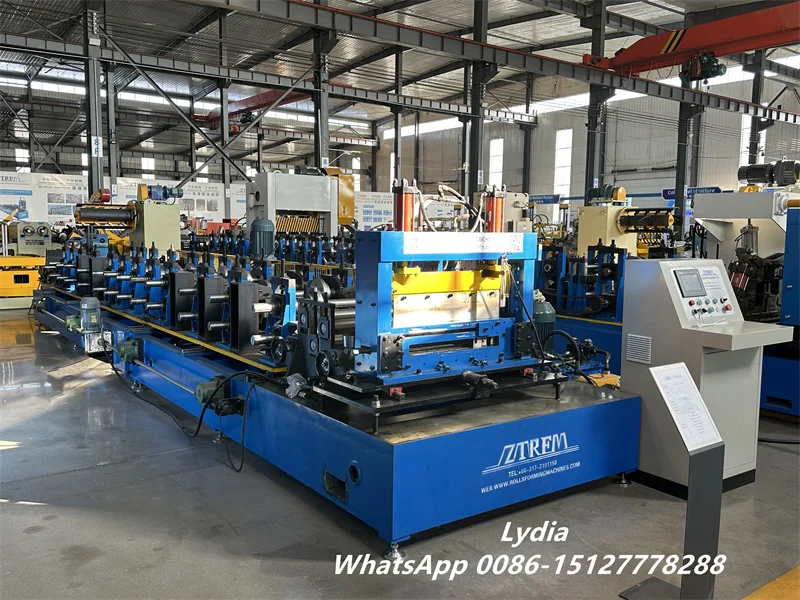

Cable ladder side rail roll forming machine for steel cable tray production
Our cable tray roll forming machine is specifically designed for producing steel cable ladder side rails and tray profiles with stable performance, clean cutting, and high dimensional accuracy.
To meet the increasing demand for efficient cable management systems, the Cable Ladder Side Rail Roll Forming Machine provides a reliable and automated manufacturing solution.
By using precision roll forming technology, the machine produces consistent steel profiles with accurate dimensions and smooth surfaces.
As a result, manufacturers can significantly improve production efficiency while maintaining stable product quality.

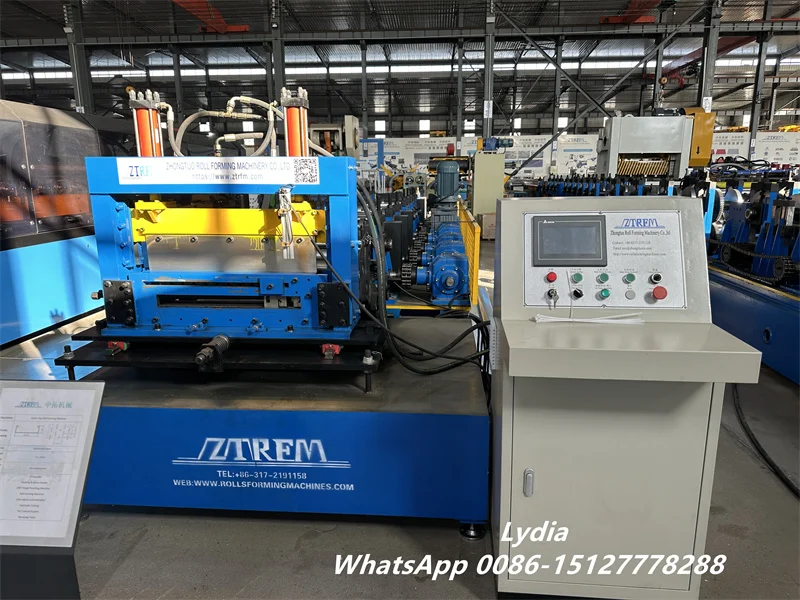

PLC control system of automatic cable ladder roll forming machine
Key Technical Features of the Machine
| Item | Specification |
|---|---|
| Material | GI / Cold Rolled Steel |
| Material Thickness | 1–2 mm |
| Roller Stations | 18 stands |
| Shaft Diameter | 75 mm |
| Drive System | Chain drive |
| Cutting Type | Pre-cutting |
| Control System | PLC (Mitsubishi / Siemens / Yaskawa) |
| Voltage | 380V / 50Hz (customizable) |
| Machine Size | Approx. 9500 × 1500 × 1600 mm |

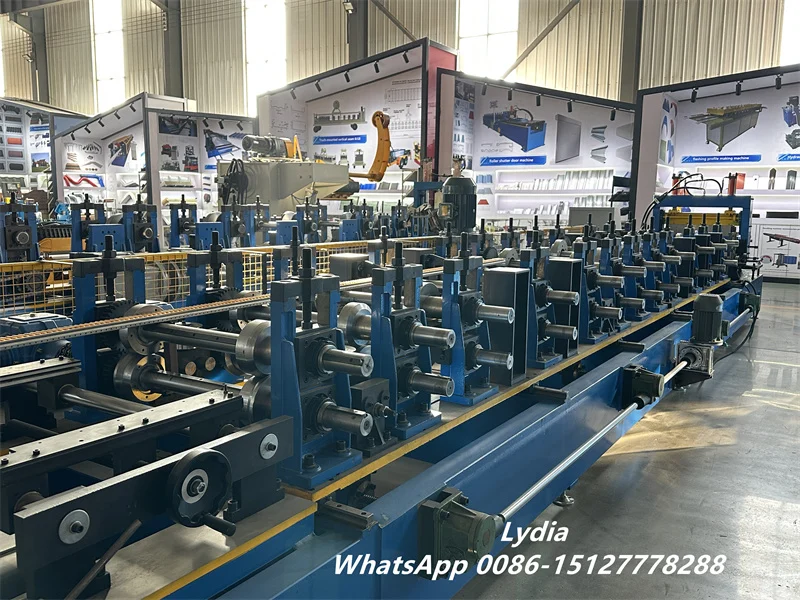

Precision roller stations forming steel cable ladder side profiles
1. Stable Roll Forming Structure
- 18 precision-machined roller stations ensure smooth forming and consistent profile shape
- 75 mm solid shafts provide strong load capacity and long service life
- Chain-driven transmission ensures reliable torque output and easy maintenance
2. High-Quality Cutting System
- Pre-cutting design allows accurate length control before forming
- Cutting blades made of Cr12 tool steel, heat-treated for durability and clean edges
- Suitable for steel thickness from 1.0 to 2.0 mm
3. Intelligent Control System
- PLC control available with Mitsubishi, Siemens, or Yaskawa
- Automatic length setting, counting, and fault monitoring
- User-friendly interface for fast parameter adjustment
4. Material Compatibility
- Designed for GI steel and cold-rolled steel
- Uniform feeding and forming reduce material waste and deformation

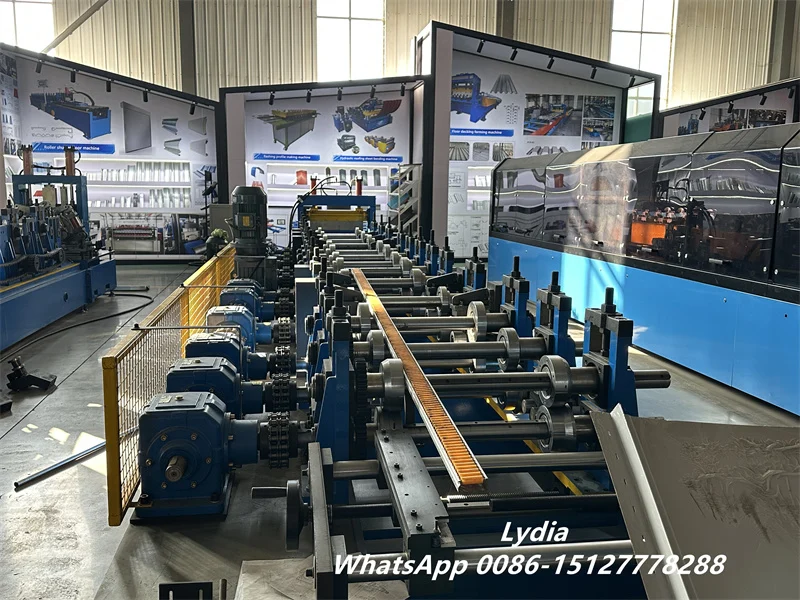

Precision roller stations forming steel cable ladder side profiles
Steel Cable Tray vs. PVC Cable Tray – Application Perspective

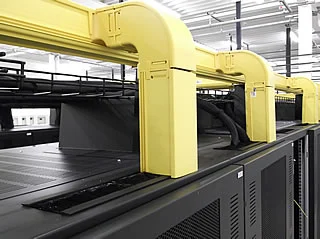

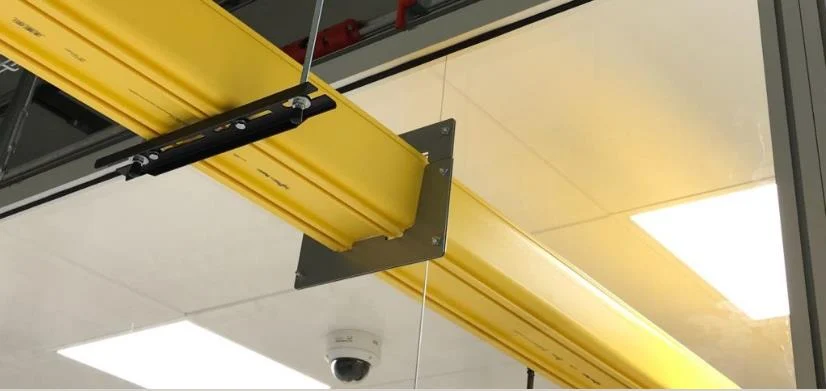

While steel cable trays and ladders are widely used in heavy-duty and structural applications, PVC cable trays are preferred in environments where electrical insulation, corrosion resistance, and lightweight installation are required.
| Item | Steel Cable Tray / Cable Ladder | PVC Cable Tray |
|---|---|---|
| Material | Galvanized steel / cold rolled steel | Rigid PVC |
| Electrical Conductivity | Conductive, earthing required | Non-conductive, no earthing required |
| Load Capacity | High load capacity, suitable for long spans | Medium load, mainly for light-duty systems |
| Corrosion Resistance | Depends on surface treatment (GI, coating) | Excellent resistance to chemicals and moisture |
| Fire Performance | Non-combustible metal structure | Flame-retardant, self-extinguishing |
| Installation | Strong but heavier, mechanical fixing required | Lightweight, easy to cut and install |
| Typical Applications | Power plants, heavy industry, infrastructure | Commercial buildings, offices, service ducts |
| Manufacturing Method | Roll forming machine production | Extrusion molding |
| Outdoor Use | Suitable with proper surface protection | UV-protected, suitable for outdoor use |
Therefore, while PVC cable trays are ideal for lightweight and corrosion-sensitive environments, steel cable trays and ladders remain the preferred choice for heavy-duty, structural, and long-span cable support systems.

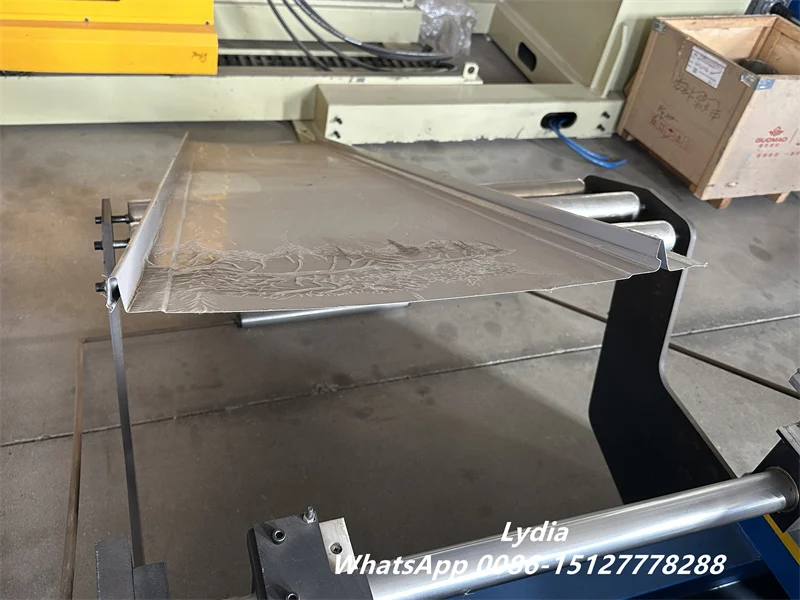

Finished steel cable ladder side rail with accurate dimensions
Application Areas of Steel Cable Ladders
- Power plants and substations
- Petrochemical and industrial facilities
- Manufacturing workshops
- Large commercial complexes
- Outdoor cable routing systems
Steel cable ladders provide excellent mechanical strength and long-term reliability, especially in demanding environments.
Why Choose Our Cable Ladder Roll Forming Machine?
- ✔ Automatic and stable production
- ✔ High forming accuracy and repeatability
- ✔ Durable components and international-brand PLC
- ✔ Easy operation and low maintenance cost
- ✔ Customizable profile design based on drawings
With years of experience in roll forming machine manufacturing, we help customers build efficient production lines tailored to their market requirements.
A Cable Ladder Side Rail Roll Forming Machine is a key piece of equipment for producing high-quality steel cable trays and ladders at scale. By combining precise roll forming technology with intelligent control systems, manufacturers can achieve consistent output, reduced labor cost, and long-term production stability.
If you are planning to expand or upgrade your cable tray production line, this machine provides a professional and cost-effective Machine.
