825mm Effect Width Metal Corrugated Roof Sheet Tile Roll Forming Machine
Part 1: Decoiler
Work type: Passive type, Expand and shrink manually
Structure: Steel channel welded for the basic frame
Usage: To support the coil and facilitate uncoiling, the forklift or overhead crane carries the coil on dthe ecoiler
Loading capacity: 5 tons (11,000 pounds)
Inner diameter: 450-550mm (manual adjustment)
Part 2: Guide feeding device with leveling and cutting
Advantage:
- With several support rollers, to feed the material more smoothly
- Equipped with two pinch plates to feed the material, prevent the material surface from being damaged, and feed the material more easily and quickly
- With handwheels to adjust the feeding size, more convenient.
- Upper and lower layers with a manual cutter to cut feed material more easily.
- Upper layer and lower layer with two gears on the outside, so that the upper axis of each layer runs from passive to active, with more power and faster.
Item | Specification |
Product Name | 825-63-18 Arc Roofing Sheet Roll Forming Machine |
Raw Material Input Width | 1000 mm |
Finished Panel Material | Standard Color-Coated Steel Sheet |
Sheet Thickness Range | 0.3 – 0.8 mm |
Forming Speed | Approx. 10 m/min |

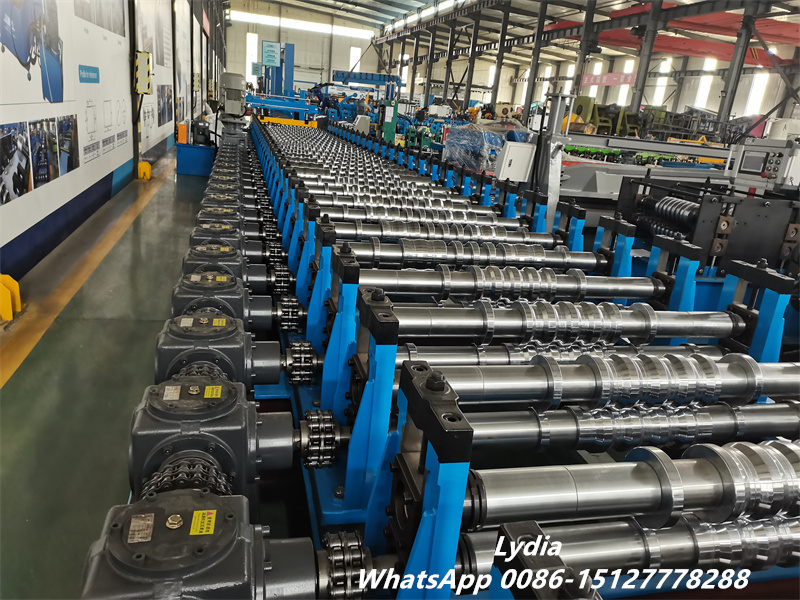

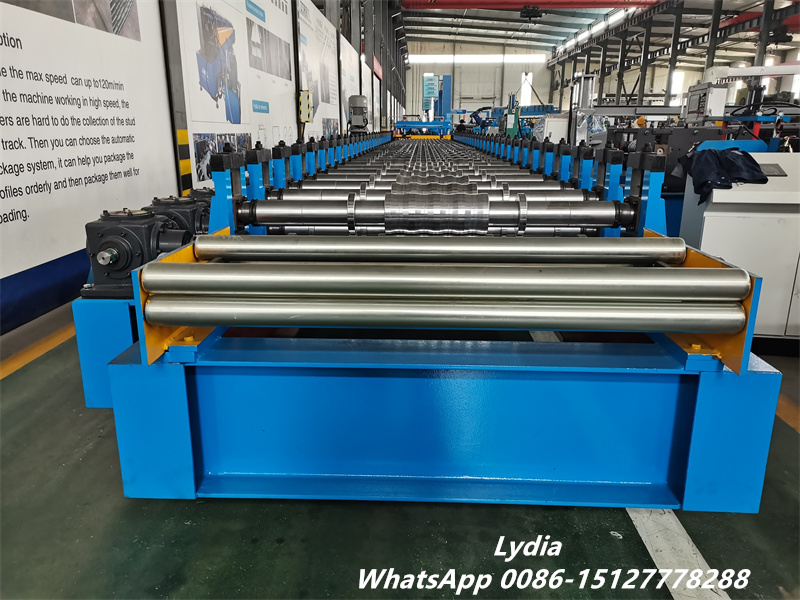

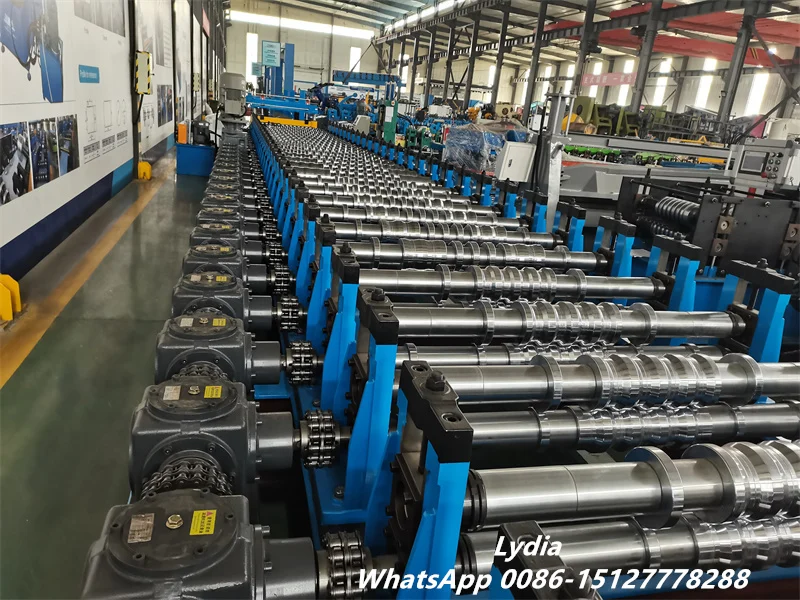

Number of Forming Stations | 18 Stations |
Shaft Diameter | 70 mm |
Middle Plate Thickness | 14 mm |
Chain Size | 1 inch (25.4 mm) |
Roller Treatment | Precision-machined rollers with chrome-plated surface |
Main Motor Power | 5.5 kW with planetary gear reducer |
Machine Frame | 350# H-Beam Welded Frame |
Cutting System | Post-cut with guide pillar cutting structure |
Control System | PLC with length and quantity control |
PLC & Inverter Brand | Taiwan DELTA (PLC and inverter) |
Electrical Components | CHINT or DELIXI |
Manual Uncoiler | 1 set, standard passive type |
Output Support Tables | 2 sets of 3-meter-long manual receiving tables |

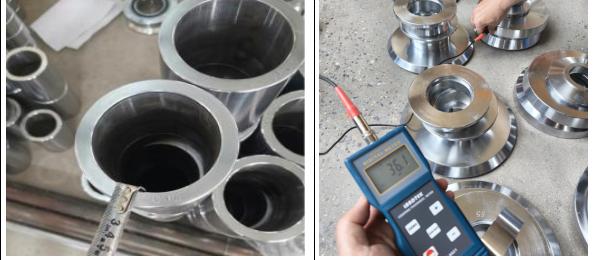

Advantages of the spacers and rollers
For our rollers, spacers, and shafts, we all mark numbers on them, which is very convenient for you to maintain the machine in the future. Thereisball bearings inside the rollers, to make all the rollers run at the same speed when the machine is running. Because the rollers inside have ball bearings, our rollers are bigger than others, so the work speed is faster.
All rollers and spacers we do with a 0.03mm thickness chrome coating, to increase hardness and anti-rust. Some factories may use 0.01-0.02mm chrome coating.
