Adjustable Width 12-18″ PPGI SSR Standing Seam Clip-On Roofing Panel Roll Forming Machine
Standing seam roofing systems have long been a benchmark in architectural design, combining strength, beauty, and durability. The PPGI SSR Standing Seam Clip-On Roofing Panel Roll Forming Machine is designed to produce high-quality standing seam roofing panels, such as the SL175 and SL150, for a variety of commercial and residential applications. The machine’s adjustable width range of 12 to 18 inches provides excellent flexibility and adaptability to meet a variety of roofing needs.

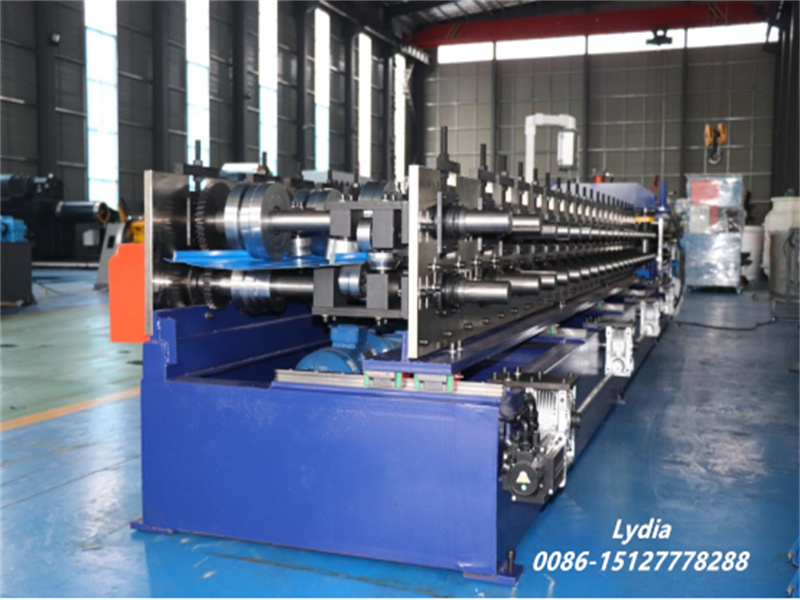

Standing Seam Clip Lock Snap Lock Roof Sheet Roll Forming Machine
| Specification | Details |
| Roll Forming Machine | |
| Rolling Speed | 10–12 meters/min (excluding cutting time) |
| Rolling Thickness | 0.3 mm – 0.8 mm |
| Raw Material | Color-painted coils, Aluminum, Zinc, Galvanized |
| Main Motor | 7.5 kW |
| Machine Dimensions | Approx. 1100 × 1600 × 1200 mm |
| Roller Stations | Approx. 16 stations |
| Roller Material | 45# forged steel, chrome-coated |
| Shaft Diameter | Φ76 mm |
| Transmission | By chain, 1.2 inch |
| Chain Material | 45# forged steel with frequency quenching, 12A |
| Cutting Material | Cr12Mov, quenched to HRC58–62° |
| Tolerance | ±1.5 mm per 10 m |
| Hydraulic Station | 4 kW |
This roll forming machine supports the production of Snap-On standing seam roofing panels, which are popular for their clean lines, hidden fasteners, and excellent wind pressure resistance. The snap-on design requires no special tools, and the panel ribs snap securely onto the hidden clips. This not only speeds up roofing construction but also ensures that the roof surface is flat and waterproof.

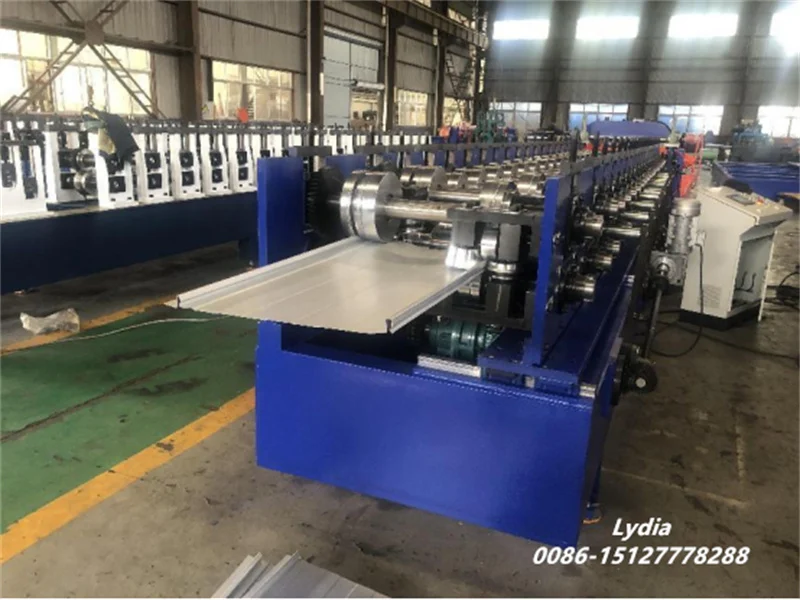

Standing Seam Clip Lock Snap Lock Roof Sheet Roll Forming Machine
The drawing profile

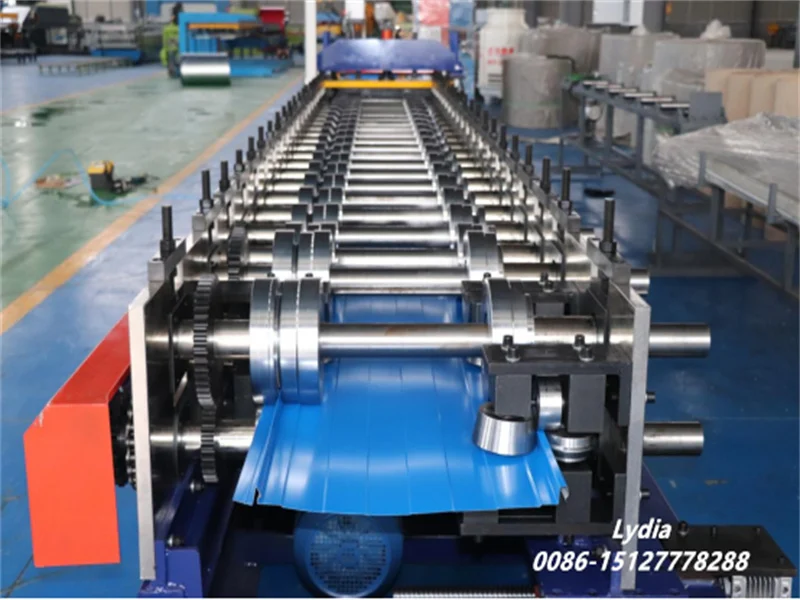

Standing Seam Clip Lock Snap Lock Roof Sheet Roll Forming Machine
The panels produced by this equipment, such as SL175 and SL150, are ideal for schools, offices, banks, shopping centers, hotels, and modern residential buildings. The SL175 has strong structural performance for decorative functions and complete roofing systems, while the SL150 has narrower, sharper profiles, exquisite appearance, and stronger resistance to thermal expansion and contraction.
Designed for processing PPGI (pre-painted galvanized iron) coils and other metal materials, this roll former is equipped with precision components, durable rollers, and user-friendly automation systems. It supports consistent panel width adjustment and maintains precise panel rib profiles to meet different design specifications.
Standing Seam Clip Lock Snap Lock Roof Sheet Roll Forming Machine
