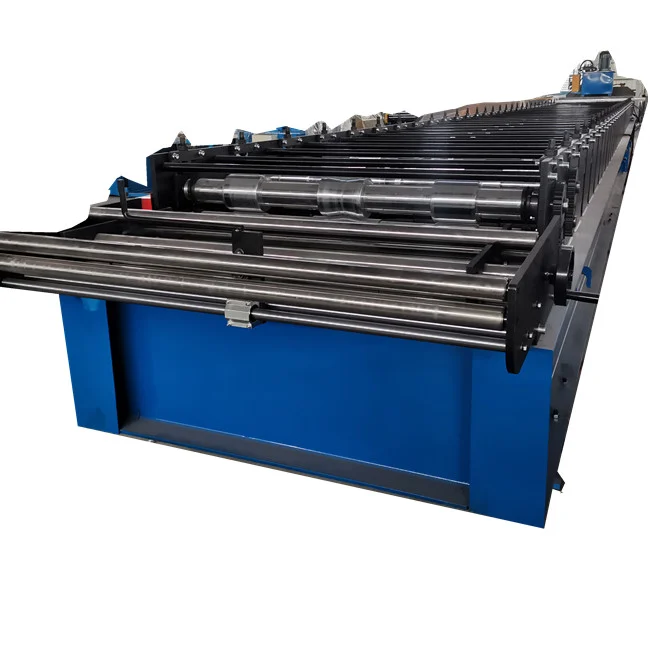

The V115 roll forming machine is engineered to produce metal roofing and wall cladding sheets efficiently and automatically. This versatile machine caters to both roofing and wall applications, offering flexibility in construction projects.
Design Of V115 Metal Roofing Sheet Roll Forming Machine

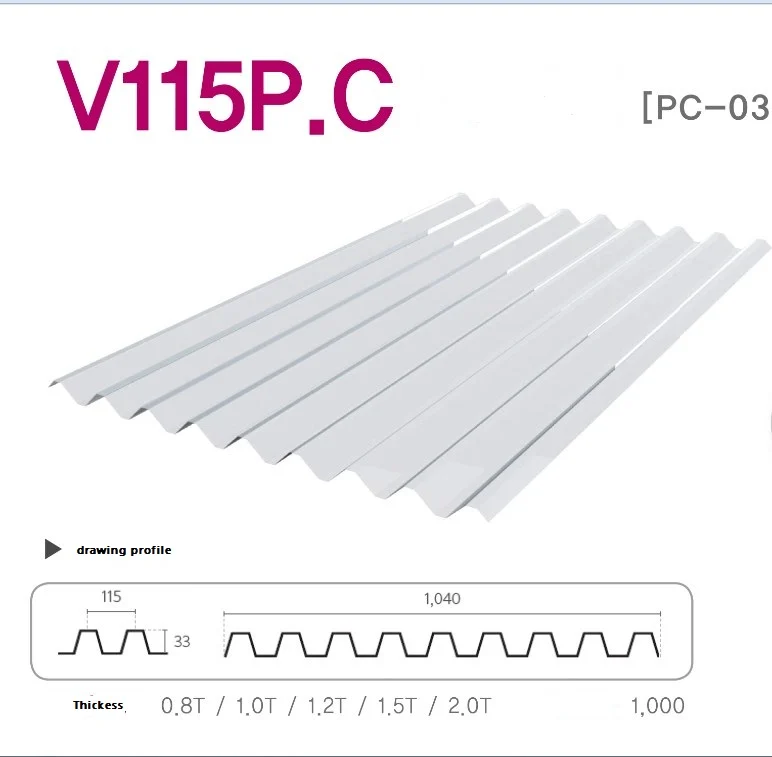

Profile Dimensions: Wave height of 33mm and wave distance of 115mm.
Material Compatibility: Designed for use with Pre-Painted Galvanized Iron (PPGI) and hot-dip galvanized steel.
Material Options:
– Standard PPGI: Suitable for general applications.
– Hot-Filmed 8-Layer PPGI: Enhanced durability for more demanding environments.

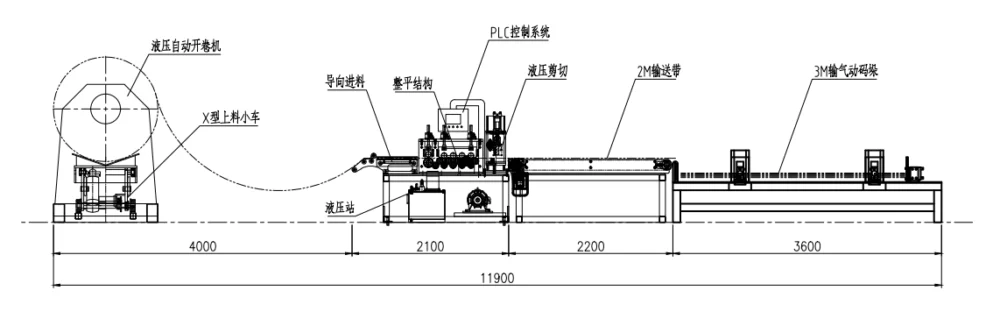

Operational Workflow of v115 Roof Sheet Machine
The V115 machine operates through a streamlined process:
- Uncoiling: Material is fed into the machine.
- Forming: Rollers shape the material into the desired profile.
- Cutting: Hydraulic shears cut the formed sheet to specified lengths.
- Output: Finished panels are ejected for further processing or installation.
Key Advantages of v115 Roofing Sheet Machine
– Integrated Hydraulic Station: Pre-installed for reduced setup time.
– User-Friendly PLC Control: Simplifies operation and monitoring.

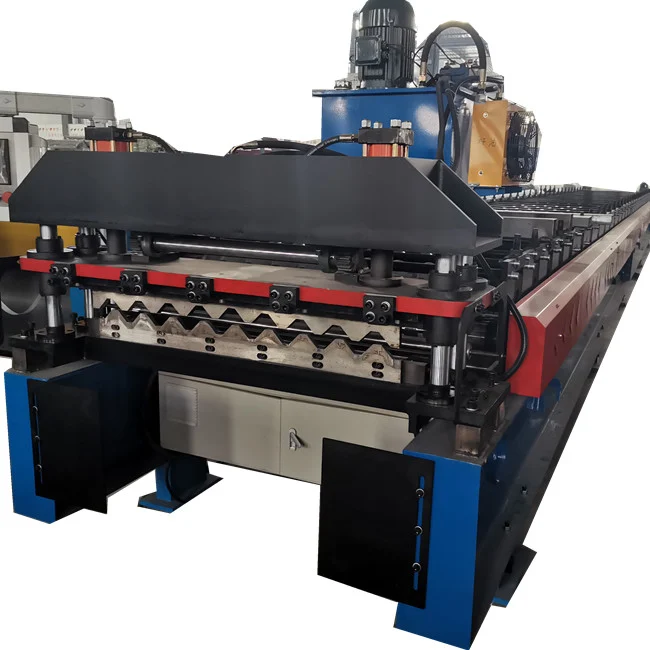

– Robust Cutter Holder: Ensures longevity and consistent performance.
– Dual Hydraulic Jacks: Provide powerful and precise shearing.
– Modular Roller System: Facilitates easy adjustments for different profiles.
– Manual Cutter: Allows for precise cutting at any point along the coil.
Material Handling Adjustments of v115 Machine
To accommodate varying material types:
– For Standard PPGI: The machine operates at higher speeds, optimizing production efficiency.
– For Hot-Filmed 8-Layer PPGI: Adjustments are made to handle the increased thickness and maintain surface integrity.
Adjustments are facilitated by side-mounted handrails, enabling operators to easily switch between material types.
V115 Roll Forming Machine Configuration Options
Option A: Economic Model
– Standard frame and drive system.
– Suitable for general production needs.
Option B: Enhanced Model
– Reinforced frame and gearbox-driven system.
– Offers higher speed and durability, ideal for intensive use.
The V115 machine is suitable for producing panels used in:
– Roofing: Ideal for both residential and commercial structures.
– Wall Cladding: Provides aesthetic and protective exterior finishes.
– Partitioning: Useful in creating internal divisions within buildings.
The V115 metal roofing and wall cladding sheet roll forming machine offers a blend of versatility, efficiency, and durability. Its design accommodates various material types and thicknesses, making it a valuable asset for manufacturers in the construction industry.
