TR50 Roof Decking Roll Forming Machine Zhongtuo Machines
The TR50 Roof Decking Roll Forming Machine by Zhongtuo Machines is designed for producing high-strength TR50 metal decks widely used in high-rise buildings, steel structures, and RCC floors. Featuring a 95mm solid shaft, 34 forming stations, 10T hydraulic decoiler, and dual 18.5 kW motors, this line ensures stable forming, precise profile accuracy, and long-term durability.
Floor deck rolling forming machine

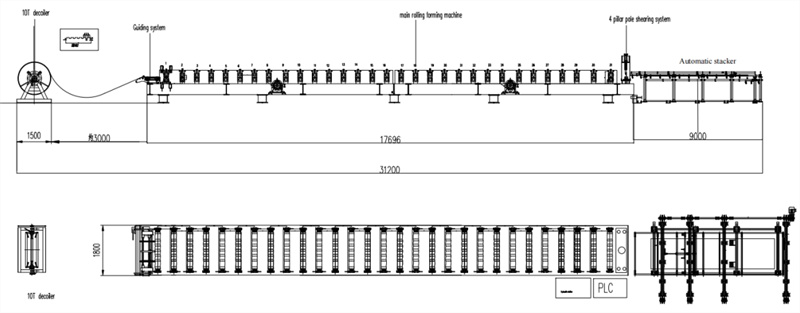

Workflow of TR50 Deck Roll Forming Machine
Decoiling → Feeding → Punching (optional) → Roll Forming → Hydraulic Cutting → Run-Out Table
Floor deck rolling forming machine

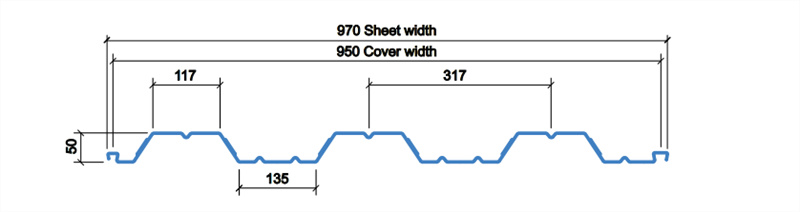

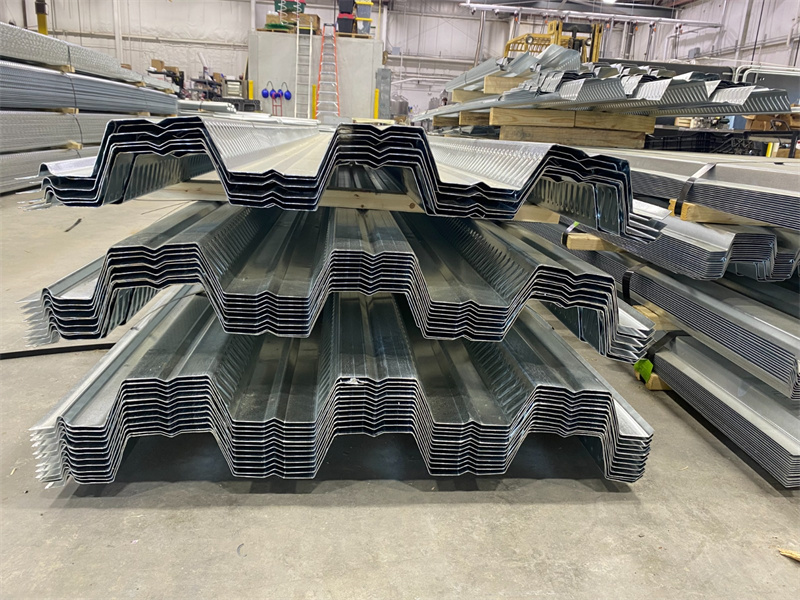

TR50 Roof Decking Features
-
Deck Type: TR50
-
Un-propped Spans: Up to 3.0 meters
-
Usage: Formwork for non-composite RCC floor and roof slabs
-
Optimized trough stiffeners: Designed to align with stud placement
-
Fast installation: Flexible side-lap ensures precise cover width control
-
High peak + high strength: Ideal for high-rise and steel structure buildings
Floor deck rolling forming machine

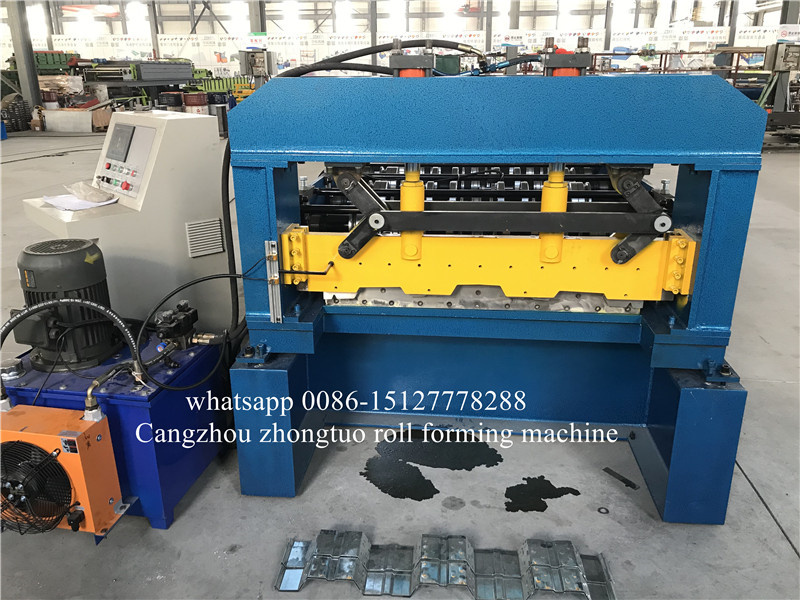

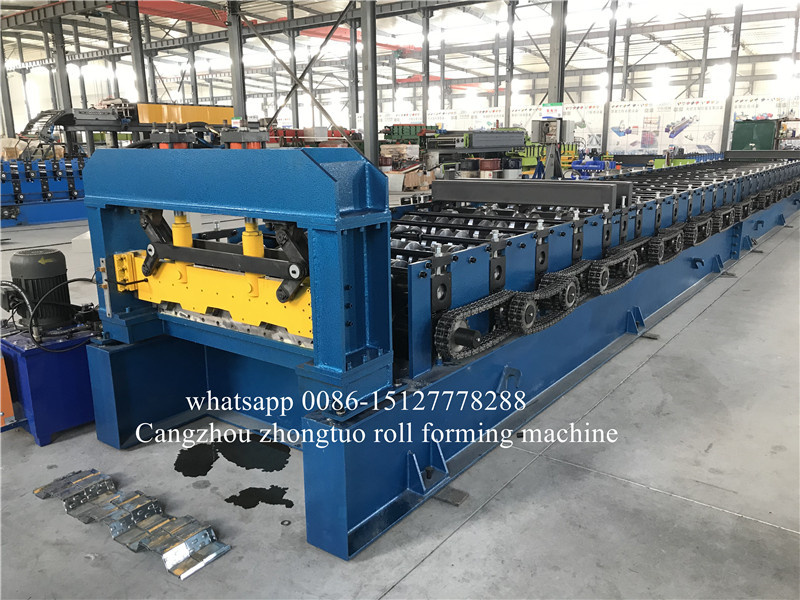

Machine Features of Steel Decking Floor Roll Forming Machine
- 95mm solid shafts for heavy-duty forming
- 34 stations for stable TR50 rib structure
- 10T hydraulic decoiler with loading car
- Cr12 hardened cutting blades
- 400H steel frame, vibration-free structure
- PLC control (Delta / Schneider)
- 8–15m/min adjustable speed
Metal deck roll forming machine
Technical Specifications of the Metal Deck Roll Forming Machine
| Item | Data |
|---|---|
| Material | GI/PPGI, 0.7–1.2mm, width 1220mm |
| Shaft Diameter | 95mm solid |
| Roller Stations | 34 rows |
| Rollers | 45# steel with hard chrome |
| Motors | 18.5kW × 2 |
| Hydraulic Power | 5.5kW |
| Decoiler | 10T hydraulic |
| Speed | 8–15m/min |
| Control | Delta PLC + Screen |
Steel Structure Floor Deck Roll Forming Machine
Applications of the Steel Structure Floor Deck Roll Forming Machine
- High-rise floors
- Steel structure projects
- RCC roof slabs
- Industrial buildings
- Warehouse and commercial floors
Why choose Zhongtuo Floor deck rolling forming machine?
- 15+ years of manufacturing experience
- CNC-machined high-precision rollers
- Global after-sales service and training
- CE & ISO certified
- Over 1000 machines installed worldwide
It is the perfect choice for companies seeking a high-performance Metal deck roll forming machine, Steel Decking Floor Roll Forming Machine, or Steel Structure Floor Deck Roll Forming Machine for TR50 production.
