Metal Roofing Sheet Roll Forming Machine Technical Specifications
Dimensions
Length: 123 in. (3.13 m)
Width: 31.5 in. (0.8 m) / 36.5 in. (0.93 m) with rack
Height: 29 in. (0.75 m) / 53 in. (1.35 m) with rack
Weight: Approx. 1,900 lbs (861.8 kg)
Forming System polyurethane drive roller stations; Chain-driven transmission
Shear System: Easy cut rack-and-pinion manual hand shear
Production Speed :Approx. 40 ft/min (12.18 m/min)

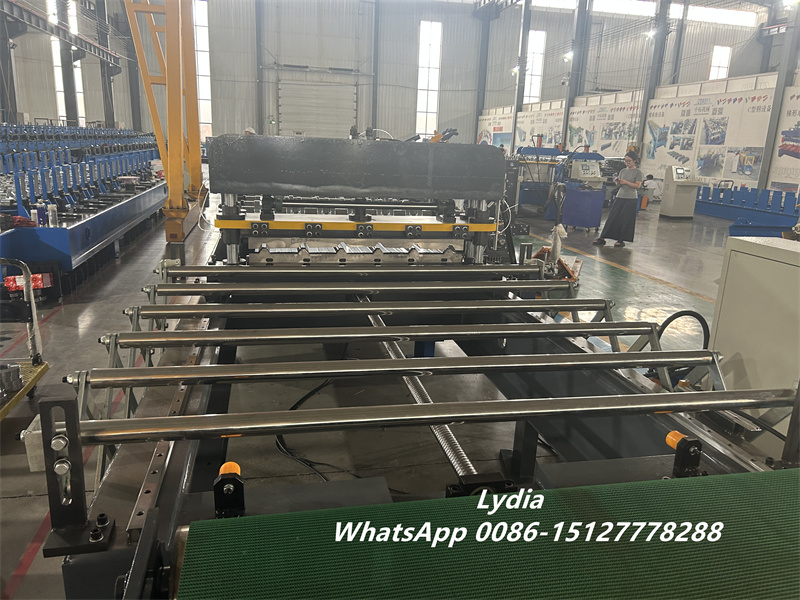

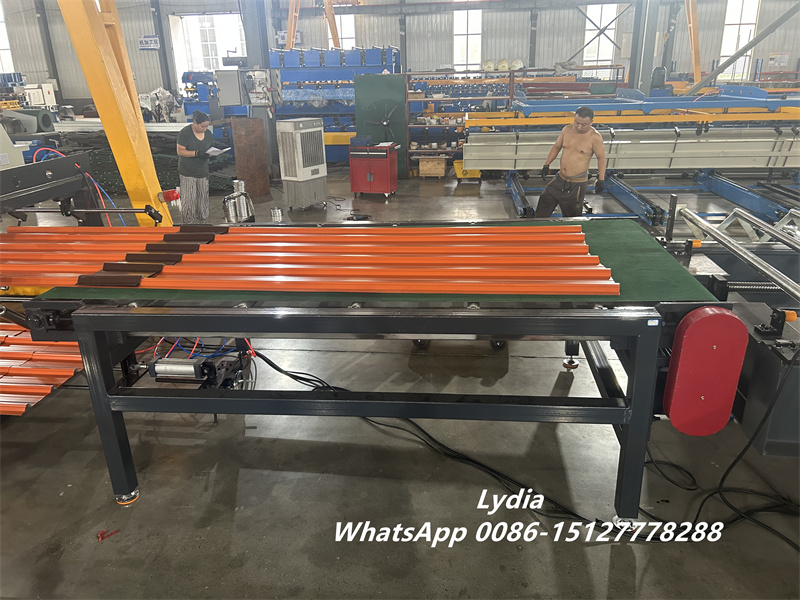

Metal Roof Wall Roll Forming Machine

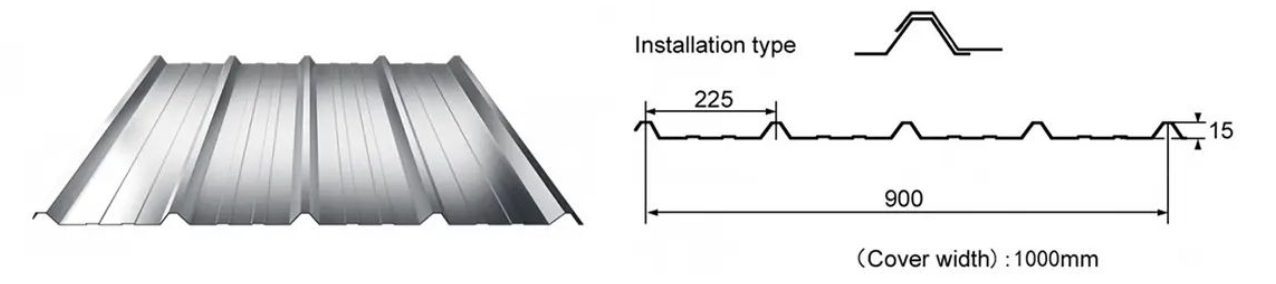

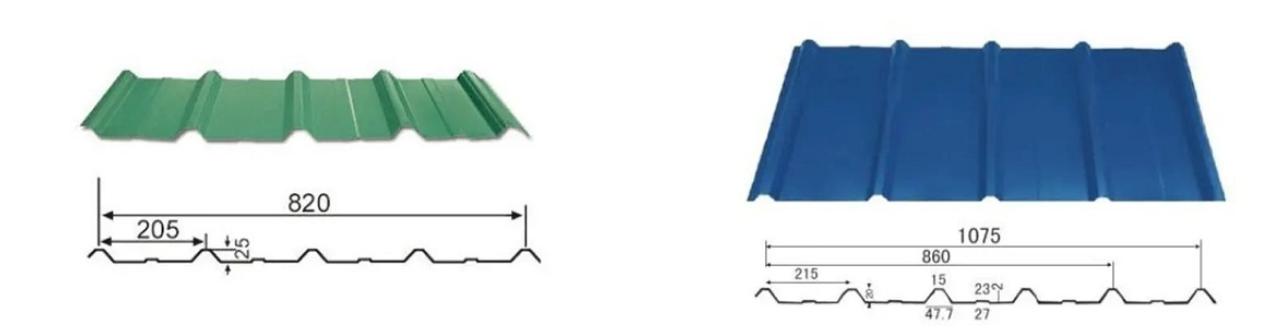

Roof Panel & Tile Making Machine of Overview
The roof panel roll forming machine is a specialized equipment used to manufacture various types of roof panels. By processing galvanized steel, PPGI, or aluminum-magnesium-manganese sheets through multiple roller pressing steps, the machine produces precise and durable roofing sheets. It is widely applied in steel structure buildings, color steel tile roofing, and other construction industries.
Working Principle
-
Feeding Section
-
Positioning plate: Adjusts material alignment to match feed width.
-
Guide frame: Supports and guides progressive conveying of the coil.
-
Guide roller: Upper and lower round rollers ensure smoother material feeding.
-
Hand-pull shear: Used for manual shearing before the coil enters the machine.
-
-

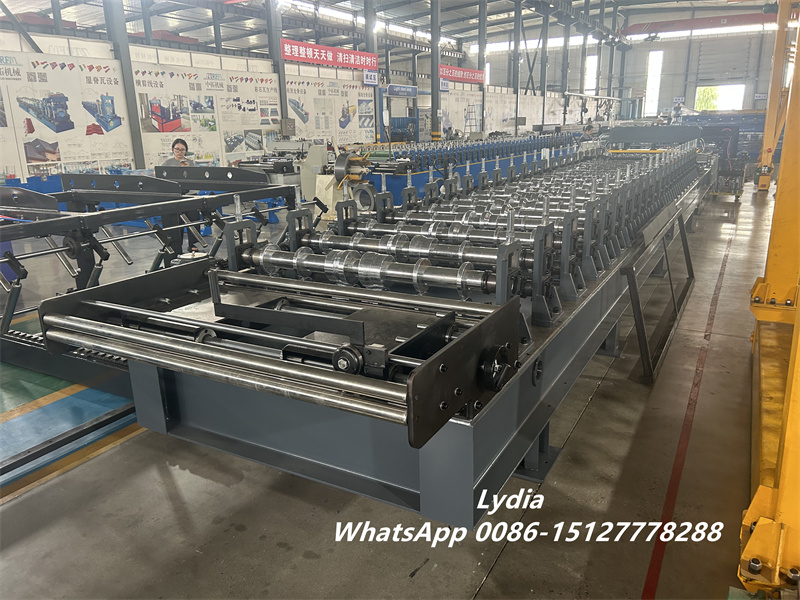

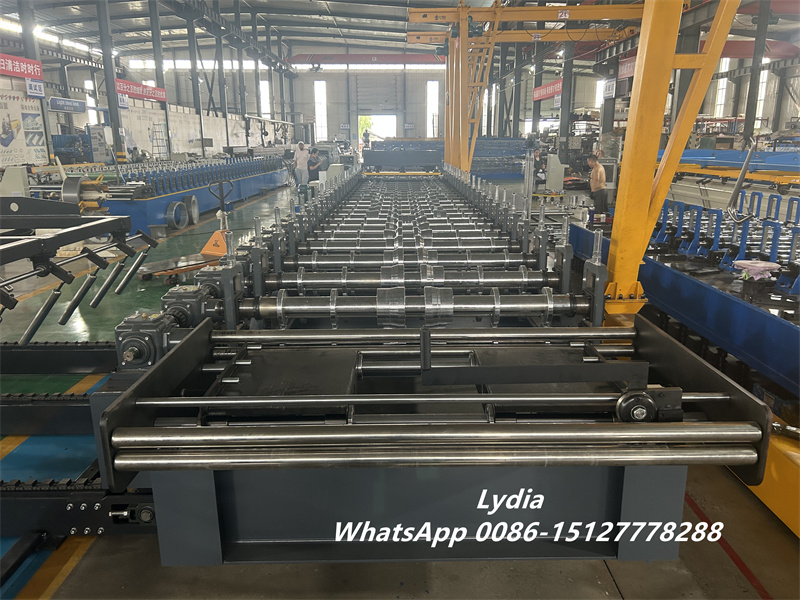

Forming Section
-
Composed of main forming machine, rollers, drive rollers, and forming knives.
-
Multi-step forming process ensures high precision, flatness, and consistent profile quality.
-
Metal Roof Wall Roll Forming Machine
Key Features of Portable Roof Cutting and Forming Equipment
-
Rollers made of high-quality mold steel Cr12 with heat treatment.
-
Cutter frame welded from 20mm steel plate, ensuring strength and durability.
-
Hydraulic motor: 4KW, pressure range 0–16Mpa.
-
Main motor: 7.5–15KW with frequency conversion speed regulation.
-
Maximum production speed: 25 m/min.
-
Material compatibility: GI/PPGI, HR steel, thickness 0.3–0.8mm, yield strength 235–550 Mpa.
-
High precision: cutting tolerance ≤±1mm.
-
Strong pressure resistance, low processing loss, easy installation, and high efficiency.
| Item | Specification |
|---|---|
| Product Name | ALEKVS Roofing Panel Roll Forming Machine |
| Material | GI (Galvanized Steel), PPGI, HR Steel |
| Thickness | 0.3–0.8mm |
| Yield Strength | 235–345–550 Mpa |
| Base Frame | H400/450 type steel |
| Roller Material | GCr15 bearing steel with hard chrome / Cr12 |
| Roller Hardness | HRC52–58 (heat-treated) |
| Roller Stations | 18–22 steps |
| Shaft Diameter | 90mm |
| Machine Size | 11000 × 2000 × 2000 mm |
| Machine Weight | 10 Tons |
| Working Speed | 15–25 m/min |
| Cutting Material | Cr12MoV (Z200C12), service life ≥ 1 million cuts |
| Cutting Hardness | HRC58–62 (heat-treated) |
| Cutting Tolerance | ≤±1mm |
| Driving Way | Gear / Sprocket Transmission |
| Main Motor Power | 7.5 / 15KW |
| Hydraulic Pump Motor | 5.5KW |
| Voltage | 220/380/415/480V, 50/60Hz, 3Ph (to be confirmed) |
| PLC Control | Schneider / Siemens / DELTA (Taiwan brand) |
| Touch Screen | Siemens / Schneider / WEINVIEW (Taiwan brand) |
| Encoder | OMRON (Japan) / KOYO (Japan) |
| Control Voltage | 24V |
| Machine Color | Blue (RAL5015) + Orange (RAL2004), or customized |

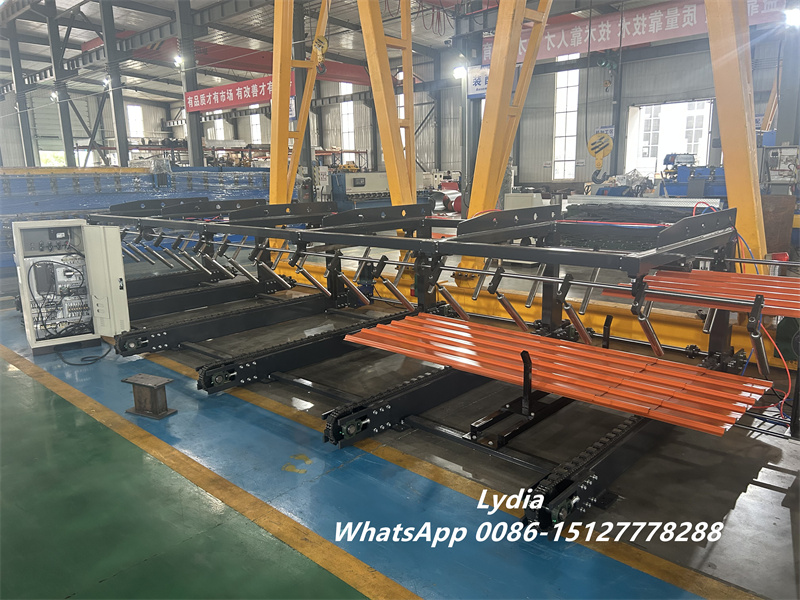

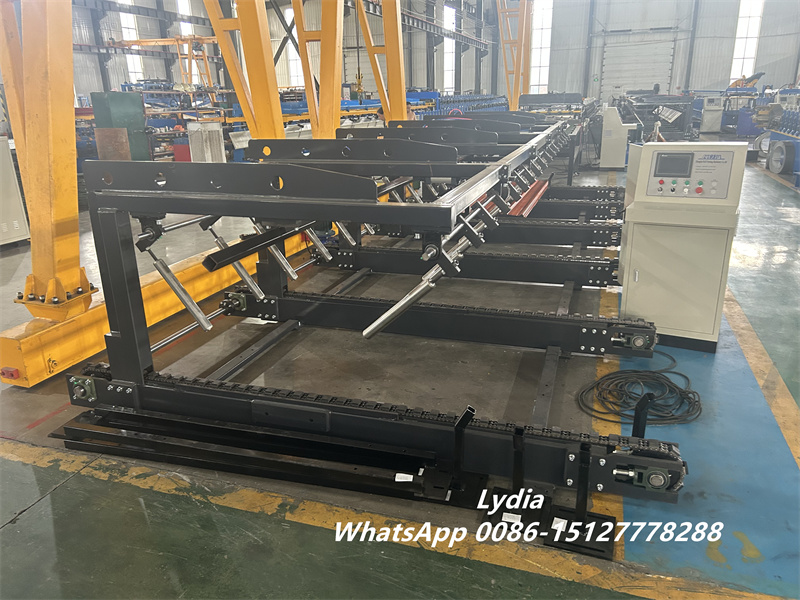

| Options | Automatic stacker, printer |
