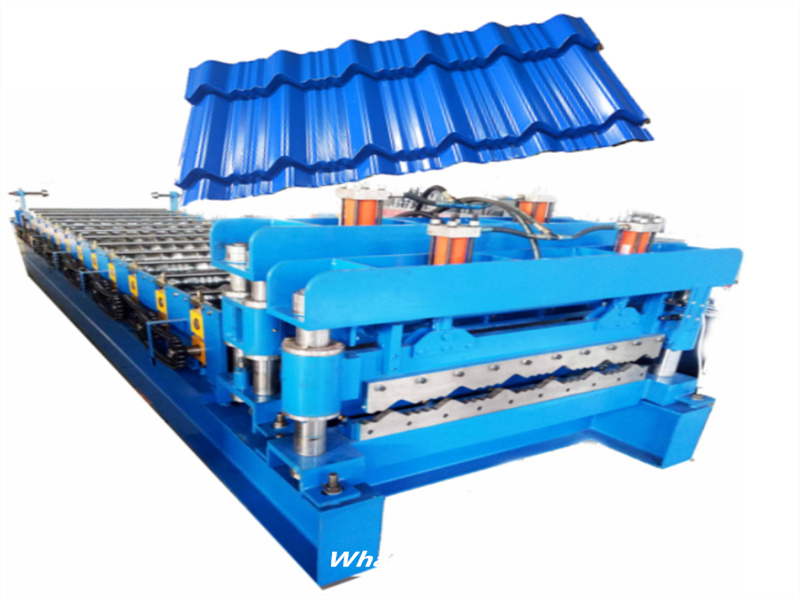

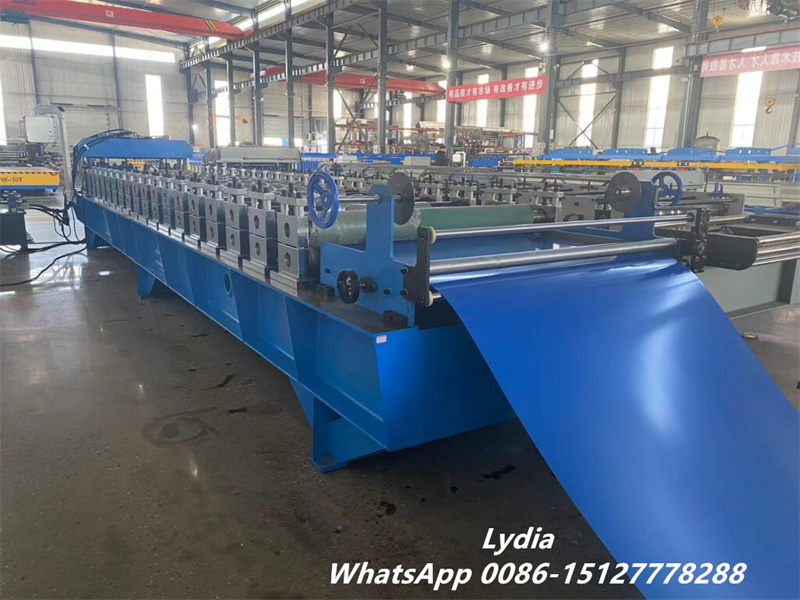

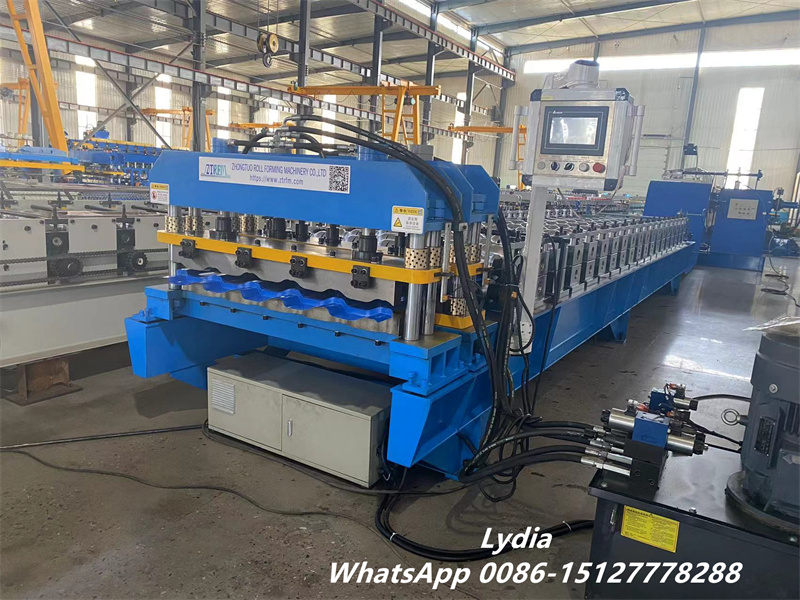

Mangalore Tile Profile Sheet Roll Forming Machine
Overview of Mangalore Tile Profile Sheet Roll Forming Machine
The Mangalore tile profile sheet roll forming machine is engineered for the precise production of roof sheets that mimic traditional Mangalore tiles. This equipment is ideal for applications requiring aesthetic appeal and long-lasting durability. Made with a robust structure, this roll forming machine supports continuous and automatic manufacturing, improving both efficiency and product uniformity.
Technical Features of Mangalore Tile Profile Sheet Roll Forming Machine
Material: Suitable for galvanized steel, aluminum, or color-coated sheets.
Thickness range: Typically 0.3mm to 0.6mm.
Speed: Operating speed ranges from 8 to 12 meters per minute.
Drive system: Chain drive or gearbox transmission available based on configuration.
Roller material: 45# steel with hard chrome coating to enhance longevity and reduce wear.
Control system: PLC system with touch screen interface for automatic length and quantity control.
Production Process Using Mangalore Tile Profile Sheet Roll Forming Machine
1. Decoiling: Sheet metal is fed from the coil.
2. Feeding: The Material is leveled and aligned before forming.
3. Roll forming: Metal passes through precisely machined rollers to achieve the tile profile.
4. Cutting: Hydraulic cutting system ensures accurate length with minimal wastage.

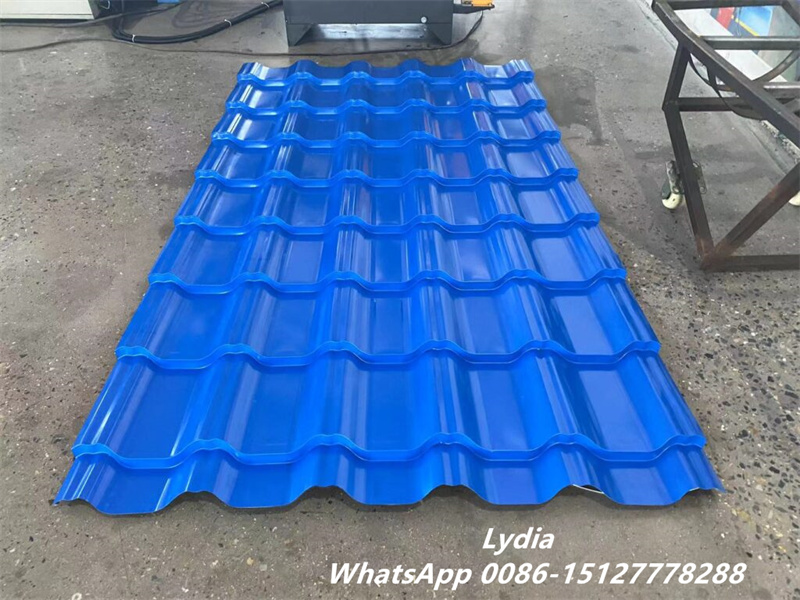

5. Output: Finished tiles are automatically stacked for packaging.
Advantages of Using a Mangalore Tile Profile Sheet Roll Forming Machine
High production efficiency due to continuous operation.
Consistent and accurate tile profiles enhance roofing aesthetics.
Reduced labor costs thanks to automation.
Durable construction ensures long-term operation with minimal maintenance.
Customizable profiles are available upon request.

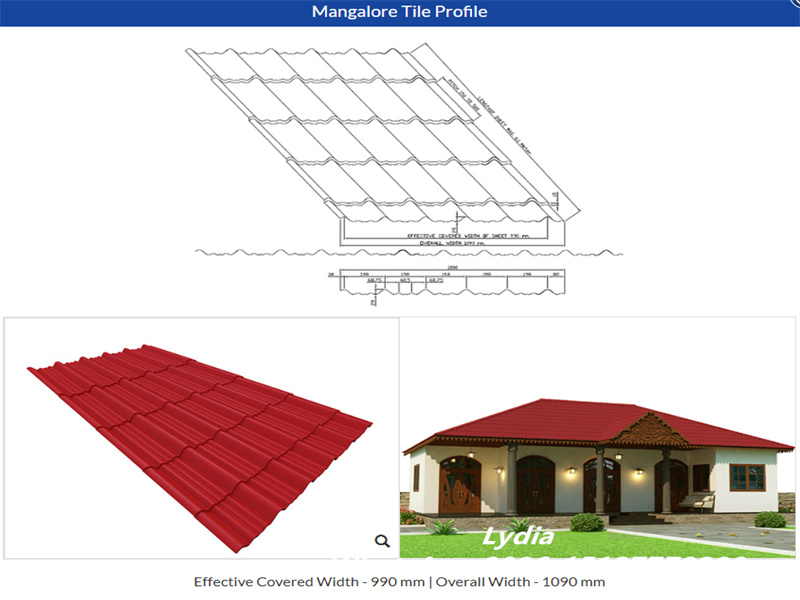

Profiles of Tile Profile Sheet Roll Forming Machine
The Tile Profile Roll Shaping Machine is designed to create material sheets that impersonate the style of dirt or substantial tiles, adding a hint of complexity to your designs.
