As the demand for prefabricated steel buildings continues to grow, manufacturers need production equipment that delivers higher efficiency, consistent quality, and flexible sizing. Zhongtuo's C Purlin Roll Forming Machine is designed to meet these requirements by producing high-precision C steel purlins for various structural applications.
This advanced C channel roll forming machine transforms galvanized steel coils, cold rolled steel, or hot rolled steel into finished C purlins through a continuous cold roll forming process. From decoiling and leveling to punching, forming, cutting, and discharging, every production stage is automatically controlled by a PLC system. Consequently, manufacturers benefit from higher output, lower labor costs, and excellent dimensional consistency throughout every production run.

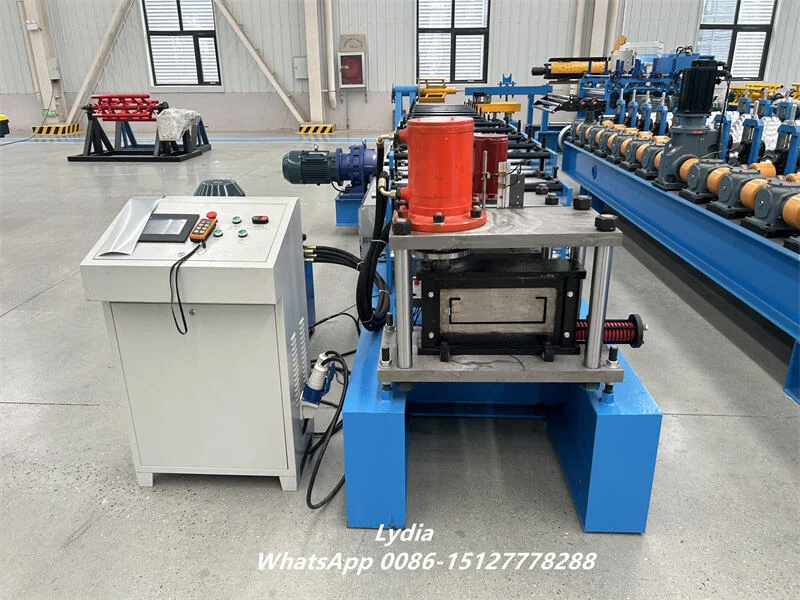

Steel coil feeding system for C purlin forming machine
Whether you operate a steel fabrication factory or supply structural components for construction projects, this automatic C purlin roll forming machine provides a dependable solution for long-term, high-volume production.
Why C Steel Purlins Remain Essential in Modern Steel Buildings

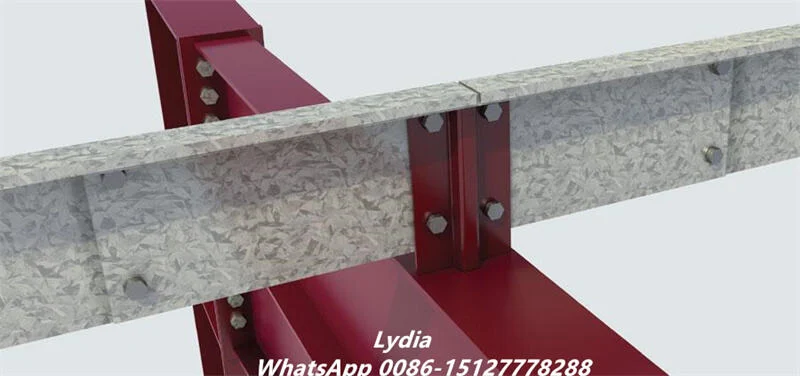

C steel purlins are indispensable structural members used to support roof panels and wall cladding in steel frame buildings. Positioned between the primary steel structure and exterior panels, they effectively distribute loads while improving the overall stability of the building.
Compared with conventional structural materials, C purlins offer significant advantages. Their lightweight design reduces transportation and installation costs, while their high strength ensures excellent structural performance. Furthermore, galvanized C channels provide outstanding corrosion resistance, making them suitable for harsh outdoor environments and long service life.

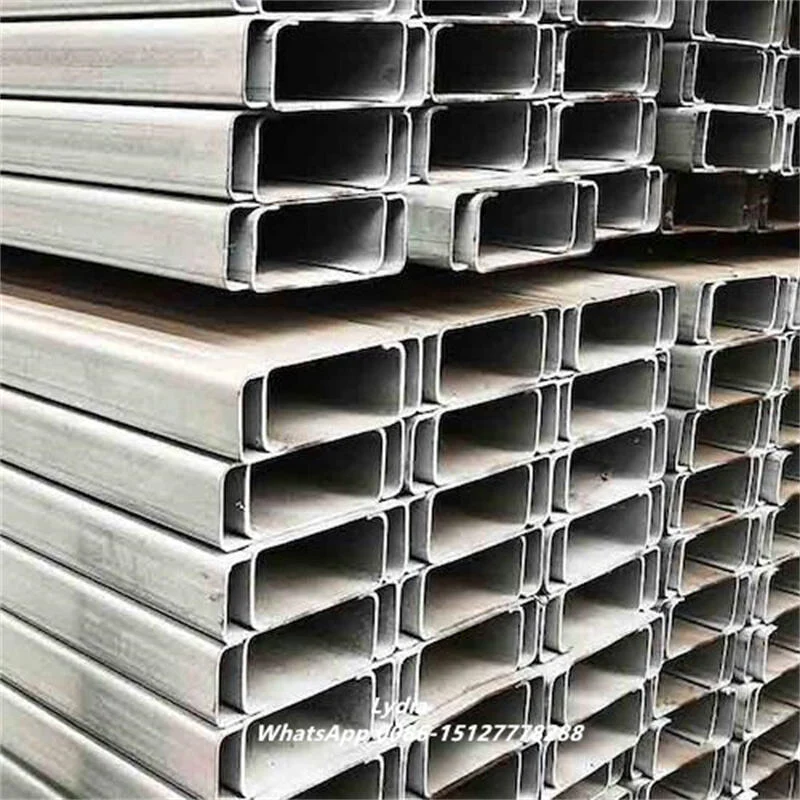

Today, C purlins are widely used in industrial plants, warehouses, logistics centers, agricultural buildings, shopping malls, commercial complexes, residential steel houses, solar mounting structures, and many other steel structure construction projects worldwide.

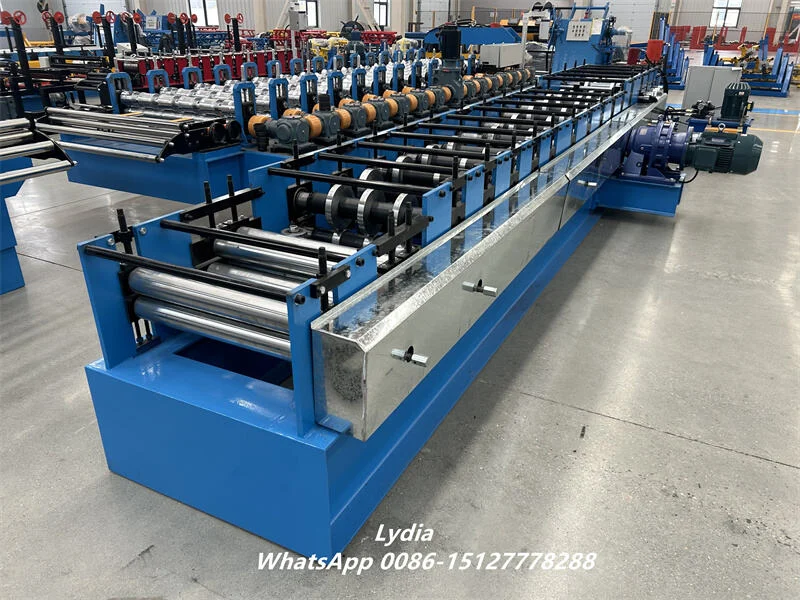

Steel coil feeding system for C purlin forming machine
Integrated Production Line Designed for Maximum Efficiency

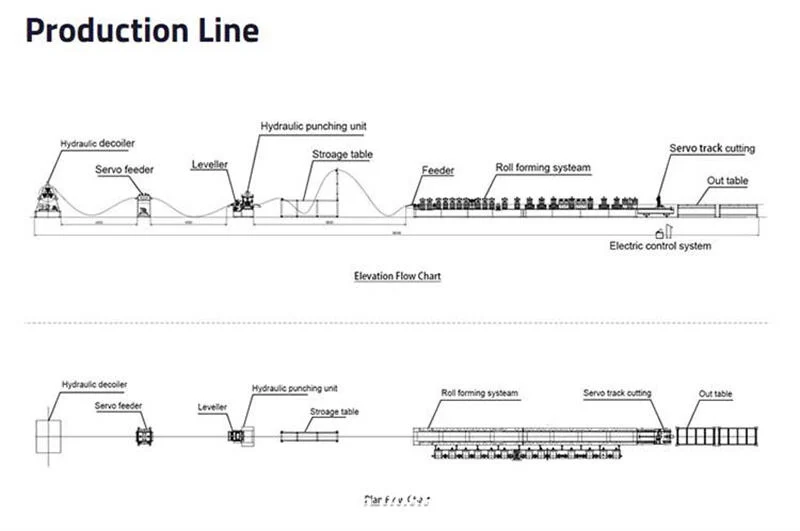

The Zhongtuo C Purlin Roll Forming Machine combines multiple manufacturing processes into one intelligent production line. Steel coils first pass through the hydraulic decoiler and leveling unit before entering the punching station, where mounting holes can be accurately produced according to the programmed design. The material then moves through precision roll forming stations that gradually shape the strip into the required C channel profile without causing surface damage or material stress.
After forming, the hydraulic cutting system cuts each profile to the preset length automatically, ensuring clean edges and excellent dimensional accuracy. Finally, the finished C steel purlins are transferred to the receiving table or optional automatic stacking system for convenient collection.
Because the entire production process is controlled through a Siemens PLC and touch-screen interface, operators can quickly modify production parameters, save multiple product recipes, and switch between different orders with minimal downtime. This intelligent automation significantly improves manufacturing efficiency while maintaining stable product quality.
High speed C purlin roll forming machine for steel structure productionHigh speed C purlin roll forming machine for steel structure production
Automatic C purlin roll forming machine with hydraulic punching systemAutomatic C purlin roll forming machine with hydraulic punching system
Automatic C purlin roll forming machine with hydraulic punching system
Reliable Performance Backed by Premium Components
Every Zhongtuo C channel roll forming machine is manufactured using heavy-duty steel construction and internationally recognized electrical components to ensure long-term reliability. Precision-machined forming rollers provide accurate profile geometry, while high-strength shafts maintain stable operation even during continuous production. Premium hydraulic systems deliver smooth punching and cutting performance, reducing maintenance requirements and extending equipment lifespan.

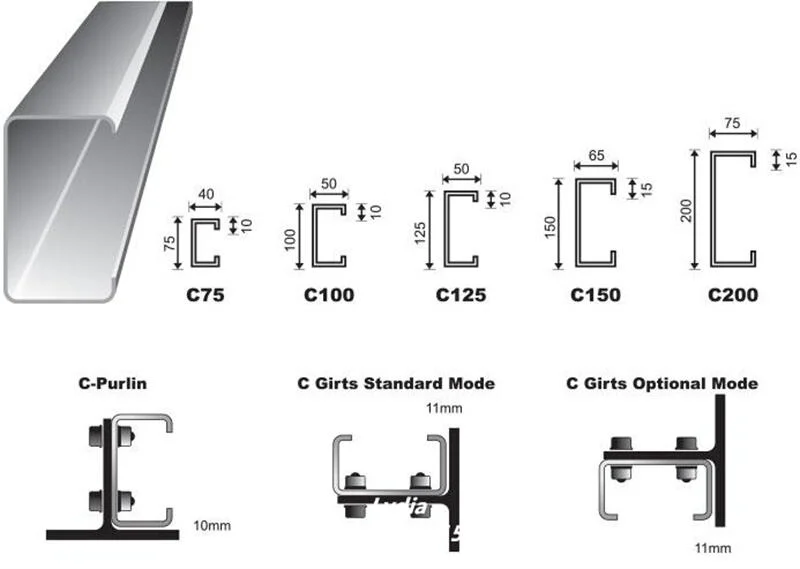

The machine supports galvanized steel with thicknesses ranging from 1.0 mm to 3.0 mm and can manufacture multiple C purlin sizes according to customer specifications. Optional servo punching, flying cutting, automatic stacking, barcode marking, and online hole positioning systems are also available for customers seeking higher levels of automation.
| Technical Item | Specification |
|---|---|
| Machine Type | C Purlin Roll Forming Machine |
| Finished Profile | C Steel Purlin / C Channel |
| Material Thickness | 1.0–3.0 mm |
| Raw Material | Galvanized Steel, Cold Rolled Steel |
| Production Speed | 16–25 m/min |
| Roller Stations | 14–20 Stations |
| Punching | Hydraulic / Servo Optional |
| Cutting | Hydraulic Cutting |
| Main Drive | Gearbox or Chain Drive |
| Control System | Siemens PLC + Touch Screen |
| Voltage | Customized |
| Optional Equipment | Auto Stacker, Servo Feeding, Barcode Printing |
High speed C purlin roll forming machine for steel structure production

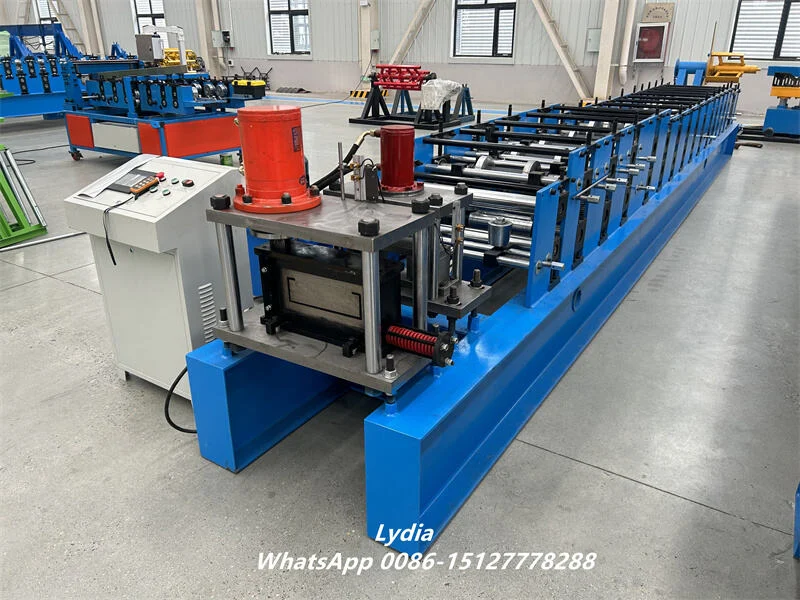

Hydraulic punching unit of automatic C channel roll forming machine
Customized Solutions for Different Production Requirements
Every construction project requires different C purlin specifications, which is why Zhongtuo offers complete machine customization. Our engineering team designs each C purlin forming machine according to the customer's profile drawings, production capacity, steel thickness, punching layout, and factory conditions.
From compact production lines for small manufacturers to fully automated systems for high-volume industrial production, every solution is optimized to maximize efficiency and minimize production costs. Before shipment, each machine undergoes comprehensive testing using customer profiles to ensure that the finished products meet dimensional tolerance and quality requirements immediately after installation.
In addition, Zhongtuo provides overseas installation, commissioning, operator training, spare parts support, and long-term technical service. This complete support system allows customers to begin production quickly and maintain reliable machine performance for years.
Choose Zhongtuo for Your Next C Purlin Roll Forming Project
With extensive experience in manufacturing roll forming machines for global customers, Zhongtuo has become a trusted supplier of C purlin roll forming machines, steel purlin production lines, and customized cold roll forming equipment. Our machines have been successfully installed in more than 100 countries, helping manufacturers improve production efficiency, reduce labor costs, and deliver premium C steel purlins for modern construction projects.
If you are looking for a reliable C purlin roll forming machine manufacturer, Zhongtuo is ready to provide a customized solution tailored to your production needs. Contact our technical team today to receive detailed machine specifications, layout drawings, and a competitive quotation.
