This roll forming machine is specially designed to produce metal studs, track, furring channel, and omega profiles at high speed with excellent precision and automation. It is ideal for lightweight steel framing systems used in walls, ceilings, and partitions.

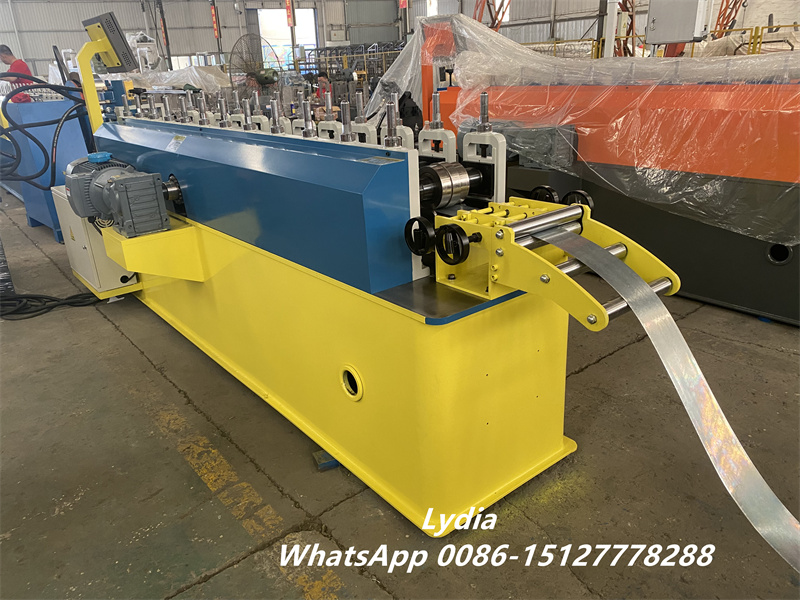

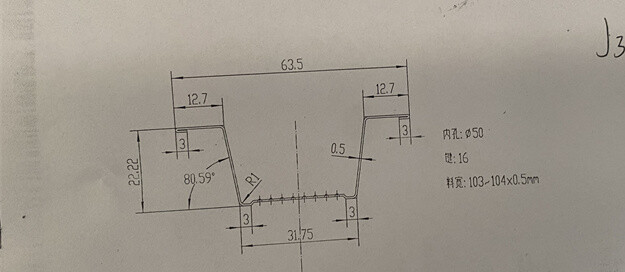

stud and track purlin machine
Machine Features of Omega Purlin Roll Forming Machine:
The hat channel roll forming machine is composed of several key components, including a decoiler, feeding and leveling system, pre-shearing unit, roll forming section, hydraulic post-cutting device, run-out table, hydraulic station, and a PLC control system.Designed for long production runs, this machine delivers consistently accurate profiles with smooth, well-defined shapes.

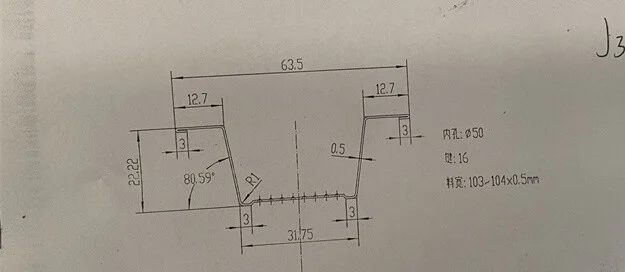

stud and track purlin machine
Technical Specifications of Hat Channel Roll Forming Machine
| No. | Item | Specification | Optional |
| 1 | Suitable Material | Galvanized Coil, PPGI, Carbon Steel Coil Thickness: 0.25–1.2 mm Yield Strength: 250–550 MPa Tensile Strength: G350–G550 MPa |
|
| 2 | Forming Speed | 10–40m/min | Customizable |
| 3 | Forming Stations | 8–14 | |
| 4 | Decoiler | Manual Decoiler | Hydraulic or Double Head Decoiler |
| 5 | Main Motor Brand | Sino-German Brand | Siemens |
| 6 | PLC System | Panasonic | Siemens |
| 7 | Inverter | Yaskawa | |
| 8 | Driving System | Chain Drive | Gearbox Drive |
| 9 | Rollers Material | Steel #45 | GCr15 |
| 10 | Station Structure | Wall Panel Station | Forged Iron / Torri Stand |
| 11 | Punching System | Not Included | Hydraulic / Mechanical Punch Press |
| 12 | Cutting System | Post-Cutting | Pre-Cutting |
| 13 | Power Supply | 380V / 60Hz / 3 Phase | Customizable |
| 14 | Machine Color | Industrial Blue | Customizable |
Key Component Details of the Hat Channel Roll Forming Machine
3-Ton Manual Decoiler
Max Weight: 3 Tons
Coil Inner Diameter: 450–550 mm
Structure: Steel plate & C-beam welded
Function: Manual tensioning & support of coils for feeding
Feeding & Guiding Device
Width Range: 200–300 mm
Feeding Type: Manual
Function: Prevents deviation before roll forming

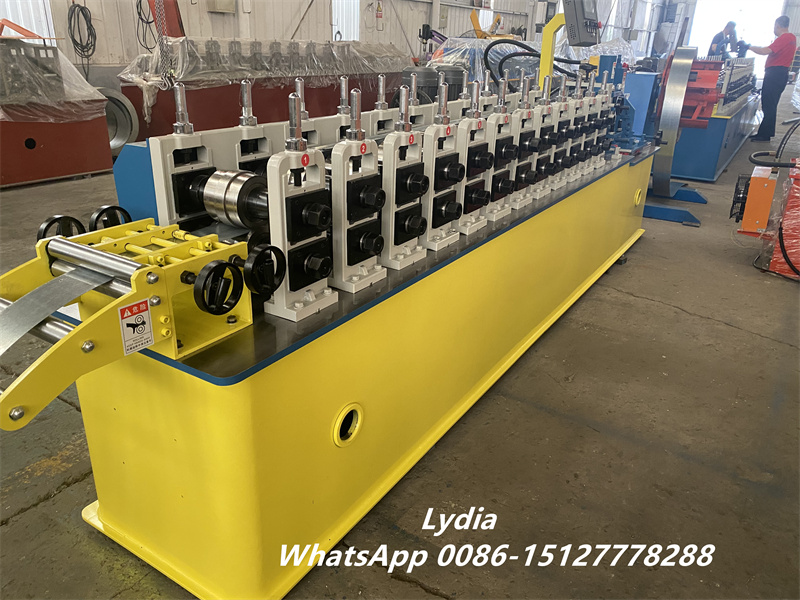

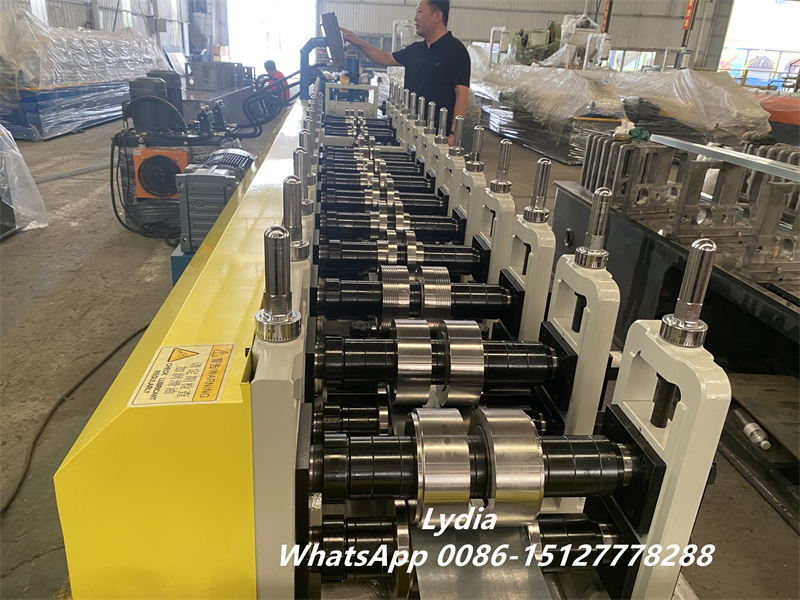

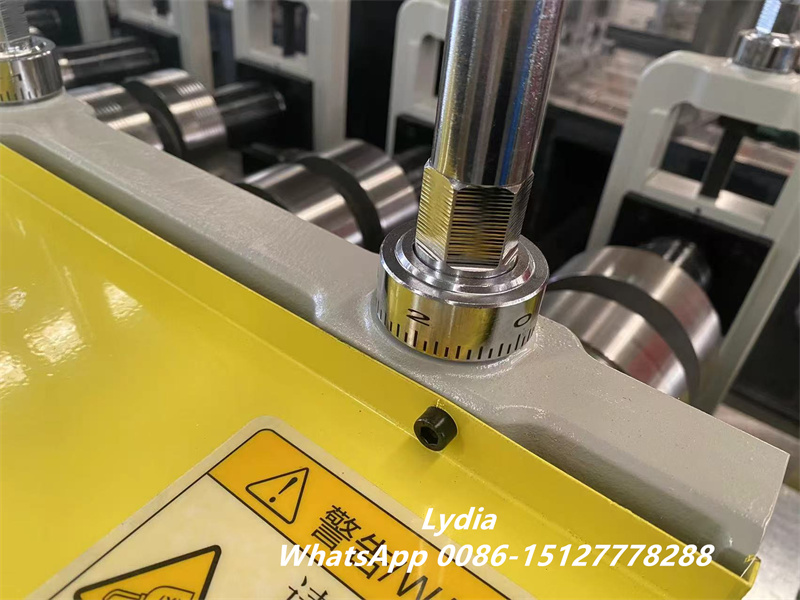

Roll Forming Machine
Base Structure: Welded C-beam with integrated drive
Forming Speed: 12–15 m/min
Voltage: 415V / 50Hz / 3 Phase
Roller Material: GCr15, CNC machined, HRC58–62, chromed 0.05 mm
Shaft: ASTM1045, Ø60 mm
Forming Steps: 18
Transmission: Gear drive, 5.5 kW Guomao Motor
Side Wall Thickness: 18 mm

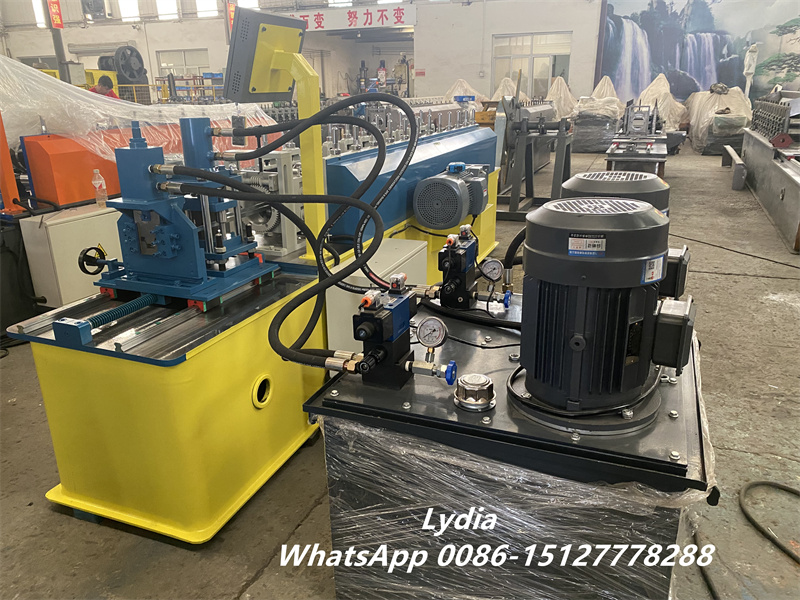

Hydraulic Cutting Unit
Cutting Type: Stop-to-cut hydraulic shear
Motor Power: 4 kW
Working Pressure: 12–16 MPa
Blade Material: Cr12, heat treated
Length Measurement: Omron encoder
Tolerance: ±1.0 mm
