Overview of High Speed 100m/min CD60 / UD60 Light Steel Stud & Track Roll Forming Machine
Our High Speed CD60 / UD60 Light Steel Stud & Track Roll Forming Machine is engineered for the turnkey production of CD 60 ceiling profiles. Proven in markets from Kyrgyzstan to Ukraine, it handles galvanized DX51 D+Z 100÷Z275 strip (0.45–0.55 mm pre-emboss, 1.00 mm post-emboss) up to 6 m long, at speeds up to 100 m/min.
CD60 UD60 Light Steel Stud & Track01
CD60 UD60 Light Steel Stud & Track01
Key Features of Light Steel Stud & Track Roll Forming Machine
- Ultra-High Speed: Servo-driven profiling up to 100 m/min with stepless adjustment 0→Vₘₐₓ
- Precision Embossing: Dedicated embossing station (rollers supplied by customer)
- Automatic Flying-Shear Cut-off: Cuts profiles on the fly to any length ≤ 6 m
- Full Automation: PLC control with HMI touchscreen; one-button start/stop; recipe memory
- Robust Build: Heavy-duty welded frame, precision roll stands, low-vibration operation
- Global Service Footprint: Exported machines with CE, ISO9001 and CAS certifications
Technical & Energy Requirements of Light Steel Stud & Track Roll Forming Machine
- Profiling Speed: ≥ 100 m/min (max)
- Speed Control: Smooth, stepless from 0 to Vₘₐₓ
- Cycle Type: Fully automatic, programmable profile lengths
- Installed Power: ~55 kW (exact value subject to final spec)
- Compressed Air: 0.4 MPa, 0.3 Nm³/min
- Others: 380 V / 50 Hz / 3-phase; optional 60 Hz available
work flow：
CD60 UD60 Light Steel Stud & Track
CD60 UD60 Light Steel Stud & Track
CD60 UD60 Light Steel Stud & Track
Standard Line Configuration of Light Steel Stud & Track Roll Forming Machine
| Component | Specification | Quantity |

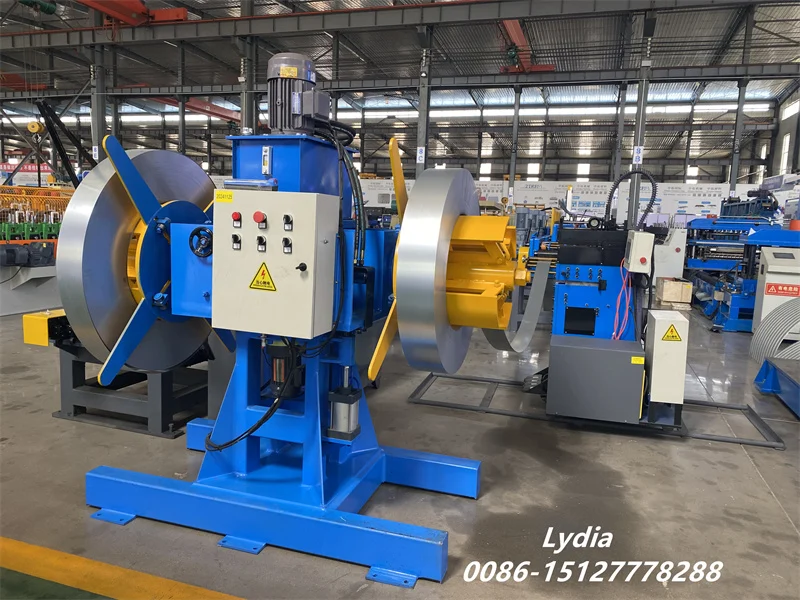

| Decoiler | 2 ton , rotary, double-arm | 1 |
| Embossing Unit | 2-roll emboss stand (rolls provided) | 1 |
| Roll Forming Machine | 18-station, PLC-controlled | 1 |
| Flying-Shear Cutting Unit | Servo-driven, high-precision | 1 |
| Receiving Table | 6 m length, adjustable supports | 1 |
| Small-Package Strapping | Semi-automatic strapping for loose bundles | 1 |
| Tooling Set | Complete roll set for CD60 & UD60 profiles | 1 |
Optional Add-Ons
- Automatic Packaging System – full shrink-wrap & palletizing
- Additional Decoiler – for tandem coil feeding
- Uncoiler Recoiler Unit – for coil-to-coil production runs
CD60 UD60 Light Steel Stud & Track
CD60 UD60 Light Steel Stud & Track
CD60 UD60 Light Steel Stud & Track
Our Offer Includes
- Detailed Layout & Drawings – full machinery line dimensions, electrical & hydraulic schematics
- Complete Equipment List – with model numbers and capacities
- Tooling List – roll profiles, spare parts kit
- Energy & Utility Chart – exact power, air, water requirements
- Delivery Time: 12–14 weeks from contract signing
- Payment Terms: 30% T/T advance, 70% T/T before shipment (or L/C at sight)
- Commissioning Cost: USD 1,500 (on-site start-up & training)
- Warranty: 12 months or 2,000 hours, whichever first
- After-Warranty Service: Lifetime online support; spare parts supply agreement
