Guide rail is an important part of the rolling door system, which not only guides the vertical movement of the door, but also enhances wind resistance and improves overall safety. We offer a variety of guide rail roll forming machines, including U-shaped guide rail and other customized types.

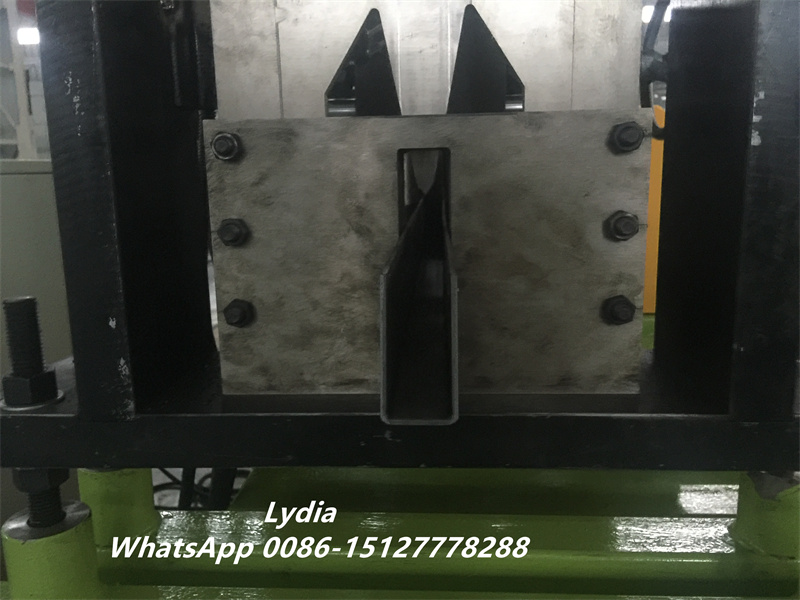

Shutter U-shaped Guide Rail Rolling Machine

Main features and benefits of the rolling door guide rail roll forming machine

Our rolling door roll forming line is designed for the mass production of rolling door tracks and panels.

Customer-customized adjustable 20, 30, 40, 50, or even 60 meters per minute. The system is equipped with a non-stop flying cutting and fully automatic stacking system, which can achieve high-speed (up to 60 meters/minute) and efficient continuous operation. * Fast profile change: An Optional cassette base platform, which can quickly switch between different profile shapes, is an ideal choice for factories with diverse production needs. The machine has multiple patented technologies and CE certification, and meets European precision and safety standards.

Main machine parameters:

Voltage: 380v 50hz(As customer request)

Material thickness: 1-2.0 mm, yield strength≤G345Mpa

Processing material: Galvanized sheet material Q195—235.

Working speed: 0-15 m/minute

Available from stock: For the most popular profiles, we stock pre-assembled machines for quick dispatch and delivery.

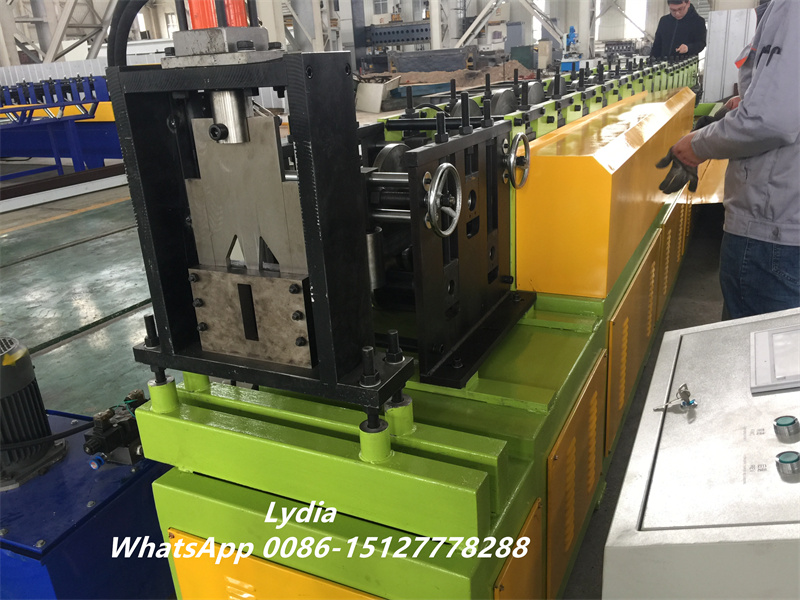

Shutter U-shaped Guide Rail Rolling Machine

Understand how roll-up doors work

Roll-up doors consist of multiple interconnected segments or slats that move vertically along fixed rails and wrap around a shaft or roller located at the top of the door frame. This construction allows the door to open and close efficiently, save space, and provide strong protection.

Such doors are commonly used in:

* Retail stores

* Garages

* Warehouses

* Industrial buildings

A complete roller shutter system typically includes:

Decoiler- feeding- leveling – roll forming – shearing – receiving table

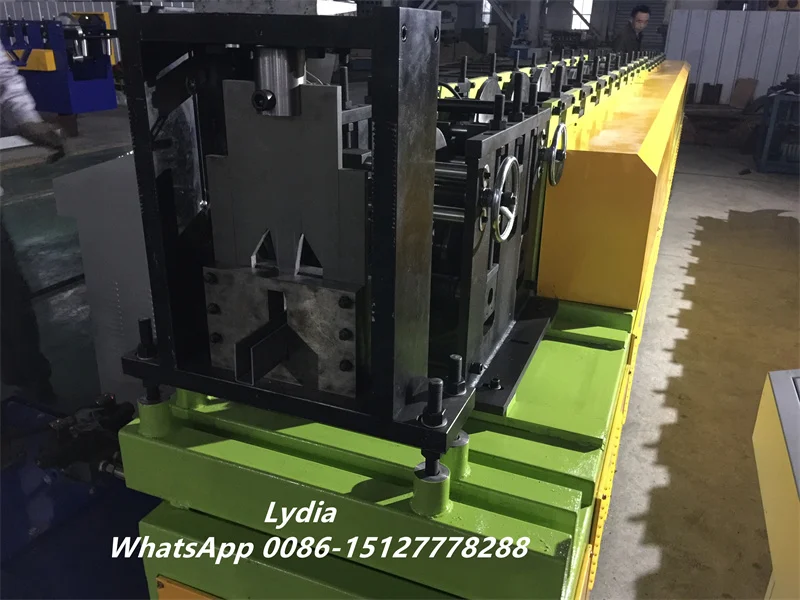

Shutter U-shaped Guide Rail Rolling Machine

Shutter U-shaped Guide Rail Rolling Machine
