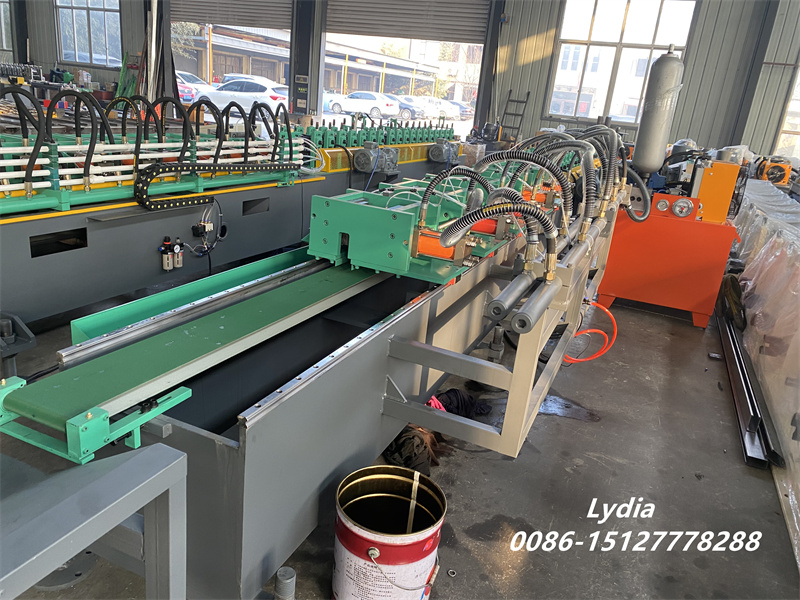

Efficient 24‑28 Cross Ceiling T‑Grid Roll Forming Machine for Lightweight Suspended Ceilings
The 24‑28 Cross Ceiling T‑Grid Roll Forming Machine is designed to produce 24 × 28 mm T‑grid sections with exceptional speed and consistency. With a CE‑certified build and a robust H‑frame, this model delivers up to 20 m/min forming speed and precise hydraulic cutting, making it ideal for standard 600 × 600 mm gypsum board ceilings.

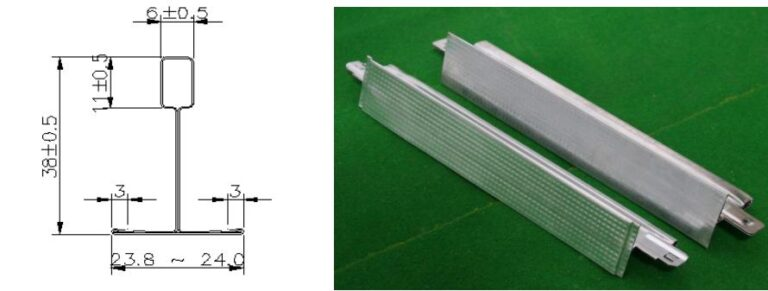

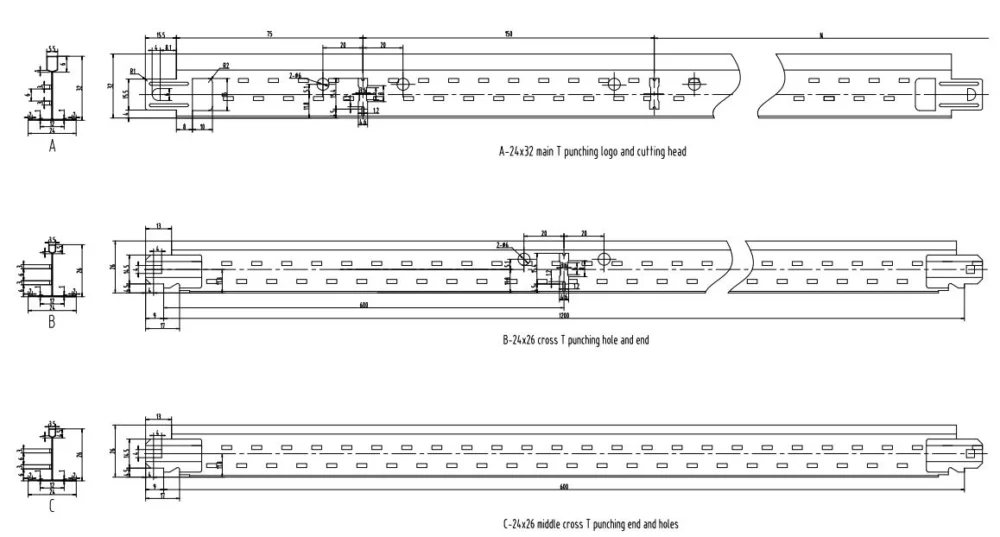

The Drawing Profile Ceiling T‑Grid Roll Forming Machine:

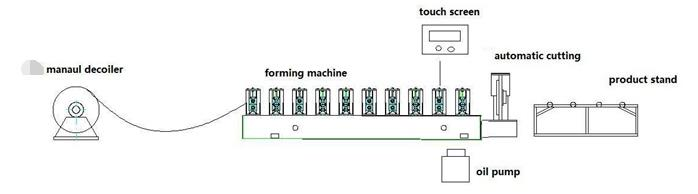

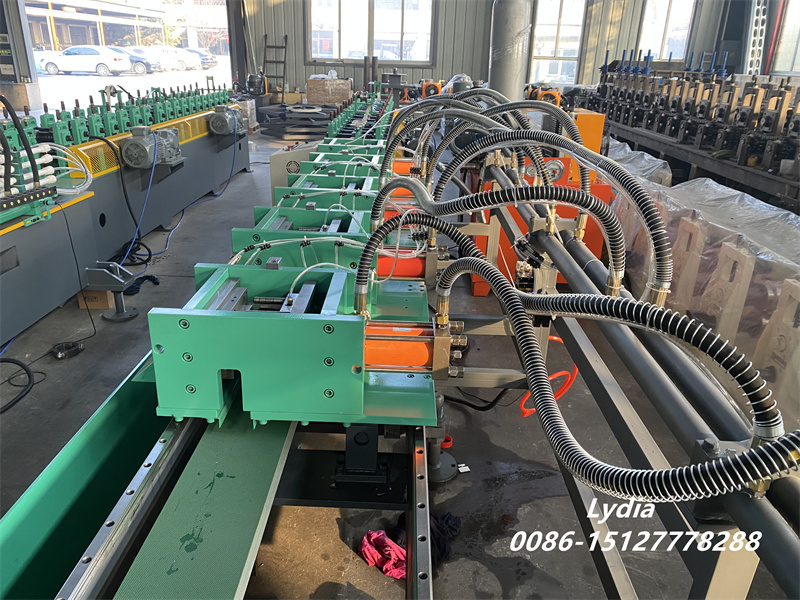

Streamlined Ceiling T‑Grid Roll Forming Machine Process Flow
- Manual Decoiling – Load galvanized coil onto the 1.5 T manual stand and expand to feed entry.
- Material Guiding – Precise side guides align the strip for uniform forming.
- Sequential Roll Forming – Metal passes through 16 stations, gradually shaping the T‑grid profile.
- In‑Line Punching & Cutting
Separate hydraulic punch head and shear cutting. Continuous punching and cutting on a tracked system.
- Run‑Out Table – Finished T‑grid pieces stack neatly for inspection and packaging.
Rugged Ceiling T‑Grid Roll Forming Machine Features
- Memorial Arch Frame ensures rigidity.
- High-Grade Materials: GCr12MoV rollers, 45# steel shafts.
- Delta PLC: Multilingual 5.7” touchscreen.
- Hydraulic Station: Air-cooled, high-pressure pump.
- Quick Setup: Manual decoiler, slide-in roll stations.
- Easy Maintenance: Enclosed drive, color-coded wiring.
Tailored Ceiling T‑Grid Roll Forming Machine Solutions for Every Project
- Standard 600 × 600 mm Ceilings with 24‑28 T‑grid.
- Reinforced Main Runners using 24‑38 T‑grid.
- Compact footprint for remote or retrofit job sites.
24‑38 Main Ceiling T‑Grid Roll Forming Machine Technical Specifications
Here is a comparison of the technical specifications:
| Specification | 24 28 Cross T Machine | 24 38 Main T Machine |
| Profile Size (mm) | 24 × 28 | 24 × 38 |
| Roll Stations | 16 | 16 |
| Shaft Diameter (mm) | 40 | 40 |
| Roller Material | GCr12MoV | GCr12MoV |
| Frame Type | Memorial arch frame | Memorial arch frame |
| Forming Speed (m/min) | 10–20 | Up to 20 |
| Main Motor (kW) | 5.5 | 5.5 |
| Hydraulic Motor (kW) | 3 | 5.5 |
| Control System | Delta PLC, 5.7″ touchscreen (EN/CN) | Delta PLC, 5.7″ touchscreen (EN/CN) |
| Decoiler Capacity | 1.5 T manual | 1.5 T manual |
| Cut & Punch | Separate hydraulic punch + cut | Continuous punch & cut with track |
| Footprint (mm) | 6,200 × 850 × 1,500 | 6,500 × 850 × 1,500 |
| Weight (approx.) | 3.5 T | 4.8 T |
