The L Shape Roll Forming Machine is engineered for producing right-angled edge trims—commonly used in roofing, wall cladding, shelving, and framing systems. With full automation, including material feeding, forming, and hydraulic cutting, it ensures minimal manual intervention and maximum productivity.This model supports galvanized steel coils, and the hydraulic cutting system provides a burr-free, precise edge at every cycle. Operating on three-phase 380V or 220V (optional), it is ideal for large-scale fabrication environments.
Technical Specifications L Shape Trim Roll Forming Machine
Voltage: 380v 50hz（As customer request）
Material thickness: 0.8-1.2mm
Processing material: Galvanized sheet material Q195---235.
Working speed: 0-15 m/minute
Working Flow of L Shape Angle Roll Forming Machine:
Decoiler- feeding- leveling - roll forming - shearing - receiving table
Machine components:
Manual decoiler 1 set;
Main machine (feeding - leveling- roll forming- shearing) 1 set;
PLC Control station 1 set;
Receiving table 2 sets;
Maintain tools 1 set;
Instruction manual 1 brochure.
| Decoiler System | Usage: support steel coil and uncoil it in a turntable way.
Loading capacity: 3 t Uncoiling width: 500 mm Inner diameter: 450-550 mm |
L Shape Trim Roll Forming Machine
|
Feeding and Leveling
|
Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate.
Feeding rollers: 1 set Guiding rollers: 2 sets Leveling rollers: 3 up + 4 down Roller diameter: 50mm Shaft material: 45# steel Power supply: pulled by main transmission motor |
L Shape Trim Roll Forming Machine
L Shape Trim Roll Forming Machine
| Main roll forming system
|
Main motor power (electric motor): 5.5 kw

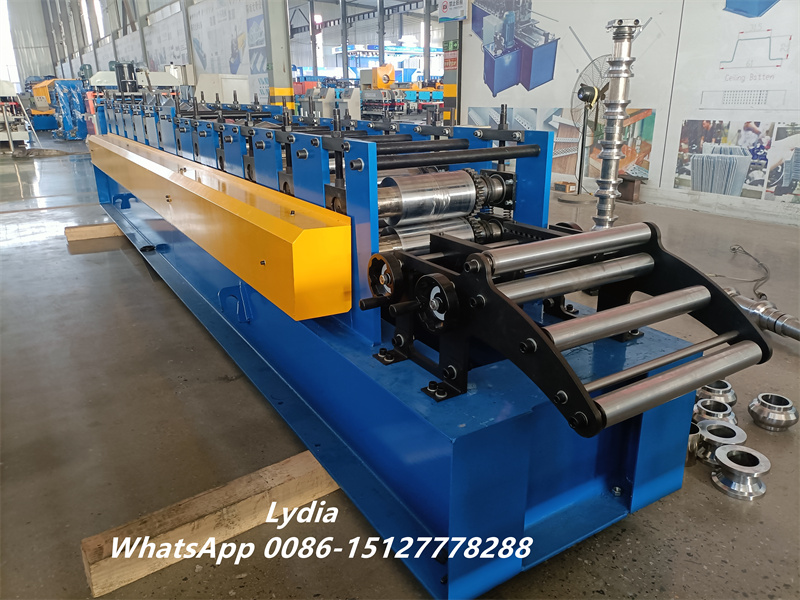

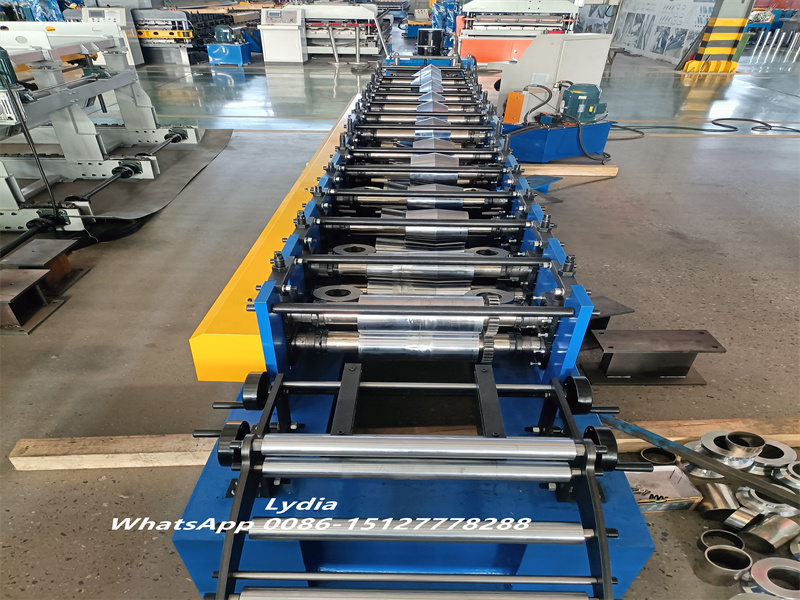

Table frame: 300 H beam Roller station: 9 stations Roller material: 45# steel quench treatment precision machining, hard chrome-plated ,HRC55-60 Shaft diameter:Φ60mm Shaft material: 45# steel, heat treatment HRC55-60 Transmission: by chain Roller stand: Middle wall plate structure，16 mm |
|
Cutting System
|
Post-cutting, automatic location to decide the dimension and cut target

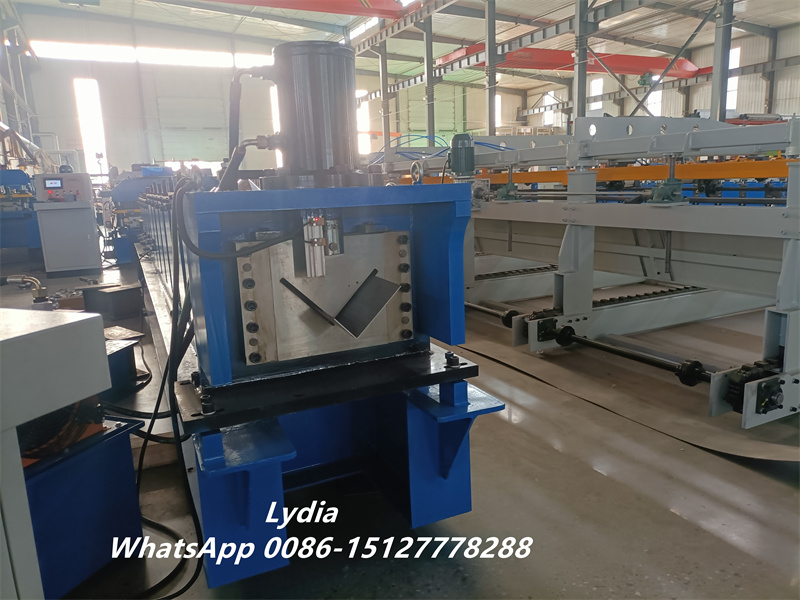

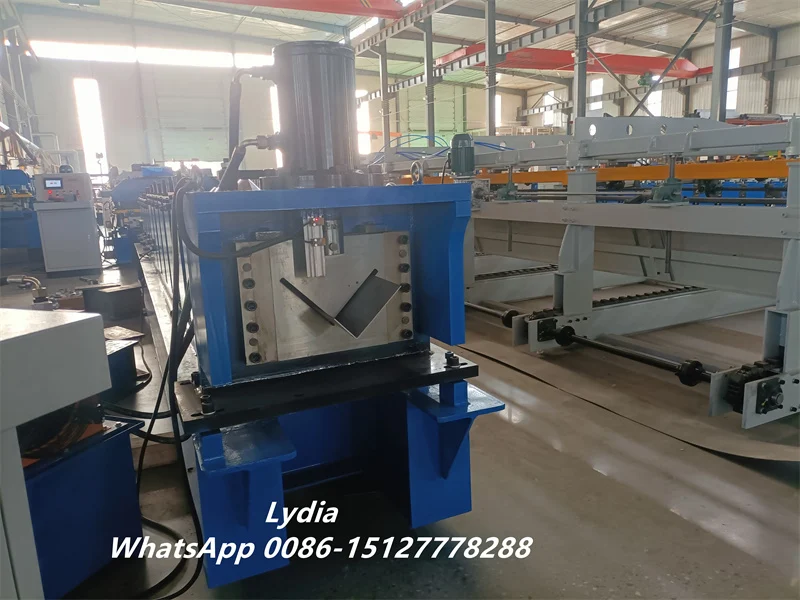

products, ensure stability, precision and cutting speed. Cutting type: hydraulic cutting Power supply: 4 kw Length measuring: automatic encoder measuring Tolerance of length: 3000mm+- 1.0mm |
| Receiving Table
|
Frame: weld by angle steel and square tubes, on the top with support rollers.
Table type: no power Diameter of rollers: 55mm Table size: 3.0 x 1.0 x 0.9m Quantity: 2 sets |
