Zhongtuo recently welcomed an Algerian customer to its factory for the inspection and trial operation of an Automatic C/Z Purlin Roll Forming Machine. During the visit, the customer examined the equipment from multiple perspectives, including its mechanical structure, electrical control system, forming performance, and finished purlin quality.
More importantly, the customer personally participated in the factory acceptance test and watched the complete production process. The machine ran steadily throughout the test, while the finished C and Z purlins maintained consistent dimensions, clean surfaces, and accurate profiles. Following the successful trial, the customer expressed strong confidence in the machine and Zhongtuo’s manufacturing capabilities.
C Z Purlin Roll Forming Machine with Automatic Size Adjustment

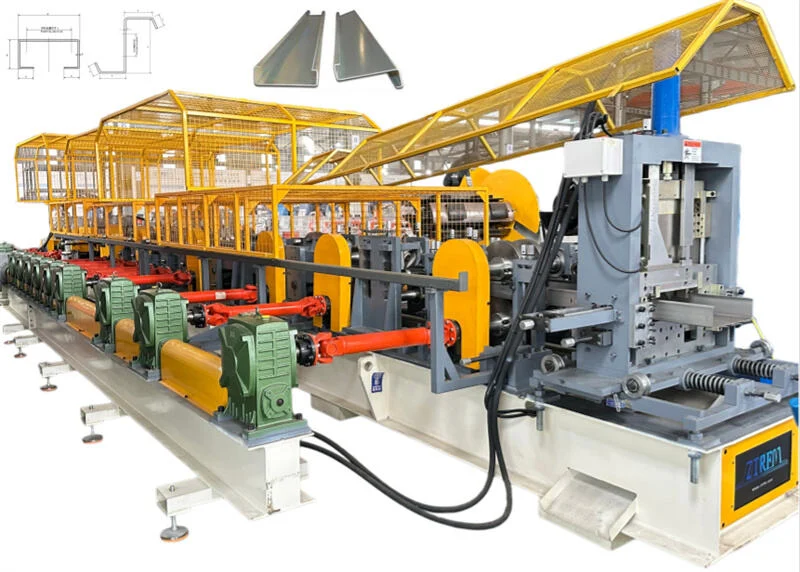

Automatic C Z Purlin Roll Forming Machine Factory Acceptance Test
Automatic C/Z Purlin Machine Passes Customer Acceptance Test
For steel structure manufacturers, production flexibility is becoming increasingly important. Different construction projects often require purlins in various sizes and profiles, so frequent manual adjustments can reduce productivity.
To address this challenge, Zhongtuo developed this automatic C/Z purlin roll forming line to streamline profile changes and size adjustments. The machine can produce both C and Z purlins and uses a PLC-controlled system to simplify production setup.
During the Algerian customer's factory inspection, the production line completed the entire manufacturing sequence smoothly:

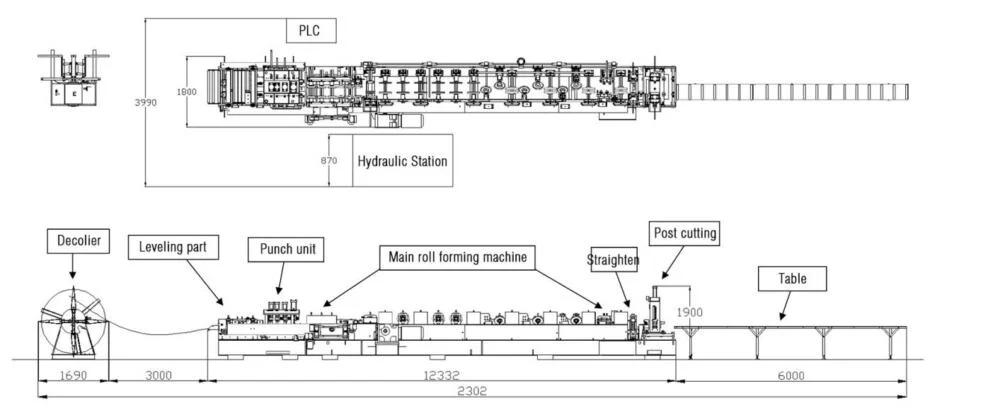

Steel Coil → Uncoiling → Feeding → Leveling → Hydraulic Punching → Pre-Shearing → Roll Forming → Finished Product Receiving

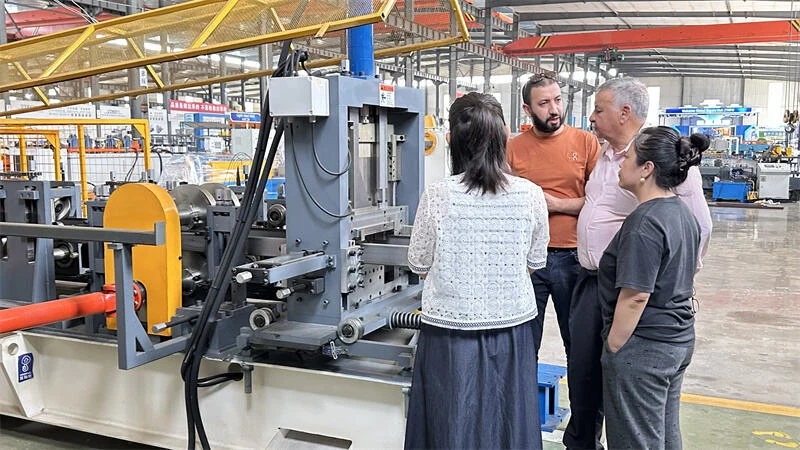

Algerian Customer Inspecting C Z Purlin Roll Forming Machine
The customer carefully observed each stage and verified the finished profiles after production. As a result, the machine demonstrated stable forming performance and reliable dimensional consistency throughout the test.
Flexible Solution for C and Z Purlin Production

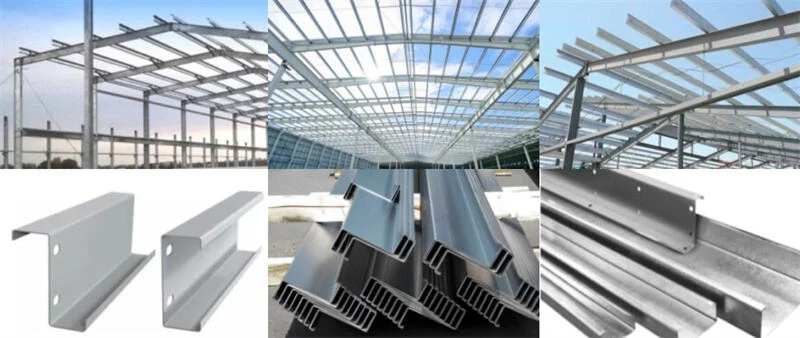

C and Z purlins serve as essential structural members in steel buildings. Manufacturers commonly use them for roof structures, wall framing, warehouses, workshops, agricultural buildings, commercial facilities, and prefabricated steel structures.
Compared with heavier traditional structural materials, cold-formed steel purlins provide a practical combination of strength, lightweight construction, and convenient installation. Therefore, manufacturers increasingly need production equipment that can accommodate different profile specifications without significantly interrupting production.
Zhongtuo’s automatic system addresses this requirement by supporting automatic C/Z profile conversion and intelligent size adjustment. Operators can change production specifications through the control system rather than relying entirely on time-consuming manual adjustments.
The tested machine supports the following production range:
| Parameter | Specification |
|---|---|
| C Purlin Size | 80–350 mm |
| Z Purlin Size | 120–350 mm |
| Material Thickness | 1.0–3.5 mm |
| Material Grade | Q235 / Q345 / Q420 |
| Drive System | 42 kW Servo Motor + Gearbox |
| Maximum Forming Speed | Up to 37 m/min |
| Control System | Panasonic PLC |
| Forming Rollers | Cr12 |
This flexibility makes the line suitable for manufacturers that need to produce different purlin specifications for multiple steel construction projects.
Stable Forming Performance and Intelligent Automation
During the acceptance test, the Algerian customer paid particular attention to the machine’s automatic functions. After loading the steel coil, the production line carried out feeding, leveling, punching, pre-shearing, forming, and product receiving with minimal operator intervention.
At the same time, the 42 kW servo motor and gearbox transmission system provide stable power during continuous operation. The servo drive also helps improve positioning accuracy, while the gearbox delivers consistent torque for demanding forming applications.
Furthermore, the hydraulic punching system allows the machine to process required holes accurately before the roll forming stage. The pre-shearing unit then prepares the material for continuous production, helping manufacturers maintain an efficient workflow.
The machine also integrates safety protection covers around key operating areas. This design helps create a safer working environment while allowing operators to monitor the production process.
Precision Components Support Long-Term Production
Reliable production depends not only on the machine design but also on the quality of its core components. For this reason, Zhongtuo pays close attention to the materials, machining processes, and electrical components used throughout the line.
The forming rollers use Cr12 material and undergo precision CNC machining and heat treatment. With a hardness of approximately HRC58–60, the rollers provide good wear resistance and maintain profile accuracy during long-term operation.
Meanwhile, the machine shafts use 40Cr steel, precision machining, and surface treatment to improve load-bearing performance and operational durability.
The electrical control system combines recognized industrial components, including Panasonic PLC, Schneider electrical components, Omron encoder, and Autonics proximity switches. Together, these components help the machine maintain accurate control and dependable operation.
Algerian Customer Recognizes Zhongtuo’s Manufacturing Quality
The factory acceptance test gave the customer an opportunity to evaluate the equipment under actual production conditions rather than relying only on technical documentation.
After observing the complete production process and inspecting the finished C and Z purlins, the customer expressed satisfaction with the machine’s running stability, forming accuracy, and automatic profile conversion function.
This successful acceptance also reflects Zhongtuo’s approach to international equipment delivery. Before shipment, Zhongtuo performs systematic factory testing covering mechanical operation, electrical control, hydraulic functions, forming quality, and overall production performance.
In addition, the company works closely with customers throughout equipment design, manufacturing, testing, installation, and after-sales service. This process helps ensure that each roll forming solution matches the customer’s actual production requirements.
Automatic C Z Purlin Roll Forming Machine Factory Acceptance Test
Zhongtuo Continues to Deliver Customized Purlin Production Solutions
The successful factory acceptance of this Automatic C/Z Purlin Roll Forming Machine for an Algerian customer marks another step in Zhongtuo’s cooperation with international steel structure manufacturers.
With automatic C/Z conversion, PLC-controlled size adjustment, servo drive technology, hydraulic punching, precision forming rollers, and a forming speed of up to 37 m/min, the production line offers manufacturers a flexible way to improve purlin production efficiency.
Looking ahead, Zhongtuo will continue to improve cold roll forming technology and provide customized equipment for different markets and applications. From individual profile requirements to complete automated production lines, Zhongtuo aims to help customers build more efficient and reliable steel component manufacturing operations.
