1100 Series High-Speed Automated Roll Forming Line Integrated Production Line Configuration
Manual Decoiler → Roll Forming Unit → PLC Control Panel → Hydraulic Shear → Output Table
High Speed Glazed Tile Roof Sheet Roll Forming Machine

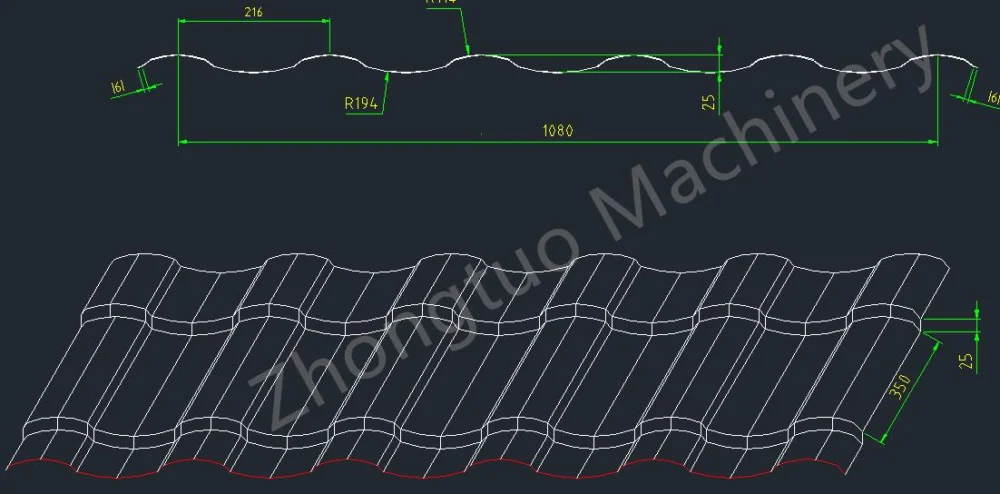

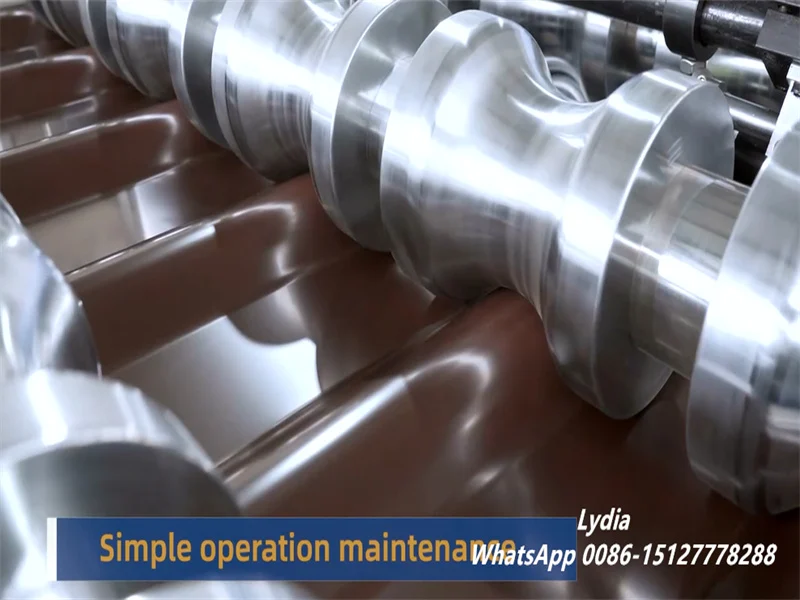

Built with a 45 mm European-standard frame, the machine ensures outstanding mechanical strength and durability. Precision rollers, crafted from double CNC-machined and chrome-plated steel (HRC 58–62), operate on 76 mm shafts, guaranteeing smooth, accurate forming. The cutting mechanism utilizes CR12 MOV tool steel blades, guided by a four-column hydraulic system, and supported by high-capacity valves and cylinders, to ensure clean and consistent cuts throughout production cycles. For control, the system integrates a Siemens PLC, Yaskawa frequency converters, KOYO encoders, and Schneider-brand electrical components, creating a seamless and reliable automation platform.

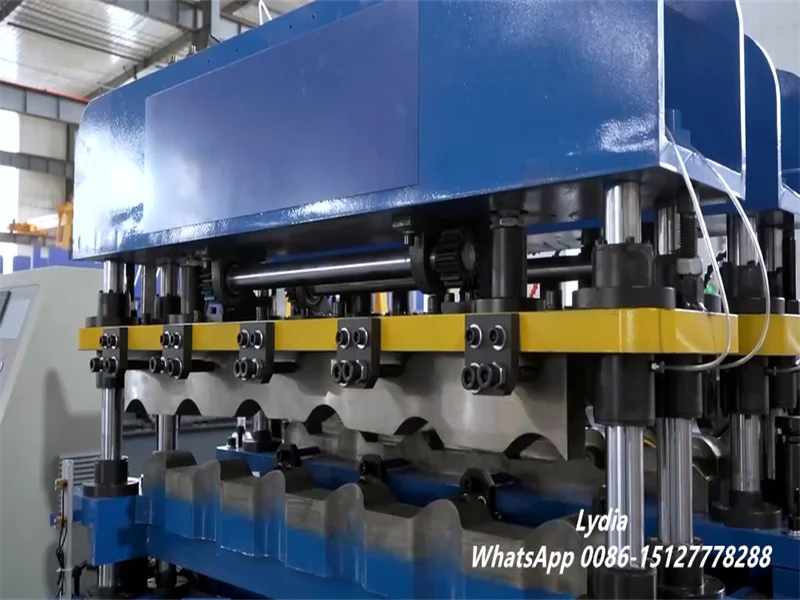

High Speed Glazed Tile Roof Sheet Roll Forming Machine
The 5-ton hydraulic decoiler with cart automates coil loading and expansion, significantly improving material handling. For post-production, an auto-stacker capable of handling 4 to 12-meter panels simplifies collection and stacking, available in single or double-layer formats, with a maximum stacking capacity of 4 tons. These add-ons help streamline workflow, reduce manual labor, and support large-scale manufacturing operations.

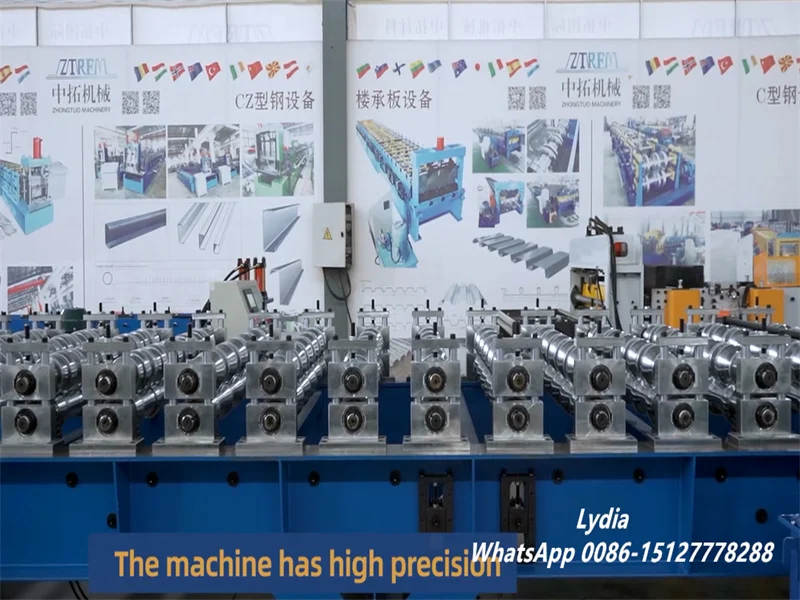

High Speed Glazed Tile Roof Sheet Roll Forming Machine
Terminology has been standardized for clarity, replacing ambiguous terms with precise industry language. Specifications are organized logically by system function, separating essential machine parameters from optional equipment. Technical terms have been corrected for accuracy, and consistent hardness ratings and measurement units are used throughout. The presentation has been refined to reflect professional industry standards, making the information clearer for engineering teams, purchasing managers, and technical decision-makers. For detailed specifications or customized configurations, clients are encouraged to contact the engineering team directly.
| Component | Specification |
| Decoiler Capacity | 6-ton manual operation |
| Coil Material | Steel substrates |
| Material Thickness | 0.3 – 0.8 mm |
| Forming Stations | 17-stage precision forming |
| Roller/Shaft Material | GCr15 tool steel, quenched to HRC 58° |
| Shaft Diameter | 90 mm |
| Machine Dimensions | 7.5 m (L) × 1.5 m (W) × 1.5 m (H) |
| Machine Weight | Approx. 6,500 kg |
| Production Rate | 10 – 25 meters/min |
| Cutting System | Hydraulic shear with Cr12 blades |
| Drive Mechanism | 1-inch chain transmission |
| Control System | Delta PLC (Taiwan) |
| Motor Power | Main Motor: 7.5 kWHydraulic Pump: 4 kW |
| Power Supply | 380V / 50Hz / 3-phase |
| Customization | Color and Language (Chinese/English) available upon request |
