Product Overview of Hydraulic Press Brake Machine

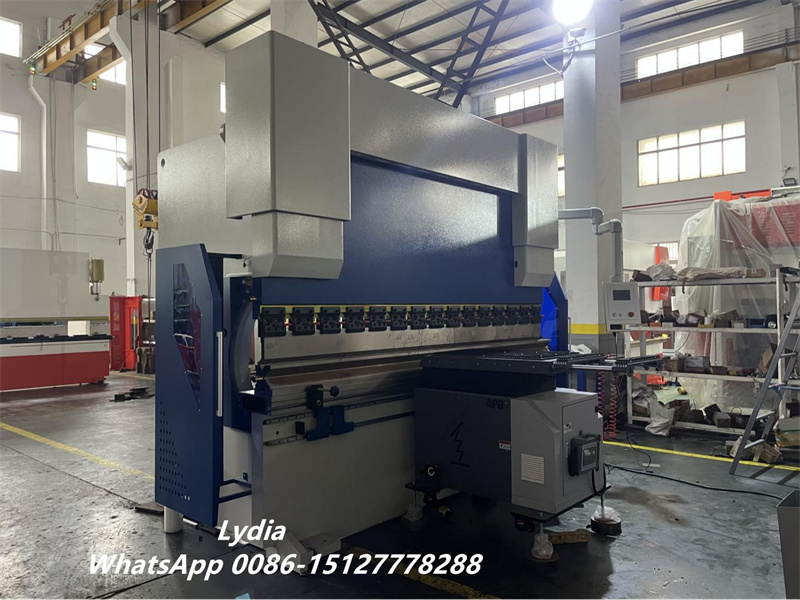

The ZTRFM 400T4000 CNC Electro-Hydraulic Press Brake is a high-precision, fully automatic bending machine designed for modern sheet metal processing. With 400T nominal pressure, 4,000 mm bending length, and a 4+1 axis configuration (Y1, Y2, X, R + V), it delivers superior accuracy, flexibility, and productivity.
Hydraulic Press Brake
Equipped with the advanced Holland DELEM DA53TX CNC control system, this press brake offers intuitive touch programming, high-resolution TFT display, and powerful automation functions. It is ideal for heavy-duty bending applications across industries such as construction, automotive, and metal fabrication.
Hydraulic Press Brake
Key Specifications of Hydraulic Press Brake Machine
| Item | Details |
|---|---|
| Model | 400T × 4000 mm CNC Press Brake |
| Type | Electro-Hydraulic, Fully Automatic |
| CNC System | Holland DELEM DA53TX |
| Bending Length | 4,000 mm |
| Nominal Pressure | 4000 kN (400T) |
| Worktable Length | 4,000 mm |
| Distance Between Uprights | 3,500 mm |
| Throat Depth | 400 mm |
| Ram Stroke | 250 mm |
| Max Opening Height | 580 mm |
| Axis | 4+1 (Y1, Y2, X, R + V) |
| Stroke Speed | Approach: 100 mm/s Working: 8 mm/s Return: 100 mm/s |
| Main Motor | Siemens / Wannan, 30 kW |
| Pump | SUNNY CPO 63 Series |
| Size | 3800 × 1850 × 2550 mm |
| Weight | 23,000 kg |
| Oil Tank | 450 L, 46# anti-wear hydraulic oil |
Hydraulic Press Brake
Standard Configuration of the Machine

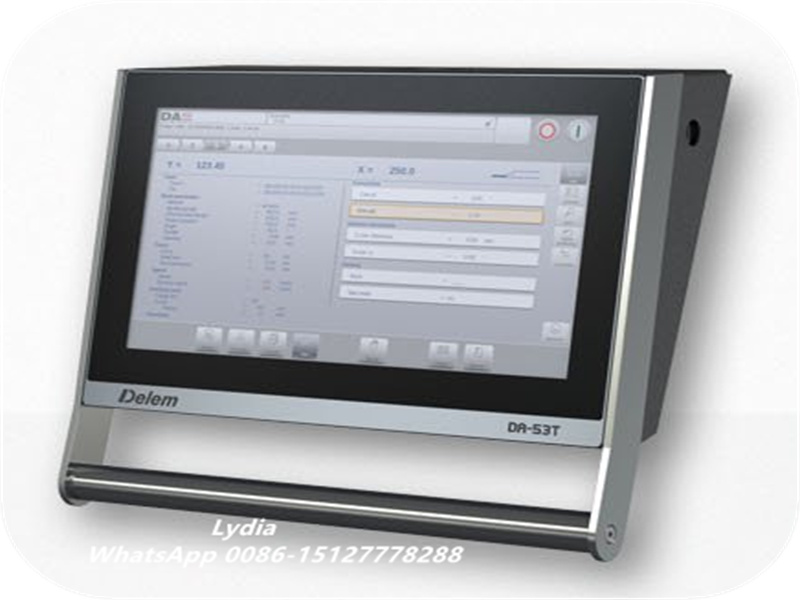

CNC Control System (DA53TX)
-
15″ high-resolution color TFT touch screen
-
Numerical touch programming
-
Servo and inverter control
-
Automatic crowning system (V-axis)
-
USB peripheral interfacing & offline software support

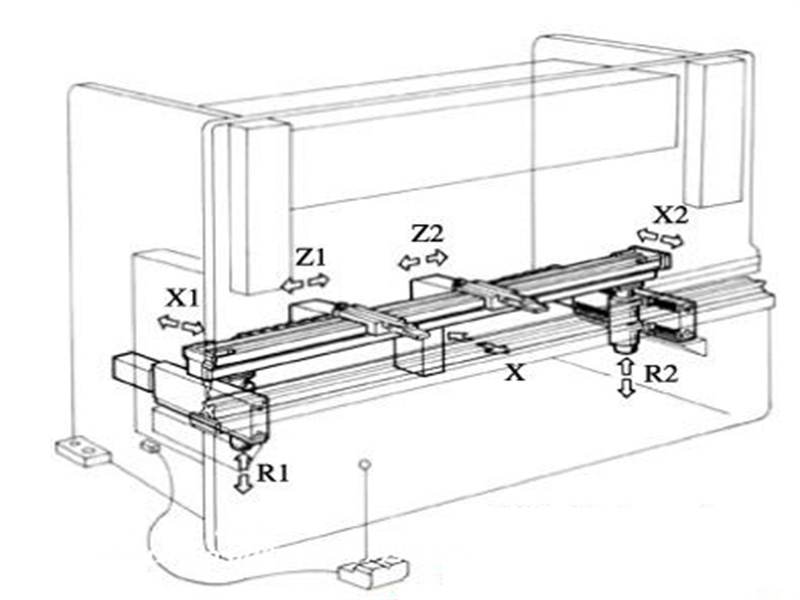

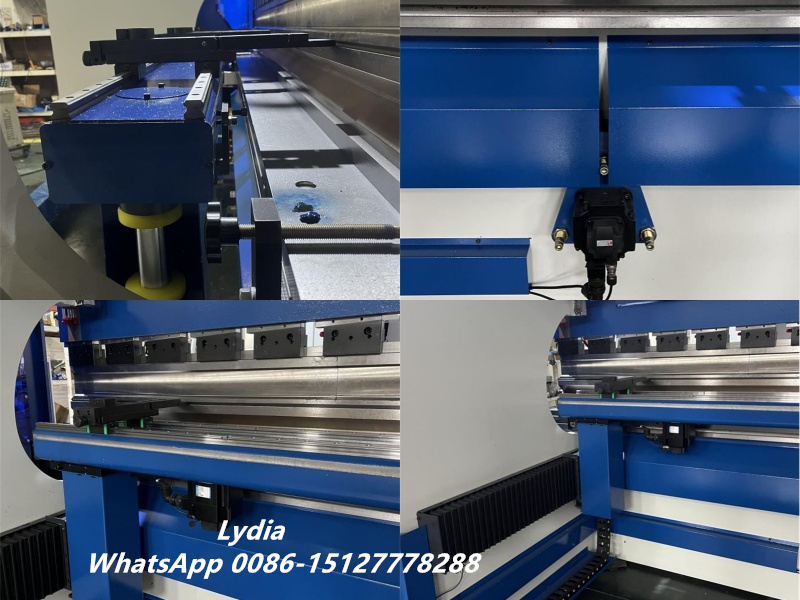

Back Gauge
-
X & R axis (ball screw + linear drive, HIWIN/TBI)
-
Accuracy: ±0.03 mm (X axis), ±0.05 mm (R axis)
-
Speed: X axis 350 mm/s, R axis 120 mm/s
Hydraulic & Power System
-
German Rexroth / Argo hydraulic system
-
USA SUNNY pump
-
Siemens/Wannan main motor
-
Japan NOK seals
-
High-quality hydraulic cylinders & soft hoses
Mechanical Parts
-
Italian GIVI / Spain FAGOR grating ruler
-
Standard upper & lower tools (heat-treated, quick-release clamp, goose-neck type, multi-V bottom die)
-
Tempered machine frame for long-term rigidity
Servo System
-
INOVANCE servo motor & drive (Japan)
Crowning System
-
High-precision automatic crowning system, CNC-controlled
Hydraulic Press Brake
Hydraulic Press Brake
Manufacturing Excellence
-
Machine Frame: Stress-relieved, tempered frame for long-term rigidity
-
Precision Machining: Machined to grinding tolerance (0.05–0.01 mm) ensuring bending accuracy and parallel Y1/Y2 axis control
-

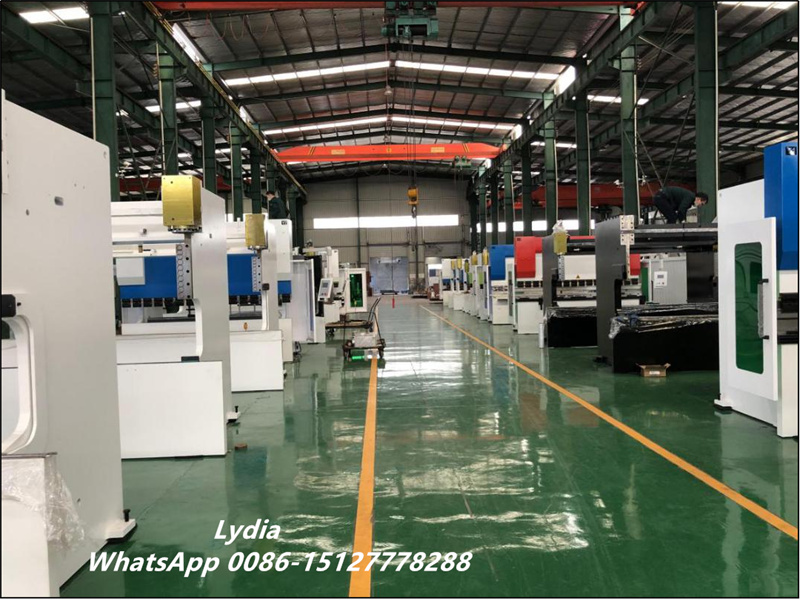

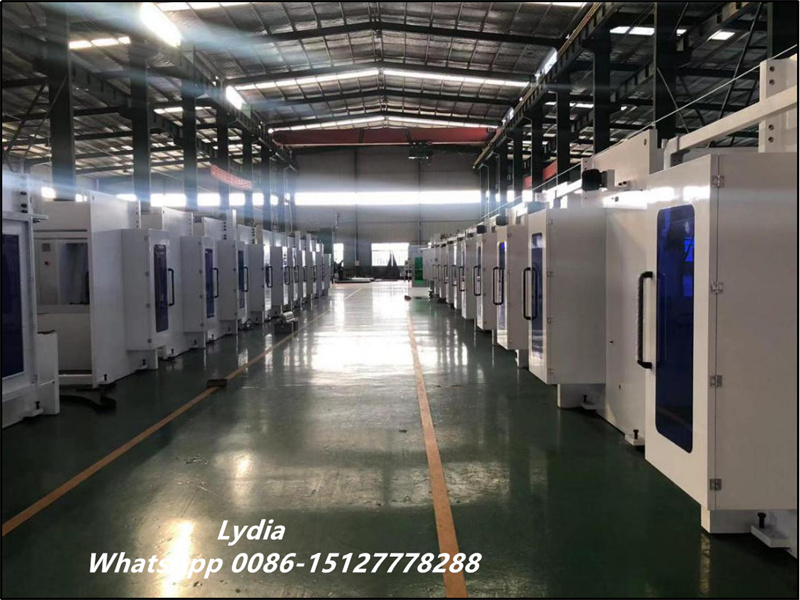

Workshop Capability: Modern CNC machining centers guarantee high accuracy, durability, and stability during production
The ZTRFM 400T4000 CNC Electro-Hydraulic Press Brake combines precision, strength, and innovation, making it the perfect solution for manufacturers seeking reliability and productivity in metal bending applications.
