What is an a corrugated roofing sheet?
Corrugated Metal Roofing Sheets
Corrugated metal sheets are versatile materials widely used for various applications, such as roofing, wall cladding, fencing, and screening.
Common Uses:
- Residential Construction:
- Suitable for homes, kiosks, shops, and restaurants.
- Industrial Settings:
- Commonly used in warehouses, factories, and offices.
- Public Infrastructure:
- Ideal for hospitals, schools, clinics, government buildings, theaters, and amusement parks.
Outstanding advantages of corrugated metal roofing
Production and Design:
The corrugated sheet starts as a flat roll, typically 1200mm wide, and is processed through a corrugated roll forming machine.
- Finished Dimensions: After rolling, the effective width with a single wave overlap is 1000mm, simplifying calculations for sheet quantity and length.
- Wave Design Benefits: The circular wave shape minimizes the surface area in contact with rainwater, effectively reducing noise and providing excellent insulation.
- Material Types: Corrugated sheets can be made from zinc, cold-rolled steel, or colored steel, offering flexibility in material choice.
- Customization Specifications: Sheets can be cut to the required length to meet specific project demands.
This combination of durability, flexibility, and customization makes corrugated metal sheets a practical choice for diverse building projects.
Processing Flow:
Uncoiling - Feeding material into machine - Roll forming - Auto cutting - Products receiving table
The Machine Technical Specifications:
| 0.15-0.3mm Thin Aluminized 50m/min High Speed Corrugated Roof Sheet Roll Forming Machine | |
| Raw Material | PPGI,PPGL |
| Material thickness: （0.13-0.3 mm) | |
| Machine Frame | 400 mm H beam structure, with casting iron brand structure |
| Material Of Rollers | High grade 45# forged steel,Chromed treatment |
| Forming Stations | Roller stations :21 rows |
| Diameter Of Shafts | Φ80mm Solid |
| Material Of Shafts | High Grade 45#,With Heat Treatment |
| Forming Speed | 50 M/Min |
| Voltage | 380v/50hz/3p (As Requested) |
| Transmission Way | By gear box |
| Main Motor | 15 KW |
| Cutting Blade Material | Gcr12 quenched treatment |
| Cutting Type | hydraulic tracking cutting |
| Driving Method | By pillar type Cylinder |

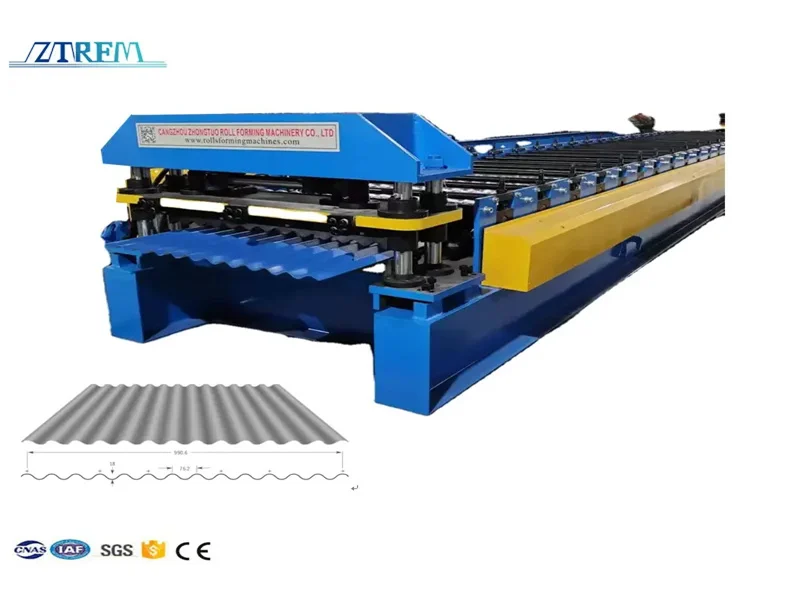

More pictures of the machine：
